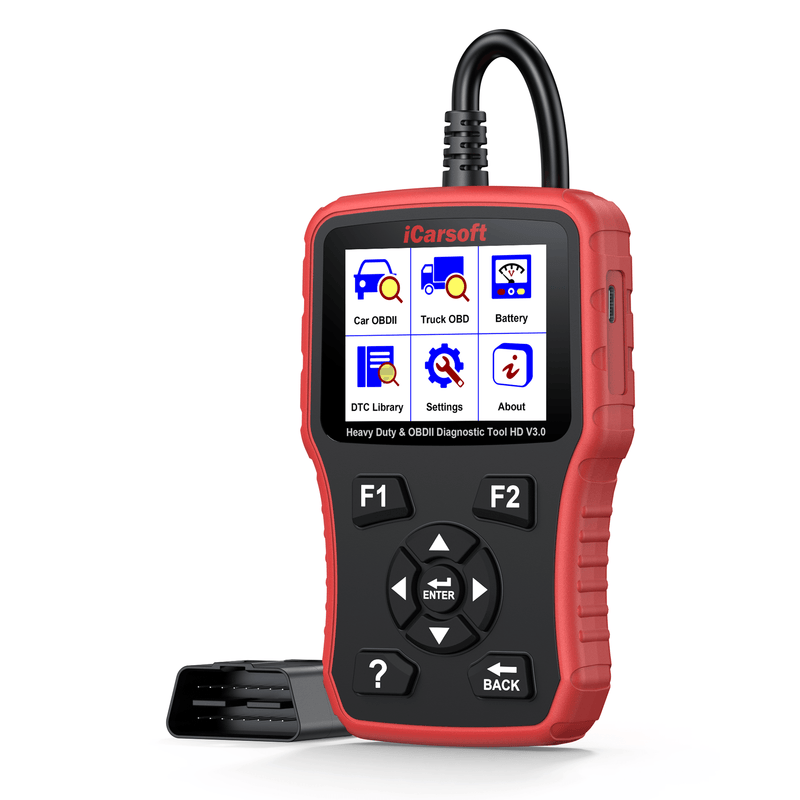

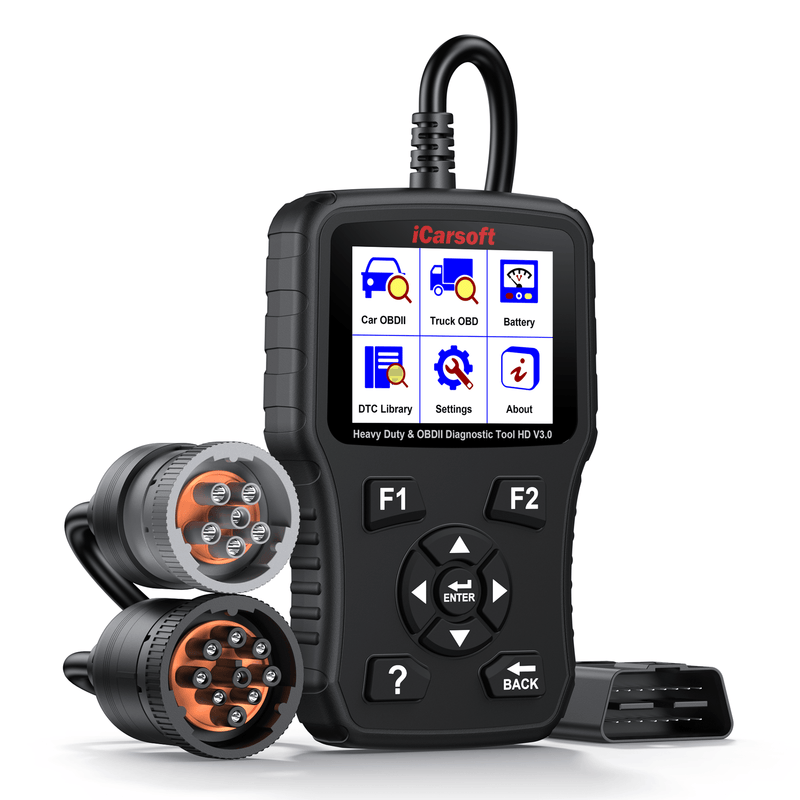

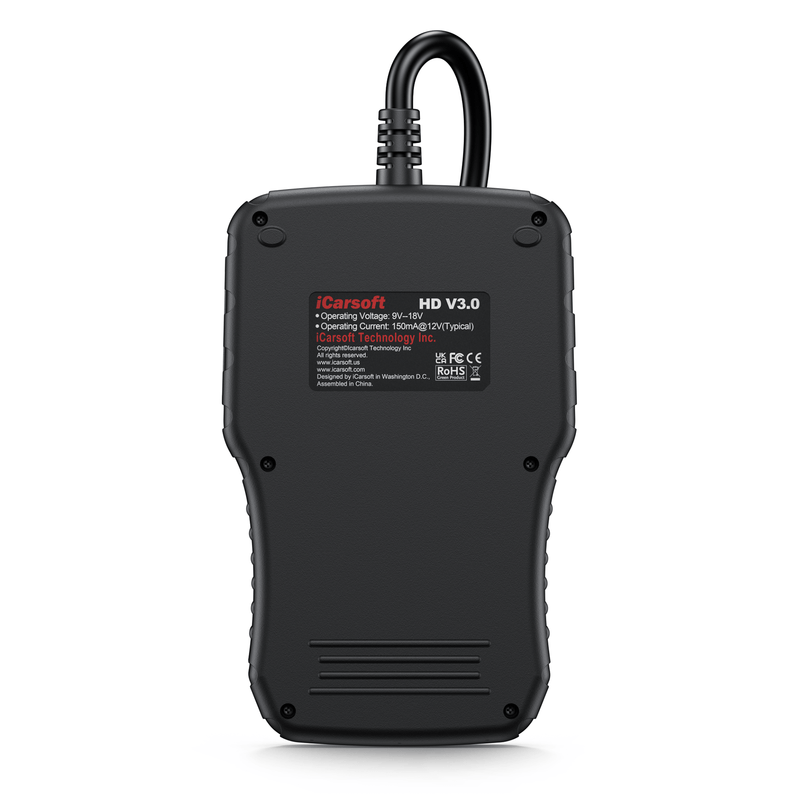

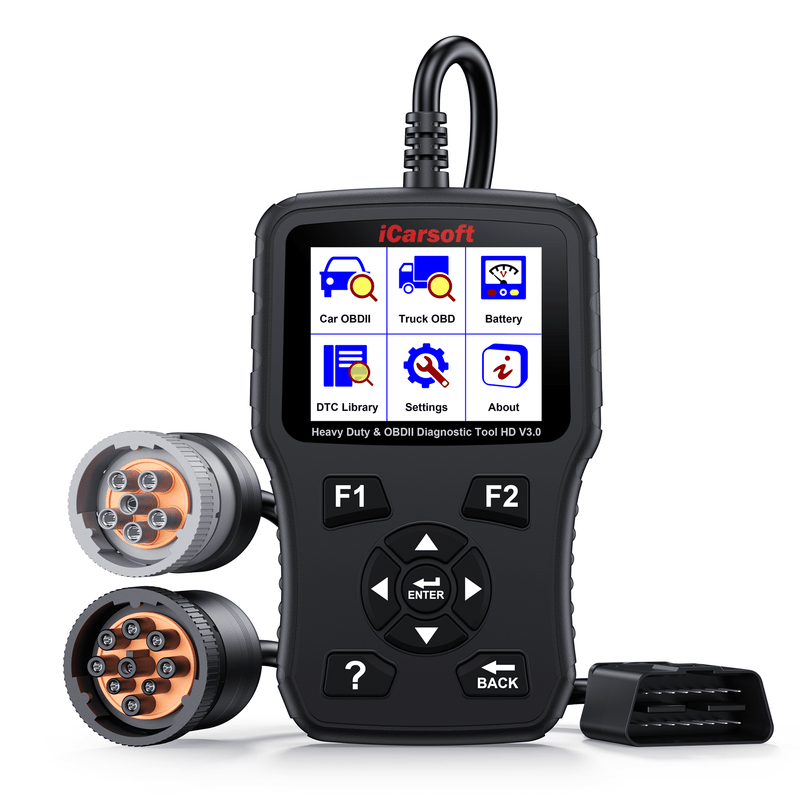

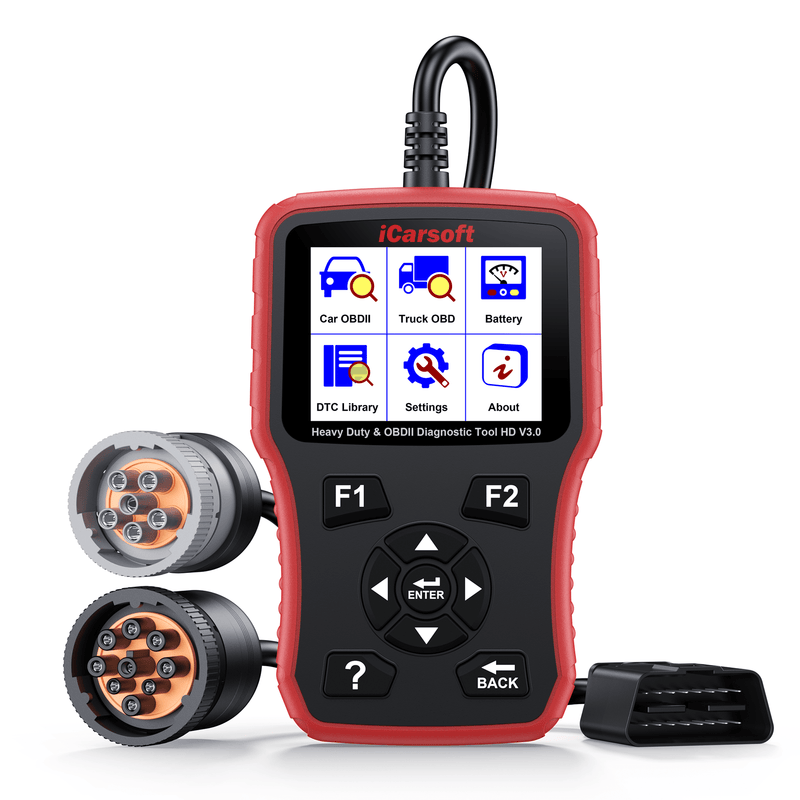

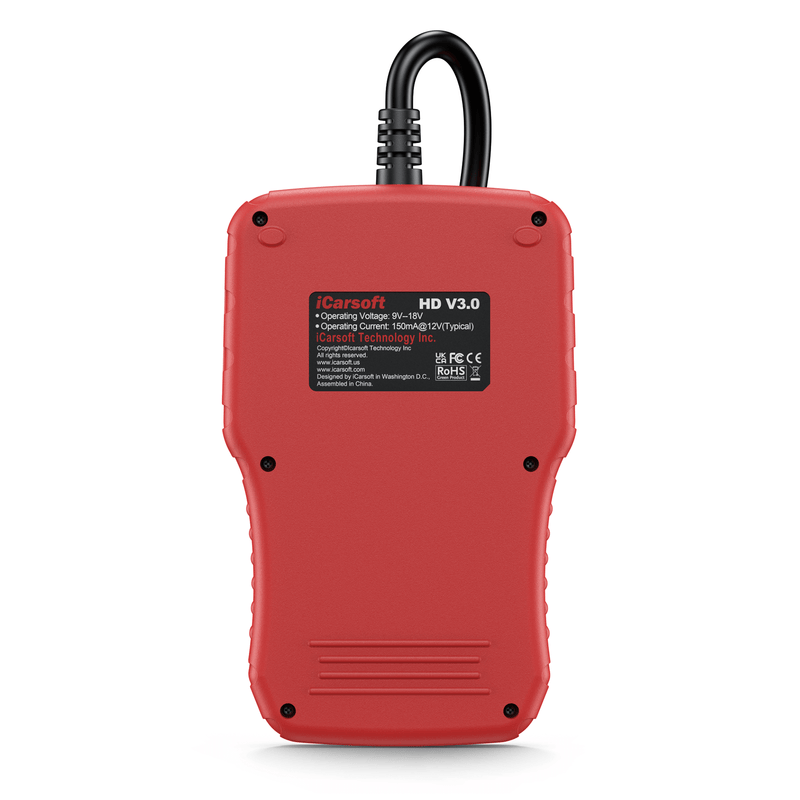

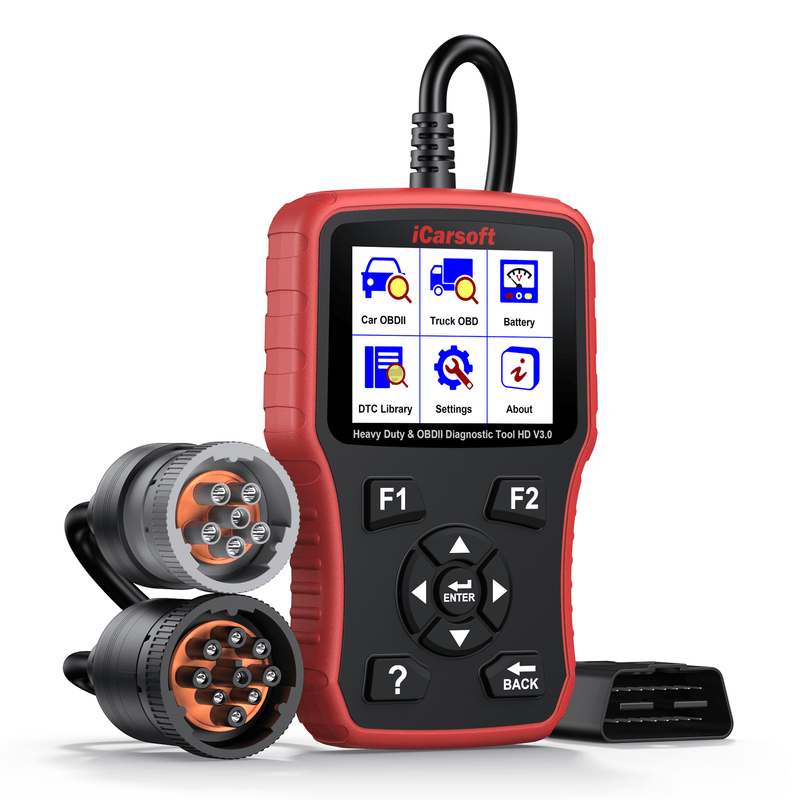

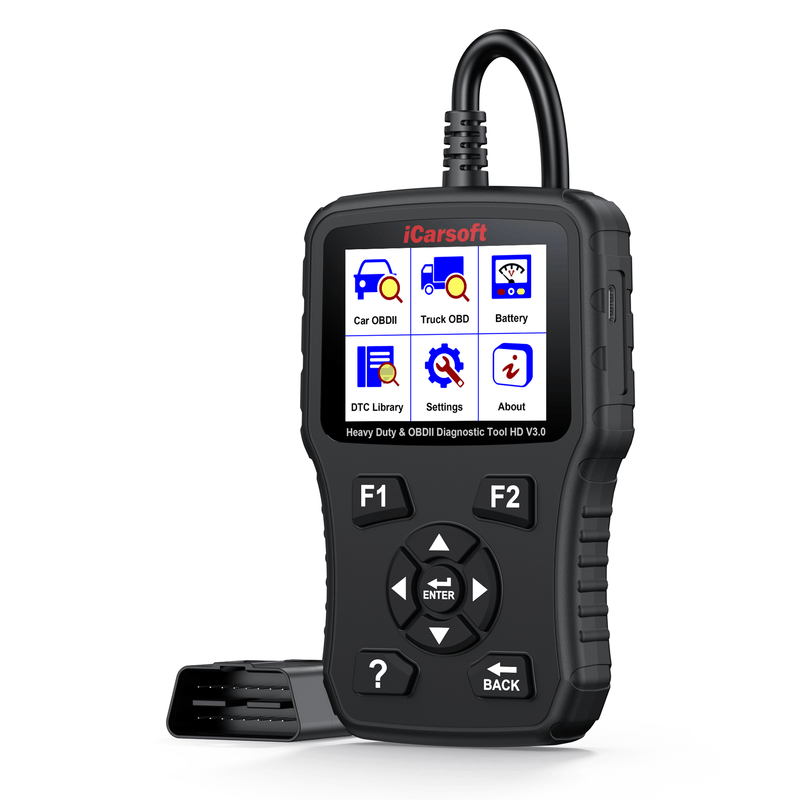

iCarsoft HD V3.0 Heavy Duty Diagnostic Tool

OBDII Diagnosing Function of iCarsoft HD V3.0 Heavy Duty Code Reader：

1.Read Codes：
This option is used to read the current, pending or permanent trouble codes. If the trouble code is found, the system will display the detailed description of the trouble code.

2.Erase Codes：

It is used to clear all existing trouble codes.
After clearing, you should retrieve trouble codes once more or turn ignition on and retrieve codes again. If there are still some trouble codes in the system, please troubleshoot the code using a factory diagnosis guide, then clear the code and recheck.

3.I/M Readiness：

I/M refers to Inspection and Maintenance that is legislated by the Government to meet federal clean-air standards. I/M Readiness indicates whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing.

The purpose of the I/M Readiness Monitor Status is to indicate which of the vehicle’s Monitors have run and completed their diagnosis and testing, and which ones have not yet run and completed testing and diagnosis of their designated sections of the vehicle’s emissions system.

4. Live Data：
This item enables you to view all data stream items and the live waveform of all selected items.

5.View Freeze Frame：
When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze frame data. Freeze Data is a snapshot of the operating conditions at the time of an emission-related fault.

Note: If DTCs were erased, Freeze Data may not be stored in vehicle memory depending on vehicle.

6.Oxygen Sensor Test：

The results of oxygen sensor test are not live values but instead the results of the ECU’s last oxygen sensor test. For live oxygen sensor readings, refer to any of the live sensor screens such as Graph Screen.

Note: Not all test values are applicable to all vehicles. Therefore, the list generated will vary depending on vehicle. In addition, not all vehicles support the Oxygen Sensors screen.

7.On-board Monitor Test：

This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components / systems.

What's in the Box of iCarsoft HD V3.0 Heavy Duty Code Reader?

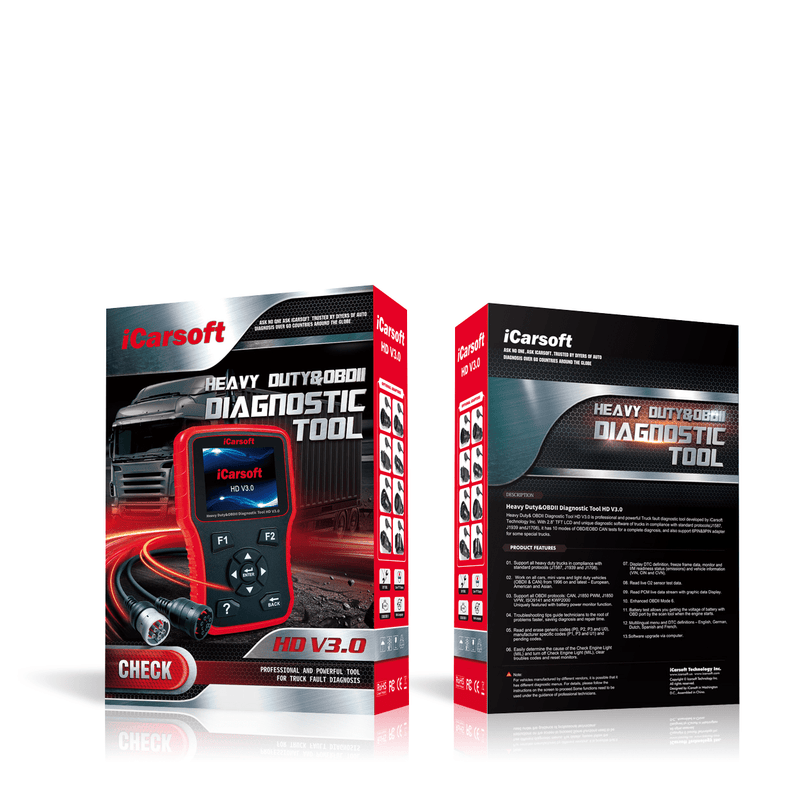

1*Packaging
1*Nylon Carry Case
1*6 Pin & 9 Pin Adaptor
1*PC Connecting Cable
1*HD V3.0

Optional Adaptors：

HD V3.0 also supports the following optional adapter kits, which can be purchased separately by contacting the dealer if necessary, including:
8Pin V2 for VOLVO,
16Pin for SCANIA,
30Pin V2 for IVECO,
37Pin for MAN,
12Pin for MAN,
7Pin for KNORR WABCO TRAILER,
12Pin for RENAULT,
14Pin OBD.
