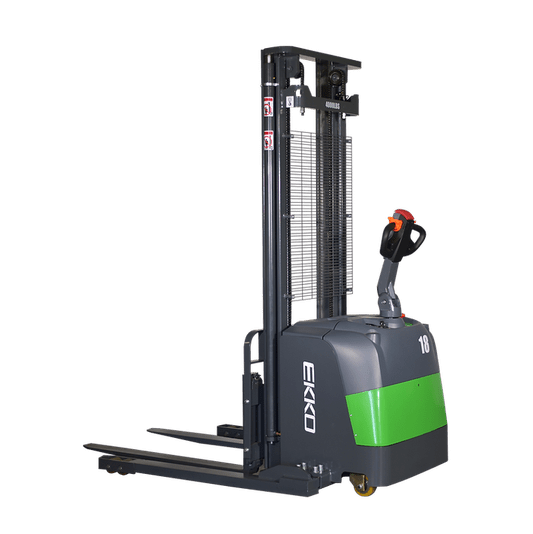

The EKKO EB18C-145Li Lithium Straddle Stacker offers the perfect combination of a forklift, reach truck, and walkie stacker, designed to handle demanding applications with ease. This versatile and robust stacker is ideal for warehouses, manufacturing floors, stockrooms, loading docks, and more. With a high-performance lifting capacity of 4,000 lbs and a maximum height of 145 inches, it delivers unmatched reliability and efficiency.
Key Features
-
Load Capacity: 4,000 lbs
-

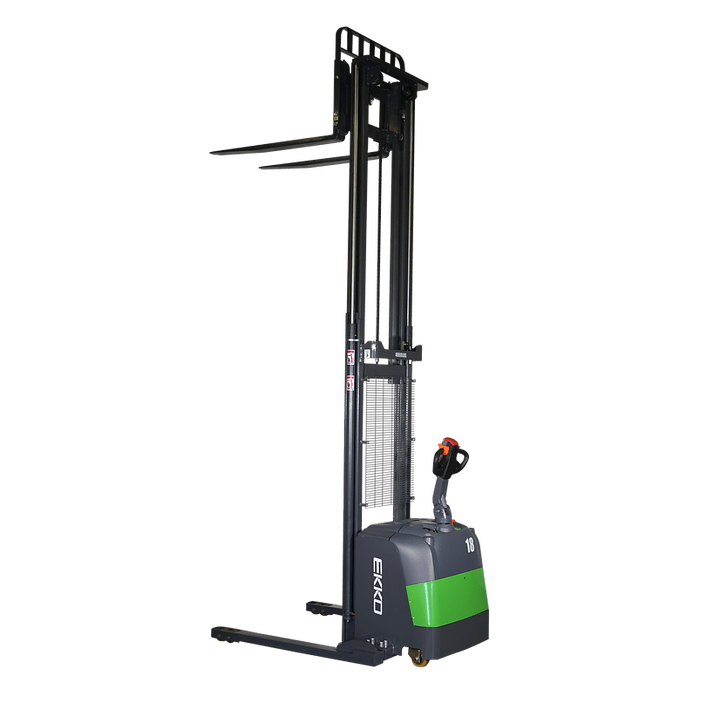

Maximum Lifting Height: 145" (12.08 ft)
-
Adjustable Fork Width: 8.66½ 82.09½
-
Adjustable Leg Width: 39.76½ 55.55½
-
Fork Length: 45.3½
-
Motors: 24V AC Drive Motor and 24V Lift Motor
-
Battery: 24V/90Ah Lithium with 24V/30A Charger Included
-
Durable Construction: Steel construction with robotic welding
-

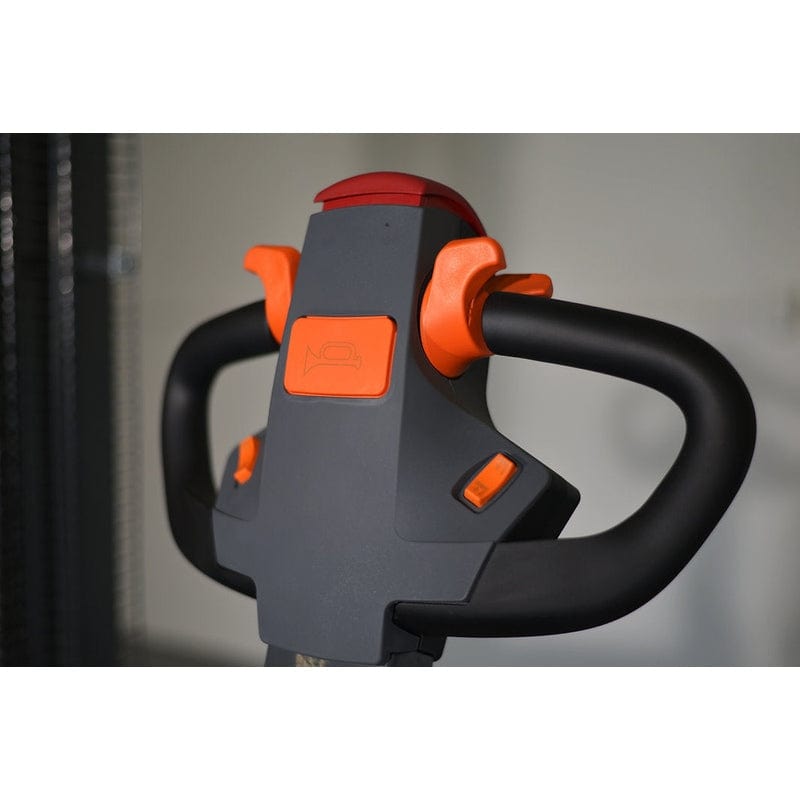

Ergonomic Design: Includes polyurethane wheels and ergonomic handle
-
Batteries and Charger: Included for convenience
Specifications
| Model: |
EB18C-145Li |
| Load Capacity: |
4,000 lbs |
| Maximum Lifting Height: |
145½ |
| Fork Length: |
45.3½ |
| Adjustable Fork Width: |
8.66½ 82.09½ |
| Adjustable Leg Width: |
39.76½ 55.55½ |
| Turning Radius: |
62.83½ |
| Overall Length: |
76.18½ |
| Overall Width: |
61½ |
| Lowered Fork Height: |
2.56½ |
| Extended Mast Height: |
174.8½ |
| Lowered Mast Height: |
93.19½ |
| Battery: |
24V/90Ah Lithium |
| Charger: |
24V/30A |
| Lifting Motor: |
3,000W |
| Driving Motor: |
750W |
| Service Weight: |
2,380 lbs |
Why Choose the EKKO EB18C-145Li?
With its robust design, high lifting capacity, and advanced ergonomic features, the EKKO EB18C-145Li is the ultimate solution for heavy-duty material handling. Its innovative features and durable construction ensure reliable performance and operational efficiency, making it an invaluable addition to your workplace.
