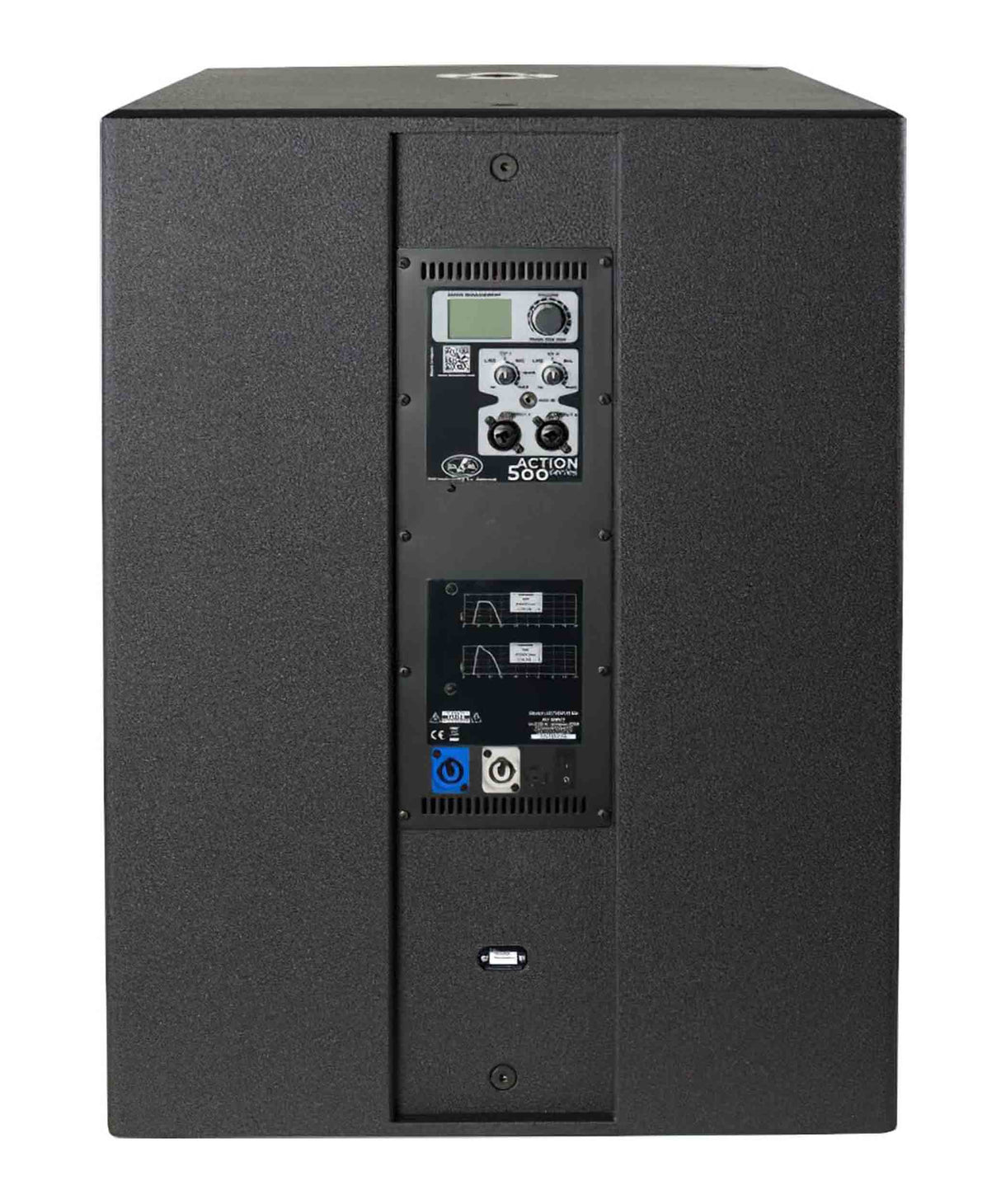

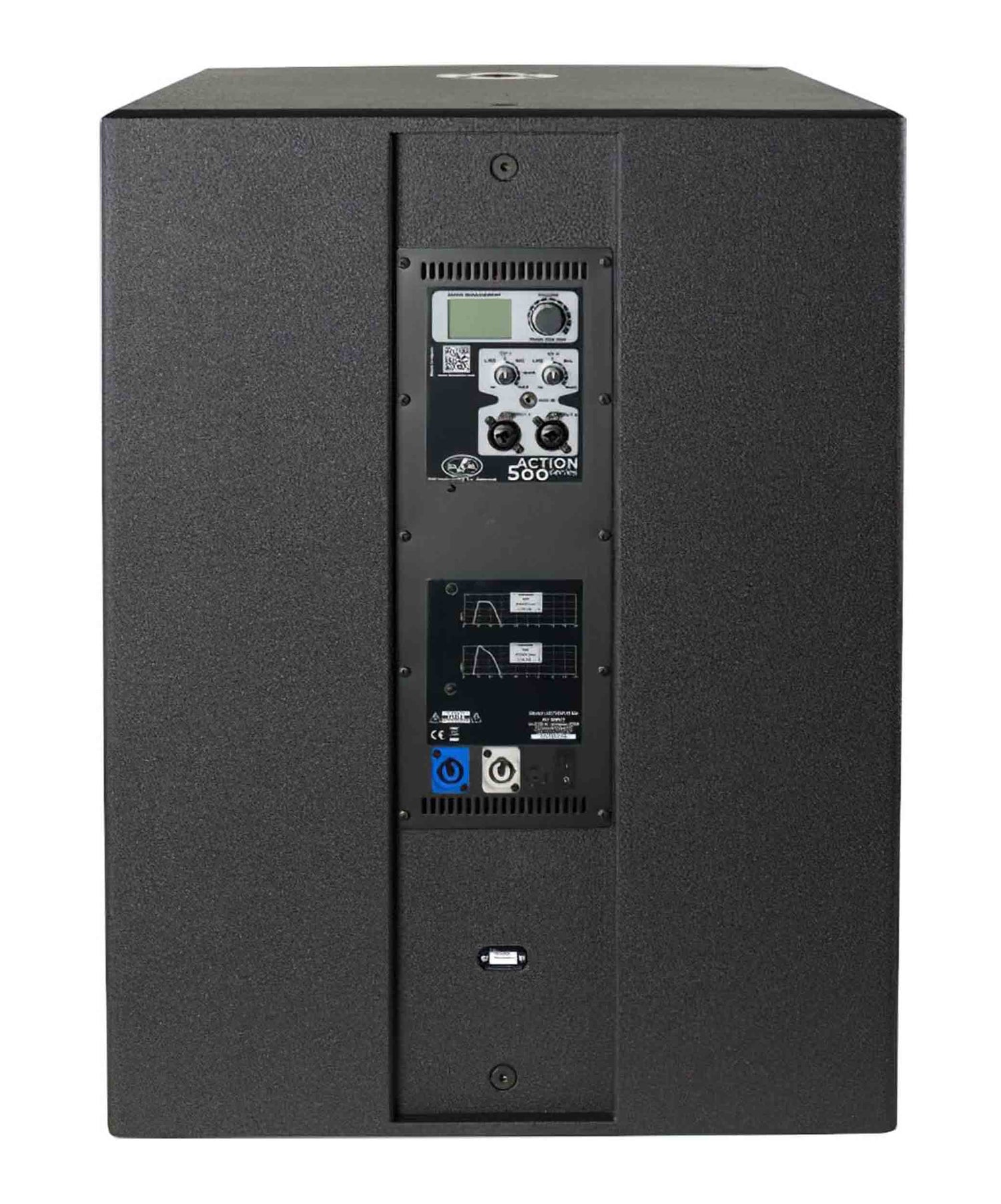

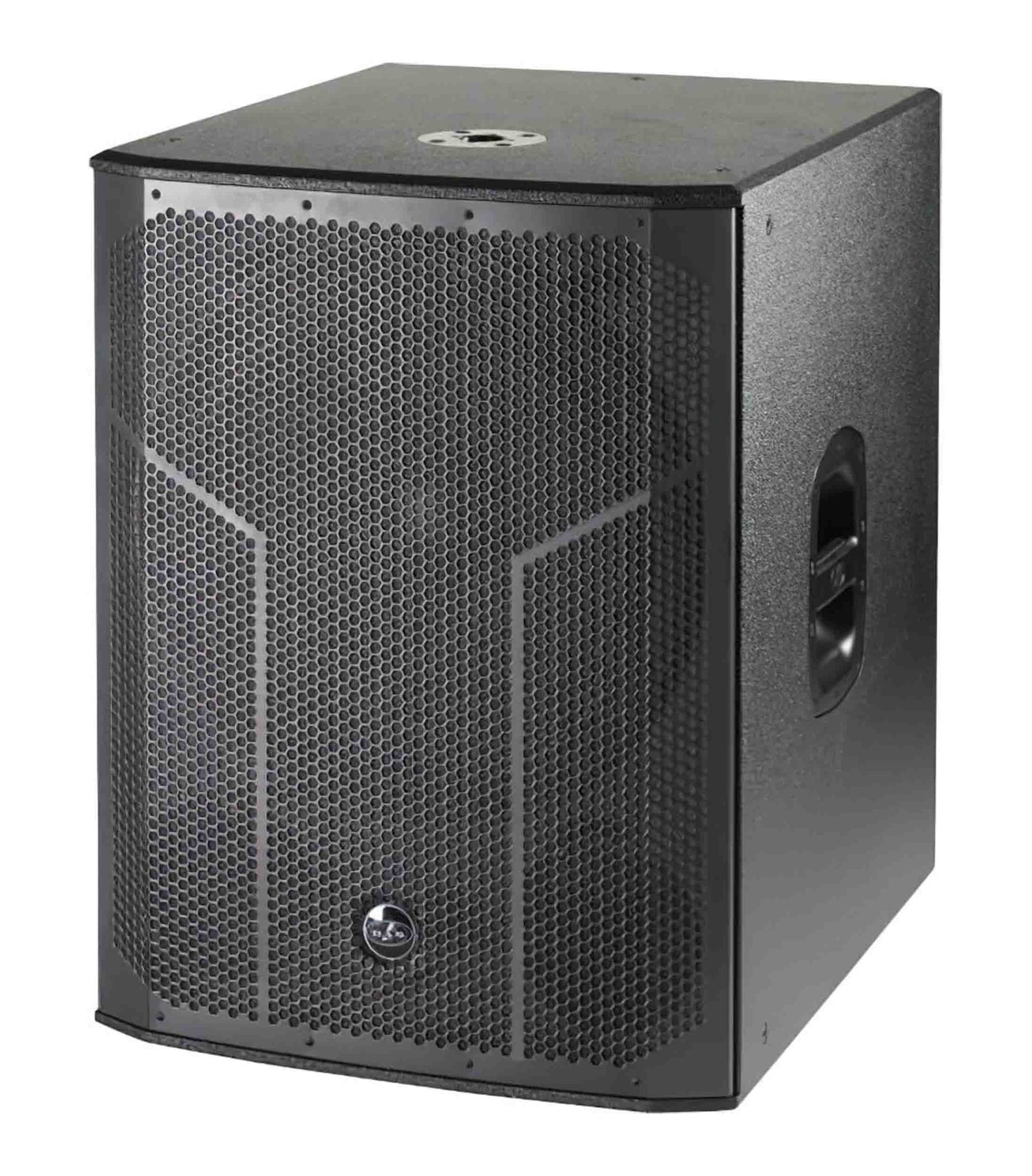

The ACTION-S18A is a high-power active subwoofer system that incorporates a 1500 W peak amplifier and single 18FW4 speaker with a 3” coil and 20 mm winding depth, double layer and sandwich to boost system power, as well as a new forced convection circuit that that works to reduce the effects of voice coil heating.
As part of our company culture, all our systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series we use the same birch plywood as our touring systems for a tight, natural warm sound found nowhere else on the market.
Product Specifications:
Frequency Range (-10 dB): 35 Hz -125 Hz (variable LPF)
Maximum Peak SPL at 1 m: 134 dB
Nominal Amplifier Power (continuous): 750 W
Nominal Amplifier Power (peak): 1500 W
Input Type: Balanced
Input Impedance: 20 kOhms
Input Sensitivity: 1.95 V (+8 dBu)
Audio Signal Input Connector: 2 x Female XLR
Audio Signal Loop Thru Connector: 1 x Male XLR
Control: DAScontrol
Current Draw 230 V / 115 V: 1.4 A/2.8 A
Enclosure Construction: Birch Plywood
Enclosure Geometry: Rectangular
Rigging: M10 Rigging Points
Finish: ISO-flex Paint
Color: Black
Dimensions (H x W x D): 28,3 x 21,5 x 26,0 in"
Net Weight: 42,5 kg (93,7 lb)
Components:
LF Driver: 18FW4
Shipping Dimensions (H x W x D): 31,3 x 23,4 x 27,2 in"
Shipping Weight: 45,5 kg (100,3 lb)
