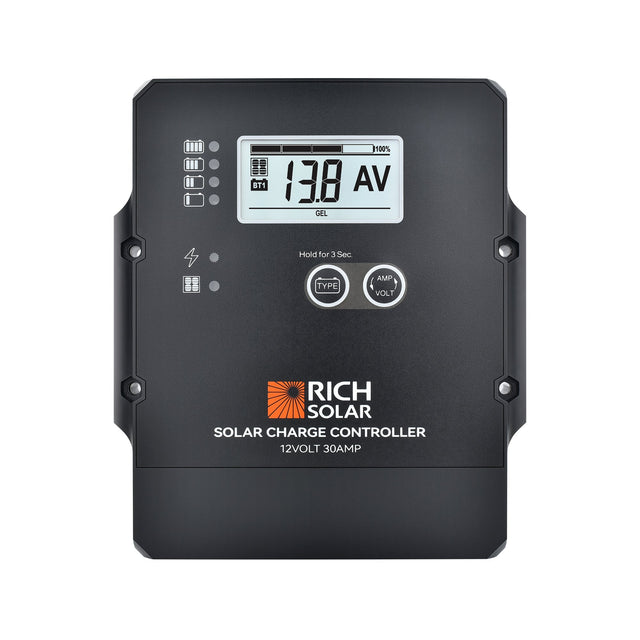

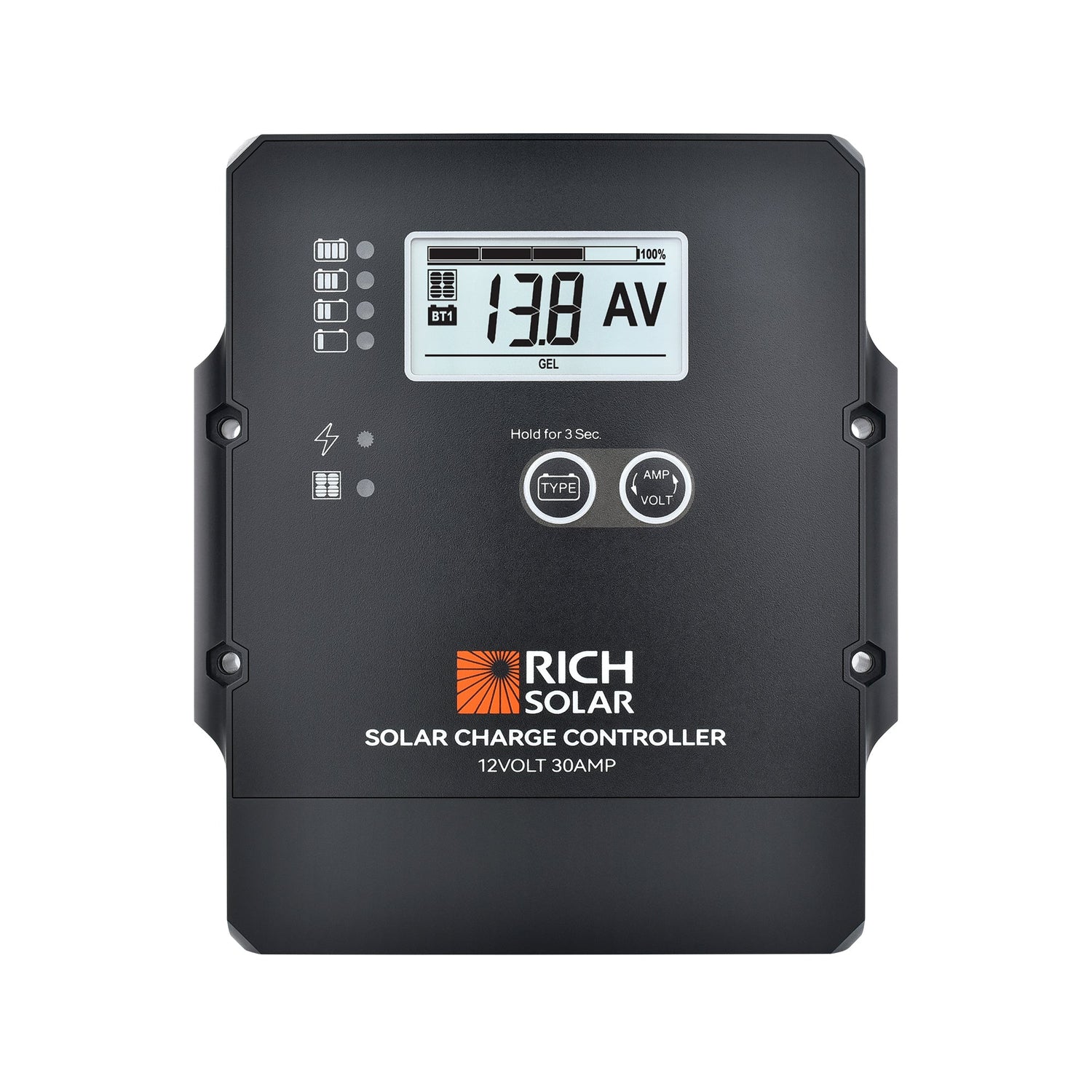

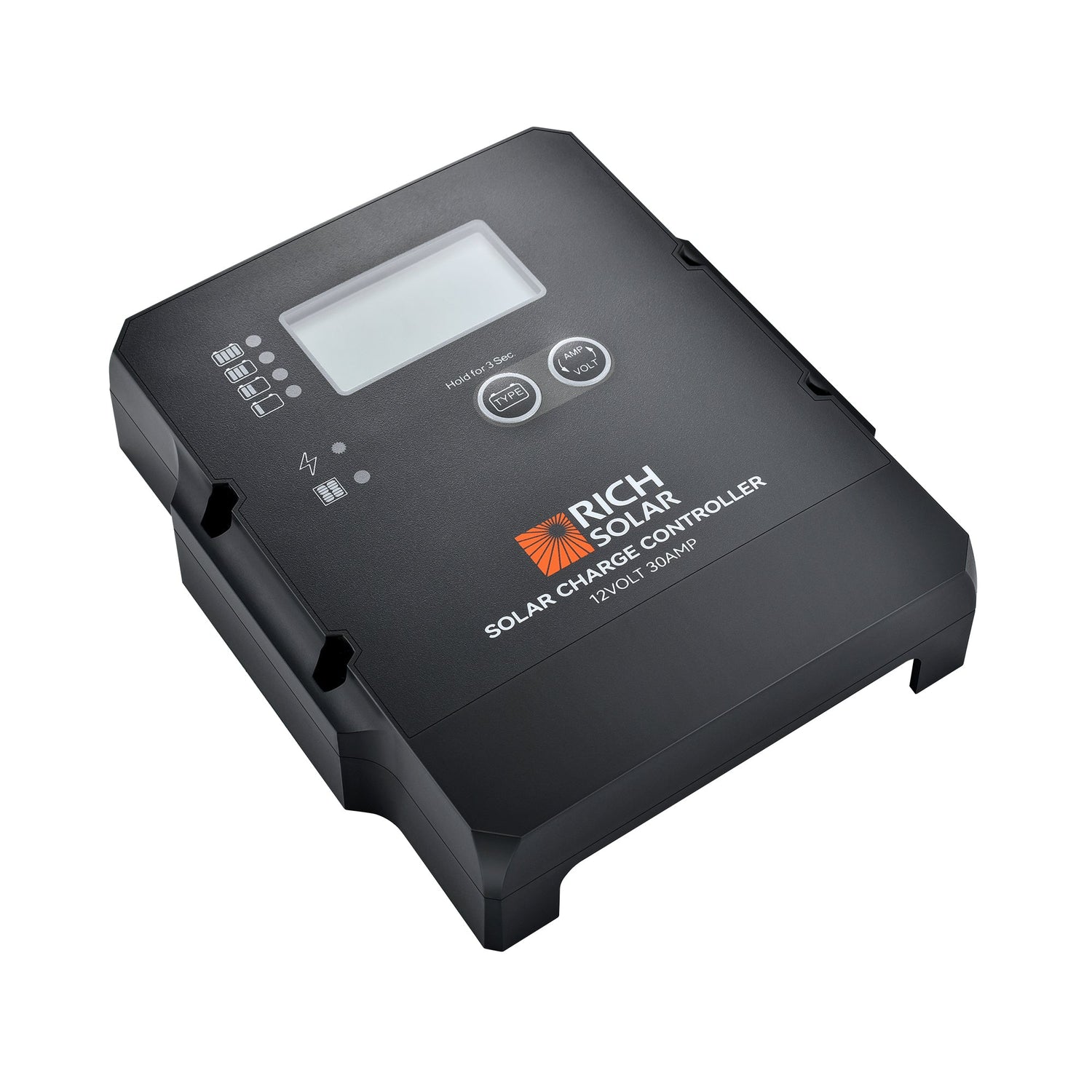

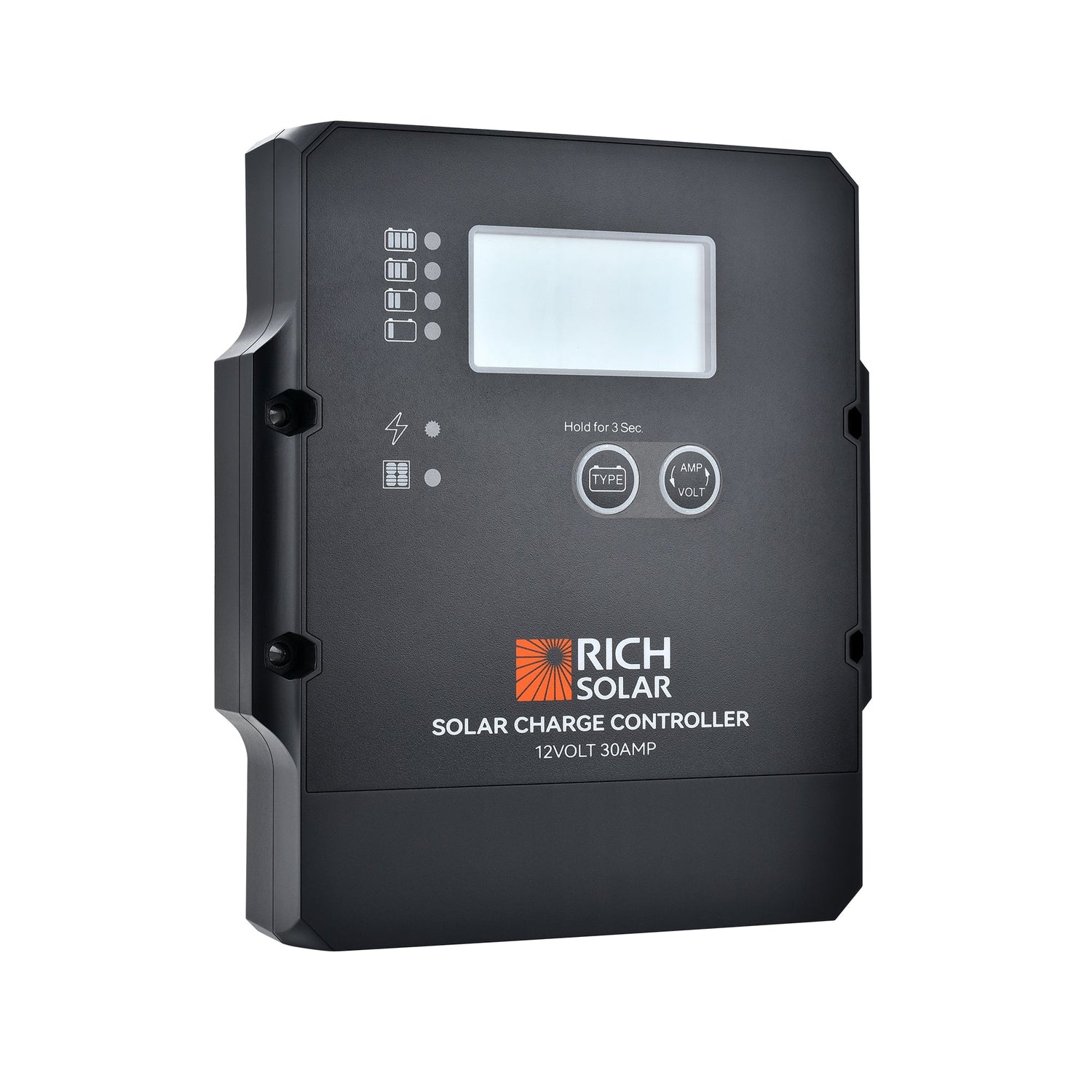

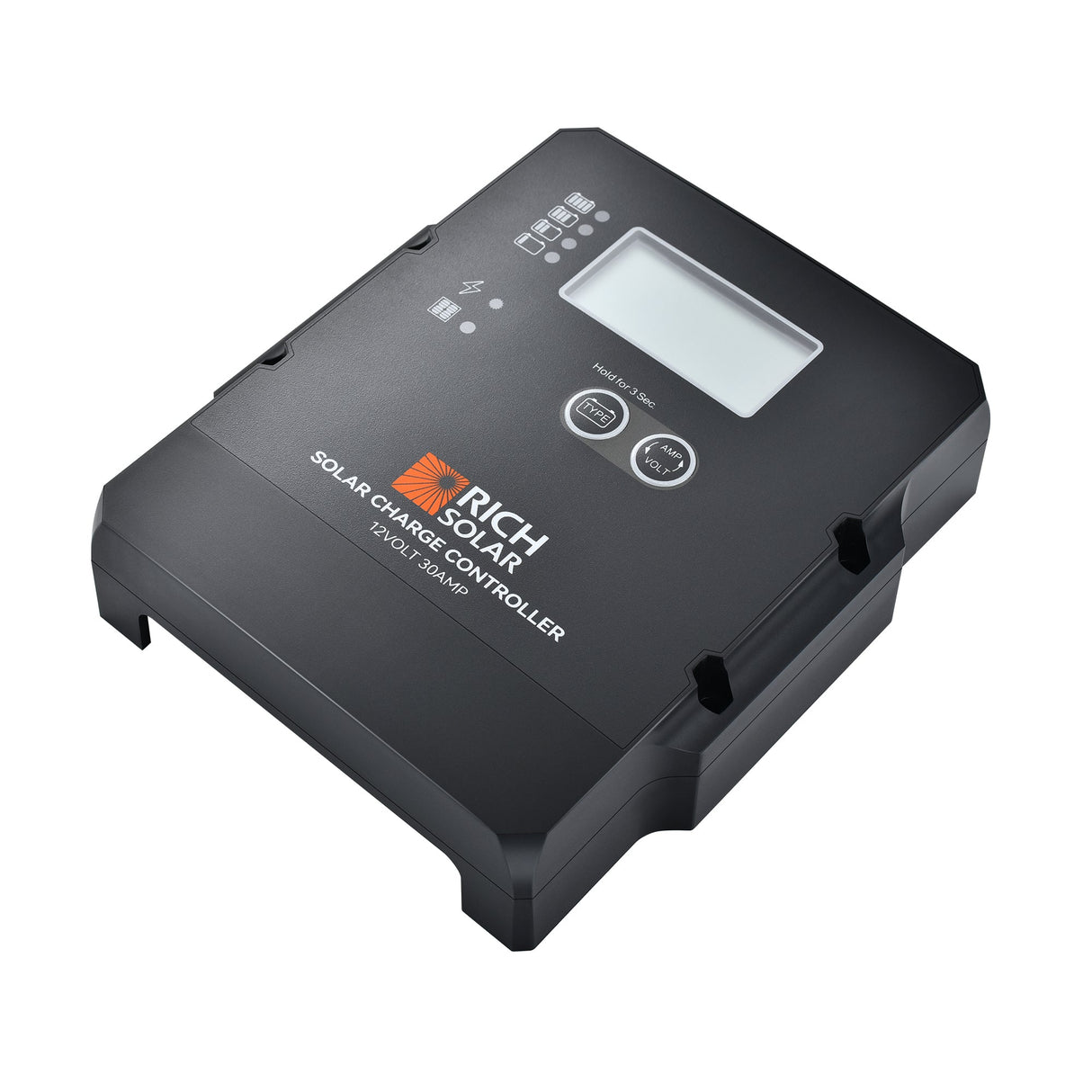

30 Amp PWM Solar Charge Controller | 12V 30A PWM Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | Top Rated
30 Amp PWM Solar Charge Controller | 12V 30A PWM Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | Top Rated is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
In Stock
ON SALE!
Clip coupon for additional at checkout
Ships same or next day *Exclusions May Apply*
Delivery and Shipping
Delivery and Shipping
We offer fast and reliable shipping across the continental U.S., with free shipping available on most orders (exclusions may apply based on brand and product type). Orders are typically processed within 1–2 business days and transit time is usually 4–7 business days. Larger items may ship via freight and require a scheduled curbside delivery. Please ensure your contact details are accurate at checkout. For questions about delivery timelines, shipping eligibility, or special requests, feel free to contact us directly. See Policy.
Do You Offer Financing?
Do You Offer Financing?
Shop Pay + After Pay - Choose the product you desire the most now and pay over time using Shop Pay / After Pay. Select your monthly payments and have your product delivered with no additional fees.
ACORN + APPROVE Financing - For larger purchase and businesses, ACORN and APPROVE offers flexible financing designed around their goals. Complete a 60-second application and connect with leading lenders—no effect on your credit score.
Price Match Guarantee
Price Match Guarantee
We’re committed to offering the best online prices—if you find a lower price from an authorized retailer, we’ll beat it. Our 100% Price Beat Guarantee excludes promotions, auction sites, and exchanges, and factors in item price, tax, and shipping. For price match inquiries, contact us at (833) 932-9683

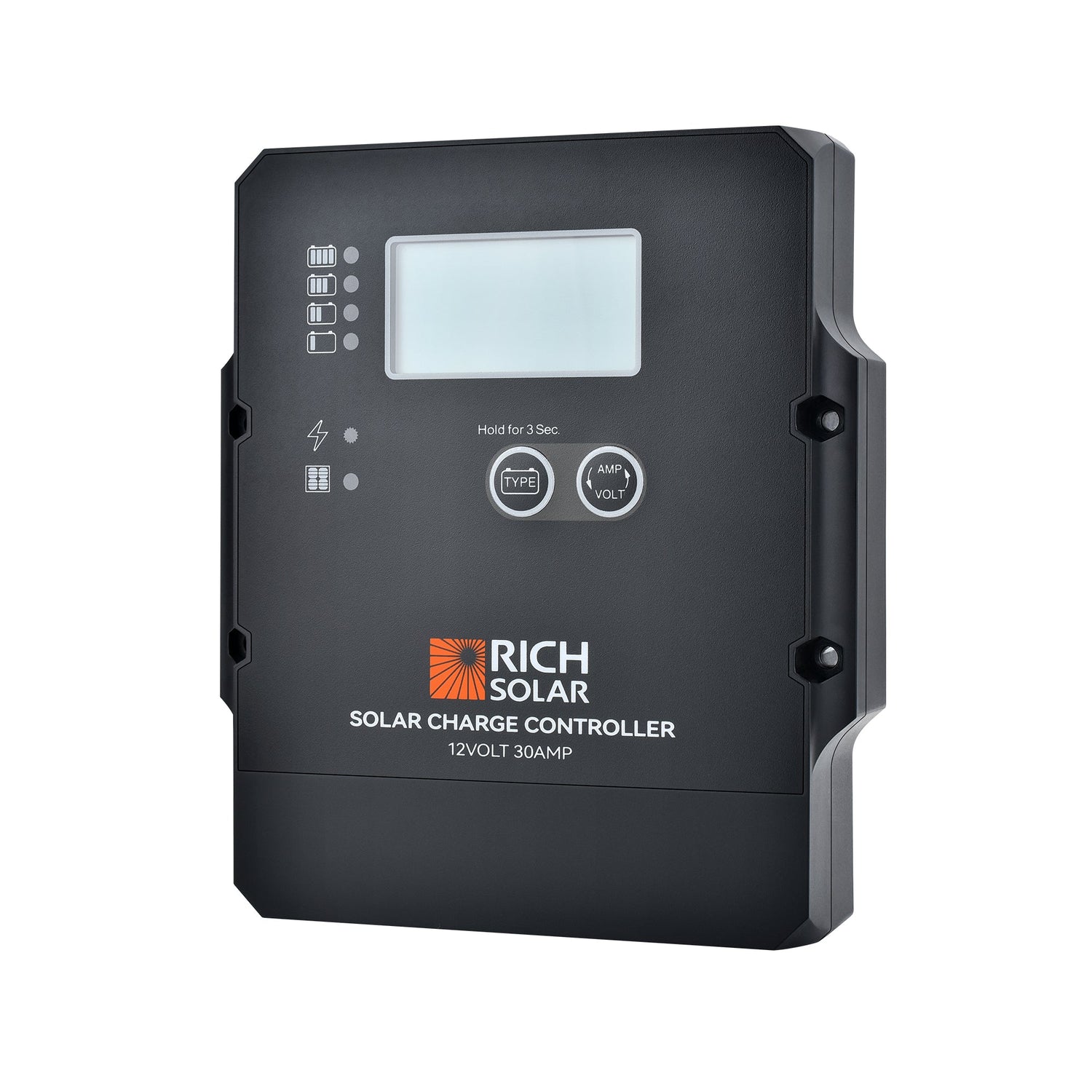

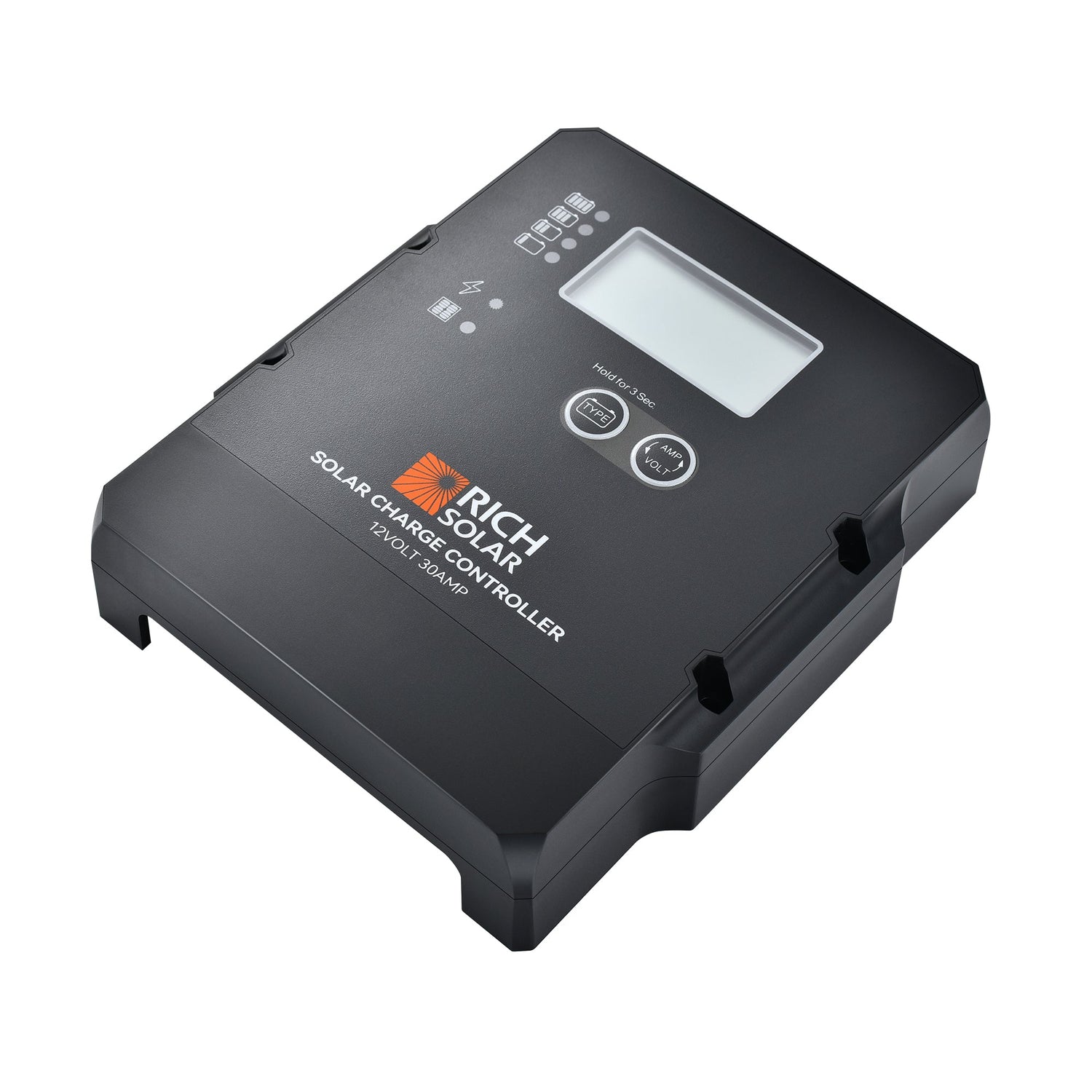

30 Amp PWM Solar Charge Controller | 12V 30A PWM Controller for RVs...
Features
- PWM technology, switching control by MOSFET
- Common positive grounding connection
- High efficiency and low power consumption
- Battery type setting and battery condition indication
- Smart charging control
- Charging time management
- LED indication for the battery condition and charging status
- Digital display charging parameters and battery settings
- Automatically activates Lithium battery against BMS protection
- Thermal protection
- Over voltage protection, short-circuit protection, reverse polarity protection
- No sparks
- The thinnest and most compact design
- Corrosion-resistant terminals and connectors
- Conformal coating supplied to the inside board against moisture
- Includes a port for external battery temperature sensor (BTS - optional)
- Compatible with most rechargeable lead acid
- batteries, including Flooded (WET), AGM, GEL, Calcium and Lithium batteries
- Designed to meet CE standards and comply with EMC and FCC regulations
Specifications
-
Electrical Parameters
- Rated Solar Panel Amps: Max. 30 AMP
- Normal Input Solar Cell Array Voltage: 15~22 VDC
- Maximum Solar Cell Array Voltage (output has no load): Max. 25 VDC
- The Controller Lowest Operating Voltage at Solar or Battery Side: Min. 8 VDC
- Standby Current Consumption at Night: Max. 5 mA
- Maximum Voltage Drop - Solar Panel to Battery: Max. 0.25 VDC
-
Physical Parameters
- Controller Material: Plastic, Standard ABS

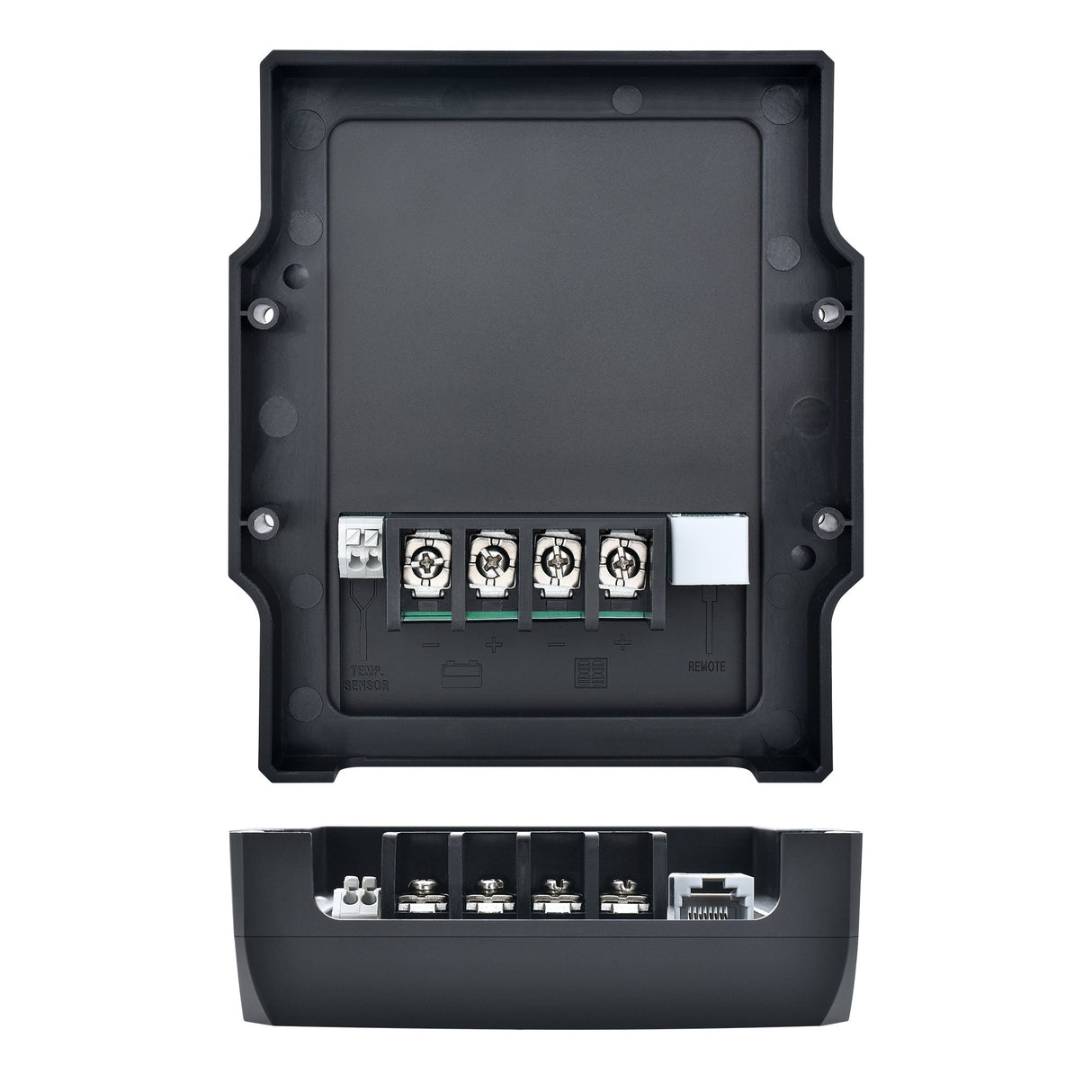

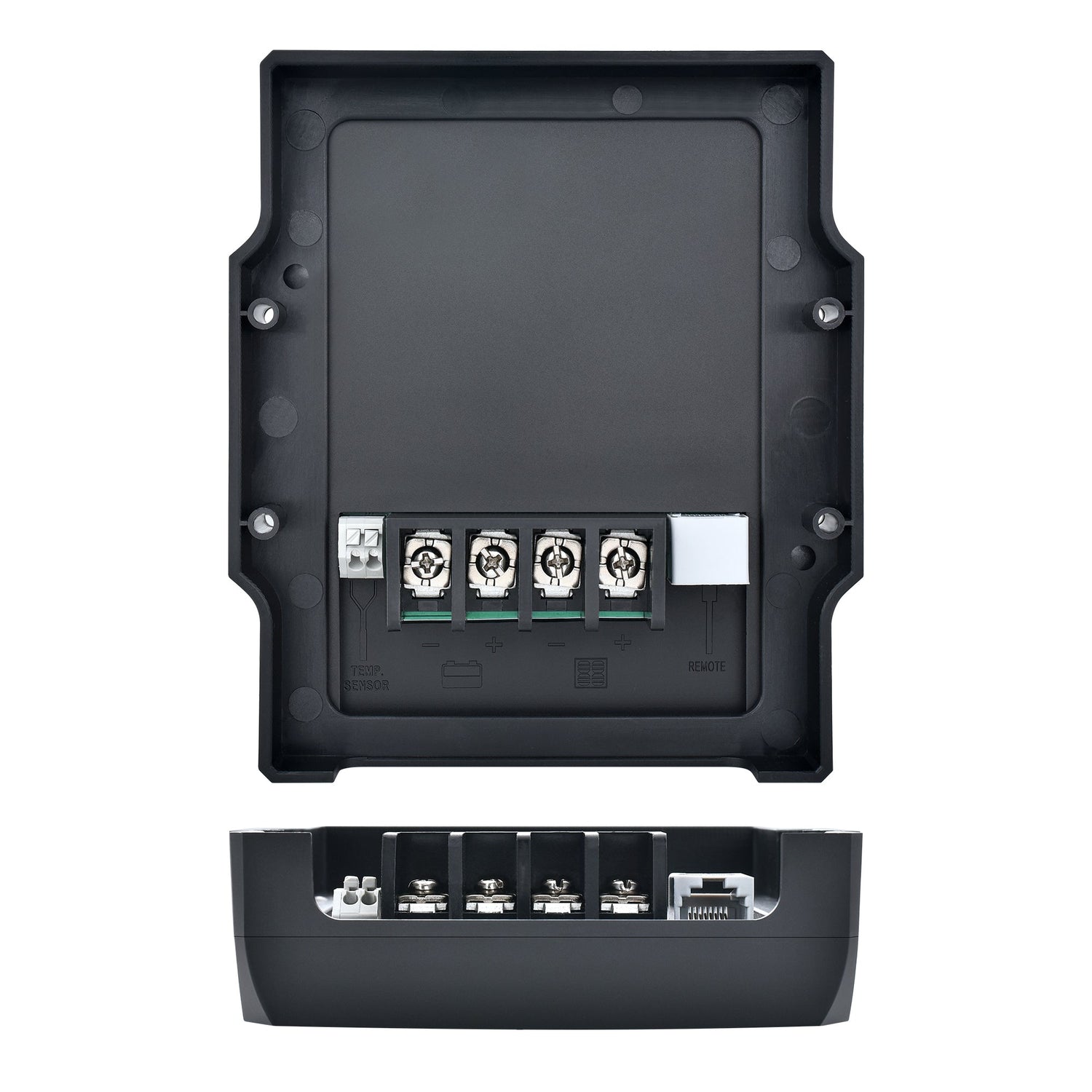

- Power Terminal Maximum Stranded Wire Size: #8 AWG stranded - 0.2in²
- Power Terminal Torque: Up to 17 in-lb (1.92 N·m)

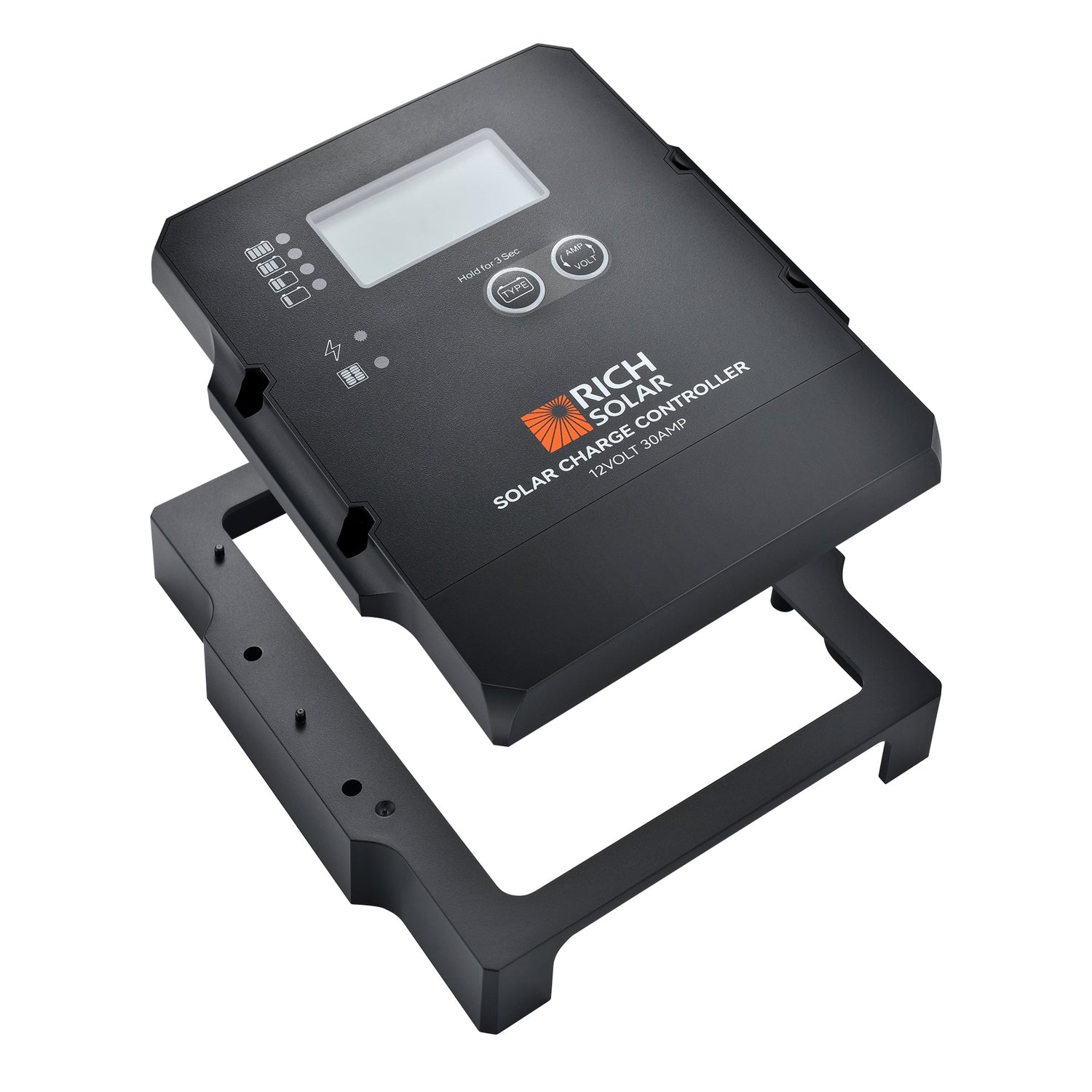

- Mounting: Vertical wall mounting
- IP Grade: IP22
- Net Weight: Approx. 10.6oz / 300g
