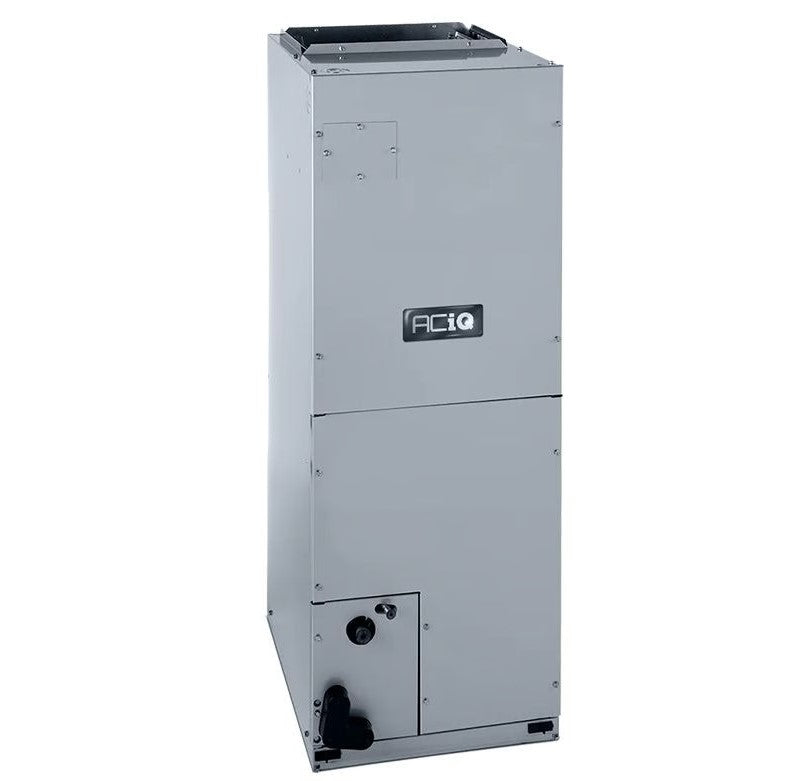

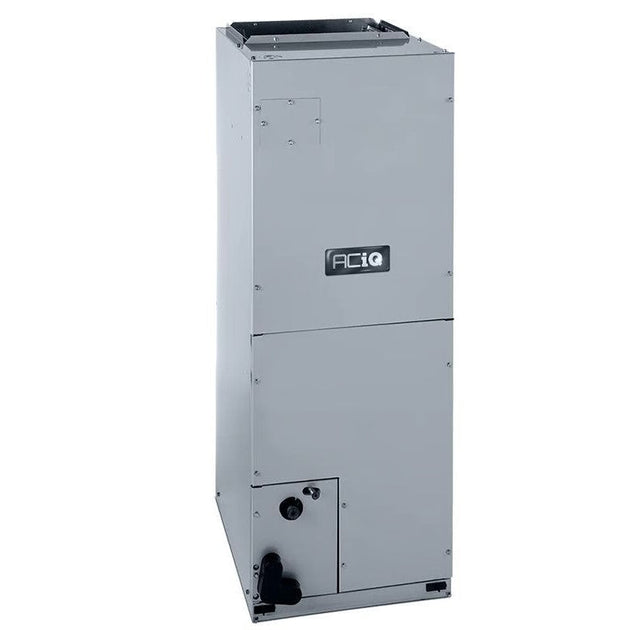

ACiQ 2 Ton Central Ducted Air Handler Multi-Position 17.5" Cabinet R454B
Authorized ACiQ Dealer
Manufacturer Warranty: Standard 5-Year Parts / 7-Year Compressor
- Energy-Saving Performance
- Quiet, Comfort-Focused Operation
- DIY-Friendly, Fast Installation
- Smart Control & Custom Comfort
ACiQ 2 Ton Central Ducted Air Handler Multi-Position 17.5" Cabinet R454B is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
In Stock
ON SALE!
Clip coupon for additional at checkout
Ships same or next day *Exclusions May Apply*
Delivery and Shipping
Delivery and Shipping
We offer fast and reliable shipping across the continental U.S., with free shipping available on most orders (exclusions may apply based on brand and product type). Orders are typically processed within 1–2 business days and transit time is usually 4–7 business days. Larger items may ship via freight and require a scheduled curbside delivery. Please ensure your contact details are accurate at checkout. For questions about delivery timelines, shipping eligibility, or special requests, feel free to contact us directly. See Policy.
Do You Offer Financing?
Do You Offer Financing?
Shop Pay + After Pay - Choose the product you desire the most now and pay over time using Shop Pay / After Pay. Select your monthly payments and have your product delivered with no additional fees.
ACORN + APPROVE Financing - For larger purchase and businesses, ACORN and APPROVE offers flexible financing designed around their goals. Complete a 60-second application and connect with leading lenders—no effect on your credit score.
Price Match Guarantee
Price Match Guarantee
We’re committed to offering the best online prices—if you find a lower price from an authorized retailer, we’ll beat it. Our 100% Price Beat Guarantee excludes promotions, auction sites, and exchanges, and factors in item price, tax, and shipping. For price match inquiries, contact us at (833) 932-9683
ACiQ 2 Ton Central Ducted Air Handler Multi-Position 17.5" Cab...
Product Details
ACiQ 2 Ton Central Ducted Air Handler Multi-Position 17.5" Cabinet R454B ACIQ-24-AHD
The ACIQ-24-AHD air handler brings advanced climate control to your home with a variable speed DC blower and cutting-edge communicating technology. Working in sync with your thermostat and inverter condenser, this system automatically adjusts BTU output for peak efficiency and consistent comfort. Designed for easy integration with your existing ductwork, the ACIQ-24-AHD ensures even, reliable distribution of heated or cooled air throughout your space keeping you comfortable in every season.
ACIQ-24-AHD 24,000 BTU 2 Ton Variable Speed Air Handler – R454B Compatible
-
24,000 BTU / 2 Ton Capacity – Efficient and compact solution for smaller homes or zones
-
Central Ducted Air Handler – Designed for smooth integration with your existing ductwork system
-
Variable Speed DC Blower Motor – Delivers quiet, energy-efficient operation with consistent airflow
-
24V Thermostat Compatible – Fully supports all standard 24V thermostats, including smart and programmable models
-
Multi-Positional Installation – Flexible configuration options: upflow, downflow, or horizontal (left/right)
-
R454B Refrigerant Compatible – Eco-friendly design ready for the latest refrigerant standards
-
Inverter-Ready Communication – Supports smart communication with inverter condensers for optimized performance
-
Perfect for New Installs or Retrofits – Ideal for upgrading an older system or outfitting a new HVAC setup
Installation & Maintenance
Installing the ACiQ central ducted air handler is a straightforward process, similar to replacing a standard air handler. Your HVAC technician will complete all necessary connections, including electrical wiring, refrigerant lines, thermostat controls, and communication wiring. The unit is also connected to your existing return and supply ductwork for efficient air distribution.
This air handler is designed with flexibility in mind. Its multi-positional configuration—upflow, downflow, or horizontal makes it adaptable to a wide range of installation setups. The system can be controlled by any 24V thermostat with two stages of heating capability.
For added heating performance during extremely cold weather, optional supplemental electric heat kits are available. When it comes to maintenance, the built-in intelligent control board provides diagnostic fault codes, helping technicians quickly identify and resolve any system issues.
Please note: This air handler must be installed alongside a compatible condenser and other necessary components, which may be sold separately if not included in your product package. To operate using electric-only heat, a compatible electric heat kit is required and also sold separately.
Specifications
ACiQ 2 Ton Central Ducted Air Handler Multi-Position 17.5" Cabinet R454B ACIQ-24-AHD
| Brand | ACiQ | SKU | ACiQ-24-AHD |
| Weight | 127.430000 | Replaces | ACiQ-24-AHB |
| Cooling BTU | 24,000 BTU | Maximum CFM | 824 |
| Decibel Level (dBA) | Up to 44 Decibels | Electric Backup Heat Capabilities (Optional) | 5 Kilowatts, 8 Kilowatts, 10 Kilowatts |
| Configuration | Multi-Positional | Refrigerant | R454B |
| Liquid Line | 3/8" | Suction Line | 3/4" |
| Electrical | 208/230V 1 Phase 60 Hz | Max Breaker Size | 15 Amps |
| Min. Breaker Size | 5.5 Amps / 4.0 Amps | Tonnage | 2 Ton |
| BTU/Tonnage | 24,000 BTU/2 Ton | Mini Split Type | Multi-Positional |
| Zone Compatibility | Single Zone | Connection | Flared |
| Height | 45" | Width | 17.5" |
| Depth | 21" | Warranty | 12 Years Compressor and 7 Years Parts with Online Registration |
Warranty
ACiQ 2 Ton Central Ducted Air Handler Multi-Position 17.5" Cabinet R454B ACIQ-24-AHD
| Warranty Type | Parts | Compressor |
| Standard Warranty | 5 year parts | 7 year parts |
| Registered Warranty | 7 year parts | 12 year parts |
