ACiQ 2.5 Ton Extreme+ Ducted Air Handler Multi-Position 17.5" ...
Product Details

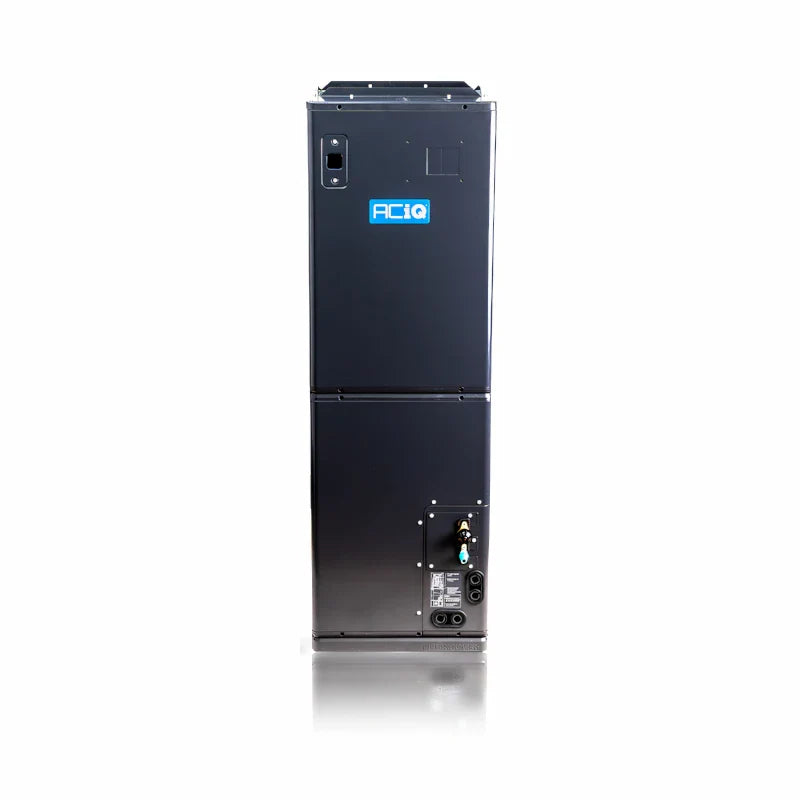

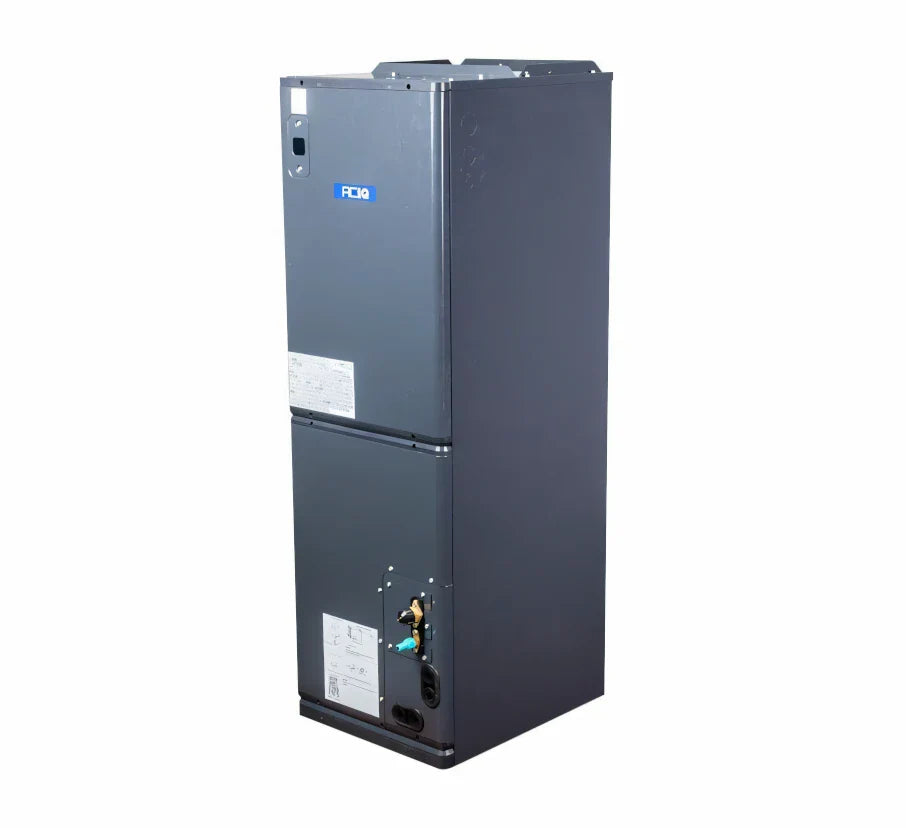

ACiQ 2.5 Ton Extreme+ Ducted Air Handler Multi-Position 17.5" Cabinet R454B ACIQ-30-PAH
The ACiQ-30-PAH Extreme+ is a powerful 2.5-ton ducted air handler designed for top-tier performance in any climate. Featuring a variable speed DC blower and advanced communicating technology, it automatically adjusts BTU output to deliver unmatched efficiency and comfort. Its slim-fit cabinet allows for easy installation in upflow, downflow, or horizontal positions. Compatible with any 24v thermostat and R454B refrigerant, this high-efficiency unit also qualifies for enhanced tax credits and energy rebates.
ACiQ-30-PAH Extreme+ 2.5 Ton Ducted Air Handler – Product Features
-
2.5 Ton High-Efficiency Performance – Designed to deliver powerful central heating and cooling with a 2.5-ton capacity, ideal for mid-sized homes.
-
Extreme+ Efficiency Technology – Achieves peak comfort and energy savings by communicating directly with your inverter condenser and thermostat to automatically adjust BTU output.
-
Variable Speed DC Blower Motor – Provides ultra-quiet, efficient airflow that adapts to your home’s needs, reducing energy usage and improving indoor air quality.
-
Multi-Positional Installation Options – Flexible design supports upflow, downflow, and horizontal left/right configurations, perfect for almost any space or layout.
-
Compact Slim-Fit Cabinet – The space-saving design allows for faster, easier installation—even in tight or low-clearance areas.
-
Compatible with 24V Thermostats – Works with any standard 24v thermostat, giving you complete flexibility and easy control of your HVAC system.
-
R454B Refrigerant Ready – Supports eco-friendly R454B refrigerant, aligning with new environmental standards and future HVAC regulations.
-
Qualifies for Energy Rebates – Engineered for maximum energy efficiency, helping you take advantage of federal tax credits and local rebate programs.
Installation and Maintenance
The installation process for the ACiQ Extreme+ central ducted air handler is similar to that of other replacement air handlers. Your technician will handle electrical, refrigerant, thermostat, and communication connections, as well as link the air handler to the return and supply ductwork. This air handler is multi-positional (upflow, downflow, or horizontal) and features a narrower cabinet design, offering greater versatility and easier installation compared to other models. It is compatible with any 24v thermostat that supports two stages of heating. For colder days, supplemental electric heat kits are available as a backup heat source.
If maintenance is needed, the air handler’s intelligent control board will display fault codes to help diagnose any issues with the system.
Important Note: For proper function, the air handler must be installed with a condenser and other required installation equipment, which may incur additional costs if not included in the product bundle. Additionally, an electric heat kit is required for straight electric heating and is also available at an extra cost.
Specifications
ACiQ 2.5 Ton Extreme+ Ducted Air Handler Multi-Position 17.5" Cabinet R454B ACIQ-30-PAH
| Brand | ACiQ | SKU | ACiQ-30-PAH |
| Weight (in lbs) | 149.250000 | Manufacturer | ACiQ |
| Cooling BTU | 30,000 BTU | Maximum CFM | 989 |
| Decibel Level (dBA) | Up to 49 Decibels | Electric Backup Heat Capabilities (Optional) | 5, 8, 10, 15 Kilowatts |
| Configuration | Multi-Positional | Refrigerant | R454B |
| Liquid Line | 3/8" | Suction Line | 3/4" |
| Electrical | 208/230V 1 Phase 60 Hz | Max Breaker Size | 15 Amps |
| Min. Breaker Size | 8.0 / 6.0 Amps | Tonnage | 2.5 Ton |
| BTU/Tonnage | 30,000 BTU/2.5 Ton | Mini Split Type | Multi-Positional |
| Zone Compatibility | Single Zone | Connection | Flared |
| Height | 54" | Width | 21" |
| Depth | 21.5" | Warranty | 12 Years Compressor and 7 Years Parts with Online Registration |
Warranty
ACiQ 2.5 Ton Extreme+ Ducted Air Handler Multi-Position 17.5" Cabinet R454B ACIQ-30-PAH
| Warranty Type | Parts | Compressor |
| Standard Warranty | 5 year parts | 7 year parts |
| Registered Warranty | 7 year parts | 12 year parts |
