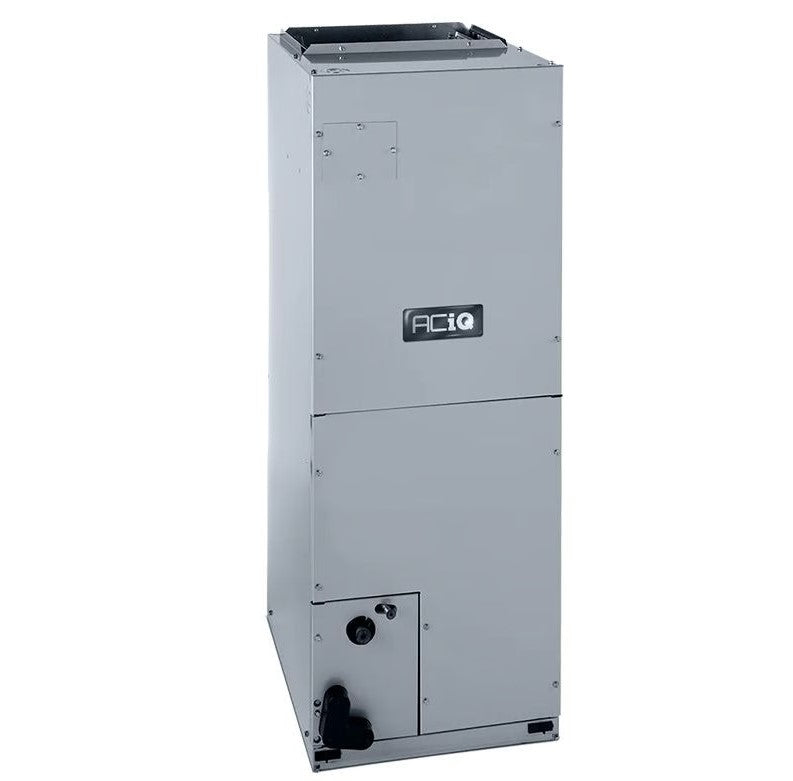

ACiQ 2.5 Ton Central Ducted Air Handler Multi-Position 21" Cabinet R454B
Authorized ACiQ Dealer
Manufacturer Warranty: Standard 5-Year Parts / 7-Year Compressor
- Energy-Saving Performance
- Quiet, Comfort-Focused Operation
- DIY-Friendly, Fast Installation
- Smart Control & Custom Comfort
ACiQ 2.5 Ton Central Ducted Air Handler Multi-Position 21" Cabinet R454B is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
In Stock
ON SALE!
Clip coupon for additional at checkout
Ships same or next day *Exclusions May Apply*
Delivery and Shipping
Delivery and Shipping
We offer fast and reliable shipping across the continental U.S., with free shipping available on most orders (exclusions may apply based on brand and product type). Orders are typically processed within 1–2 business days and transit time is usually 4–7 business days. Larger items may ship via freight and require a scheduled curbside delivery. Please ensure your contact details are accurate at checkout. For questions about delivery timelines, shipping eligibility, or special requests, feel free to contact us directly. See Policy.
Do You Offer Financing?
Do You Offer Financing?
Shop Pay + After Pay - Choose the product you desire the most now and pay over time using Shop Pay / After Pay. Select your monthly payments and have your product delivered with no additional fees.
ACORN + APPROVE Financing - For larger purchase and businesses, ACORN and APPROVE offers flexible financing designed around their goals. Complete a 60-second application and connect with leading lenders—no effect on your credit score.
Price Match Guarantee
Price Match Guarantee
We’re committed to offering the best online prices—if you find a lower price from an authorized retailer, we’ll beat it. Our 100% Price Beat Guarantee excludes promotions, auction sites, and exchanges, and factors in item price, tax, and shipping. For price match inquiries, contact us at (833) 932-9683
ACiQ 2.5 Ton Central Ducted Air Handler Multi-Position 21" Cab...
Product Details
ACiQ 2.5 Ton Central Ducted Air Handler Multi-Position 21" Cabinet R454B ACIQ-30-AHD
ACiQ 2.5 Ton Central Ducted Air Handler – Multi-Position (Model ACiQ-30-AHD) The ACiQ-30-AHD is a powerful 2.5-ton central air handler designed to deliver exceptional comfort and energy efficiency. Equipped with a variable speed DC blower and advanced communicating technology, this air handler works in conjunction with your inverter condenser, allowing the system to automatically adjust BTU output for maximum performance. With its multi-positional design (upflow, downflow, or horizontal), it offers versatile installation options to fit a variety of spaces. Compatible with R454B refrigerant, this air handler efficiently distributes both cooled and heated air throughout your home by seamlessly connecting to your existing ductwork.
ACiQ-30-AHD 2.5 Ton Air Handler – Key Features
-
Variable Speed DC Blower: The ACiQ-30-AHD Air Handler comes equipped with a variable speed DC blower that ensures precise airflow control for consistent comfort and enhanced energy efficiency. This advanced blower adjusts its speed based on the system’s needs, optimizing both heating and cooling performance.
-
Communicating Technology for Maximum Efficiency: The air handler features communicating technology, allowing it to seamlessly interact with the inverter condenser. This communication enables the system to self-adjust BTU output in real-time, ensuring both comfort and energy savings throughout the year.
-
Efficient Air Distribution: Designed for central ducted applications, the ACiQ-30-AHD effectively distributes heated and cooled air throughout your living space. Its integration with existing ductwork ensures easy installation and reliable air flow, improving overall home comfort.
-
30,000 BTU Capacity (2.5 Ton): With a 30,000 BTU (2.5 ton) capacity, the ACiQ-30-AHD is ideal for larger homes or spaces that require higher heating and cooling power. This air handler provides ample output to maintain ideal temperatures across various rooms.
-
Multi-Positional Installation: The multi-positional design of the ACiQ-30-AHD gives you flexibility in installation. It can be installed in upflow, downflow, or horizontal left/right orientations, making it suitable for a variety of layouts and applications.
-
24V Thermostat Compatibility: The ACiQ-30-AHD is compatible with any 24V thermostat, offering convenience and flexibility when selecting the best thermostat to control your home’s heating and cooling system.
-
R454B Refrigerant Compatibility: This air handler is compatible with the R454B refrigerant, a highly energy-efficient and environmentally-friendly refrigerant that contributes to lower carbon emissions and supports sustainable living practices.
Installation and Maintenance
Installing the ACiQ central ducted air handler is similar to installing any standard replacement air handler. Your technician will handle the electrical, refrigerant, thermostat, and communication connections, as well as linking the air handler to your return and supply ductwork. This unit is highly versatile, as it is multi-positional—capable of being installed in upflow, downflow, or horizontal orientations.
The system can be controlled by any 24V thermostat with two stages of heating, and supplemental electric heat kits are available for backup heating during the coldest days. Should maintenance be necessary, the intelligent control board in the air handler will display fault codes to help identify any issues with the system.
Please Note: For proper operation, the air handler must be paired with a condenser and other installation equipment, which are sold separately if not included in the product bundle. Additionally, if you wish to use straight electric heating, an electric heat kit is required, which is also available at an additional cost.
Specifications
ACiQ 2.5 Ton Central Ducted Air Handler Multi-Position 21" Cabinet R454B ACIQ-30-AHD
| Brand | ACiQ | SKU | ACiQ-30-AHD |
| Weight (in lbs) | 129.000000 | Brand/Manufacturer | ACiQ |
| Cooling BTU | 30,000 BTU | Maximum CFM | 989 |
| Decibel Level (dBA) | Up to 46 Decibels | Electric Backup Heat Capabilities (Optional) | 5 Kilowatts, 10 Kilowatts, 15 Kilowatts |
| Configuration | Multi-Positional | Refrigerant | R454B |
| Liquid Line | 3/8" | Suction Line | 3/4" |
| Electrical | 208/230V 1 Phase 60 Hz | Max Breaker Size | 15 Amps |
| Min. Breaker Size | 8.0 / 6.0 Amps | Tonnage | 2.5 Ton |
| BTU/Tonnage | 30,000 BTU/2.5 Ton | Mini Split Type | Multi-Positional |
| Zone Compatibility | Single Zone | Connection | Flared |
| Height | 52.6" | Width | 21" |
| Depth | 21" | Warranty | 12 Years Compressor and 7 Years Parts with Online Registration |
Warranty
ACiQ 2.5 Ton Central Ducted Air Handler Multi-Position 21" Cabinet R454B ACIQ-30-AHD
| Warranty Type | Parts | Compressor |
| Standard Warranty | 5 year parts | 7 year parts |
| Registered Warranty | 7 year parts | 12 year parts |
