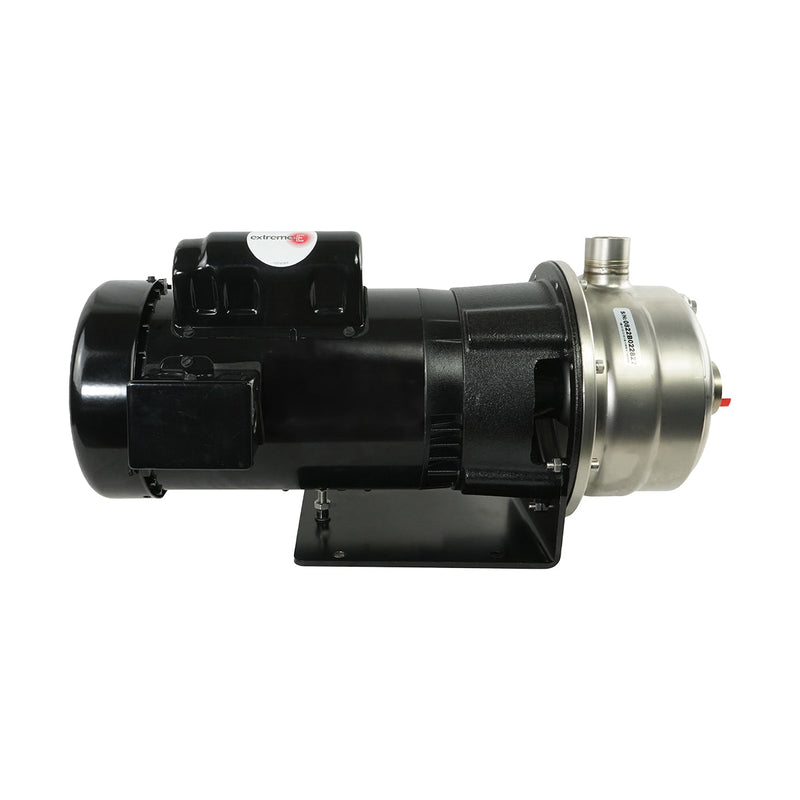

2TCN12030MT Horizontal Pump, 3HP, Stainless Steel

The 2TC Series 2-Stage Horizontal Pump is engineered for high-head applications requiring durability and precision. Featuring a 3HP motor and 304 stainless steel construction, this pump delivers superior performance for industrial, commercial, and agricultural needs.

Key Features:

• Durable Construction: 304 stainless steel pump casing, motor bracket, and impeller for corrosion resistance and longevity.
• High Performance: Smooth, steady operation with capacities up to 65 GPM and pressures up to 107 PSI.
• Close Coupled Design: Compact and efficient with centerline discharge.
• Ease of Maintenance: Back pullout design for easy servicing and a reliable mechanical seal.
• Temperature Tolerance: Operates effectively in environments up to 212°F.
• Energy Efficient: Designed for high operating efficiency with a non-overloading motor rated for continuous duty.

Ideal Applications:

• Deionized water systems
• Reverse osmosis systems
• Distribution and circulation systems
• Car washes and cooling tower systems
• Pre-filter charge and liquid transfer systems

Experience unmatched quality and performance with the 2TC Series Horizontal Pump. Built to handle your toughest challenges with reliability and ease.

###

###

###

2TCN12030MT Installation Manual

Installation Instructions

1. Preparation:
   • Ensure the pump is undamaged and all parts are present.
   • Confirm that the motor voltage matches the power supply.
   • Check alignment of the pump and motor before installation.
2. Foundation:
   • Mount the pump on a flat, stable, and vibration-free surface.
   • Use anchor bolts to secure the pump if necessary.
3. Pipe Connections:
   • Attach suction and discharge pipes to the pump using appropriate gaskets and seals.
   • Ensure the suction pipe is free of leaks and has proper support to avoid strain on the pump.
   • Install a check valve and isolation valve on the discharge side.
4. Priming the Pump:
   • Fill the pump casing with liquid to ensure it is primed before starting.
   • Use a vent valve to remove air from the pump casing.
5. Electrical Wiring:
   • Connect the motor to the power supply following local electrical codes and standards.
   • Ensure the motor is properly grounded.
   • Verify motor rotation matches the direction indicated on the pump casing.
6. Startup:
   • Open the suction and discharge valves.
   • Start the motor and observe the operation.
   • Check for leaks, unusual noise, or vibrations.
7. Final Adjustments:
   • Adjust flow and pressure as needed using the discharge valve.
   • Avoid throttling the suction side to maintain pump efficiency.
8. Regular Maintenance:
   • Periodically inspect the pump and motor for wear or damage.
   • Lubricate bearings as per the manufacturer’s recommendations.
