Description
Description

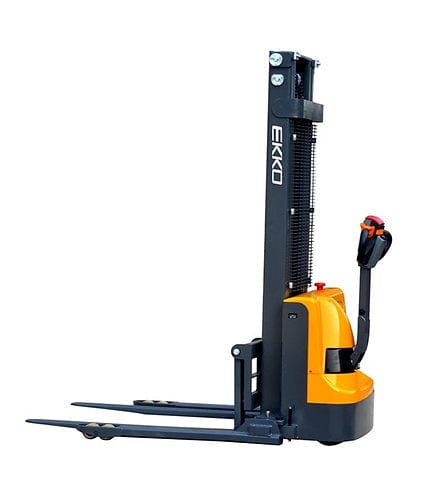

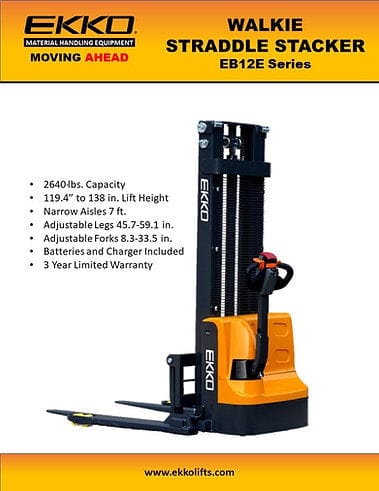

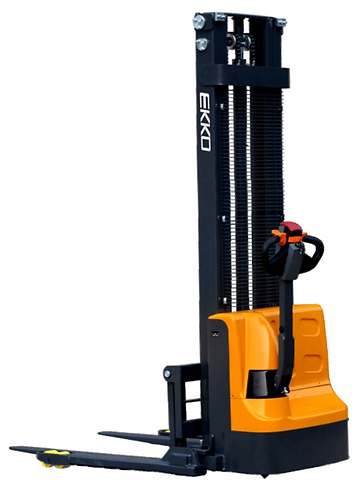

Amplified Reach for Efficient Warehousing: EKKO EB12E-138 Electric Straddle Stacker
The EKKO EB12E-138 Electric Straddle Stacker is a versatile and powerful workhorse designed to tackle various material handling tasks in warehouses, stockrooms, loading docks, and manufacturing floors. It combines the functionality of a forklift, reach truck, and walk-behind stacker, offering additional reach compared to the standard EB12E model.
- Enhanced Reach for Elevated Warehouse Storage: The EB12E-138 boasts an impressive maximum lifting height of 11.5ft (138 inches), allowing operators to effortlessly reach and handle palletized goods on higher shelving or in taller trucks.
- Versatility for Diverse Applications: Like the standard EB12E, it can lift and transport pallets weighing up to 2640 lbs, with adjustable forks and legs to accommodate various pallet sizes.
- Efficient Stacking and Transport: The Curtis controller, 24V drive motor, and 24V lift motor ensure smooth operation and precise control for efficient maneuvering, even in tight spaces.
Operator Comfort and Functionality:
- Ergonomic Handle and Controls: Designed for operator comfort during extended use.
- Internal Charger Included: Ensures the EB12E-138 is always ready for operation.
- Battery Included: Comes with two 12V/100Ah batteries for extended use.
- Polyurethane Wheels: Provide smooth travel and wear resistance.
Additional Features:
- Durable Steel Construction: Built with high-quality steel and robotic welding for a long lifespan.
- 3-Year Limited Warranty: Delivers peace of mind.

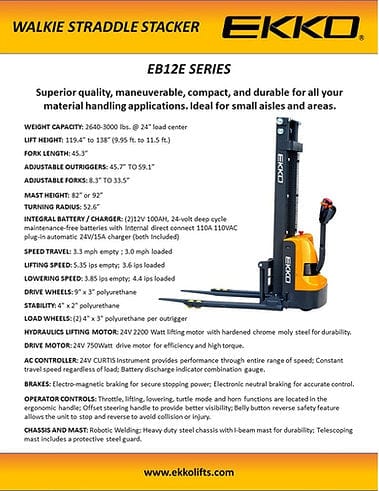

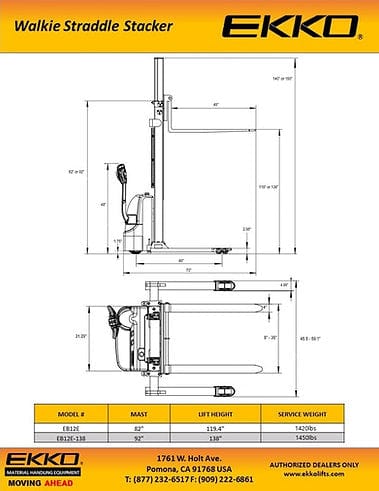

Specification
|
Model |
|
EB12E-138 |
|
Load capacity |
(lb) |
2640 |
|
The max. lifting height |
(in) |
138½ |
|
Load center distance |
(in) |
24 |
|
Fork length |
(in) |
45.3 |
|
Single fork width |
(in) |
4 |
|
Overall fork width |
(in) |
8.3-33.5 |
|
Lowered fork height |
(in) |
2.35 |
|
Fixed leg length |
(in) |
36.5 |
|
Adjustable legs |
(in) |
45.5-59.1 |
|
Turning radius |
(in) |
52.6 |
|
Overall length |
(in) |
70 |
|
Max Overall width |
(in) |
61 |
|
Extended mast height |
(in) |
154 |
|
Lowered mast height |
(in) |
92 |
|
Battery voltage (dimensions) |
(in) |
2×12V/100AH（10/6.6/8.5） |
|
Internal Charger |
(V/A) |
24V/15A |
|
Lifting Motor |
(V/W) |
2.2kw. Lift speed, laden/unladen:92/136mm/s Lowering speed, laden/unladen:112/98mm/s |
|
Driving Motor |
(W) |
0.75kw.Driving speed: laden/unladen:4.0/4.2km/h |
|
Service Weight |
(lb) |
1450 |
