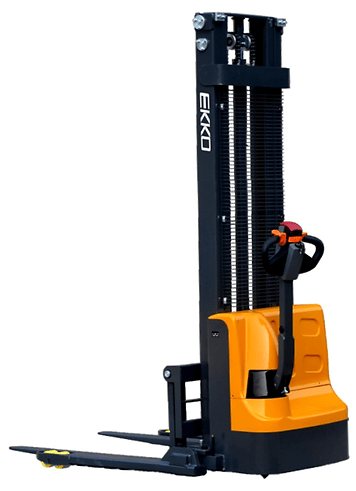

Ekko Full Powered Straddle Stacker EB12E

Roll over image to zoom in

Ekko Full Powered Straddle Stacker EB12E

Name: Ekko Full Powered Straddle Stacker EB12E
Brand: Ekko
SKU: EB12E
Price: 5593.6 USD
Availability: InStock

EkkoSKU: EB12E

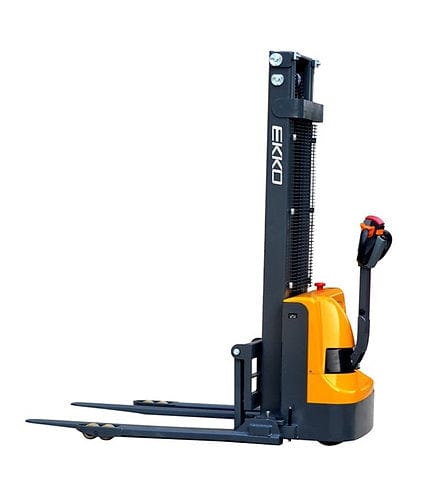

The Multi-Talented Warehouse Workhorse: EKKO EB12E Electric Straddle Stacker

The EKKO EB12E Electric Straddle Stacker is a versatile and powerful solution for diverse material handling needs in warehouses, stockrooms, loading docks, and manufacturing floors. It combines the functionality of a forklift, reach truck, and walk-behind stacker, making it a valuable asset for various tasks:

Effortless Lifting and Maneuvering: Easily lift, transport, and stack pallets weighing up to 2640 lbs with the power and maneuverability of the EB12E.

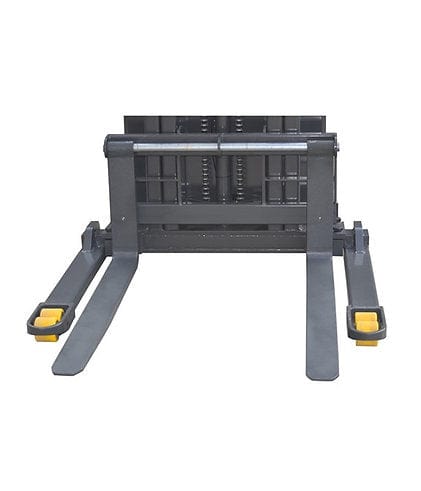

Adaptable to Various Pallet Sizes: The adjustable forks (from 8.3 inches to 33.5 inches) and adjustable legs (from 45.7 inches to 59.1 inches) ensure the EB12E can handle a wide range of pallet dimensions.
Efficient Stacking and Transport: Reach a maximum lifting height of 9.95ft (119.4 inches) to efficiently stack and retrieve palletized goods on shelving or in trucks.
Streamlined Operation: The Curtis controller, 24V drive motor, and 24V lift motor ensure smooth operation and precise control for efficient maneuvering, even in tight spaces.

Operator Comfort and Functionality:

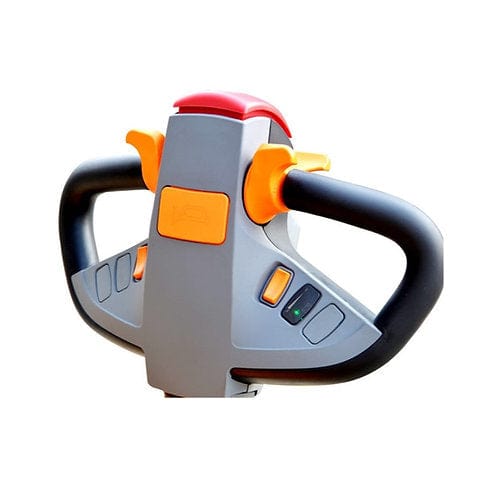

Ergonomic Handle and Controls: Designed for operator comfort during extended use.
Internal Charger Included: Ensures the EB12E is always ready for operation.
Battery Included: Comes with two 12V/100Ah batteries for extended use.
Polyurethane Wheels: Provide smooth travel and wear resistance.

Additional Features:

Durable Steel Construction: Built with high-quality steel and robotic welding for a long lifespan.
3-Year Limited Warranty: Delivers peace of mind.

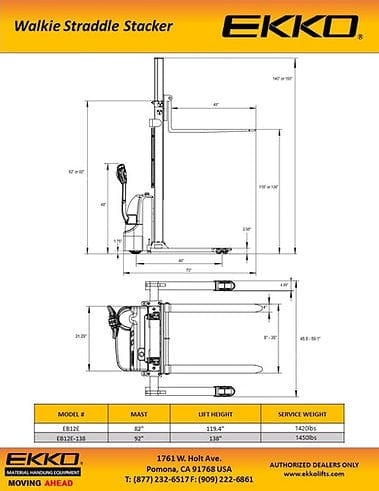

Specification

Model		EB12E
Load capacity	(lbs)	2640
The max. lifting height	(in)	119.4½
Load center distance	(in)	24
Fork length	(in)	45.3
Single fork width	(in)	4
Overall fork width	(in)	8.3-33.5
Lowered fork height	(in)	2.35
Fixed leg length	(in)	36.5
Adjustable legs	(in)	45.5-59.1
Turning radius	(in)	52.6
Overall length	(in)	70
Max Overall width	(in)	61
Extended mast height	(in)	135
Lowered mast height	(in)	82
Battery voltage (dimensions)	(in)	2×12V/100AH（10/6.6/8.5）
Internal charger	V/A	24V/15A
Lifting Motor	V/Kw	2.2kw. Lift speed, laden/unladen:92/136mm/s Lowering speed, laden/unladen:112/98mm/s
Driving Motor		0.75kw.Driving speed: laden/unladen:4.0/4.2km/h
Service Weight	(lbs)	1420
