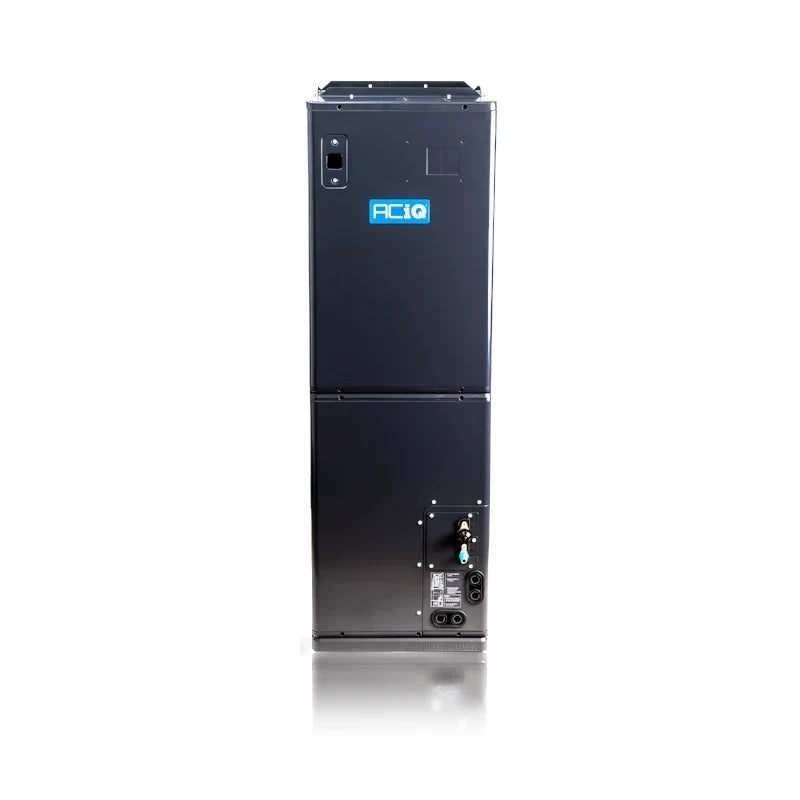

The ACiQ-60-PAH Extreme+ is a high-efficiency 5-ton ducted air handler engineered for powerful, year-round comfort. With a variable speed DC blower and advanced communicating technology, it automatically adjusts BTU output to match your needs maximizing comfort and efficiency in any climate. Its slim, multi-positional design allows for easy installation in various configurations, and it’s compatible with any 24v thermostat. Built to work with eco-friendly R454B refrigerant, this unit also qualifies for enhanced tax credits and rebates thanks to its superior performance.
5 Ton High-Efficiency Performance – Provides powerful heating and cooling for large homes and light commercial spaces with a robust 5-ton capacity.
Advanced Communicating Technology – Your thermostat and inverter condenser work together to self-adjust BTU output, maximizing comfort and energy efficiency in all climates.
Variable Speed DC Blower – Equipped with a variable speed motor for whisper-quiet operation, energy savings, and precise airflow control.
Multi-Positional Installation – Supports upflow, downflow, and horizontal left/right orientations for flexible installation in a wide range of setups.
Slim-Fit Cabinet Design – Compact and space-saving, perfect for installations where space is limited or in retrofit applications.
Compatible with Any 24V Thermostat – Seamlessly pairs with all standard 24-volt thermostats, offering flexible system integration and control.
R454B Refrigerant Ready – Designed to work with R454B refrigerant, a low-GWP, eco-friendly option that aligns with future HVAC standards.
Tax Credit & Rebate Eligible – High-performance efficiency levels may qualify for federal tax credits and local utility rebate programs, offering added savings.
Installation and Maintenance
The installation process for the ACiQ Extreme+ central ducted air handler is similar to that of other replacement air handlers. Your technician will handle electrical, refrigerant, thermostat, and communication connections, as well as link the air handler to the return and supply ductwork. This air handler is multi-positional (upflow, downflow, or horizontal) and features a narrower cabinet design, offering greater versatility and easier installation compared to other models. It is compatible with any 24v thermostat that supports two stages of heating. For colder days, supplemental electric heat kits are available as a backup heat source.
If maintenance is needed, the air handler’s intelligent control board will display fault codes to help diagnose any issues with the system.
Important Note: For proper function, the air handler must be installed with a condenser and other required installation equipment, which may incur additional costs if not included in the product bundle. Additionally, an electric heat kit is required for straight electric heating and is also available at an extra cost.
| Brand | ACiQ | SKU | ACiQ-60-PAH |
| Weight (in lbs) | 188.05 | Manufacturer | ACiQ |
| Cooling BTU | 54,000 BTU | Maximum CFM | 1801 |
| Decibel Level (dBA) | Up to 60 Decibels | Electric Backup Heat (Optional) | 5kW, 8kW, 10kW, 15kW, 20kW |
| Configuration | Multi-Positional | Refrigerant | R454B |
| Liquid Line | 3/8" | Suction Line | 3/4" |
| Electrical | 208/230V 1 Phase 60 Hz | Max Breaker Size | 15 Amps |
| Min. Breaker Size | 14.5 / 10.0 Amps | Tonnage | 5 Ton |
| BTU/Tonnage | 60,000 BTU/5 Ton | Mini Split Type | Multi-Positional |
| Zone Compatibility | Single Zone | Connection | Flared |
| Height | 56" | Width | 24.5" |
| Depth | 21.5" | Warranty | 12 Years Compressor and 7 Years Parts with Online Registration |
| Warranty Type | Parts | Compressor |
| Standard Warranty | 5 year parts | 7 year parts |
| Registered Warranty | 7 year parts | 12 year parts |
