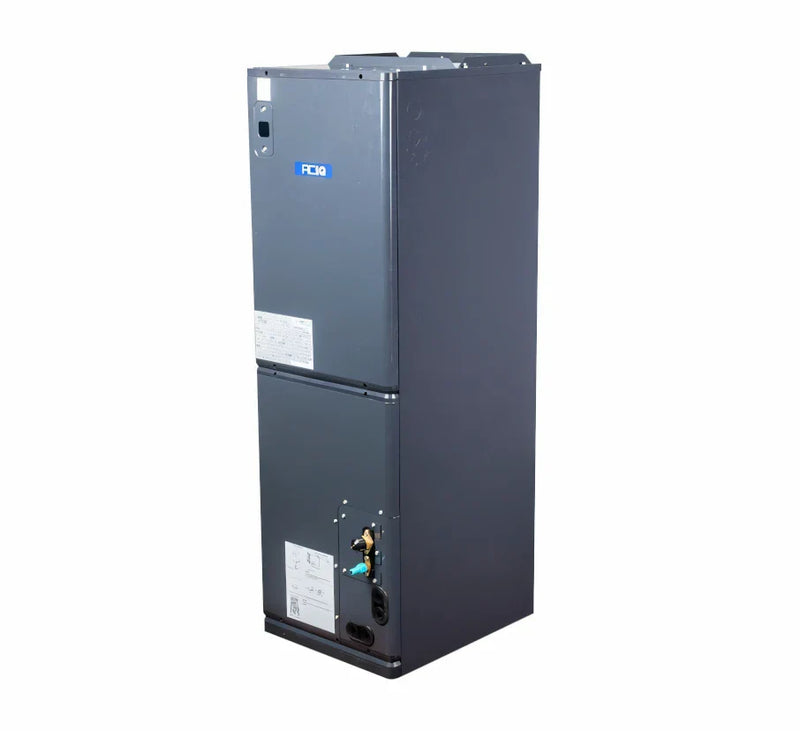

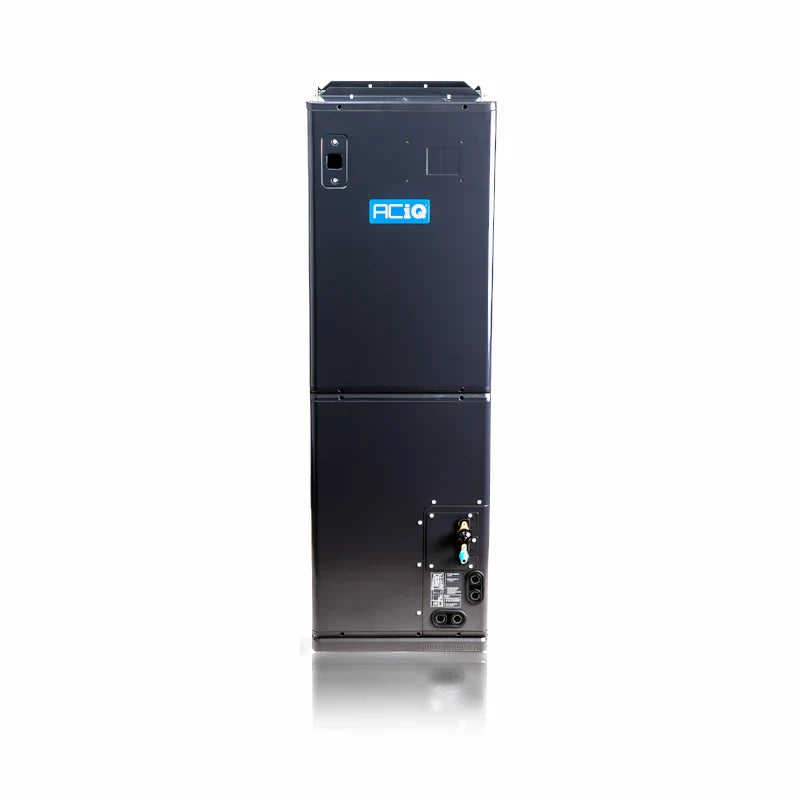

The ACiQ-36-PAH Extreme+ is a high-performance 3-ton ducted air handler engineered for exceptional comfort and efficiency. With a variable speed DC blower and advanced communicating technology, this unit automatically adjusts its BTU output to optimize energy use while maintaining your desired comfort level. Its multi-positional design allows for flexible installation in upflow, downflow, or horizontal positions, and its slim-fit cabinet ensures easy placement. Compatible with any 24v thermostat and R454B refrigerant, it also offers the potential for tax credits and energy rebates due to its superior performance.
3 Ton High-Efficiency Capacity – Provides robust heating and cooling with 3 tons of capacity, perfect for larger homes or spaces needing higher output.
Extreme+ Efficiency Technology – Communicates with your inverter condenser and thermostat to self-adjust BTU output, ensuring maximum comfort and energy efficiency.
Variable Speed DC Blower – Features an advanced variable speed DC blower for quiet, efficient operation, optimizing airflow and reducing energy consumption.
Multi-Positional Flexibility – Can be installed in upflow, downflow, or horizontal left/right positions, offering flexibility to suit any home layout.
Compact Slim-Fit Design – The slim-fit cabinet simplifies installation in tight spaces or areas with limited room, reducing installation time and effort.
24V Thermostat Compatibility – Works with any 24v thermostat, providing easy integration and precise control over your home’s climate.
R454B Refrigerant Compatibility – Supports R454B refrigerant, an eco-friendly alternative that meets the latest environmental standards.
Energy Rebates & Tax Credits – Designed for high performance to qualify for energy efficiency tax credits and local rebate programs.
Installation and Maintenance
The installation process for the ACiQ Extreme+ central ducted air handler is similar to that of other replacement air handlers. Your technician will handle electrical, refrigerant, thermostat, and communication connections, as well as link the air handler to the return and supply ductwork. This air handler is multi-positional (upflow, downflow, or horizontal) and features a narrower cabinet design, offering greater versatility and easier installation compared to other models. It is compatible with any 24v thermostat that supports two stages of heating. For colder days, supplemental electric heat kits are available as a backup heat source.
If maintenance is needed, the air handler’s intelligent control board will display fault codes to help diagnose any issues with the system.
Important Note: For proper function, the air handler must be installed with a condenser and other required installation equipment, which may incur additional costs if not included in the product bundle. Additionally, an electric heat kit is required for straight electric heating and is also available at an extra cost.
| Brand | ACiQ | SKU | ACiQ-36-PAH |
| Weight (in lbs) | 149.250000 | Manufacturer | ACiQ |
| Cooling BTU | 36,000 BTU | Maximum CFM | 1236 |
| Decibel Level (dBA) | Up to 48 Decibels | Electric Backup Heat Capabilities (Optional) | 5, 8, 10, 15 Kilowatts |
| Configuration | Multi-Positional | Refrigerant | R454B |
| Liquid Line | 3/8" | Suction Line | 3/4" |
| Electrical | 208/230V 1 Phase 60 Hz | Max Breaker Size | 15 Amps |
| Min. Breaker Size | 8.0 / 6.0 Amps | Tonnage | 3 Ton |
| BTU/Tonnage | 36,000 BTU/3 Ton | Mini Split Type | Multi-Positional |
| Zone Compatibility | Single Zone | Connection | Flared |
| Height | 54" | Width | 21" |
| Depth | 21.5" | Warranty | 12 Years Compressor and 7 Years Parts with Online Registration |
| Warranty Type | Parts | Compressor |
| Standard Warranty | 5 year parts | 7 year parts |
| Registered Warranty | 7 year parts | 12 year parts |
