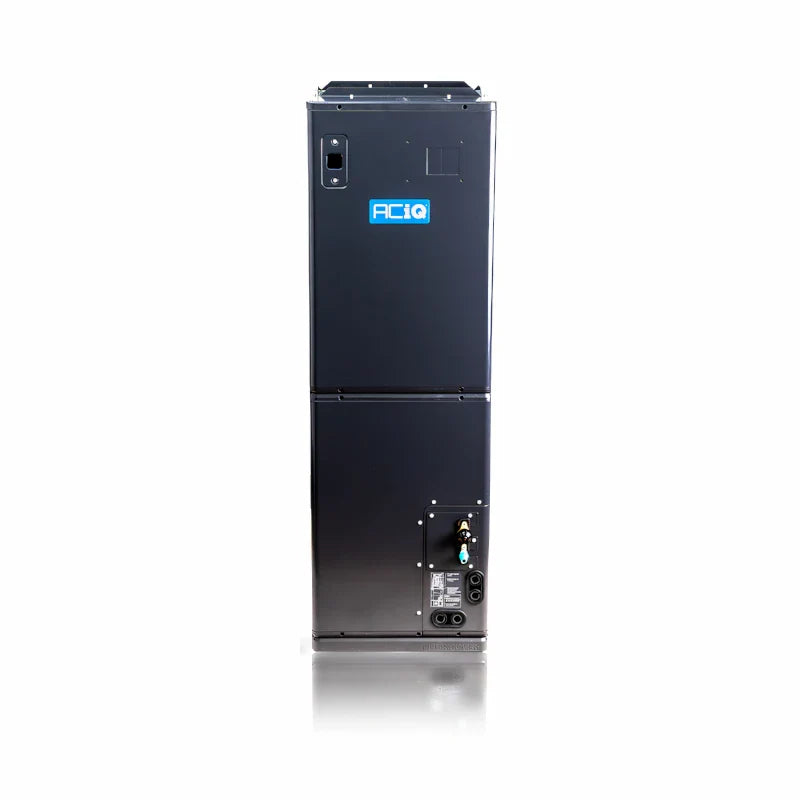

The ACiQ-18-PAH Extreme+ ducted air handler is a top-of-the-line, multi-positional unit that offers exceptional comfort and efficiency. With a variable speed DC blower and advanced communicating technology, it automatically adjusts BTU output to optimize energy use and maintain ideal comfort levels. Compatible with any 24v thermostat, this 1.5-ton high-efficiency air handler can be installed in upflow, downflow, or horizontal orientations and fits into tight spaces thanks to its slim-fit cabinet. It also offers higher-performance capabilities, making it eligible for better tax credits and rebates. Plus it's compatible with R454B refrigerant for eco-friendly operation.
1.5 Ton High-Efficiency Air Handler – Provides optimal performance for residential homes with 1.5 tons of cooling and heating capacity, delivering consistent comfort.
Variable Speed DC Blower – Features a variable speed DC blower for smooth and energy-efficient airflow, optimizing both comfort and energy consumption.
Multi-Positional Design – Offers flexibility in installation with the ability to be installed in upflow, downflow, or horizontal left/right orientations.
Communicating Technology – Works with your thermostat and inverter condenser to self-adjust BTU output, maximizing efficiency and comfort in any climate.
Slim-Fit Cabinet Size – Designed with a compact, slim-fit cabinet, making installation easier and more convenient in tight spaces.
High-Performance Efficiency – Provides exceptional efficiency, contributing to higher tax credit and rebate eligibility for energy-efficient home upgrades.
R454B Refrigerant Compatibility – Compatible with R454B refrigerant, a more eco-friendly alternative to traditional refrigerants.
24V Thermostat Compatibility – Compatible with any 24v thermostat, offering ease of control and integration with your existing HVAC system.
Installation and Maintenance
The installation process for the ACiQ Extreme+ central ducted air handler is similar to that of other replacement air handlers. Your technician will handle electrical, refrigerant, thermostat, and communication connections, as well as link the air handler to the return and supply ductwork. This air handler is multi-positional (upflow, downflow, or horizontal) and features a narrower cabinet design, offering greater versatility and easier installation compared to other models. It is compatible with any 24v thermostat that supports two stages of heating. For colder days, supplemental electric heat kits are available as a backup heat source.
If maintenance is needed, the air handler’s intelligent control board will display fault codes to help diagnose any issues with the system.
Important Note: For proper function, the air handler must be installed with a condenser and other required installation equipment, which may incur additional costs if not included in the product bundle. Additionally, an electric heat kit is required for straight electric heating and is also available at an extra cost.
| Brand | ACiQ | SKU | ACIQ-18-PAH |
| Weight (in lbs) | 123.020000 | Brand/Manufacturer | ACiQ |
| Cooling BTU | 18,000 BTU | Maximum CFM | 618 |
| Decibel Level (dBA) | Up to 42.5 Decibels | Electric Backup Heat Capabilities (Optional) | 5 Kilowatts, 8 Kilowatts, 10 Kilowatts |
| Configuration | Multi-Positional | Refrigerant | R454B |
| Liquid Line | 3/8" | Suction Line | 3/4" |
| Electrical | 208/230V 1 Phase 60 Hz | Max Breaker Size | 15 Amps |
| Min. Breaker Size | 5.5 Amps / 3.5 Amps | Tonnage | 1.5 Ton |
| BTU/Tonnage | 18,000 BTU/1.5 Ton | Mini Split Type | Multi-Positional |
| Zone Compatibility | Single Zone | Connection | Flared |
| Height | 49.7" | Width | 17.5" |
| Depth | 21.5" | Warranty | 12 Years Compressor and 7 Years Parts with Online Registration |
| Warranty Type | Parts | Compressor |
| Standard Warranty | 5 year parts | 7 year parts |
| Registered Warranty | 7 year parts | 12 year parts |
