ACiQ 5 Ton Central Ducted Air Handler Multi-Positional Variable Speed R454B

Product Details

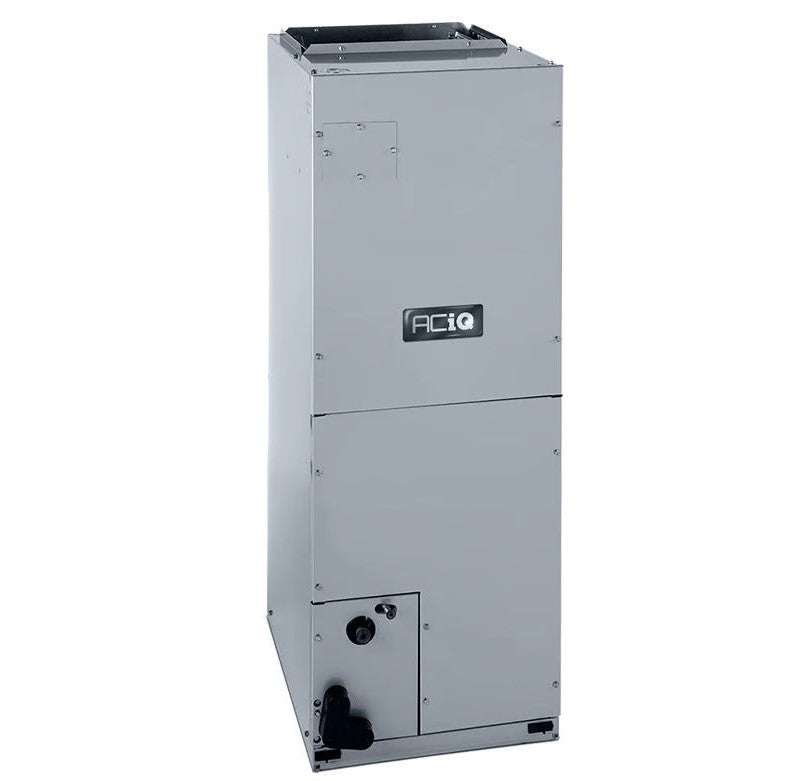

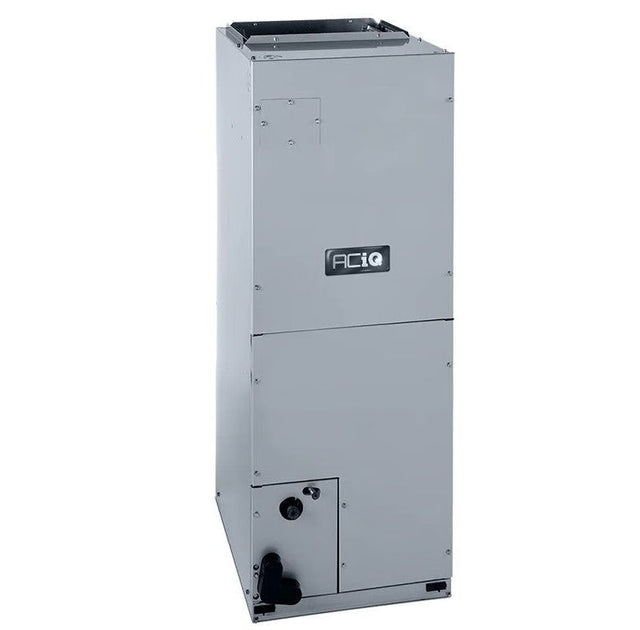

ACiQ 5 Ton Central Ducted Air Handler Multi-Positional Variable Speed R454B ACiQ-60-AHD

Engineered for ultimate comfort and performance, the ACIQ-60-AHD air handler features advanced communicating technology and a high-efficiency variable speed DC blower. Designed to work seamlessly with your inverter condenser and smart thermostat, this unit automatically adjusts BTU output to deliver precise temperature control while maximizing energy savings. Its variable speed motor ensures quiet, consistent airflow throughout your home, integrating effortlessly with your existing ductwork. Whether heating or cooling, the ACIQ-60-AHD delivers year-round comfort and reliability.

ACIQ-60-AHD 60,000 BTU 5 Ton Variable Speed Air Handler – R454B Compatible

• 60,000 BTU / 5 Ton Capacity – Delivers powerful and efficient heating and cooling performance for large residential spaces

• Central Ducted Air Handler – Designed to integrate with your home’s existing ductwork for even air distribution

• Variable Speed DC Blower Motor – Enhances comfort, reduces energy consumption, and provides whisper-quiet operation

• Thermostat Compatible – Works with any standard 24V thermostat, including programmable and smart thermostats

• Multi-Positional Design – Flexible installation in upflow, downflow, or horizontal (left/right) configurations

• R454B Refrigerant Compatible – Future-ready and eco-friendly design supports the next generation of refrigerants

• Communicating Technology – Pairs with inverter condensers for optimized BTU modulation and year-round comfort

• Reliable HVAC Upgrade – Ideal for new installations or replacing aging air handler units in larger homes

Installation and Maintenance

Installing the ACIQ central ducted air handler is straightforward and similar to replacing a standard air handler. Your HVAC technician will handle all necessary connections, including electrical, refrigerant lines, thermostat wiring, and system communication links. The unit also connects directly to your existing return and supply ductwork.

Thanks to its multi-positional design—compatible with upflow, downflow, or horizontal configurations—this air handler offers flexible installation options to suit a variety of spaces. It can be controlled by any 24V thermostat that supports two stages of heating.

For added comfort during colder weather, optional supplemental electric heat kits are available as a backup heat source. If maintenance is ever required, the built-in intelligent control board displays diagnostic fault codes to help quickly identify and resolve issues.

Please note: This air handler must be paired with a compatible condenser and other required installation components, which may be sold separately if not included in your product bundle. To enable electric-only heating, an electric heat kit (sold separately) is required.

Specifications

ACiQ 5 Ton Central Ducted Air Handler Multi-Positional Variable Speed R454B ACiQ-60-AHD

Warranty

ACiQ 5 Ton Central Ducted Air Handler Multi-Positional Variable Speed R454B ACiQ-60-AHD

Documents

ACiQ 5 Ton Central Ducted Air Handler Multi-Positional Variable Speed R454B ACiQ-60-AHD

AHD Owner's Manual

AHD Installation Manual
