Sound Craft Ui-24R Digital Mixer

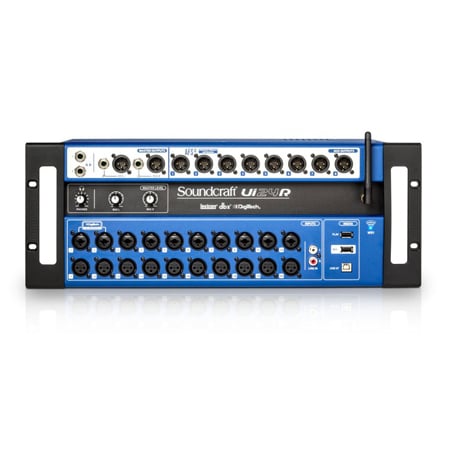

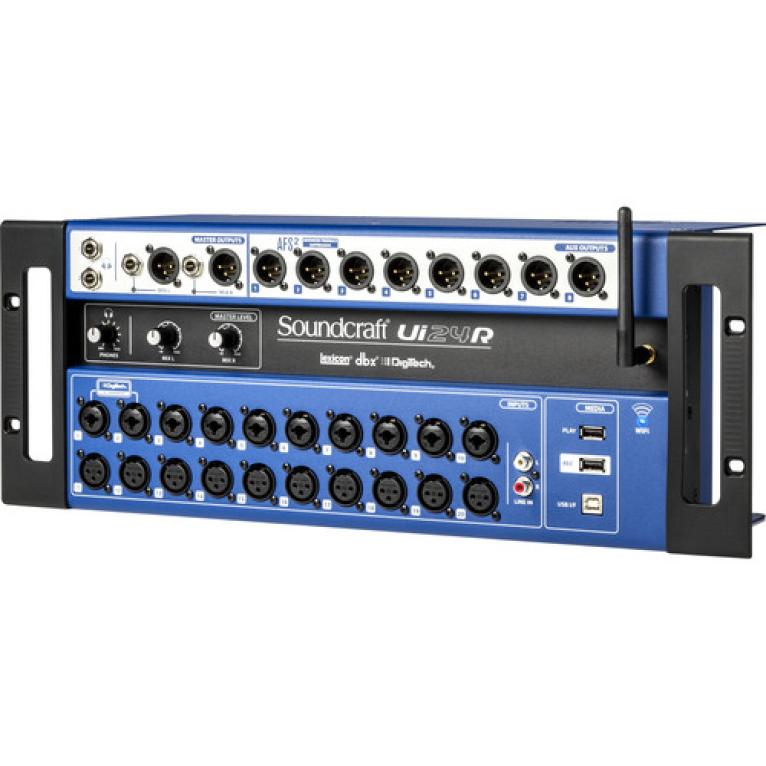

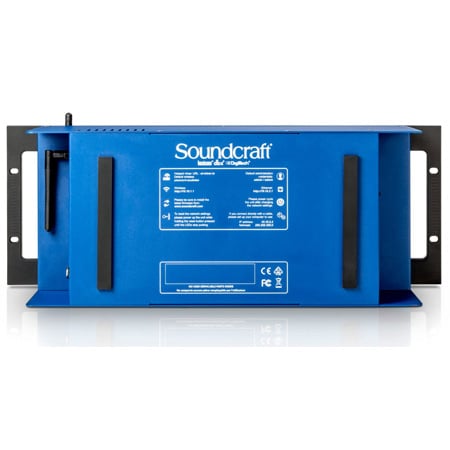

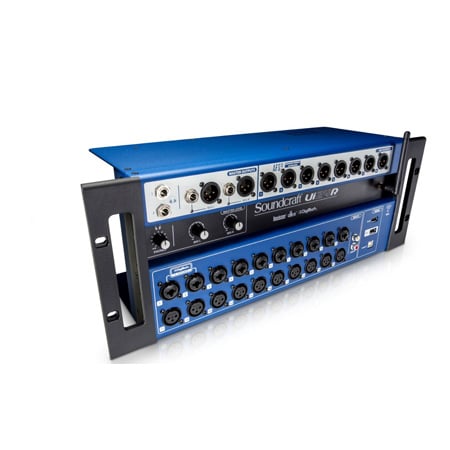

The Ui24R from Soundcraft is a 24-input, remote-controlled, fully recallable digital mixing system, housed in a rackmountable, road-rugged stagebox format. With built-in, dual-band Wi-Fi, cross-platform compatibility, and the ability to be controlled by any connected device via a standard web browser, the Ui24R offers a full-featured, flexible remote mixing solution for a wide variety of live sound reinforcement applications.

The Ui24R features cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices, and can use up to 10 control devices simultaneously. In addition, the mixer features signal processing from dbx, DigiTech, and Lexicon, including dbx AFS2 feedback suppression, DigiTech amp modeling, and more. It has fully recallable and remote-controlled mic gain and phantom power, along with 4-band parametric EQ, high-pass filter, compressor, de-esser, and noise gate on all input channels. The mixer also features a 31-band graphic EQ, noise gate, and compressor on all outputs, plus a real-time frequency analyzer (RTA) on all inputs and outputs.

For inputs, the Ui24R boasts 10 XLR combo mic/line inputs (channels 1 and 2 are Hi-Z/instrument inputs with available Digitech guitar amp modeling), and a stereo RCA line input. For outputs, the unit offers 8 balanced XLR aux outputs, two 1/4" headphone outputs with level control, plus balanced stereo XLR and 1/4" main outputs. The Ui24R features dual-path, multi-track recording of all inputs and your stereo mix, directly to a USB storage drive and a connected computer. The multi-channel USB audio interface also makes it easy to integrate the Ui24R into your recording studio for production work with your favorite DAW. The side panel offers two RJ45 Ethernet ports, an HDMI port for connecting a monitor, and two USB ports for connecting a keyboard and/or a mouse.

The Ui24R is compatible with the Connected PA app that offers seamless plug-and-play operation with a variety of Harman equipment and enables you to control an entire live performance system including JBL PRX800W loudspeakers, dbx Di1 direct boxes, and AKG P5i microphones.

Features:
Professional Soundcraft quality and performance
Built-in, dual-band Wi-Fi eliminates the need for a router—it provides a reliable connection to up to 10 mobile devices in mission-critical situations
Control Ui24R from iOS, Android, Windows, Mac OS, and Linux browsers without installing additional apps
Record and mix with the warmth of 20 professional-quality, Studer-designed preamps
dbx compression and Lexicon reverb and delay processing
2 channels of DigiTech guitar amp modeling
Dual-path, redundant multi-track recording of all 24 inputs to USB drive and connected Mac/Windows computers
24 Simultaneous Inputs: 10 combo ¼” TRS/XLR (including 2 Hi-Z/instrument inputs), 10 XLR, stereo RCA line, 2 digital
4-band parametric EQ, high-pass filter, compressor, de-esser, and noise gate on input channels
31-band graphic EQ, noise gate, compressor, and dbx AFS2 automatic feedback suppression on all outputs
Real-time frequency analyzer (RTA) on inputs and outputs
Compatible with Mac/Windows DAWs and other music software
Compatible with Harman Connected PA application and system for easier setup and control
4 RU rackmount design

Specifications:
Mixer
Number of Analog Input Channels 24
Connectivity
Analog Inputs 1 x 1/4" Footswitch Input
10 x Combo XLR-1/4" Mic/Line Input
10 x XLR Mic Input
2 x 1/4" Hi-Z Input
2 x RCA Line Input
Analog Outputs 2 x 1/4" TRS Headphone Output
2 x XLR Main Output
2 x 1/4" Main Output
8 x XLR Balanced Aux Send
Digital I/O 1 x RJ45 (Control)
USB 1 x USB Type-A (Recording)
1 x USB Type-B (Host Connection)
1 x USB Type-A (Control)
Wireless Connectivity Wi-Fi
External Display Connection HDMI
Recording
Max Multitrack Recording 22 Tracks
Physical
Dimensions 7 x 19 x 6.5" / 177.8 x 482.6 x 165.1 mm
