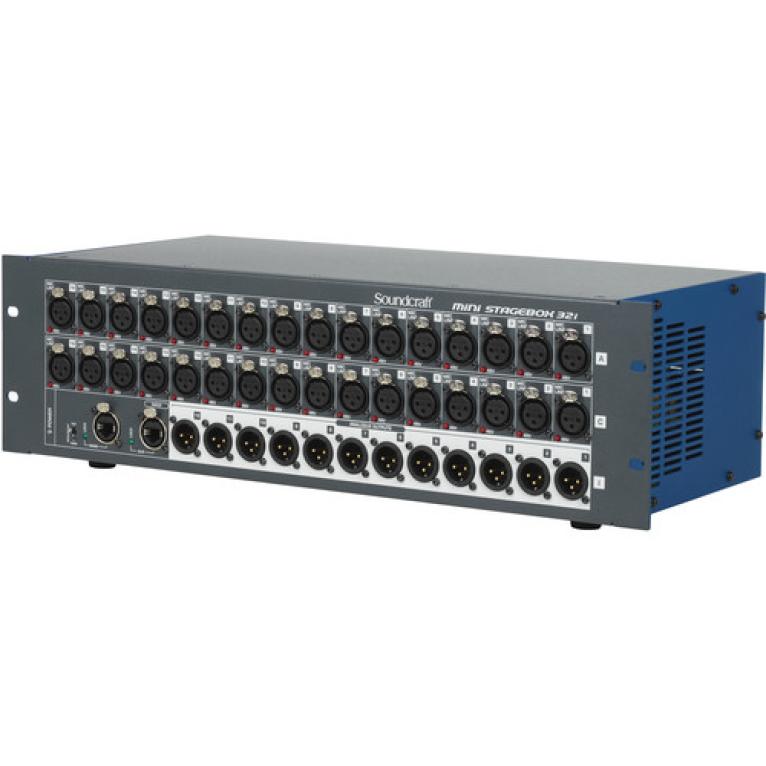

Sound Craft Mini Stagebox 32i

Soundcraft's Mini Stagebox 32i is an affordable choice for customers that want multiple channels of remote-controlled I/O for Soundcraft Si series products, including the Si Impact mixing console. It has dedicated XLR mic pre inputs that allow 32 simultaneous channels of external analog input along with 12 analog outputs for easy connection to house and stage monitors and broadcast or streaming feeds. It delivers remarkable sound quality, convenience, and robust ease-of-use using high-quality components including Studer-designed preamps. It's great for live sound engineers, bands, houses of worship, club owners, and corporate customers, delivering the input power, flexibility, and sound quality of large-scale traditional mixing solutions—all at an incredible value. Combined with Soundcraft's Si Impact firmware update, the Mini 32i makes the Si line even more compelling and more versatile than ever. In addition, it provides multiple channels of MADI I/O via standard Cat5 cabling, thus eliminating the need to run expensive, heavy analog snakes from the stage to FOH mixing positions. It delivers exceptional value while maintaining the industry-leading performance and dependability found in all Soundcraft live solutions.

Other features include a streamlined design that provides essential connections and features, including a MADI over RJ45 connector built right onto the chassis; no local hardware configuration or option cards are needed or required—simply plug in, power on, select inputs, and control remotely using a Soundcraft Si console.

Features:

Studer-designed preamps for professional performance
Dedicated remote controlled XLR mic inputs
(32) mic preamps, (12) analog outs
Single MADI connection

Specifications:

Digital Connectivity 2 x MADI over RJ45/Cat5
Analog Inputs and Outputs Remote Controlled Mic Preamps and A/D Converters: 32 XLR
Analog Line-Level Outputs: 12 x XLR
Maximum Distance 328.1' / 100.0 m
Frequency Response Mic / Line Input to Any Output: +0/-1 dB, 20 Hz to 20 kHz
THD Mic Sensitivity -30 dBu: < 0.01% @ 1 kHz
Residual Noise -85 dBu
Mic Input Noise (E.I.N.) -125 dBu (150 Ω source)
CMRR Mix Noise, Masters at Unity: < -86 dBu
1 Input to Mix at Unity Gain: -84 dBu
CMRR Mic @1 kHz (Max Gain): -86 dBu
Crosstalk <-80 dB @ 1 kHz
Input Gain -5 to 58 dB integrated pad design (1 dB steps)
Maximum Input Level +24 dBu
Maximum Output Level +22 dBu
Sample Rate 48 kHz
Converter 24-bit
Latency 1.5 ms
Clock Accuracy ± 25 ppm
Power Consumption 33 W
Operating Range 90 to 264 VAC, 47 to 63 Hz
Operating Temperature Range 14 to 122°F (-10 to +50°C)
Relative Humidity 0 to 90%
Storage Temperature Range 14 to 122°F (-10 to +50°C)
