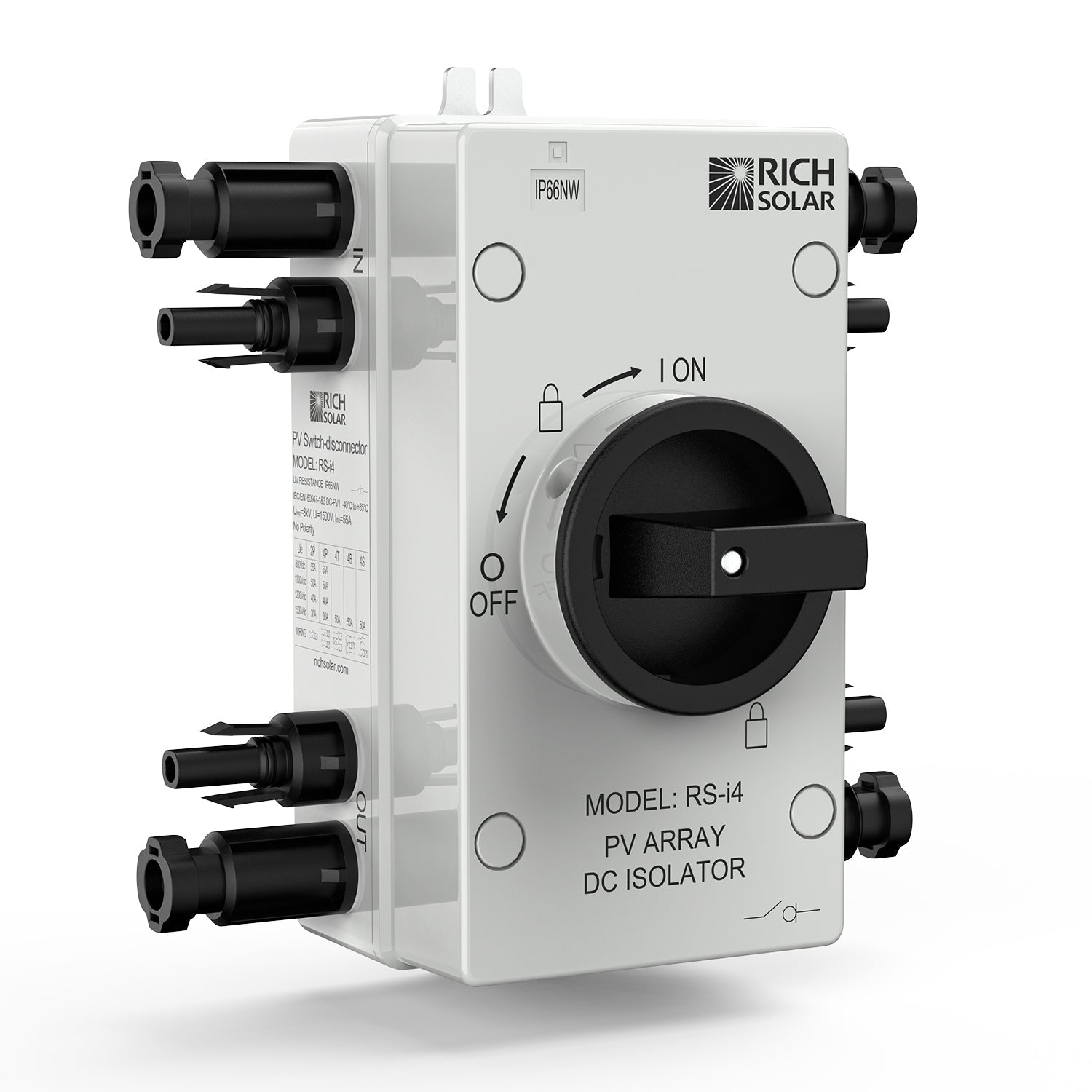

Solar PV DC Quick Disconnect Switch | Solar Array DC Quick Disconnect Switch | 1500 Volt 55 Amp | 4 Pole 2 Strings | Easy to Install
Solar PV DC Quick Disconnect Switch | Solar Array DC Quick Disconnect Switch | 1500 Volt 55 Amp | 4 Pole 2 Strings | Easy to Install is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
In Stock
ON SALE!
Clip coupon for additional at checkout
Ships same or next day *Exclusions May Apply*
Delivery and Shipping
Delivery and Shipping
We offer fast and reliable shipping across the continental U.S., with free shipping available on most orders (exclusions may apply based on brand and product type). Orders are typically processed within 1–2 business days and transit time is usually 4–7 business days. Larger items may ship via freight and require a scheduled curbside delivery. Please ensure your contact details are accurate at checkout. For questions about delivery timelines, shipping eligibility, or special requests, feel free to contact us directly. See Policy.
Do You Offer Financing?
Do You Offer Financing?
Shop Pay + After Pay - Choose the product you desire the most now and pay over time using Shop Pay / After Pay. Select your monthly payments and have your product delivered with no additional fees.
ACORN + APPROVE Financing - For larger purchase and businesses, ACORN and APPROVE offers flexible financing designed around their goals. Complete a 60-second application and connect with leading lenders—no effect on your credit score.
Price Match Guarantee
Price Match Guarantee
We’re committed to offering the best online prices—if you find a lower price from an authorized retailer, we’ll beat it. Our 100% Price Beat Guarantee excludes promotions, auction sites, and exchanges, and factors in item price, tax, and shipping. For price match inquiries, contact us at (833) 932-9683
Solar PV DC Quick Disconnect Switch | Solar Array DC Quick Disconne...
Features

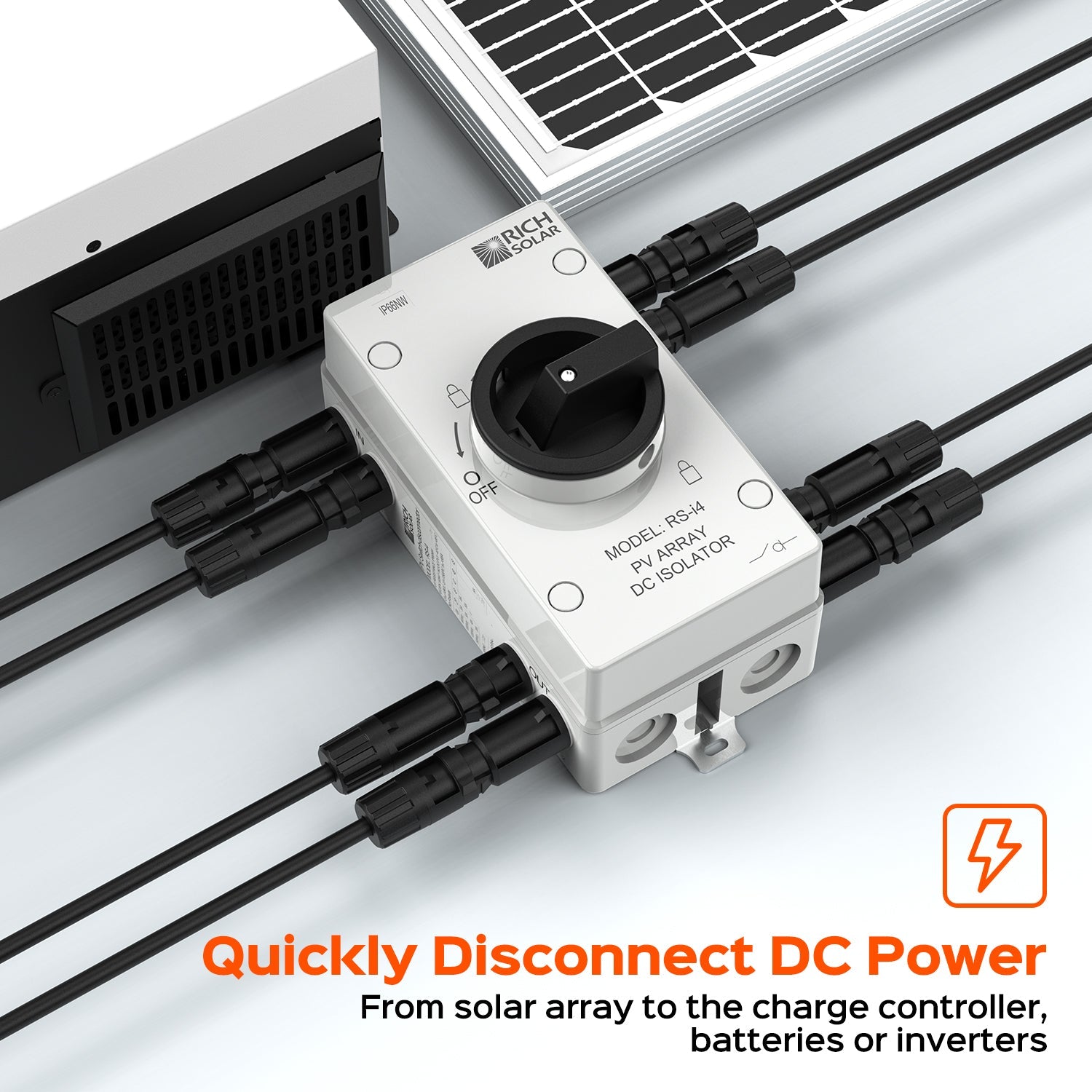

- Quickly disconnects DC power from your solar array to the charge controller, batteries and/or inverters.
- Outdoor rated.

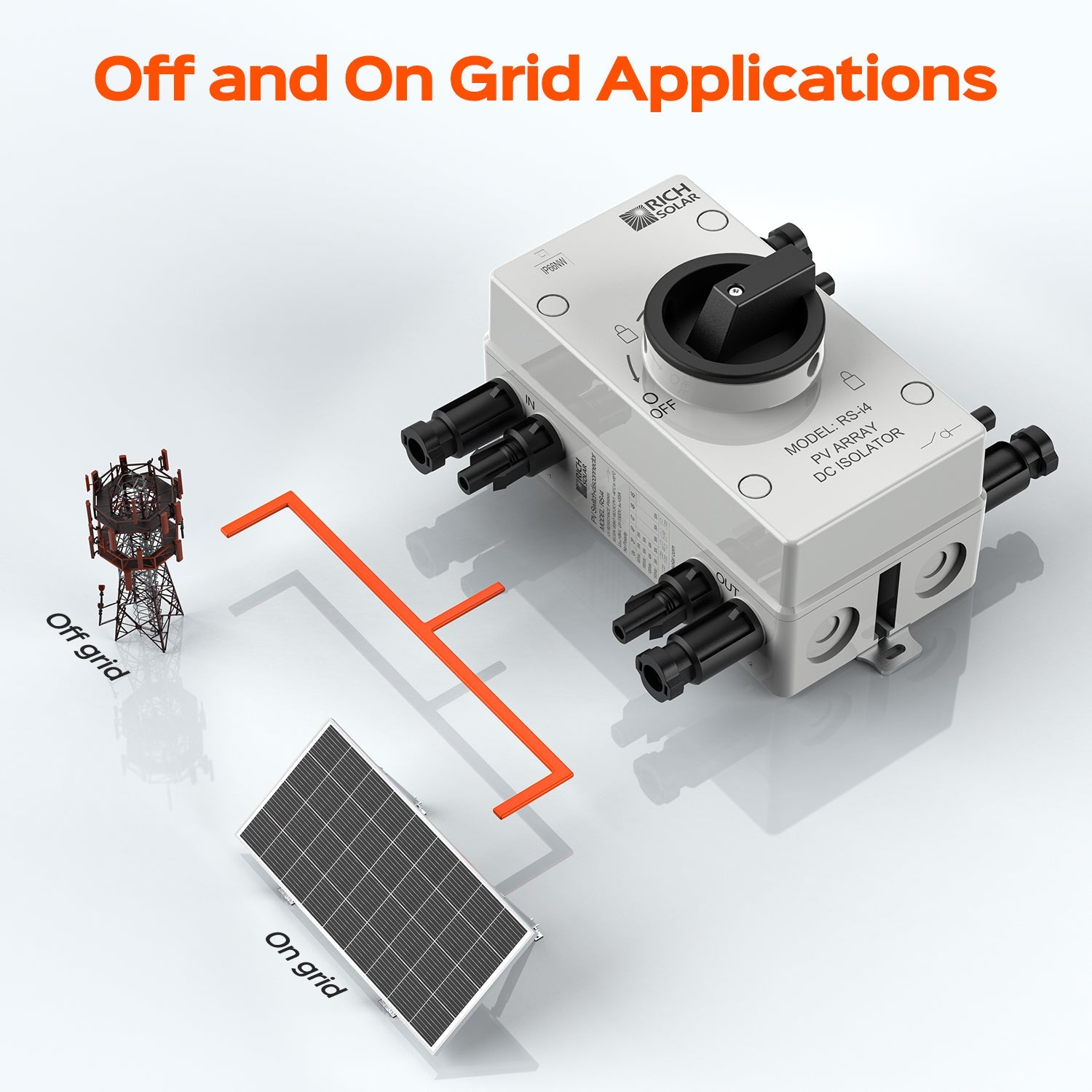

- Off and on-grid applications.

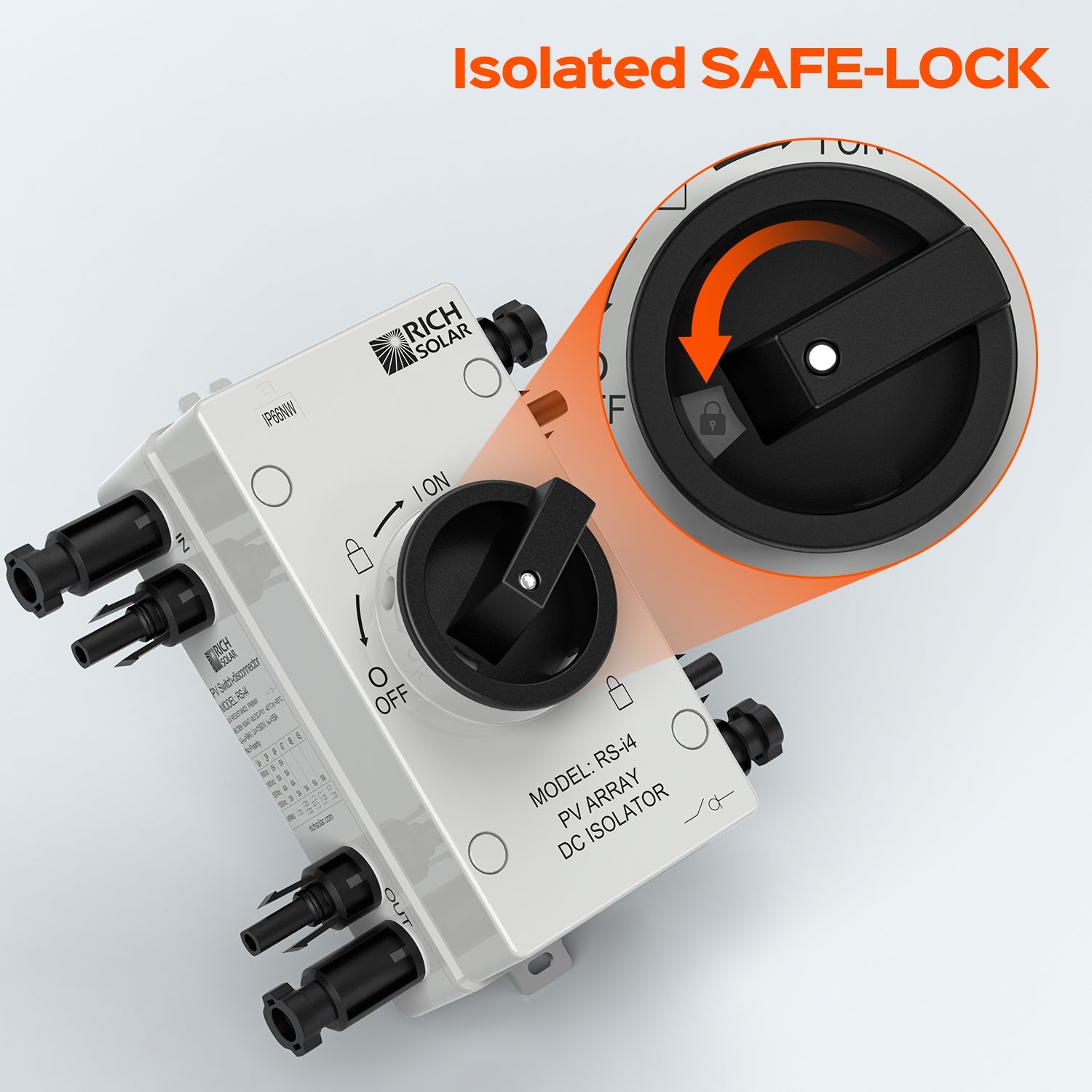

- Isolated SAFE-LOCK with three rotational positions, reducing the risk of tampering.
- 4-pole and 2-string.

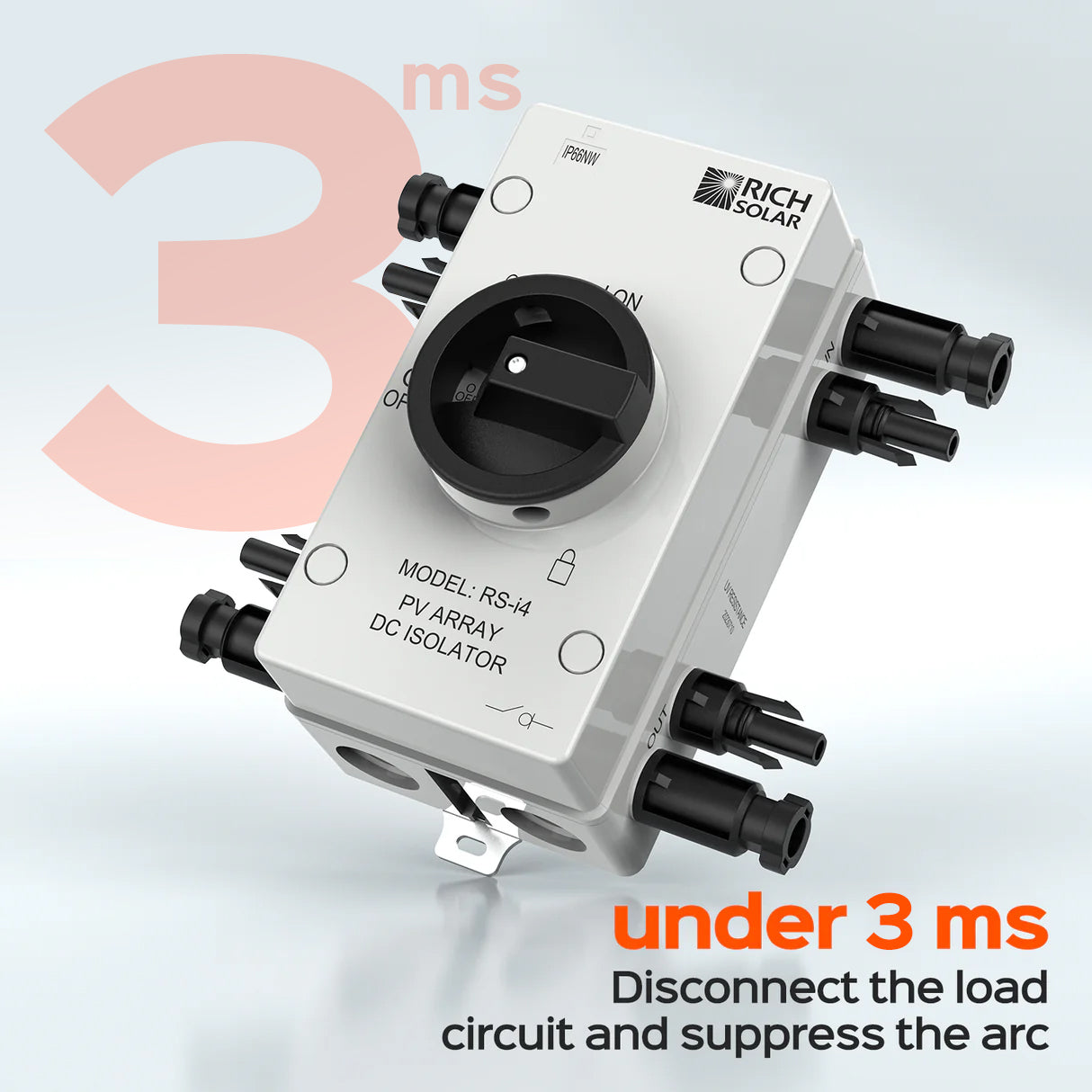

- Ensures the disconnection of load circuits and suppression of the arc in under 3 milliseconds.
- Lockout option.
- Output and input connections are built for easy setup and installation.
Specifications
- Max. Rated Current: 55A
- Max. Rated Voltage: 1500VDC
- Poles / Circuit: 4P in series
- Supported PV Strings: 2 PV strings
- Impulse Withstand Voltage: 8 kV
- IP Rating: IP66NW
- Arc Suppression Time: <3ms
- Operating Temperature: -40°F to +185°F (-40°C to +85°C)
- Housing Material: Flame-retardant PC (UL94 V-0)

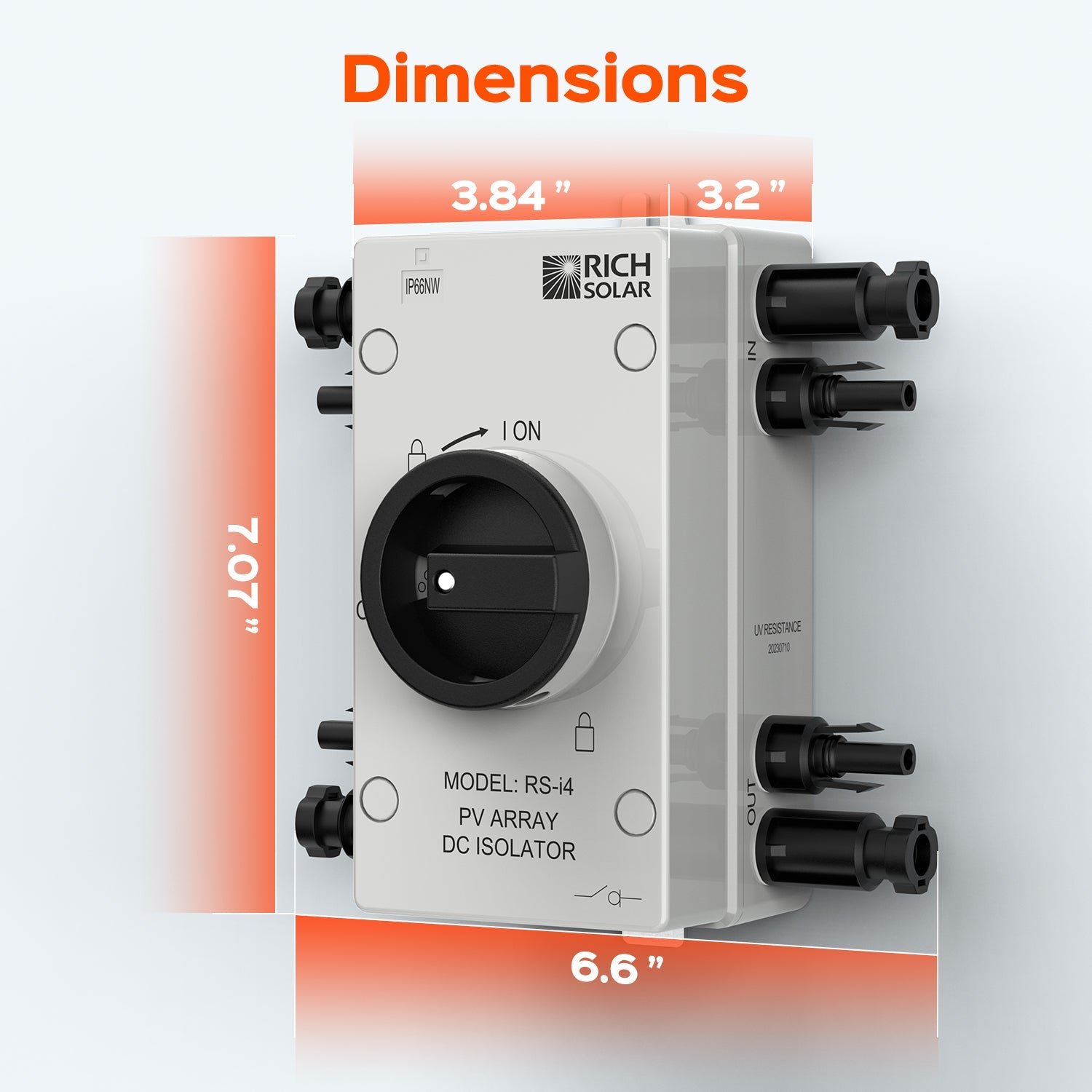

- Dimensions (HxWxD): 7.1x6.8x4.3 in (179.5x173.9x110 mm)
- Net Weight: 1.6lb (0.73kg)

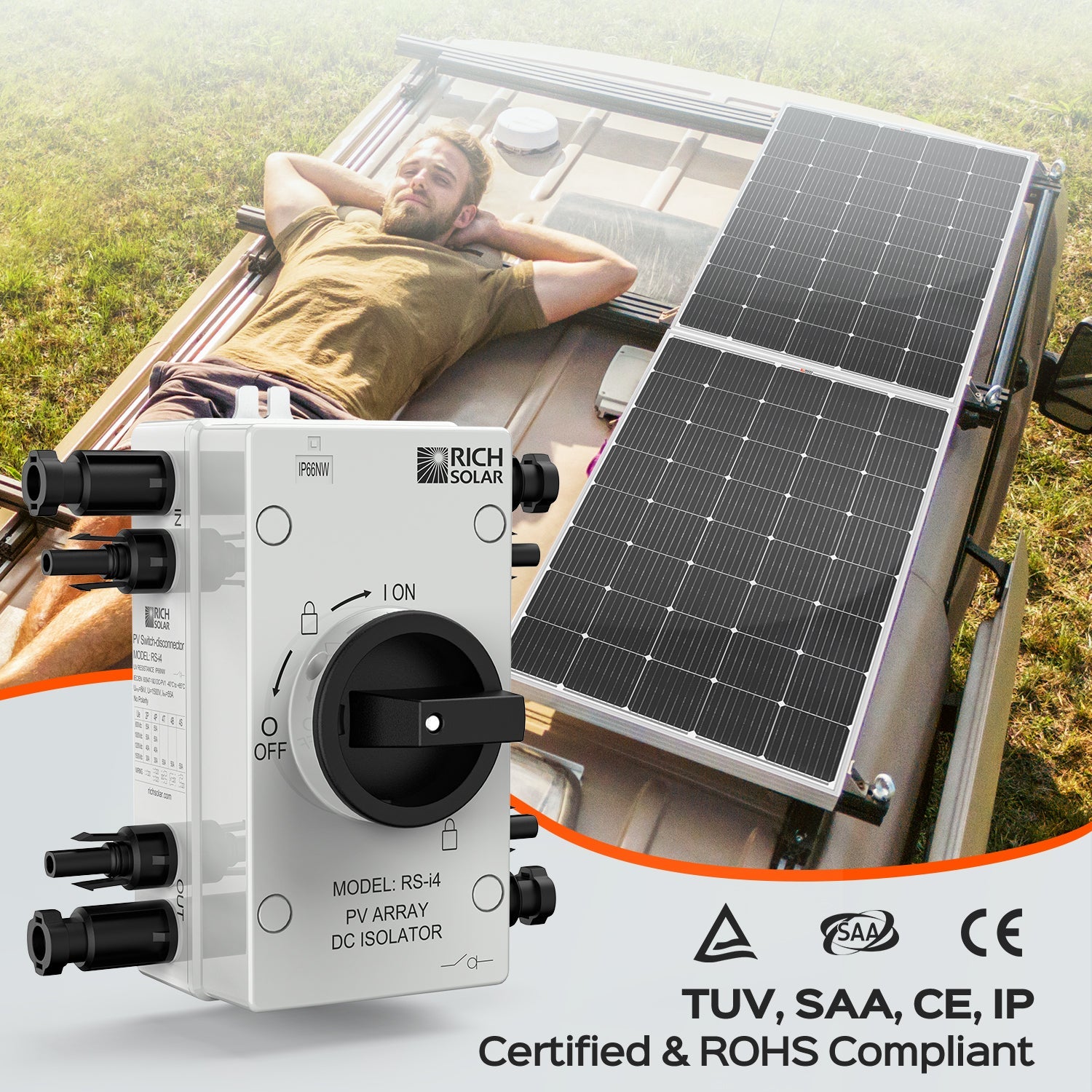

- Certifications: CE
- Warranty: 3 years
