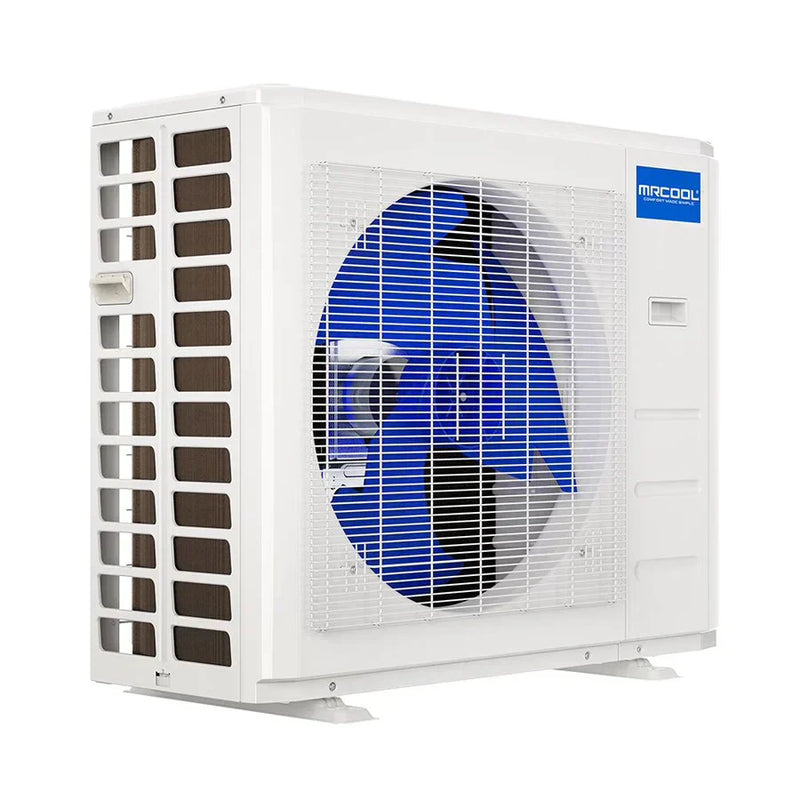

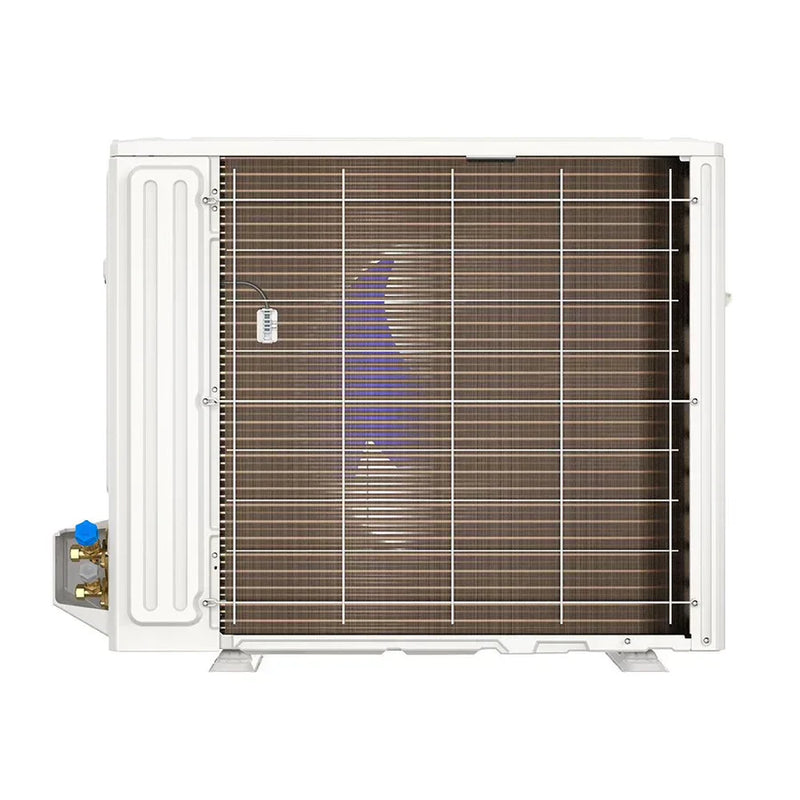

MRCOOL DIY 36K BTU 5th Gen Ductless Mini Split Condenser - 230V
The 5th Generation MRCOOL® DIY® 36k BTU 18 SEER Ductless Heat Pump Single Zone Mini Split Condenser makes it easy to stay comfortable year-round. Designed for straightforward installation, this system requires no special tools or professional expertise, making it a great choice for spaces between 1,000-1,500 sq. ft. Installation is hassle-free thanks to the pre-charged 25-foot QuickConnect® line set, which comes filled with R-454B refrigerant, eliminating the need for vacuuming. The DIYPRO® cable adds extra durability, replacing traditional electrical conduit to safeguard against weather, animals, and other damage.
Multiple control options let you adjust settings with ease. Use the included remote, the SmartHVAC app on Apple or Android devices, or voice commands via Amazon Alexa and Google Assistant. If you live near the coast, the Gold Fin Condenser offers excellent corrosion resistance, ensuring long-lasting performance. This system includes features that enhance both comfort and efficiency. The Timer function helps manage energy use, while Auto mode keeps your space at your preferred temperature without manual adjustments. After a power outage, the system automatically restores its previous settings. Plus, the anti-mildew function prevents excess condensation buildup inside the air handler. Designed for reliability, the 5th Generation MRCOOL® DIY® Mini Split comes with an industry-leading limited lifetime warranty, along with a 7-year compressor and 5-year parts warranty. With innovative technology, easy setup, and long-term dependability, this system delivers efficient climate control without the stress.
Product Specifications:
| BRAND NAME |
MRCOOL |
| SERIES |
DIY 5th Gen Single-Zone Mini-splits |
| MODEL |
DIY-36-HP-C-230D25-O |
| GTIN |
840255586986 |
| UPC |
840255586986 |
| SHORT DESCRIPTION |
MRCOOL® 36k DIY 5th Generation Mini-Split Condenser 230v |
| SEER2 |
18 |
| EER2 |
8.5 |
| HSPF2-4 |
8.5 |
| HSPF2-5 |
6.5 |
| TONNAGE |
3 |
| COOLING CAPACITY (BTU) |
36000 |
| HEATING CAPACITY (BTU) |
36000 |
| VOLTAGE (V) |
208/230 |
| PHASE |
1 |
| CYCLE |
60 |
| MAX FUSE BREAKER (A) |
35 |
| MIN CIRCUIT AMPACITY (A) |
33 |
| COLOR |
White |
| ZONE CAPACITY |
1 |
| REFRIGERANT TYPE |
R-454B |
| REFRIGERANT VOLUME (OZ) |
109.7 |
| DECIBEL RATING (DBA) |
60.5 |
| INVERTER |
DC |
| LINE SET LENGTH |
25 |
| MAX LINESET LENGTH (FT) |
213.2 |
| LIQUID LINE SIZE |
3/8 |
| SUCTION LINE SIZE |
5/8 |
| COMPRESSOR MOTOR TYPE |
Rotary |
| AUXILIARY HEATER INCLUDED |
No |
| AUXILIARY HEATER AVAILABLE |
No |
| FAN ONLY OPTION |
Yes |
| QUIET MODE |
Yes |
| AUTO COOL |
Yes |
| WIFI COMPATIBILITY |
Yes |
| APP COMPATIBILITY |
Yes |
| WORKS WITH IOS |
Yes |
| WORKS WITH ANDROID |
Yes |
| UL LISTED |
Yes |
| ETL LISTED |
Yes |
| AHRI CERTIFIED |
Yes |
| REGISTERED WARRANTY |
Extended Limited Lifetime* |
| BASE PARTS WARRANTY |
5 |
| BASE COMPRESSOR WARRANTY |
7 |
| HAS BATTERIES |
Yes |
| CONTAINS ELECTRONICS |
Yes |
| CONTAINS CHEMICALS |
Yes |
| CONTAINS AEROSOL |
Yes |
| CONTAINS COMPRESSED GAS |
Yes |
| PROPOSITION 65 WARNING |
Yes |
| NET DEPTH (IN) |
16.14 |
| NET HEIGHT (IN) |
31.89 |
| NET WIDTH (IN) |
37.24 |
| NET WEIGHT (LBS) |
152.12 |
| GROSS DEPTH (IN) |
19.88 |
| GROSS HEIGHT (IN) |
37.01 |
| GROSS WIDTH (IN) |
42.91 |
| GROSS WEIGHT (LBS) |
183.42 |
