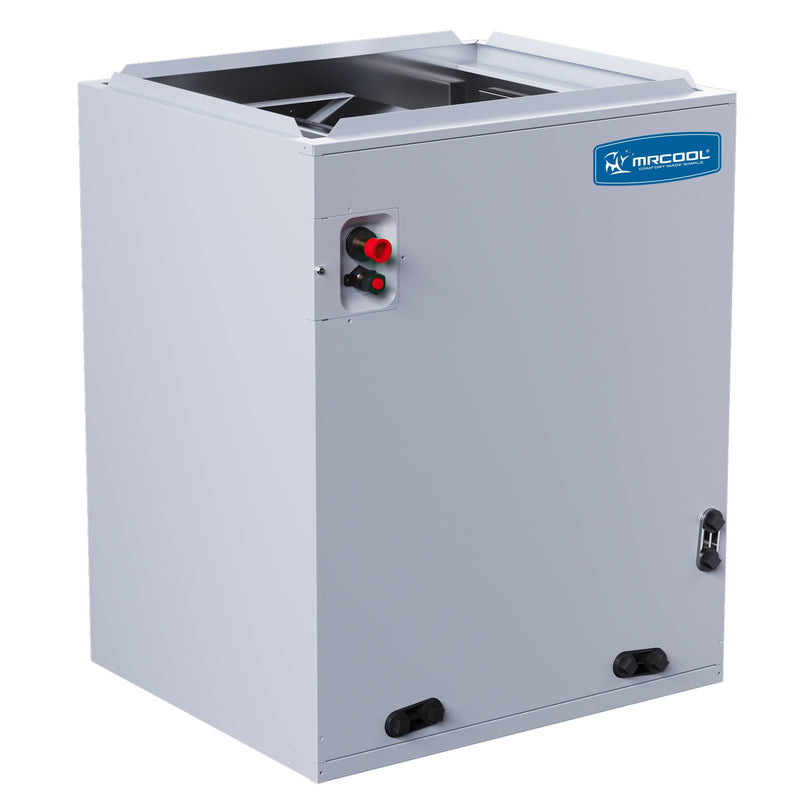

MRCOOL® ProDirect 4 - 5 Ton Cased A Coil - 21 in (HCMP4860CFOA)
Optimize your HVAC system’s performance and reliability with the PRODIRECT™ Series A Coil, a top-tier choice for exceptional efficiency. Compatible with both R410A and R22 refrigerants, this coil integrates seamlessly into your PRODIRECT™ system for dependable, long-term operation. The advanced design features aluminum fins and internally grooved copper tubing, ensuring efficient heat exchange and durability. Encased in a thermally insulated cabinet with foil-faced insulation, the PRODIRECT™ Series A Coil minimizes condensation and maximizes energy efficiency. Its versatile multi-positional design adapts to many installation needs, while dual drain pans simplify maintenance and provide added flexibility. The 19-½ inch supply duct ensures compatibility with diverse HVAC configurations, offering various installation options. With dimensions of 30 inches in height and 21 inches in width, this coil is compact enough to fit effortlessly into most setups. It includes a 3/8-inch liquid line and a 7/8-inch suction line, supporting a wide range of applications. Proudly UL-certified, the PRODIRECT™ Series A Coil meets rigorous industry standards for safety and performance. For added peace of mind, the coil comes with a standard 5-year warranty and an additional 5-year extended warranty when paired with an approved MRCOOL® Condenser.
Features:
- Multiposition installation
- Evaporator Coil Tube Material: Aluminum
- Evaporator Coil Tube Size(in.): 9/32
- Supply Duct(in.): 19 1/2
Warranty:
Unless otherwise required or prohibited under applicable state or province law, this non-transferable warranty provides for a total of 10 years (Standard 5-year plus an additional 5-year extended warranty when installed with an approved MRCOOL Condenser) of limited warranty coverage. This warranty applies to all units installed in owner-occupied residences, multi-family residences, and limited commercial applications which use a 1-Phase power supply. Proof of purchase may be required to file a warranty claim.
Specifications:
| BRAND |
MRCOOL® |
| SERIES |
PRODIRECT Series Cased Coils
|
| MODEL |
HCMP4860CFOA |
| GTIN |
00840255585880 |
| UPC |
840255585880 |
|
COOLING CAPACITY (BTU)
|
48,000/60,000
|
|
LIQUID LINE SIZE
|
3/8
|
|
SUCTION LINE SIZE
|
7/8 |
|
BASE WARRANTY
|
5 Years (Standard 5-year plus an additional 5-year extended warranty when installed with an approved MRCOOL Condenser)
|
|
NET DEPTH (IN)
|
21 |
|
NET HEIGHT (IN)
|
30 |
|
NET WIDTH (IN)
|
21 |
|
NET WEIGHT (LBS)
|
82 |
