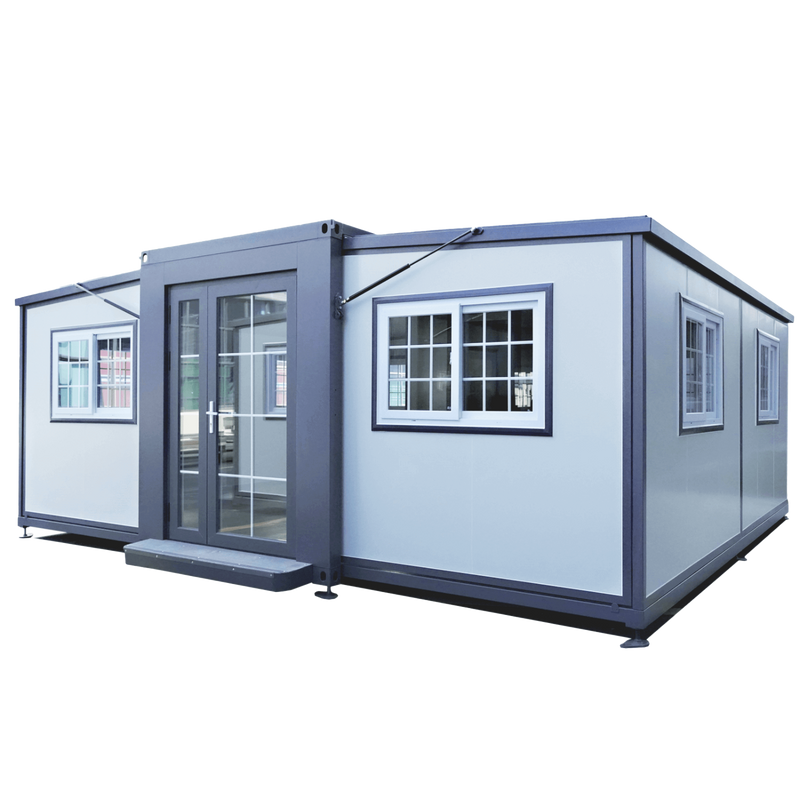

Expandable Prefab Home 19ft x 20ft

Name: Expandable Prefab Home 19ft x 20ft
Brand: Chery Industrial
SKU: PM000119
Price: 26599.0 USD
Availability: InStock

Chery IndustrialSKU: PM000119

Perfect layout for small living. Everything feels smart and efficient. It’s cozy, but still has all the essentials

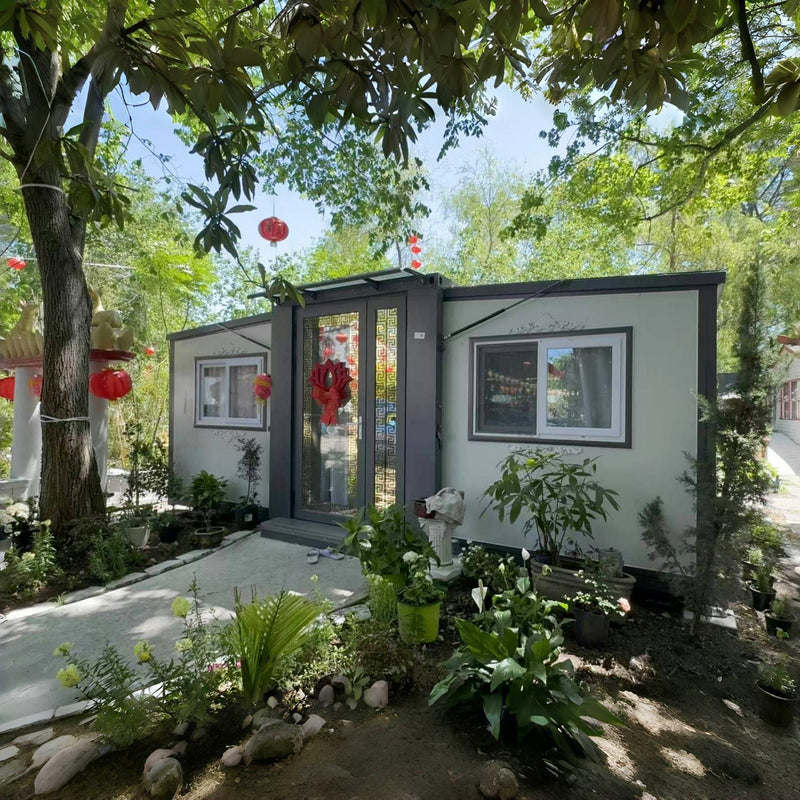

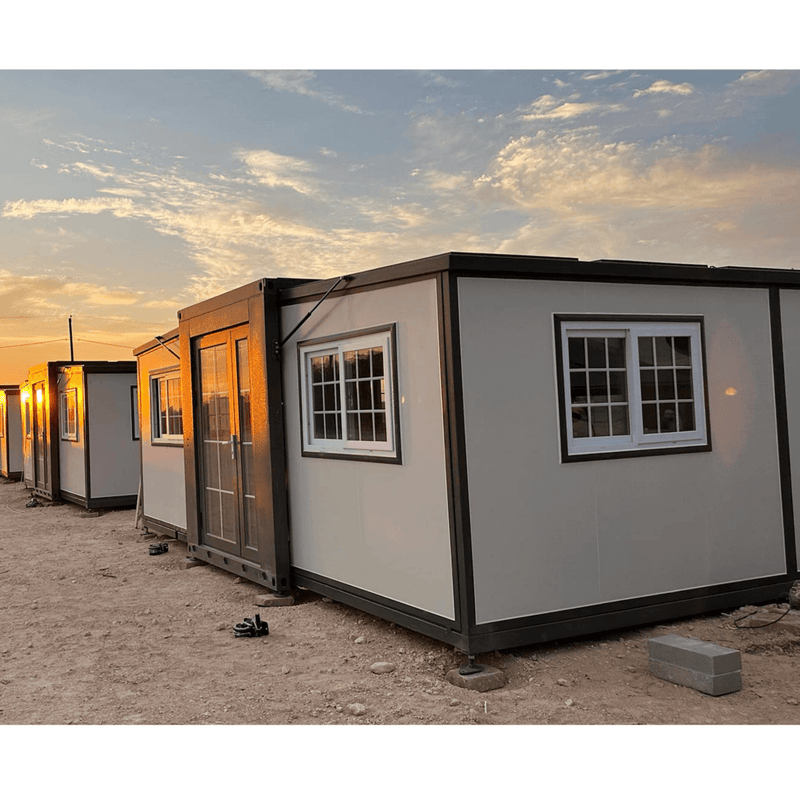

We set it up on our land and it’s been perfect. Easy to move, well insulated, and surprisingly spacious inside

Portable Prefabricated Tiny Home 19x20ft, Mobile Expandable Prefab House for Hotel, Booth, Office, Guard House, Shop, Villa, Warehouse, Workshop.

This Bastone Mobile Expandable Prefabricated House is an ideal alternative for temporary accommodation or office. People who travel around love mobile houses, they can move the portable house with a trailer when they move around. This Bastone Mobile house is easy to set up and quick to assemble and comfortable to live in.

Expandable Prefab Home 19ft x 20ft Overview

Assembly Manual

Assembly Video

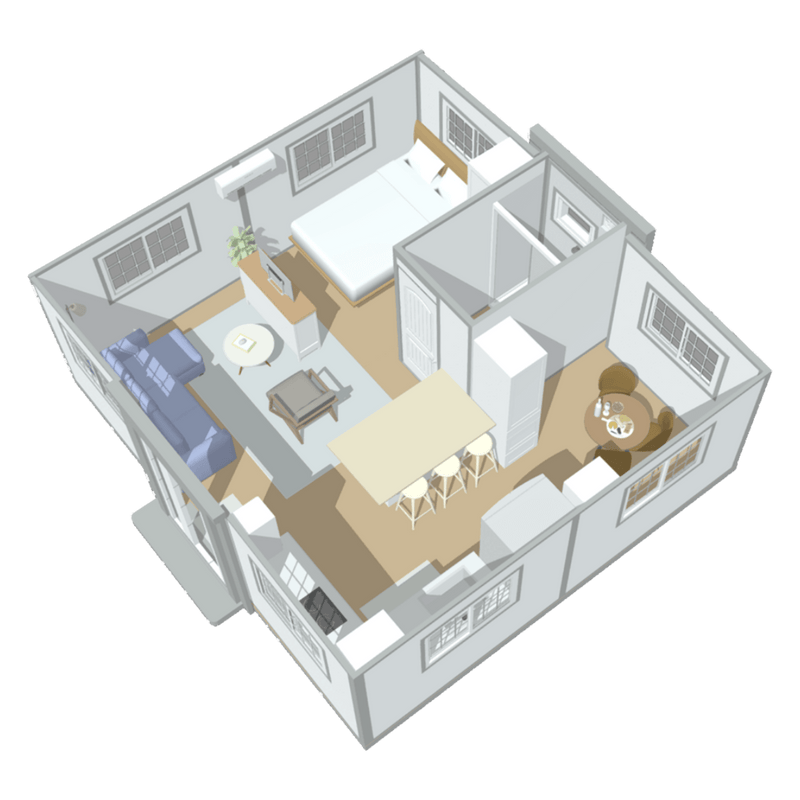

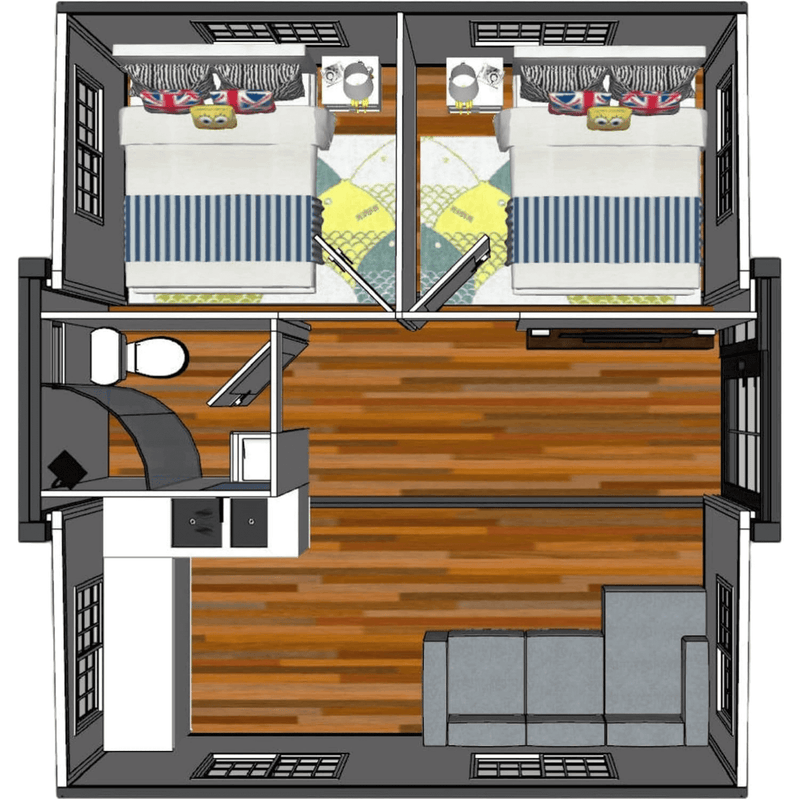

Floor Plan

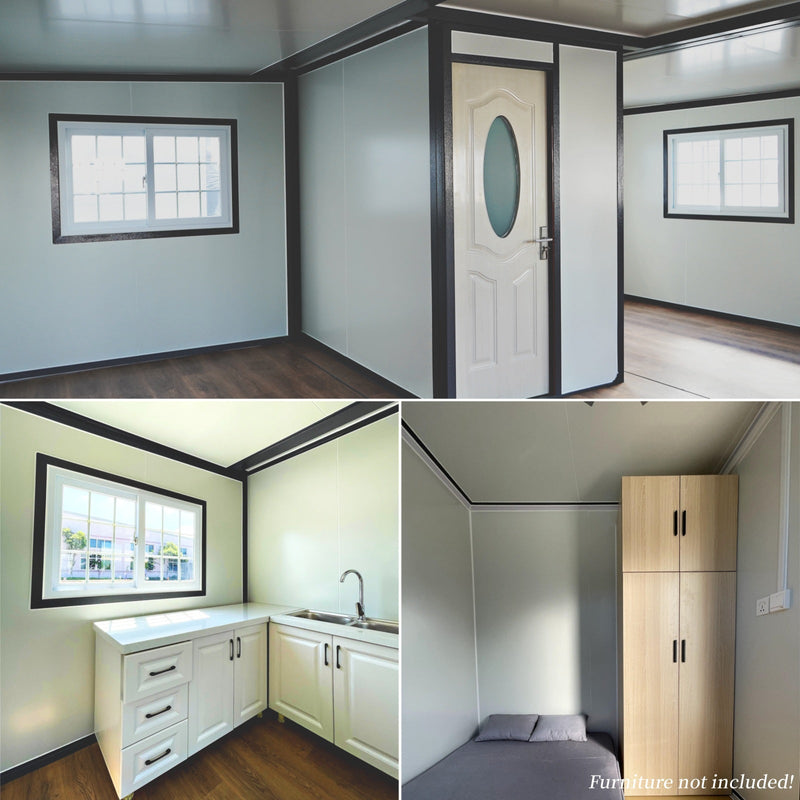

Designed with a built-in toilet, it is convenient for everyone. Compared to solid constitutions, prefab houses are built in a factory and it is compacted as a container size. This Tiny House does not come with furniture, fixtures or fittings such as tables, chairs, curtains, carpets, kitchen splashbacks or appliances. Any content shown is not included.

View in VR

Setup

Using drywall anchors and screws through the holes reserved on the adjustable leg to the ground to strengthen the stability.
Bastone Mobile Expandable Prefab House 19ft x 20ft

Specification

Description	Specifications
Dimension	L19xW20xH8 (after expand)，380 sqft
Bathroom Door Size	W28.4" x H77.2"
Frame Structure	Steel Frame structure Flame retardant foam wallboard
Snow Load	40 lbs/ft²
Wind Load	70 miles/h
Roof	Flame retardant foam aluminum magnesium manganese thermal insulation roof
Floor	Glass magnesium floor 0.08-inch wear-resistant laminate floor leather
R-value	7.09~8.27
Window	Double-layer tempered glass-plastic-steel sliding lattice window window outside bathroom: Plastic glass window

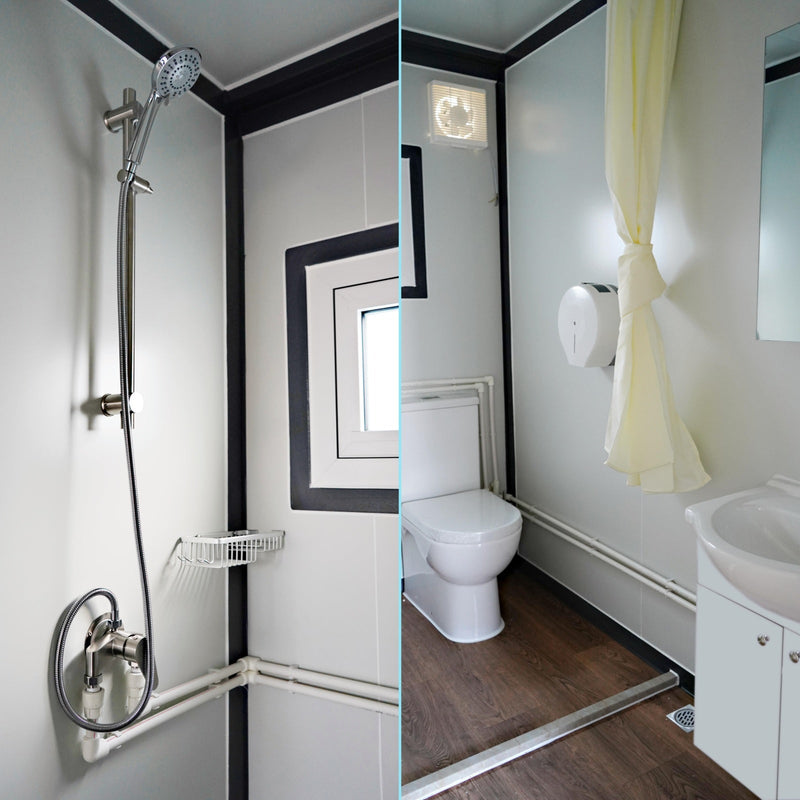

Restroom with shower	shower curtain rack, Shower valve, Shower sprinkler, shower rod, floor Drain, door stopper: Stainless steel shower curtain: tarpaulin Soapdish, toilet brush: Aluminum alloy Water stopper, mirror box: PVC Silent exhaust fan
Security Doors	Main door: aluminum door with lock Restroom door: WPC Door + Frosted Glass
Electricity	Need to set up additionally
Hot and cold water valve	Stainless steel Grade 304
Fittings	PPR hot and cold water pipe PVC drainage pipe Insulation Pipe
Installation	Hydraulic brace: Pressure 3000N Bearing: 6204 Hinge pulley block: 2000 lbs Wire rope: φ5mm
Neutral environmental protection materials	Neutral sealant
Country of Origin	China

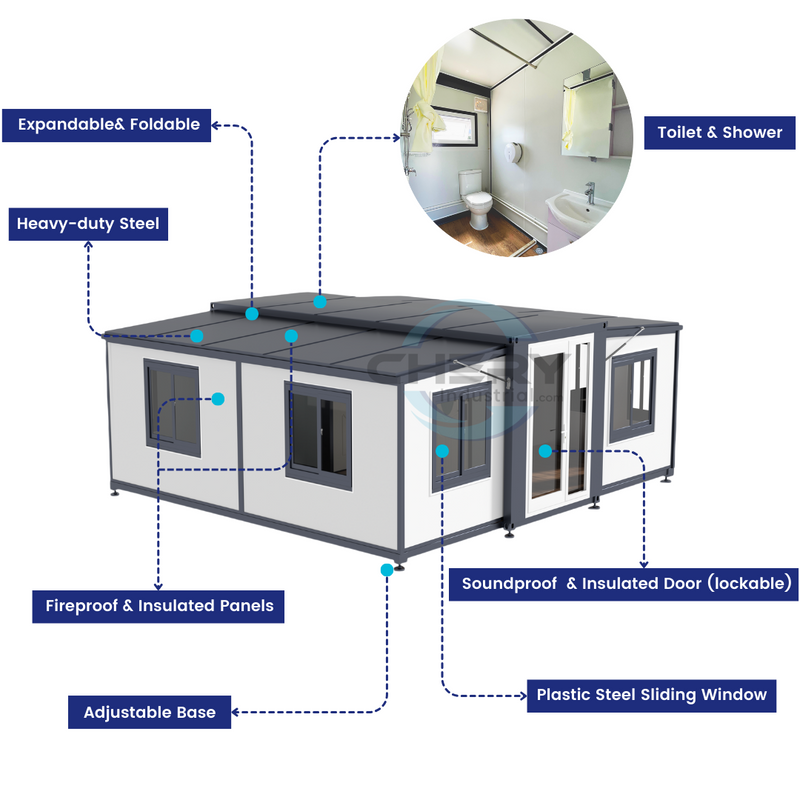

Feature

Quick Assemble, finished interior decoration.
Use: Hotel, House, Kiosk, Booth, Office, Sentry Box, Guard House, Shop, Toilet, Villa, Warehouse, Workshop, Plant.
Style: Portable, Container Home.
Wind load: Up to 70mph, depending on foundation and specific circumstances. We highly recommend pouring concrete on the legs to maximize the stability. Please don't stay inside in extreme weather conditions (storms, tornados, hurricanes, floods, blizzards, etc).
Snow Load: The unit is designed for outside usage and can withstand a heavy snow load. The unit is safe before the snow reaches 6.6ft high on the roof. However, it is recommended that take off the snow in time and don't stay inside in extreme weather conditions (storms, tornados, hurricanes, floods, blizzards, etc).

Package Size

L*W*H (inch): 232x80x99
Weight (lb): 7849
Forklift or equivalent is required for unloading

Additional Details

Due to the extra large size, the product will be shipped via flatbed trucks, and it is customers' responsibilities to unlaod the product from the trucks. Please have forklifts or crane ready to unload. Please make sure the forklift has enough capacity to unload and balance the product when unloading. A crane is recommended.

Mobile Prefab House is not wired. Please hire an electrician for American standard wiring. Stay safe! We recommend you connect toilets to the sanitary sewer system and connect water to the pipe system. If not, you may need tanks outside the structure for waste.

FAQ

Can I hang something on the wall? - The wall panels are compounded with foam in the middle, so it is not recommended to screw into the wall to hang heavy objects. You need to use self-adhesive hooks for hanging, the load capacity depends on the hook.
Can I purchase 2 of them and combine them together without the wall? - Technically, no. There is still a gap between the two units.
