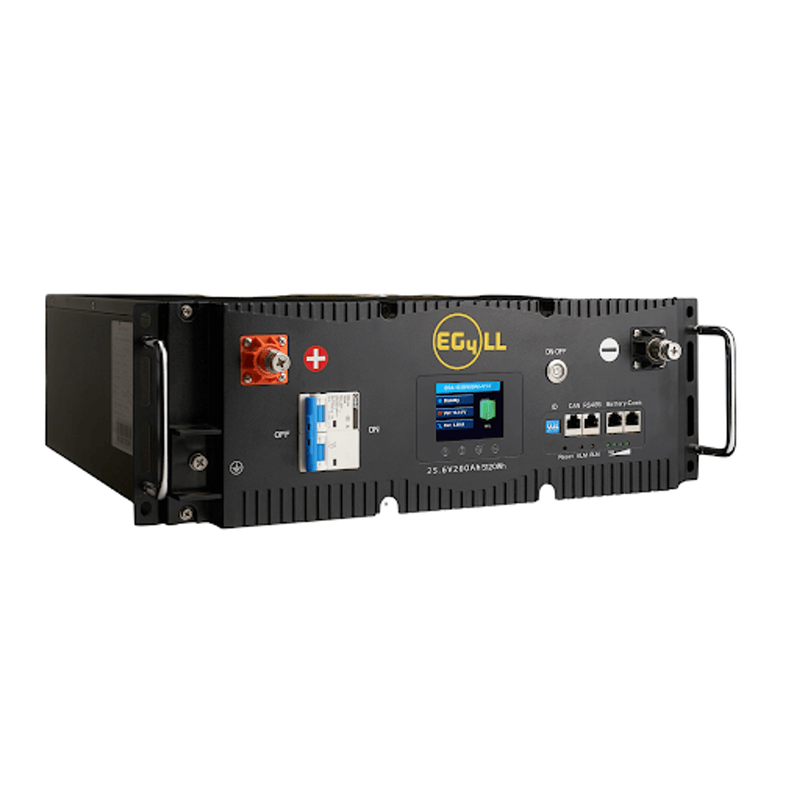

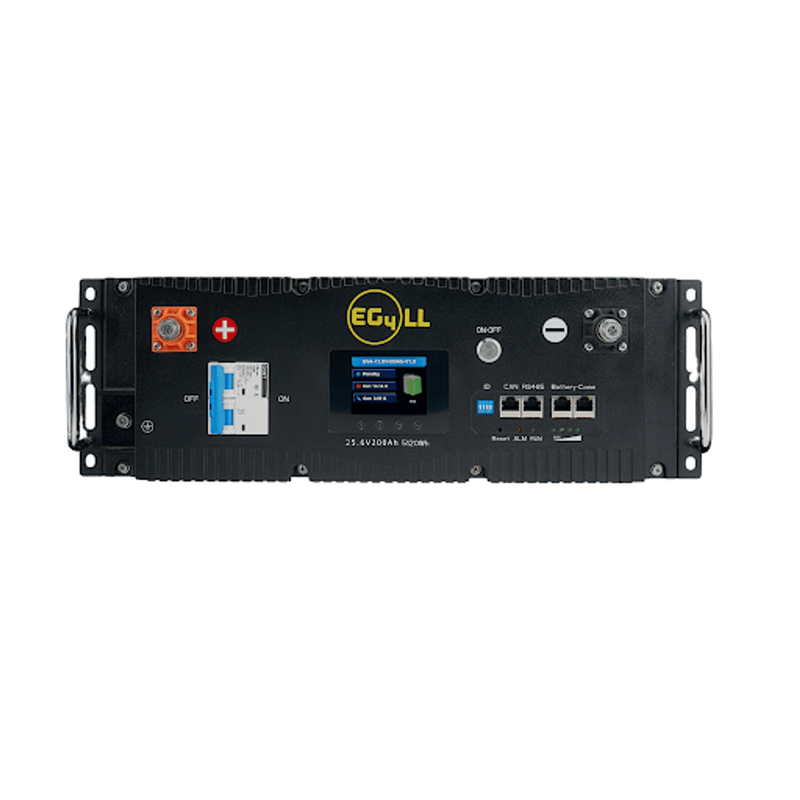

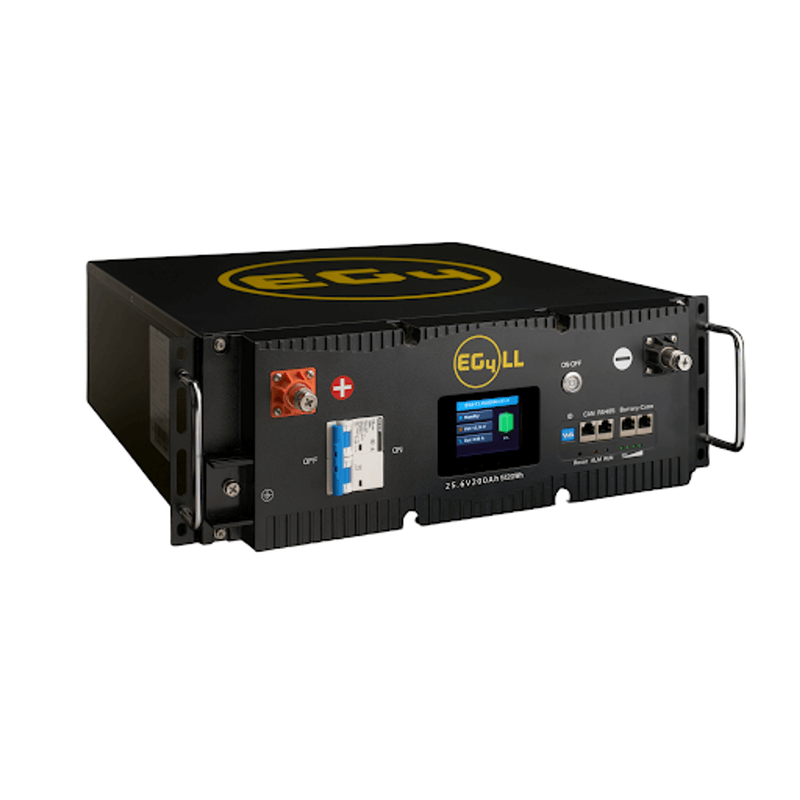

EG4 LL 24V 200AH Lithium Iron Phosphate Battery

Experience exceptional performance and durability with our enhanced EG4 LL 24V 200AH Battery. Our battery is engineered to endure over 7,000 deep charge and discharge cycles at 80% depth of discharge (DoD) and boasts a lifespan exceeding 15 years.

This EG4 LL 24V 200AH Battery’s built-in BMS offers 200A charge and discharge capabilities and comes with a 10-year warranty. With a storage capacity of 5.12 kWh, it features dual on-board fire arrestors for safety in high-risk environments. Real-time statistics are accessible through Bluetooth integration with a customized app and PC monitoring software. Furthermore, an on-board LCD touchscreen provides easy monitoring, and the battery supports closed-loop communications with various inverter brands. The system allows you to parallel up to 16 batteries, enabling a maximum power of 81.9 kWh while maintaining BMS communications.

SPECIFICATIONS:

• Voltage: 25.6V
• Capacity: 200Ah
• Dimensions: 6.1 in.×19 in.×20.2 in. (15.5 cm×48.2 cm×51.3 cm)
• Weight: 99.2 lbs. (44.5 kg)
• Design Life: 7000 Deep Cycles

FEATURES:

• Enhanced Charge/Discharge Performance:
  The battery provides a 200A constant charge/discharge rating. Power your systems with confidence, knowing you have ample reserves to meet demanding energy needs.
• Streamlined Configuration:
  Simplify your setup with only four DIP switches, optimizing user experience without compromising functionality. We’ve refined the design for effortless operation, ensuring seamless integration into your existing systems.
• LCD Screen Visibility:
  Stay informed with the built-in LCD screen, providing real-time insights into vital battery metrics. Monitor performance with ease and make informed decisions to maximize efficiency and longevity.
• Robust Construction:
  Built upon a foundation of tier one, A+ cell composition, and utilizing 99% efficiency LiFeP04 16-cell pack technology, our battery offers reliability and longevity. Additionally, the battery has a 10 to 20-year lifespan.
• Versatile Compatibility:
  Compatible with previous EG4 LL models, our battery ensures hassle-free integration into your existing setup. Whether you’re upgrading or expanding, rest assured that your investment is future proofed.

Upgraded EG4-LL (Lifetime Lithium) Lithium Iron Phosphate battery 25.6V (24V) 5.12kWh with 200A internal BMS, based on the same subset features of the previous industry renowned EG4-LL Battery. Fully Compatible with Previous EG4-LL Model(See below).

Composed of (16) UL listed prismatic 3.2V cells which have been tested at 7,000 deep discharge cycles to 80% DoD - fully charge and discharge this battery daily for over 15 years without issue. Reliable and rigorously tested, with a 99% operating efficiency.
Includes an LCD screen to quickly view your batteries' most important information, but now features Selectable closed-loop inverter communications including Schneider, Solark, Victron, Growatt, and EG4! A simple plug-and-play interface that has all the essentials built in for easy setup.

Included:
(1) 1 foot RS485 Communication Cable and (1) Set of Parallel Cables per battery
(1) RS485 USB Battery Comm Cable PER (6) BATTERIES (shipped separately)

EG4 Lifetime Lithium, Best In Class Solar Rack Battery

• Rated for 7000 deep charge & discharge cycles
  • 15-year life with 80% depth of discharge daily, designed for up to 20-year life


• Tier One, A+ Cell Composition, 99% Efficiency LiFePo4 16-Cell Pack


• #1 Energy Density Server Rack Battery Form Factor


• Selectable closed-loop inverter communications including Schneider, Solark, Victron, Growatt, and EG4!


• Dual Onboard automatic fire arrestors
  • Failsafe operation in high-risk environments and to protect against rare
    hardware failure on high voltage solar charge controllers!


• Parallel up to 16 batteries
  • Get the most power possible! Up to 81.9kWh while maintaining BMS
    communications!


• Have existing V1 EG4-LL Batteries? Enable expanded communication for existing V1 EG4-LL Battery Banks by using a new V2 EG4-LL Battery as your master battery. This feature will be available with a firmware upgrade that will be released soon.

Performance Components

• Reliable Built-In EG4 Smart BMS, Voltage, Current, Temp. and Health Management


• Stress-Free Battery Bank Expansion Capacity


• Cell & Module Voltage Protection


• Short Circuit Protection >250A <0.1mS


• Temperature Protection


• Operating Power Consumption  <25mA

Advanced Configurability

• On-board LCD Screen


• PC Monitoring Software


• Lifetime firmware updates

Reliability & Safety Testing

• Dual On-board Fire Arrestors


• Environmentally Friendly & Lead-Free


• Design Optimized and Tested by EG4's R&D Solar Laboratory. In-House & Texas Based


• 10-Year Warranty Supported and serviced out of Texas

DOWNLOADS:

• Spec Sheet
• Manual
