EG4 GridBOSS MID | 200A Service Entrance

The EG4 GridBOSS beats every Microgrid Interconnect Device (MID) / power gateway on the market in terms of capabilities and ratings. The GridBOSS simplifies the design and operation of complex solar installations, reducing hardware costs and installation time. Featuring four intelligent ports for AC coupling or smart load management up to 125 Amps, it consolidates multiple electrical components into a single device with a 200A service entrance rating.

The GridBOSS serves as a centralized connection point for utility power, up to three 90A hybrid inverters, four programmable smart/AC-couple ports, and a generator (up to 125 Amps). It is rated for 200 Amps for both backed-up and non-backed-up loads, ensuring seamless operation under high load conditions and continuous power to essential loads during grid outages.

When paired with the FlexBOSS21, the GridBOSS significantly reduces installation expenses by eliminating extra components and installation time, making it an efficient, cost-effective solution for whole or partial home backup and microgrid setups.

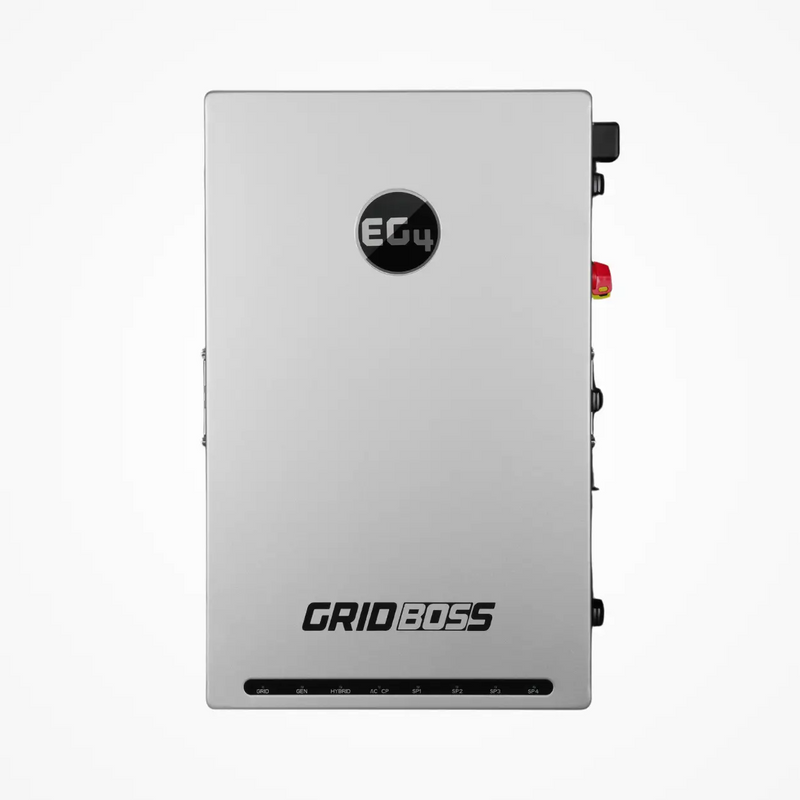

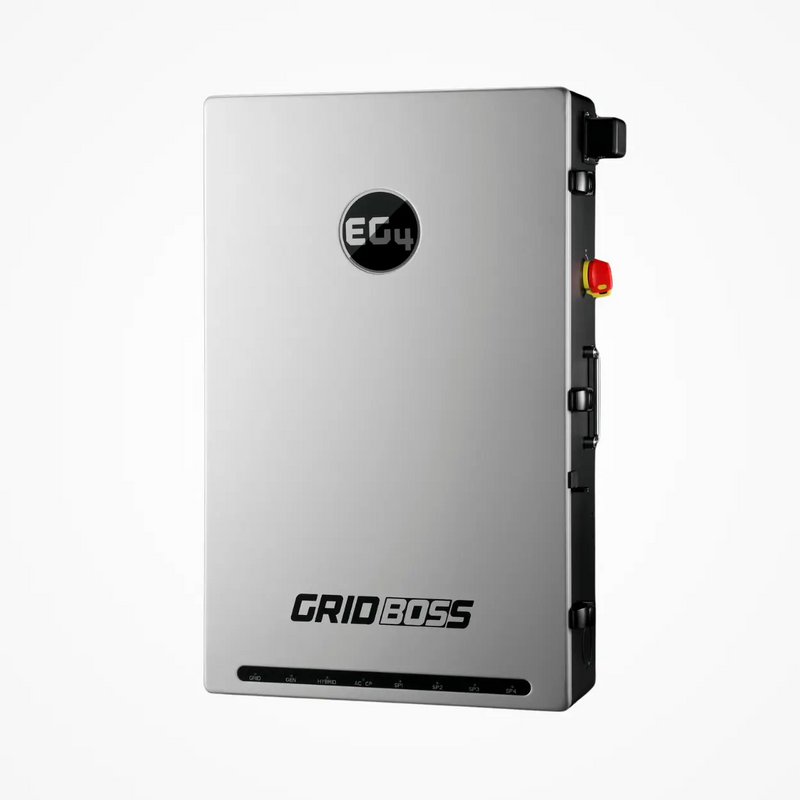

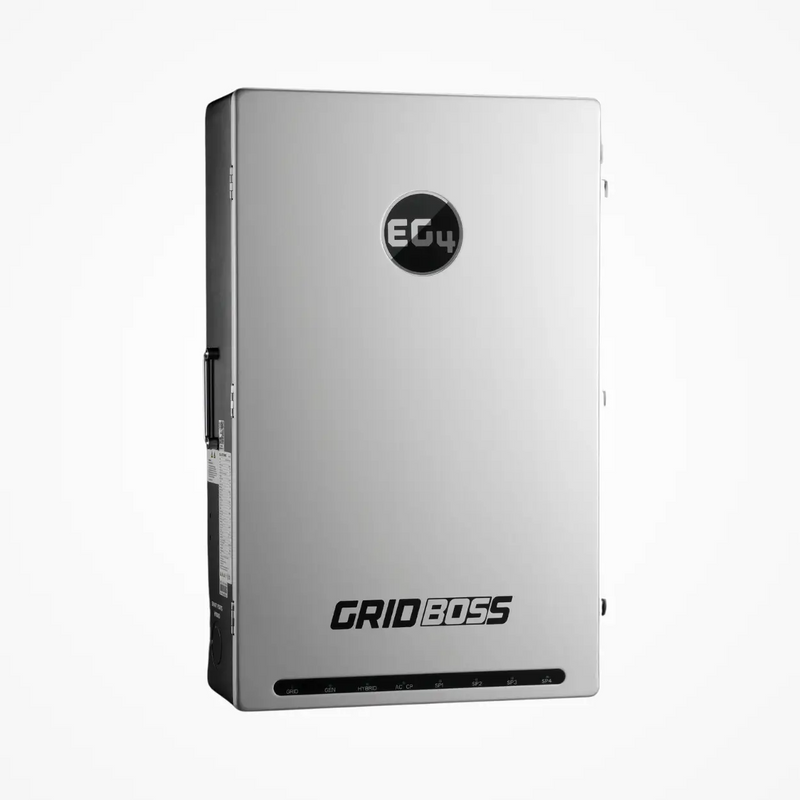

EG4 GridBOSS Micro-Grid Interconnection Device (MID)

Simplify and Optimize Your ESS

The EG4 GridBOSS MID simplifies your Energy Storage System (ESS) by consolidating up to 10 components into a single, powerful unit. Designed to seamlessly connect utilities, generators, inverters, and loads, it offers centralized control, easy installation, and real-time remote monitoring.

Key Features:

• One-Point ESS Control: Connect and manage utility, inverters, generator, and loads from a single device.
• Reduced Complexity: Replace breakers, transfer switches, and more with one compact solution.
• Smart Load & Power Shedding: Automate power management to optimize battery performance.
• 200A Service Entrance: Reliable with a 22 kAIC main breaker for powerful service integration.
• Real-Time Monitoring: Access and adjust settings remotely via the EG4 app or monitoring system website.
• Configurable Breakers: Supports one generator up to 125A, 3 hybrid inverters up to 90A each, and 4 smart ports ranging from 60A to 125A.

Specifications:

• Voltage: 120/240VAC
• Max Current: 200A
• Hybrid Ports: 3 (up to 90A each)
• Smart Ports: 4 (up to 125A)
• Operating Temp: -40°F to 140°F
• Warranty: 10 years
• Certifications: UL Certified, compatible with Eaton 200A main breaker model CSR25K

Elevate Your ESS Today: Explore how the EG4 GridBOSS can streamline and enhance your energy management.

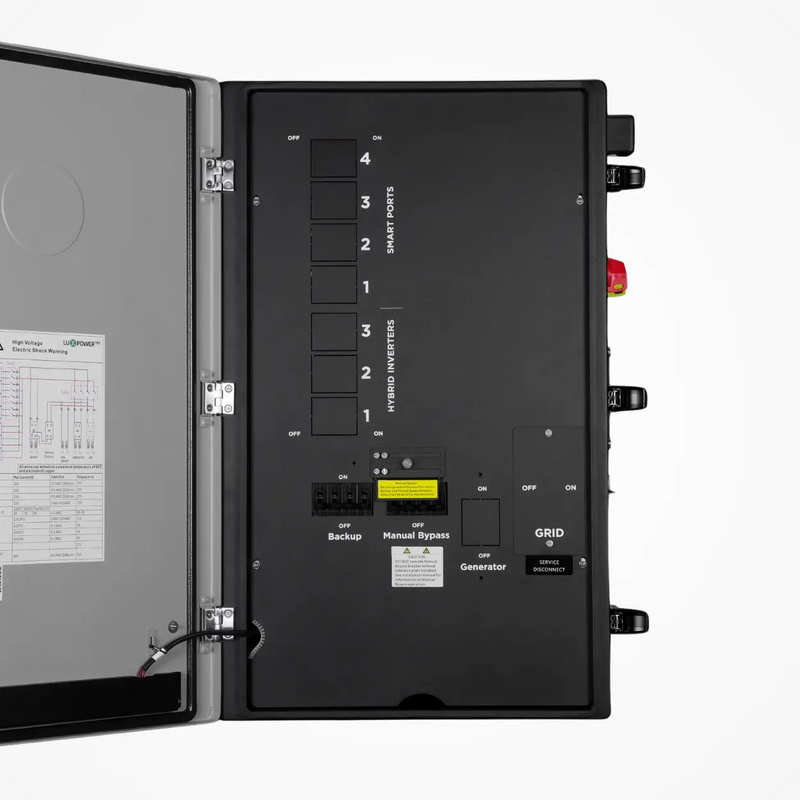

Important EG4 GridBoss Breaker Information

Each EG4 GridBoss unit includes:

• 70A Breaker:
  Compatible only with the EG4 18kPV Hybrid Inverter.

• Smart Port Breakers:
  Rated at 30A, 40A, 60A, and 80A.

Please Note:

• You must purchase a 90A Breaker (due to ship separately in early December) for use with the EG4 FlexBoss21 Hybrid Inverter.
• You must purchase a 50A Breaker separately for use with the EG4 12kPV Hybrid Inverter.
• A 125A Breaker (sold separately) can be used with either the Smart Port or Gen Port.
• 200A main breaker not included (must be purchased separately; model required: Eaton 200A CSR25K, not available through Signature Solar. See manual for more information).

Notice:

In order for the GridBOSS to meet it's UL Certifications copper wire must be used inside the unit.
