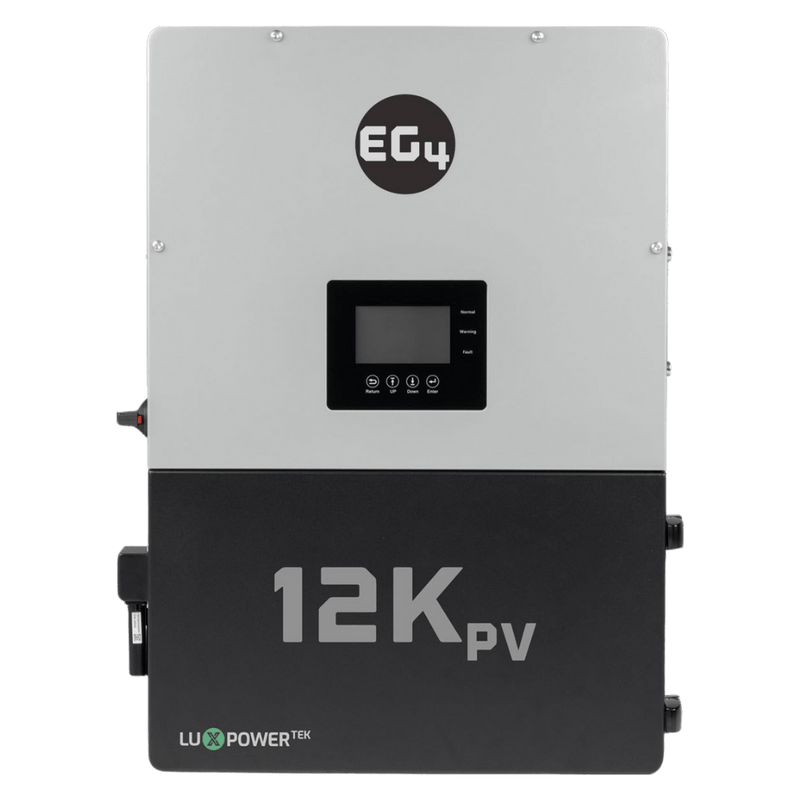

EG4 12kPV Hybrid Inverter EG4-12KPV-48V Split Phase 120/240VAC

Introducing the EG4 12kPV Hybrid Inverter - The Perfect Power Solution for Your Solar Needs!

The EG4 12kPV Hybrid Inverter is your ultimate power solution, designed to provide seamless energy management for both off-grid and grid-tied applications. This innovative inverter combines the functionalities of a grid-tied and off-grid system, eliminating the need for separate charge controllers or transformers, making it a versatile and independent all-in-one powerhouse. With an impressive list of certifications and compliances, the EG4 12kPV meets stringent electrical regulations, ensuring reliable and safe operation.

Efficient and Versatile Power Management

Harness the power of solar energy, battery storage, and grid electricity simultaneously with the EG4 12kPV. Capable of delivering up to 8,000W of continuous output while charging your battery bank, this hybrid inverter is perfect for powering your home, RV, or any other solar project. In the event of a power outage, the EG4 12kPV can function as a backup power system, ensuring uninterrupted power supply without the need for solar input.

Key Features:

• High Performance: Utilizes up to 12kW of PV input with 8kW continuous output, ensuring efficient power management.
• Scalable Power: Parallel up to 10 units for a total output of 80kW, providing flexibility and room to grow.
• Remote Monitoring: Stay in control with the EG4 app, enabling remote system monitoring, firmware updates, and performance tracking.

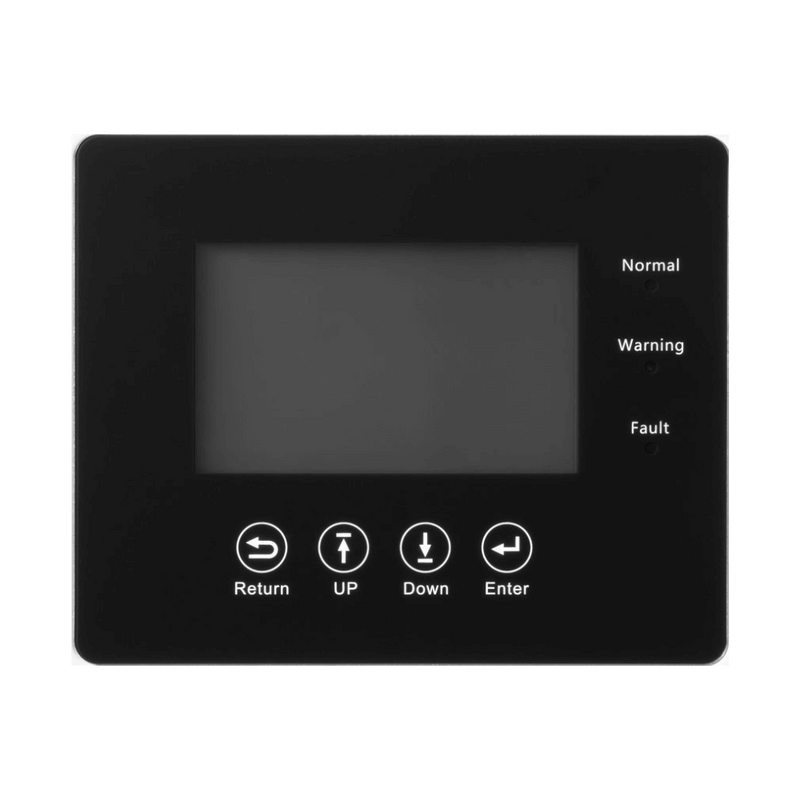

• User-Friendly Interface: Features an LCD display with user-configurable buttons for easy access to settings such as battery charging current and AC/Solar charger priority.
• Comprehensive Certifications: Fully compliant with UL, CSA, and IEEE standards, ensuring safety and reliability.
• Compact Design: Weighs only 110 lbs, making it easy to handle and install with a smaller footprint, ideal for various installations.
• Integrated Grid Tie and Off Grid Functionality: Seamlessly switch between grid-tied and off-grid modes as needed.
• Generator / Smart Load Port: Efficiently manage additional power sources and smart load functionality.
• AC Couple with Existing Grid-Tied Systems: Enhance your existing solar setup with advanced coupling capabilities.

Technical Specifications:

• PV Input: 12kW, with dual MPPTs supporting up to 600VDC input.
• Power Output: 8kW continuous output with peak power capabilities up to 16kW for short durations.
• Battery Compatibility: Supports Lead-Acid and Lithium batteries with a voltage range of 40-60VDC.
• Efficiency: Achieves up to 97.5% efficiency from PV to grid and 99.9% from PV to battery.

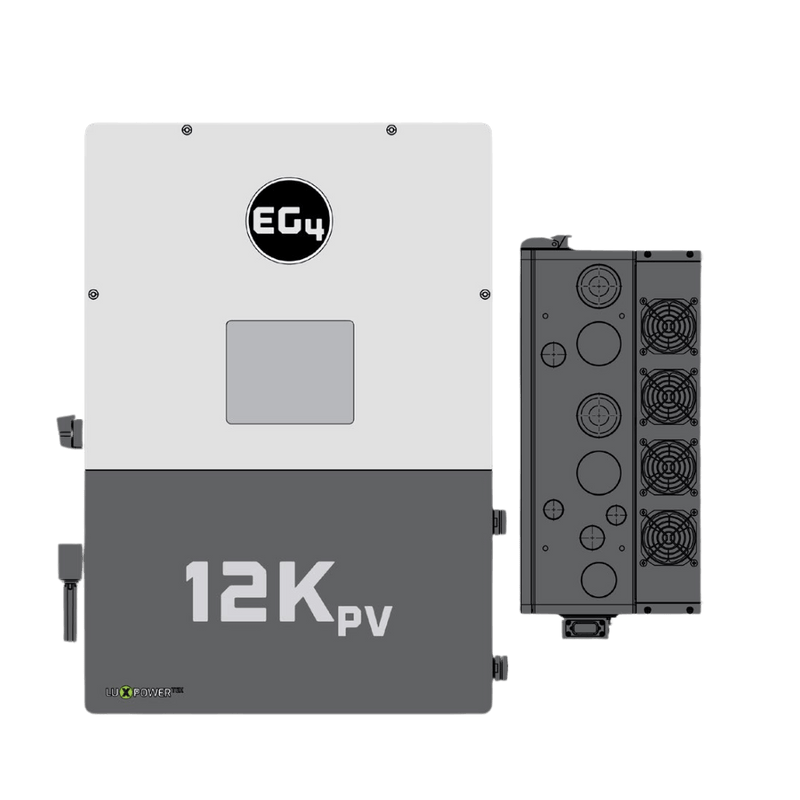

• Dimensions: 29.5×20.5×11.2 inches, weighing 110 lbs.
• Safety Features: Includes PV Arc Fault Protection, Ground Fault Protection, Reverse Polarity Protection, and more.
• Warranty: 10-year standard warranty for peace of mind.

Installation and Operation:

• Swift Setup: Designed for quick and easy installation, reducing time and costs.
• All-Weather Protection: Rated IP65 for dust and water protection, suitable for both indoor and outdoor installations.
• Smart Integration: Closed-loop communication with EG4 batteries and other compatible brands, ensuring seamless operation and efficiency.

Comprehensive Certifications:

The EG4 12kPV is certified to meet national and international standards for safety and reliability:

• Safety: UL1741SB, RSD NEC 2020:690.12, AFCI NEC 2020:690.11 / UL1699B, GFDI NEC 2020:690.41(B), CSA 22.2.107.1, CSA 22.2.330
• Grid Connection: IEEE 1547.1:2020; IEEE 1547:2018, Hawaii Rule 14H, California Rule 21 Phase I, II, III
• EMC: FCC Part 15 Class B
• Outdoor Rating: NEMA 4X / IP65
• CEC Solar Equipment Listing

Fully Remote Monitoring & Firmware Upgrades:

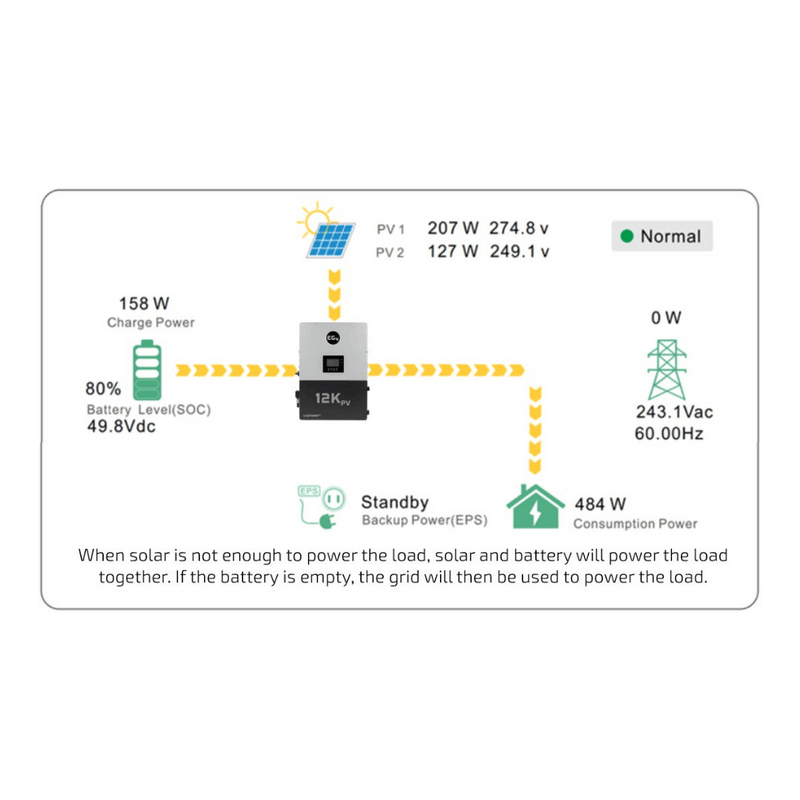

• Monitor Your System: View solar yield, battery charging/discharging rates, and import consumption.
• Live Energy Data: Displays key parameters over a 24-hour period for detailed performance tracking.
• Historical Data: Access past performance data for analysis and maintenance.
• Firmware Updates: Update your system remotely, ensuring it always operates with the latest features and enhancements.

Overall, with its easy plug-and-play installation, comprehensive certifications, and efficient management of power from solar, battery, and grid sources, the EG4 12kPV Hybrid Inverter is the ultimate solution for any solar power system. Experience uncompromising power and reliability with the EG4 12kPV Hybrid Inverter – your gateway to a sustainable and independent energy future.

DOWNLOADS

• EG4_12kPV_Brief_Introduction_v1.0
• EG4_12kPV_Spec_Sheet_v1.0
• EG4_12kPV_Quick_Start_Guide_v1.1
• EG4_12kPV_Firmware_Changelog_Update_Guide
• EG4_12kPV_Troubleshooting_Maintenance_Guide
• EG4_12kPV_Device_Monitoring_Settings_Guide
• EG4_12kPV_Connections_Paralleling_Guide

FEATURES

Performance Components:

• 12,000W PV input, 8,000W continuous output
• Stackable - Parallel multiple units together
• Closed-loop communication with EG4 batteries
• Overload, short circuit & over temperature protection
• Line Balancing

All-In-One:

• Everything needed to get started
• Simple plug-and-play install and inverter management
• Manages power from energy storage systems and grid simultaneously
• 120/240V split phase
• Fully outdoor rated (Avoid direct sunlight)

Order Now and Step into a Sustainable Future with EG4 in Canada!
