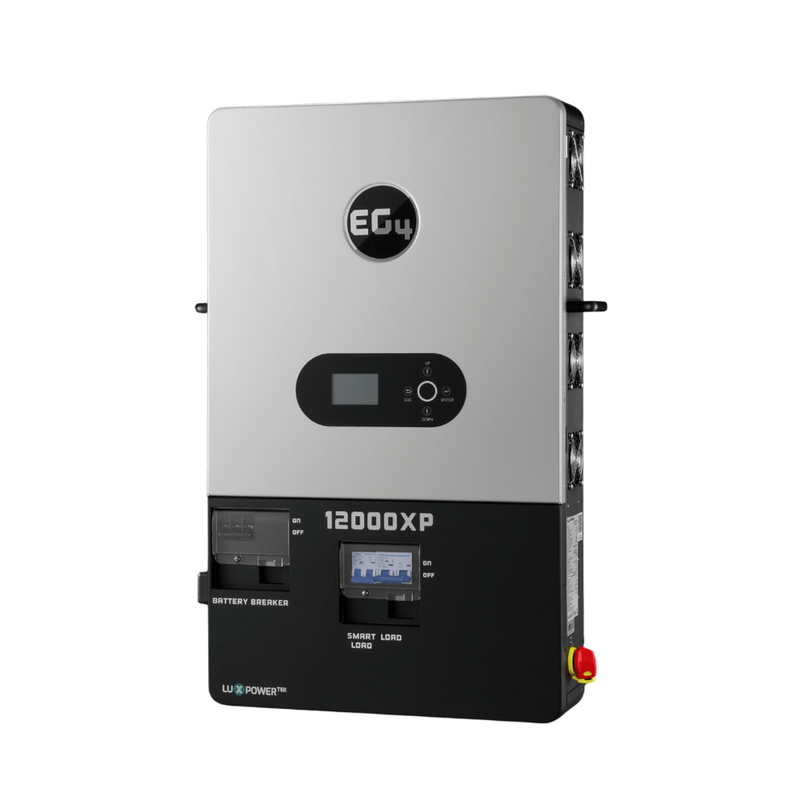

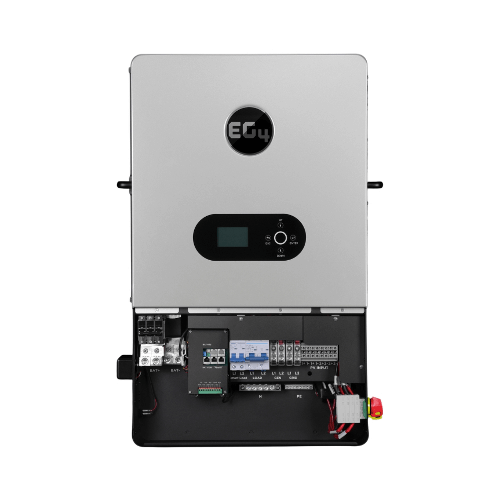

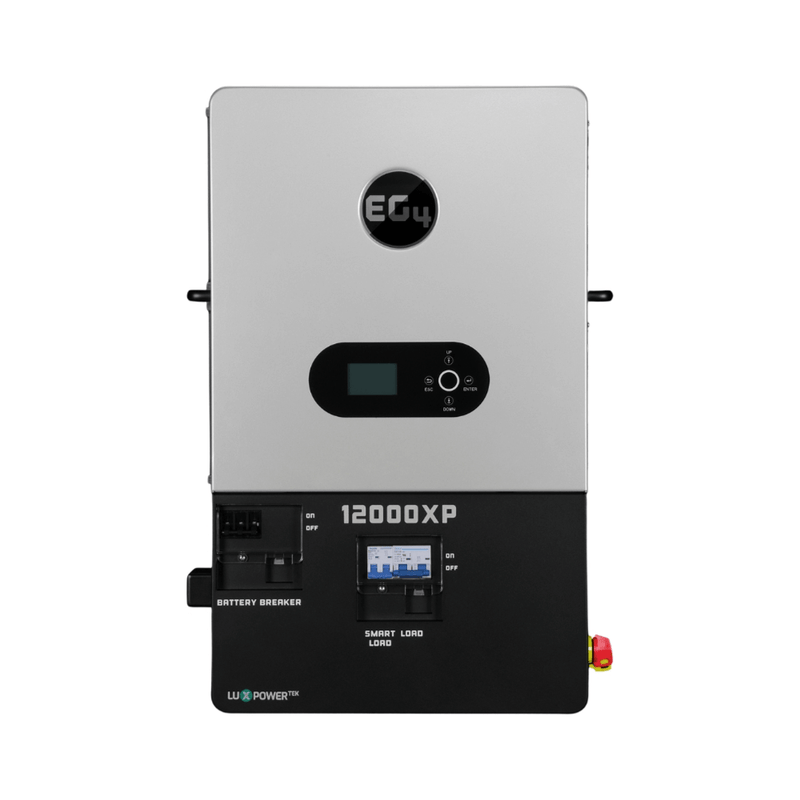

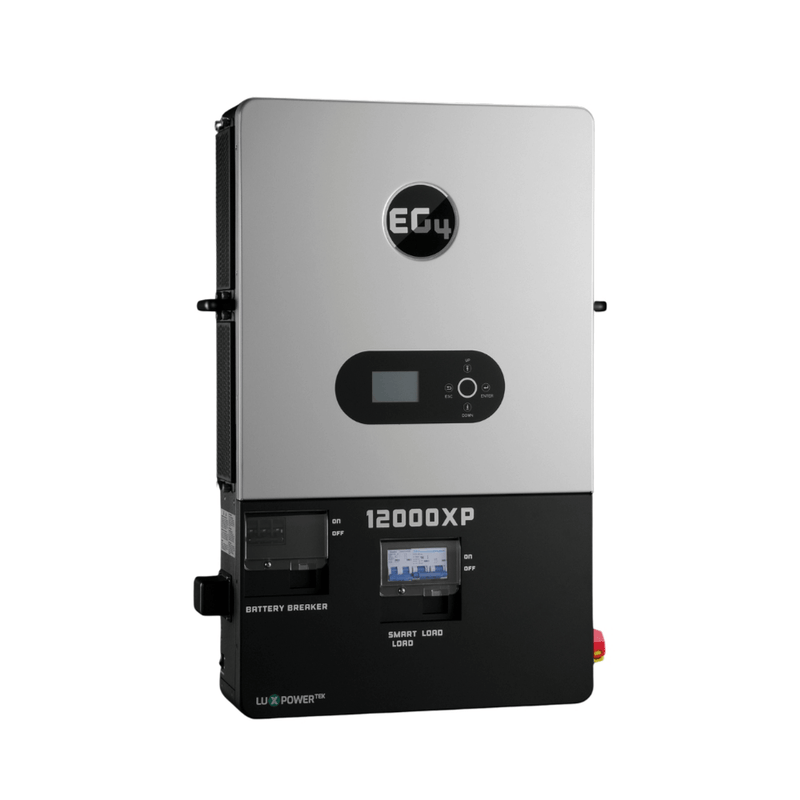

EG4 12000XP Off-Grid Inverter - 48V Split Phase - 24kW PV Input - 12kW Power Output

*All Canadian stock we carry is UL1741 certified to CSA standards! See listing below or HERE for certification details.

The EG4 12000XP is a 12kW AC, split-phase, all-in-one off-grid inverter with grid charge capability, designed for residential and small commercial use. It supports 24kW of DC solar PV through two 35 Amp MPPTs, generating 12kW of power @120/240 VAC while allowing 24kW (100 Amps) of utility or 90 Amps from a generator. The 24kW max DC solar input allows for up to 12kW of DC power to rapidly charge batteries even when supporting AC loads up to 12kW. With a 100 Amp bypass for seamless power transitions, the 12000XP ensures reliable operation off-grid or during outages.

Equipped with a generator port, the 12000XP features 2-wire start/stop auto-start and a programmable Smart Port for smart load control or AC coupling. It can be paralleled with up to six units for a total output of 72kW. It’s a cost-effective solution for those not requiring grid sellback and with EG4 batteries, provides true whole-home backup.

Key Features:

• High Input Voltage (480VDC): Supports high-voltage input, reducing the need for extensive cabling and allowing for up to 24kW PV input without a combiner box.

• Dual MPPT Design: Ensures optimal solar energy utilization, providing efficiency and stability under varying sunlight conditions.

• Plug-in Wi-Fi Capability: Monitor and adjust settings remotely using the EG4 app or Monitor system, adding convenience and control from any location.

• Closed-Loop Communication: Seamlessly integrates with EG4 48V batteries and other supported brands, offering enhanced system performance and safety.

• Rapid Shut Down Compliance: Equipped with NEC 690.12-ready rapid shutdown (RSD) capabilities for compliance and peace of mind in critical situations.

Performance Highlights:

• 12kW Power Output with Surge Capacity up to 18kW: Delivers robust, consistent power with the ability to manage heavy-duty appliances and equipment in off-grid settings.

• Expandable Power Options: Parallel up to six units to reach a 72kW system, providing the flexibility to scale power output as needed.

• High Efficiency Rates: Enjoy an impressive 99% MPPT efficiency, maximizing energy harvest and minimizing energy loss.

Technical Specifications:

• AC Input: 120/240VAC | 50/60 Hz

• Max Continuous Output: 12kW

• Surge Capacity: 18kW (5 seconds)

• Battery Compatibility: Lead-Acid/Lithium, with a recommended minimum of 400Ah per inverter

• Operating Temperature: 32°F – 113°F (0°C – 45°C)

• Protection Features: PV Reverse Polarity, Over-Voltage, and Surge Protection

• Warranty: 5 years

Ideal Applications:

• Residential Off-Grid Living: Perfect for homes wanting to break free from grid reliance.

• Remote Worksites and Cabins: Ensures a steady power supply, even in isolated locations.

• Commercial and Industrial Use: Robust enough to handle demanding off-grid requirements.

Downloads:

• EG4 12000XP Manual
• EG4 12000XP Spec Sheet
• EG4 12000XP Certification

Why Choose the EG4 12000XP? With high output power, advanced safety features, and remote management capabilities, the EG4 12000XP off-grid inverter provides an industry-leading solution that meets all your off-grid energy needs. Engineered for efficiency and durability, this inverter is your best choice for reliable and scalable power.
