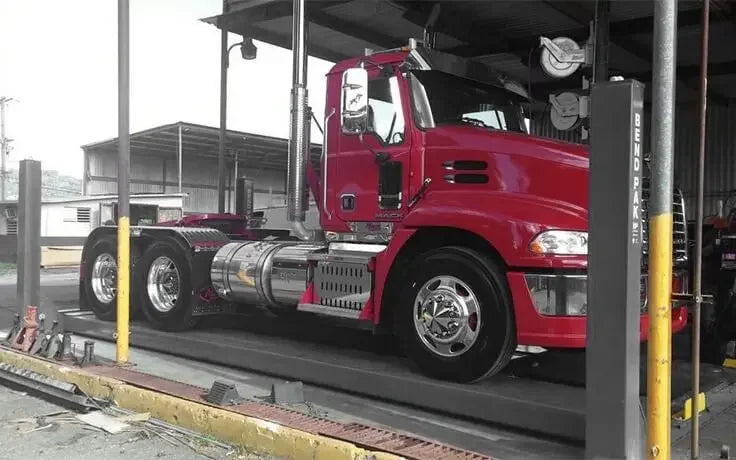

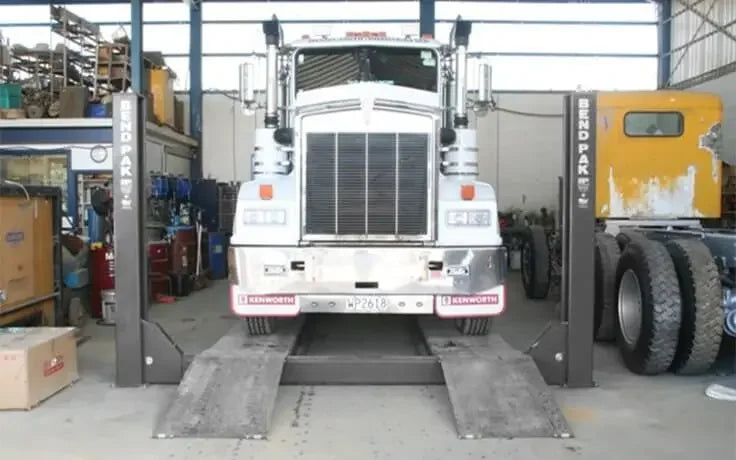

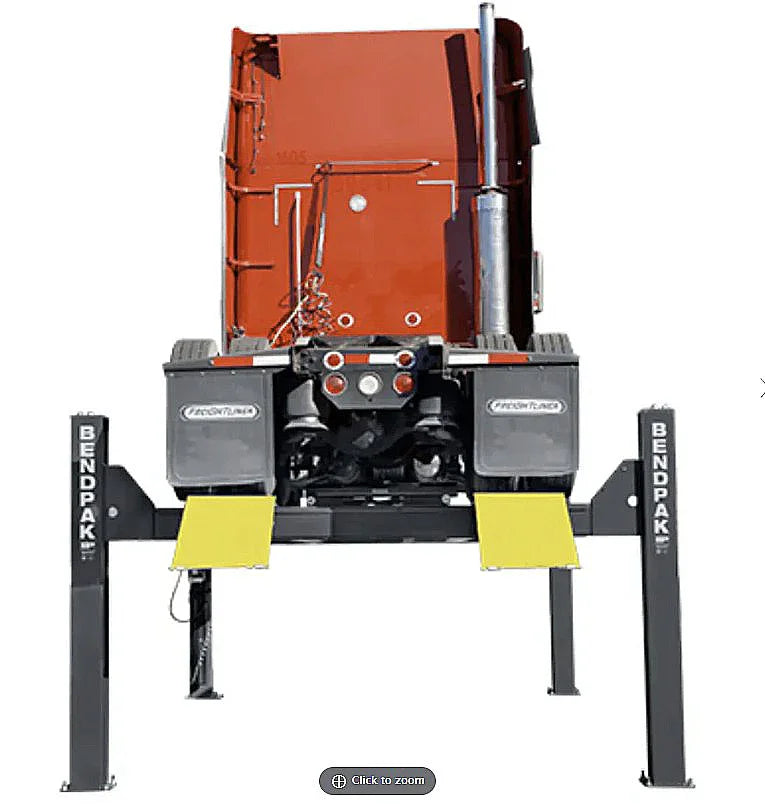

With 323" runways, the HDS-27X is the first extended-length model in BendPak's super-duty four-post series. As a super-long lift that holds up to 27,000 lbs., this incredibly versatile lift accommodates massive Class 7 semi-trucks. There isn't much this lift can't handle.
Commercial lifting solutions for semi-trucks and other municipal vehicles fall into a category all their own. That's because vehicles reaching the 27,000-lb. lift capacity begin to develop monstrous proportions. The super-long HDS-27X handles stretch limos, semi-trucks, city buses and other super-duty vehicles. In fact, 27,000 lbs. should handle a typical garbage truck without a hitch. The best part of being in the heavy-duty maintenance industry is that your competition is relatively low. Most auto shops veer away from servicing commercial fleets. They require specialized equipment (which BendPak makes easy to obtain) and more shop space, which you probably already have covered! If you want to dominate your industry with a reliable commercial fleet of lifts, you'll absolutely need the incredible HDS-27X.
Our 317.5" runways are absolutely massive. To put it in perspective, that's nearly 27 feet long. Runways are made wide and rise 58.25" in the air, so operators can work on virtually anything in a comfortable standing position.

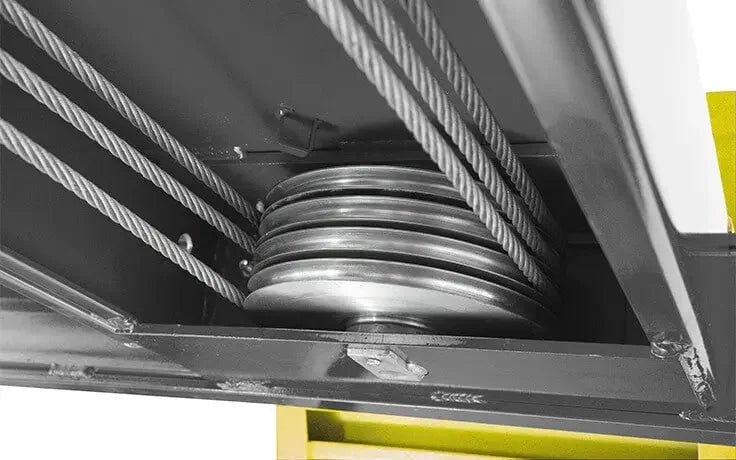

To protect your investment, each sheave is a massive 12” in diameter. The equally impressive 4" sheave axles greatly extend the lifespan of your car lift by reducing the overall wear on the critical lifting components (cables, sheaves, axles, etc.).
A super-duty lift requires extreme supports. Substantial 12" x 12" base plates hold up the massive columns on this lift for maximum structural integrity.
Multiple lock positions engage as the lift rises and instantly release upon descent. Operators need not maneuver around the lift, as is the case with other brands' manual release systems. The runway movement is kept level at all times by a built-in flow divider, so operations in fast-paced shops can go on unimpeded by worry about the lifting equipment.

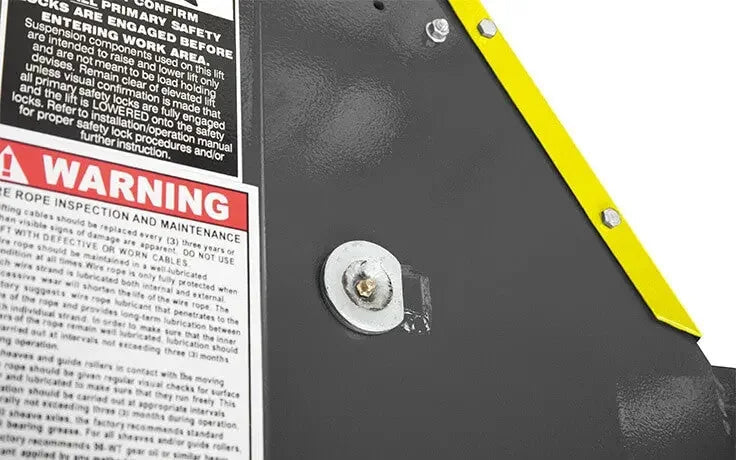

With two safety lock systems built into the lift, it's virtually impossible for a well-maintained and properly used BendPak to fail. In the extremely rare and unlikely event that excess cable slack develops, the runways will be caught by the secondary system, the vehicle will remain level, and you will be able to safely fix the problem.

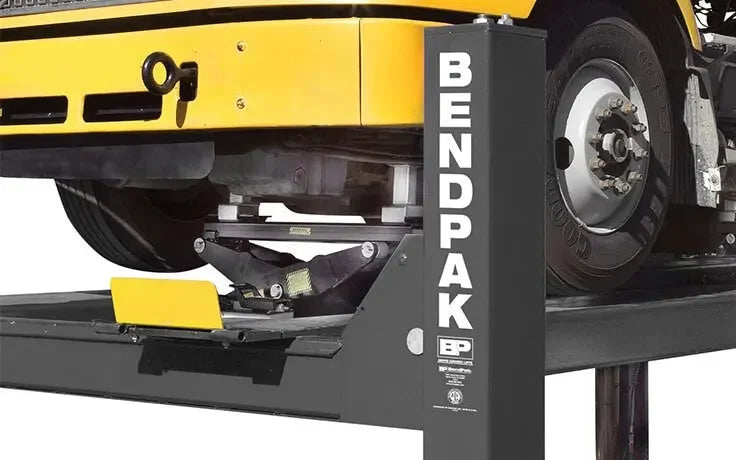

Bridge jacks raise the wheels above the runways. Be sure to explore heavy-duty models, such as the RJ15000, a 15,000-lb. jack that's ideal for super-duty vehicles. Two jacks will raise all four vehicles off the runways for full access to the wheels. For many vehicles of this size, two-post lifts are not ideal for efficient and/or safe lifting. Four-post lifts and rolling bridge jacks are often the best way to perform wheel service. The jacks also prevent the need for additional space-consuming machinery.
| Lifting Capacity: | 27,000 lbs. (12,247 kg) |
| Max. Capacity / Front Axle: | 13,500 lbs. (6,123 kg) |
| Max. Capacity / Rear Axle: | 13,500 lbs. (6,123 kg) |
| A - Min. Runway Height | 9.5" (241 mm) |
| B - Max. Rise | 60" (1,524 mm) |
| C - Max. Lifting Height | 69.5" (1,765 mm) |
| Lifting Time: | 75 Seconds |
| D - Overall Width | 153.5" (3,899 mm) |
| E - Outside Length | 317" (8,051 mm) |
| F - Overall Length | 372.75" (9,468 mm) |
| G - Height of Columns | 91.25" (2,318 mm) |
| H - Width Between Columns | 133.5" (3,391 mm) |
| I - Drive-Thru Clearance | 109" (2,769 mm) |
| J - Runway Width | 22" (559 mm) |
| K - Length of Runways | 315.5" (8,014 mm) |
| L - Width Between Runways | 40" (1,016 mm) or 45.25" (1,149 mm) |
| M - Runway Centerline | 67.25" (1,708 mm) or 72.5" (1,842 mm) |
| N - Outside Edge of Runways | 89.25" (2,267 mm) or 94.5" (2,400 mm) |
| Rated Capacity | 230" (5,842 mm) |
| 75% Capacity | 195" (4,953 mm) |
| 50% Capacity | 165" (4,191 mm) |
| 25% Capacity | 130" (3,302 mm) |
| Locking Positions | 13 |
| Lock Spacing | Every 4" (102 mm) |
| Motor | 220 VAC / 60 Hz / 1 Ph |
| Noise | 45 dB |
| Weight | 6,944-lbs. (3,149 kg) |
| Dimensions (LxWxH) | 326" x 27" x 36" (8,280 mm x 685 mm x 914 mm) |
