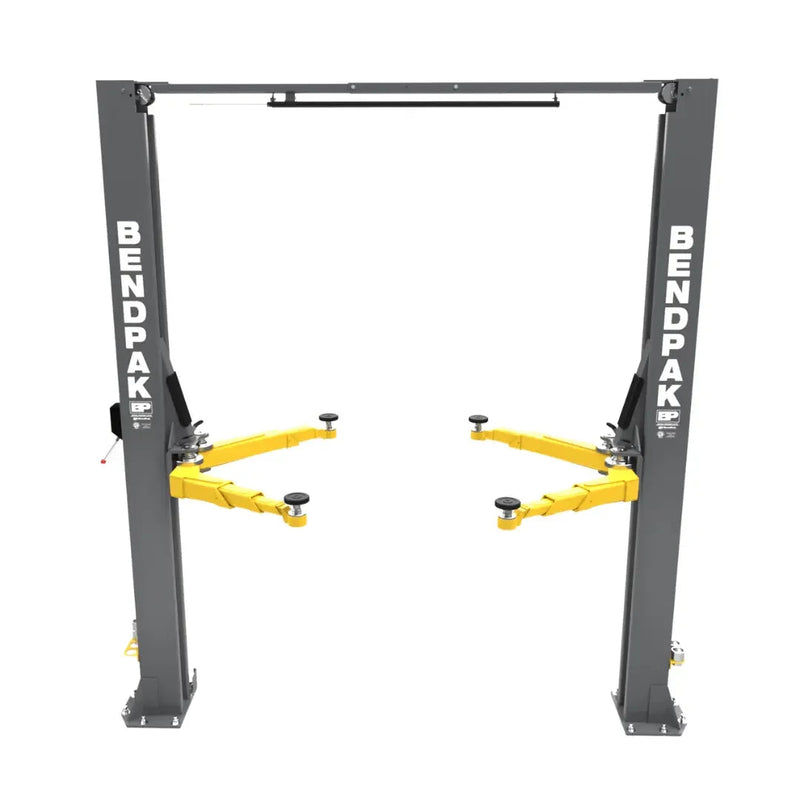

The 10AP two-post lift offers exceptional direct-drive lifting performance. This industrial-strength car lift guarantees cutting-edge technology, top of the line materials, a design that's ahead of its time and a 10,000-lb. lifting capacity.
This product is protected by patent in the United States (Patent No. US11820632B2), Canada, China, and other countries where corresponding patent protection has been sought.
BendPak's all-new AP series of two-post lifts feature a revolutionary design that factors the best qualities of today's two-post lift types into a completely new concept. It’s purposefully designed for extreme use, high loads, and operator safety and efficiency.

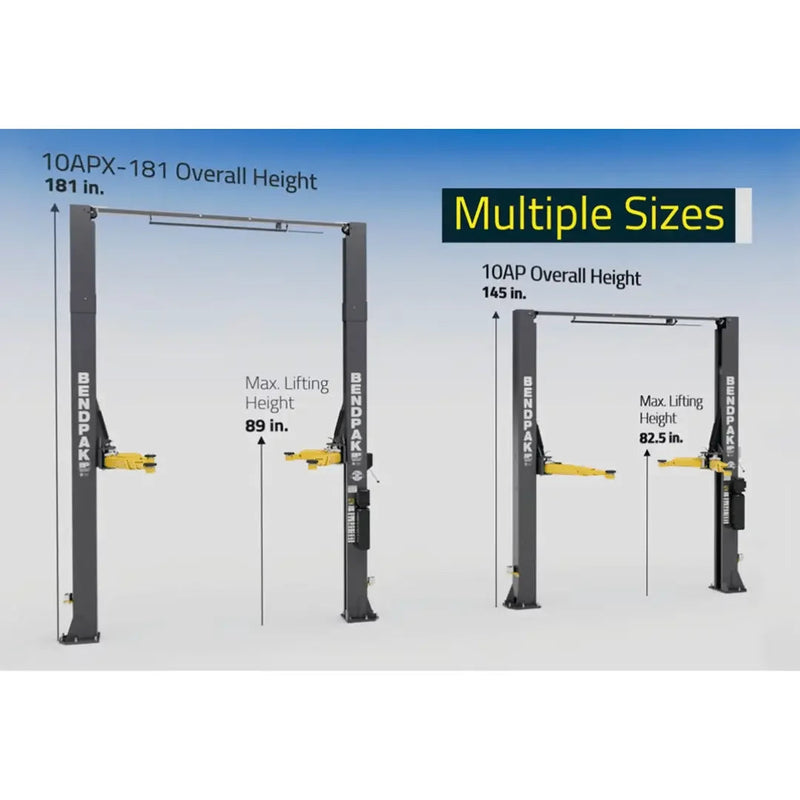

The 10AP Series offers the convenience of wide or narrow installation in one configurable package. Featuring an expandable top beam and Bi-Metric™ arms, this durable and reliable car lift fits virtually every vehicle lifting need—symmetric or asymmetric. It keeps maintenance costs low and productivity high.

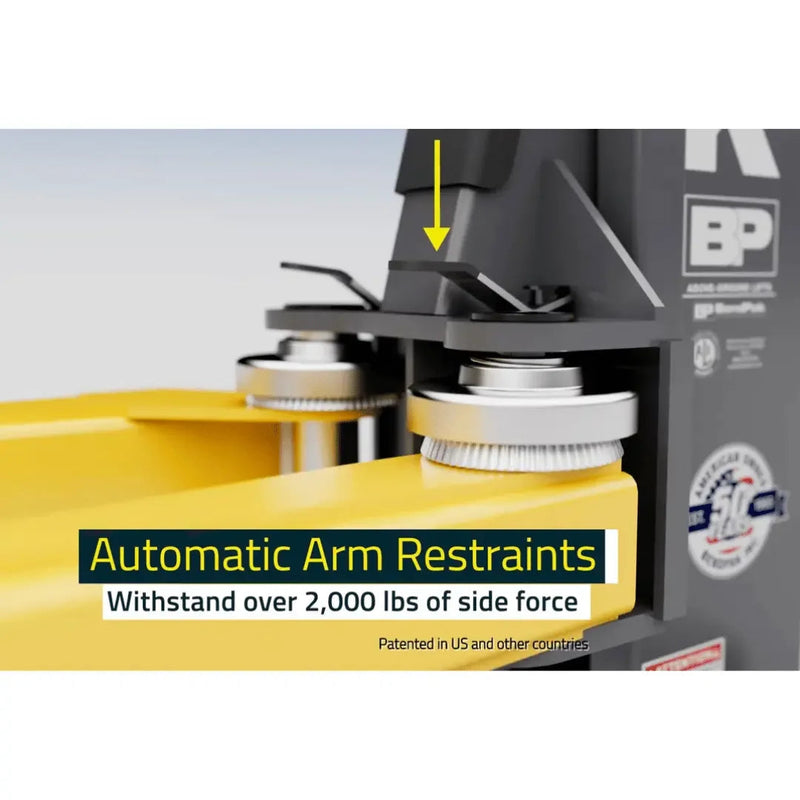

The patented Automatic Swing Arm Restraint System (ASARS) withstands excessive forces from shifting vehicles, delivering over 2,000 lbs. of load-holding force to prevent unplanned movement. It includes a 360° grip, forged-steel components, and a quick-release lever.

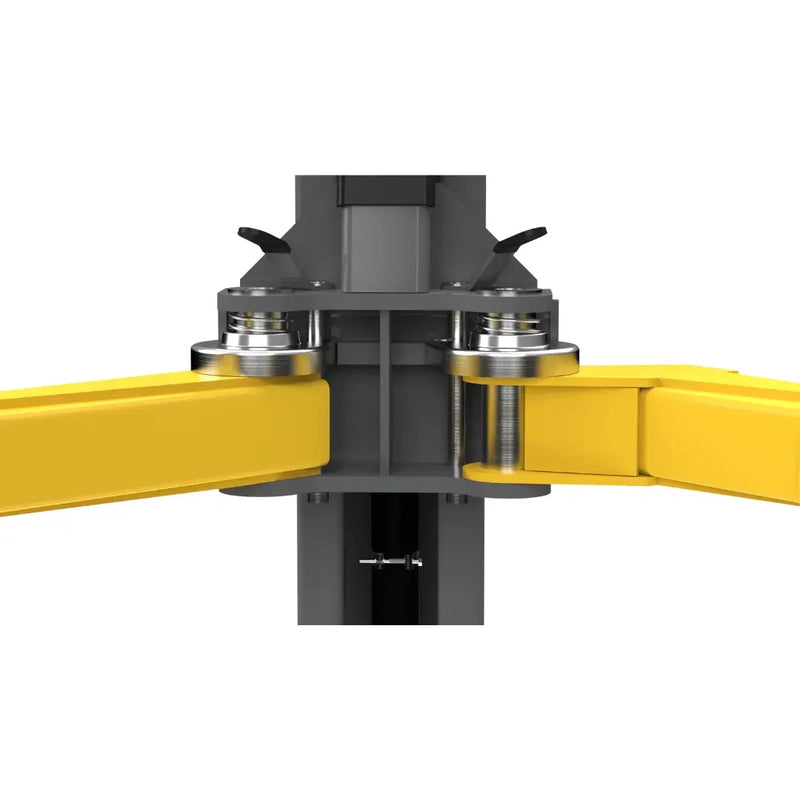

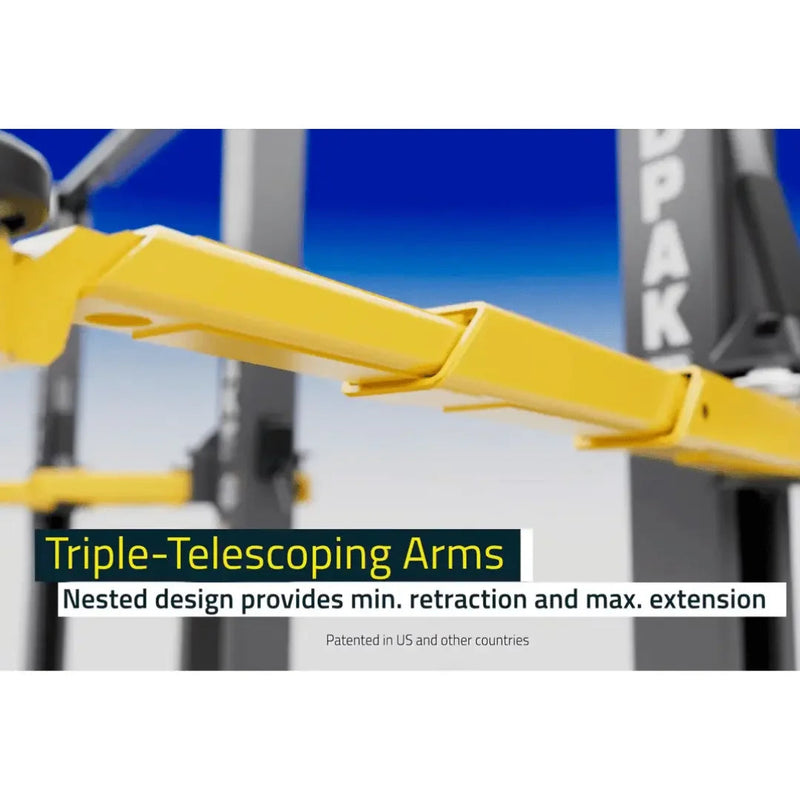

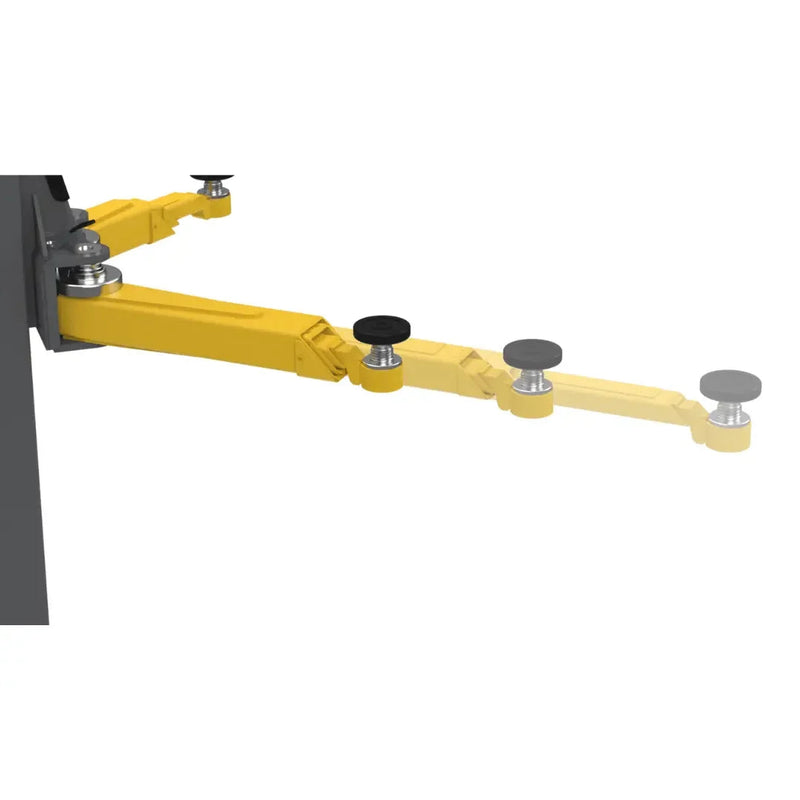

Patented swing arms retract shorter and extend farther, thanks to a nesting design that removes obstructions to full retraction. This allows more arm positioning options and better access to lift points.

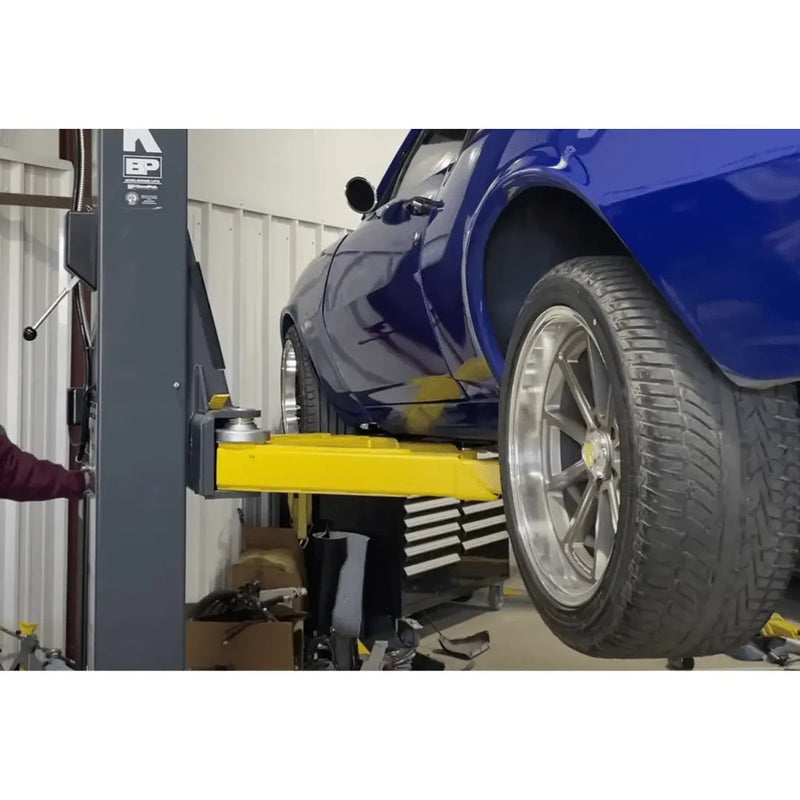

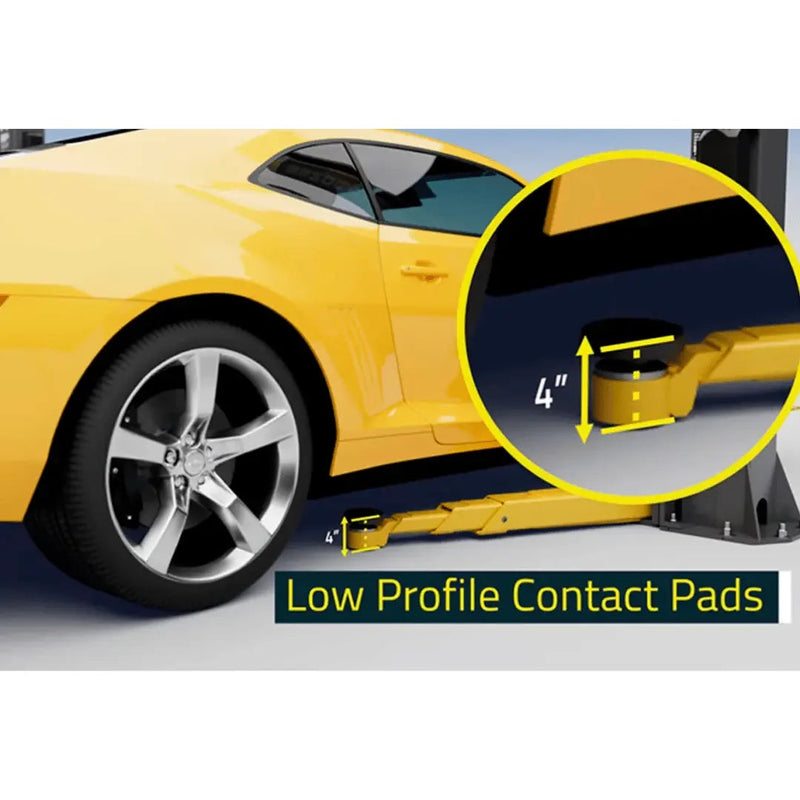

Low-Pro™ swing arms offer better clearance for lowered vehicles. Their dropped-end pad receivers reduce the chance of damage to side skirts or ground effects while improving accessibility.

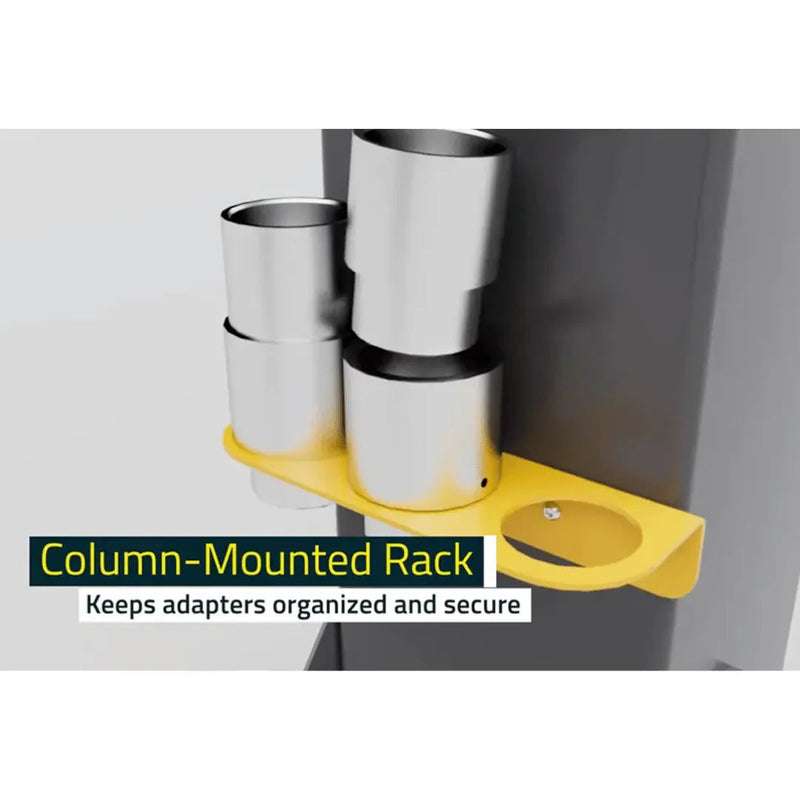

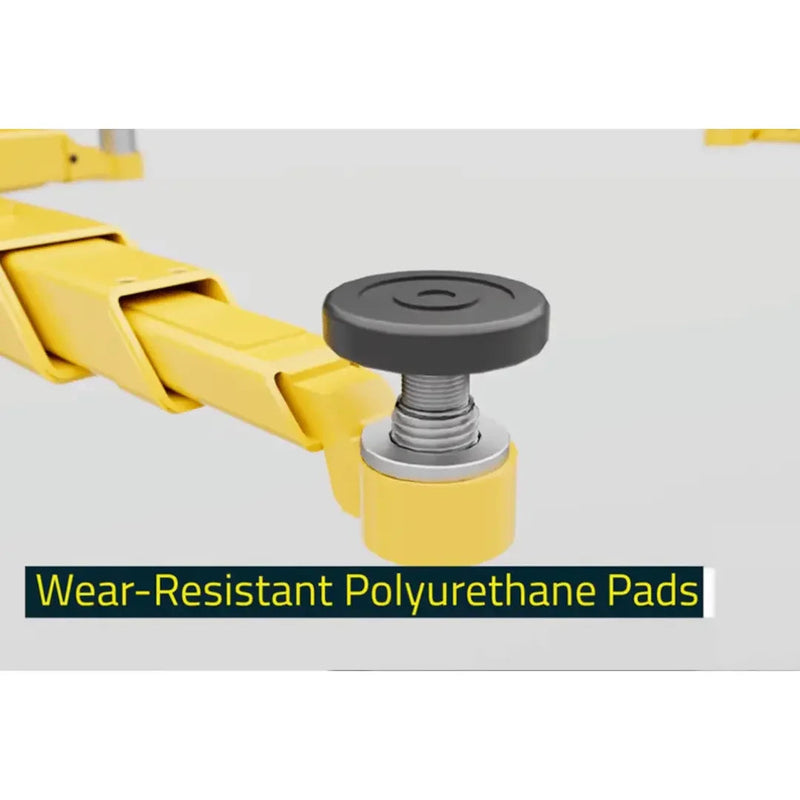

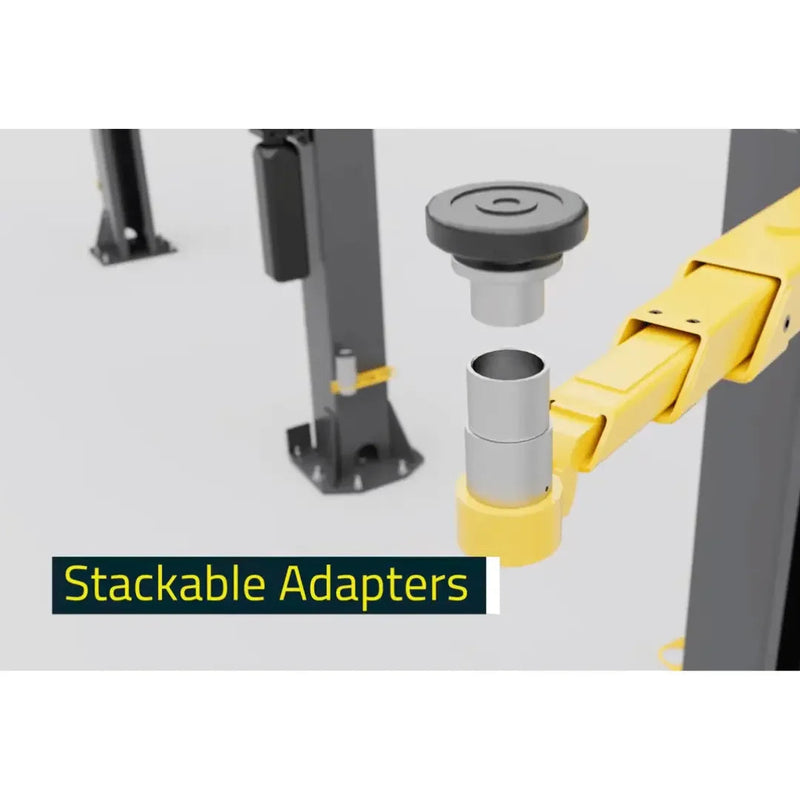

Double-telescoping screw adapters with polyurethane pads ensure secure frame engagement. Optional 2.5" and 5" stackable adapters are available, and column-mounted racks keep everything organized.
The patented safety lock system engages automatically and features an ergonomic single-point release—operable with just one finger.

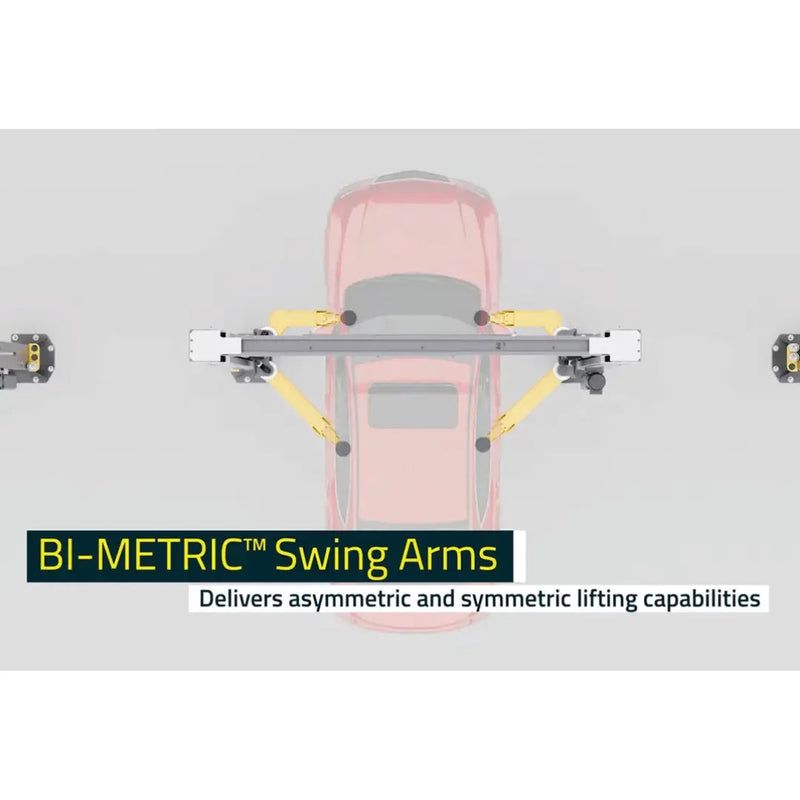

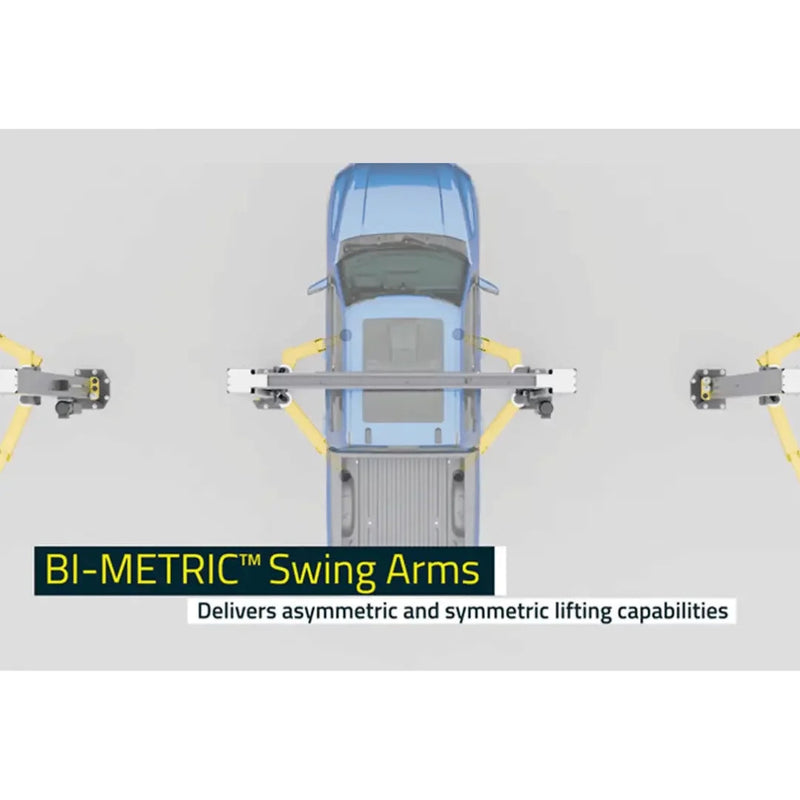

Switch between symmetric or asymmetric configurations without changing out arms. The Bi-Metric™ design gives operators flexibility to load vehicles faster and more efficiently.
| Lifting Capacity: | 10,000 lbs. (4,536 kg) |
| A. Rise | 69" (1,753 mm) |
| B. Rise + Pad | 72.25" (1,835 mm) |
| D. Min Height + Pad | 4" (102 mm) |
| Time to Full Rise | 45 Seconds |

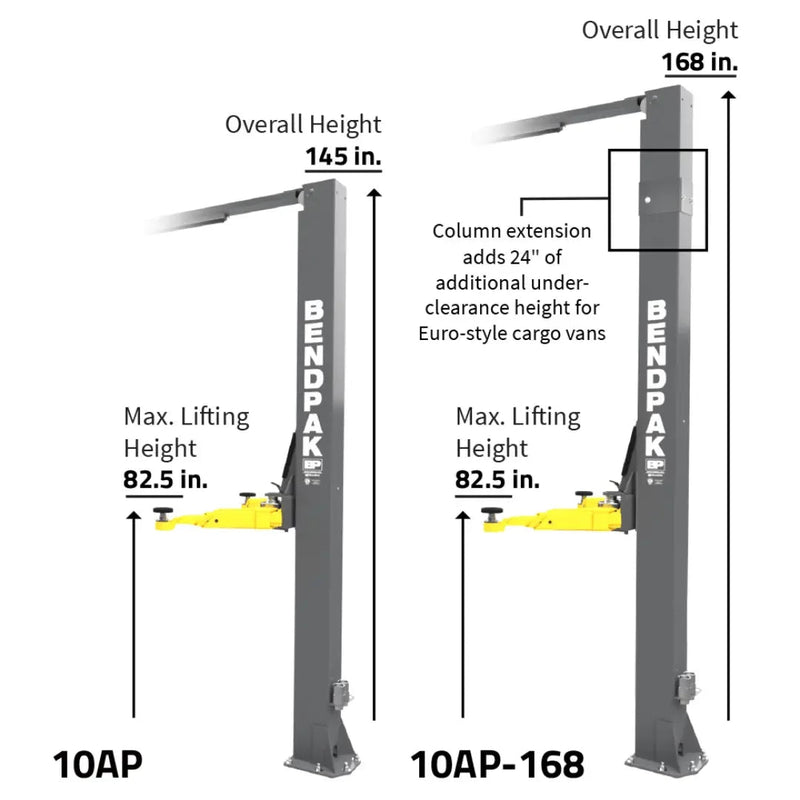

| E. Height Overall | 145" (3,683 mm) |
| F. Width Overall | 135" or 145" (3,429 / 3,683 mm) |
| G. Outside Columns | 127" or 137" (3,226 / 3,480 mm) |
| H. Inside Columns | 108.25" or 118.25" (2,750 / 3,004 mm) |
| I. Drive-Thru Clearance | 92" or 102" (2,337 / 2,591 mm) |
| J. Floor to Overhead Switch | 139.25" (3,537 mm) |
| K. Front Arm Reach (MIN/MAX) | 24.5"–50" (622–1,270 mm) |
| L. Rear Arm Reach (MIN/MAX) | 32"–59.25" (812–1,504 mm) |
| Max Load per Arm | 2,500 lbs. (1,134 kg) |
| Noise Level | <70 dB |
| Dimensions | 150" x 24" x 28" (3,810 x 610 x 711 mm) |
| Weight | 1,729 lbs. |
