DESCRIPTION

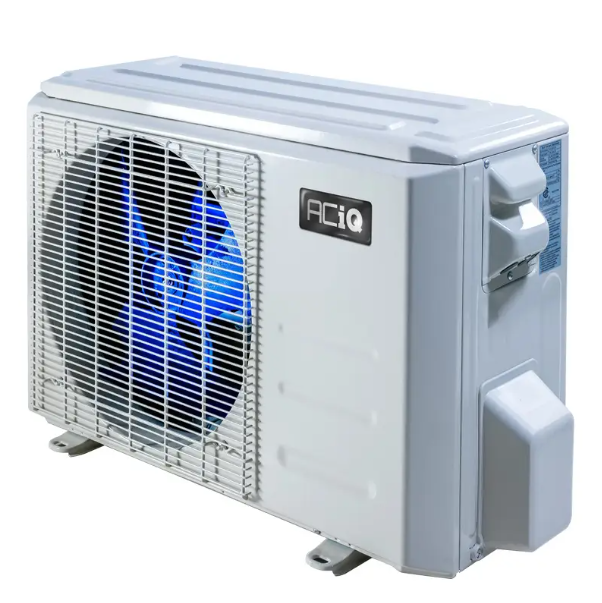

ACiQ Heat Pump Condenser 2-Ton 19.4 SEER 24000 BTU 208/230V 1-Phase 60Hz | ACiQ-24-EHPB
Inverter Condenser – Inverter technology is revolutionizing air conditioning by making it smarter and more energy-efficient. It works by converting AC power into DC power, allowing the compressor to adjust its speed smoothly. Instead of always running at full speed, the compressor can speed up or slow down based on the cooling needs at any given moment. This allows the system to adjust cooling based on factors like room temperature, occupancy, or outdoor weather. As a result, it saves energy, reduces wear on components, and maintains a more consistent indoor temperature. Understanding how this technology works helps users optimize their air conditioning systems for greater efficiency and suitability to their environment.
Learning System – The climate control system is equipped with sensors that track various factors such as indoor and outdoor temperatures, system performance, duct pressure, and coolant temperatures. Upon startup, the system enters a learning phase, gathering and analyzing data to enhance future performance. This continuous learning process allows the system to adapt based on environmental conditions and user preferences, improving both efficiency and overall performance.
Sizing for Heat – The ACiQ Next Gen 2-ton heat pump is a breakthrough in flexibility. Its smart inverter adjusts to meet specific heating needs, unlike traditional heat pumps that can struggle with humidity control during summer, leaving the indoor air feeling muggy. The ACiQ system can operate like a 1-ton unit when necessary, adapting to varying conditions. This adaptability ensures more consistent comfort and effectively handles humidity, offering a better, more controlled indoor climate.
- Inverter-based heat pump system compatible with ductwork.
- Efficient cooling capability spanning from 5°F to 122°F outdoor temperatures.
- Efficient heating performance available in outdoor temperatures from 5°F to 75°F.
- Enhanced durability with Gold Fin condenser coil coating.
- Whisper-quiet operation maintained even under the most demanding workloads.
PRODUCT SPECIFICATION TABLES
| Brand |
ACiQ |
Model # |
ACiQ-24-EHPB |
| Refrigerant Charge |
25' |
Weight |
109.13 |
| HSPF2 |
9.2 |
Cooling BTU |
24000 |
| Heating BTU |
24000 |
Maximum CFM |
1765 |
| Decibel Level |
60 |
Electric Heat |
Heat Pump |
| Refrigerant |
R410A |
SEER1 (Efficiency) |
20 |
| SEER2 (Efficiency) |
17 |
Compressor Type |
Rotary |
| Liquid Line |
3/8" |
Suction Line |
5/8" |
| Electrical |
208/230V 1 Phase 60 Hz |
Max Breaker Size |
30 Amps |
| Min. Breaker Size |
19 Amps |
Tonnage |
2 Ton |
| BTU/Tonnage |
24,000 BTU/2 Ton |
Mini-Split Type |
Multi-Positional |
| Min/Max Outdoor Heating Temp |
5～75 |
Min/Max Outdoor Cooling Temp |
5～122 |
| Zone Compatibility |
Single Zone |
Height |
26.5" |
| Width |
35.04" |
Depth |
13.46" |
| AHRI Certificate Number |
212394317 |
|
|
WARRANTY COVERAGE
| Warranty Type |
Residential |
Multi-Family |
Commercial |
| Standard Warranty |
5 year parts |
5 year parts |
5 year parts |
| Registered Warranty |
10 year parts |
10 year parts |
5 year parts |
PRODUCT DOCUMENTS & TECHNICAL SPECIFICATIONS
Installation Manual
Specification Sheets
Parts Manual
Warranty Information
