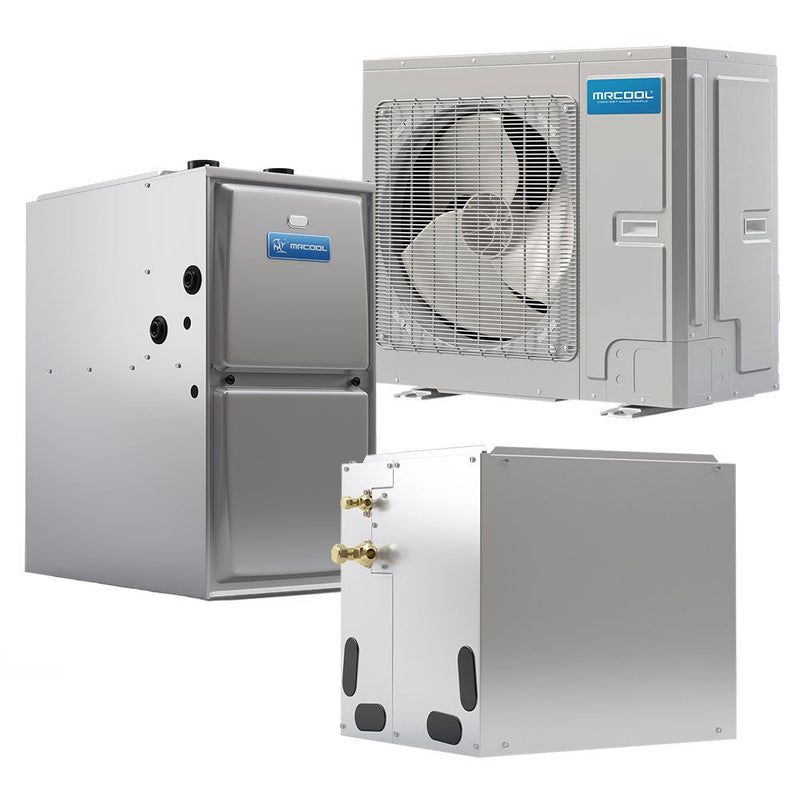

Transform your home into a haven of year-round comfort with the 2 to 3 Ton 20 SEER 70k BTU 95% AFUE MrCool Universal Central Air Conditioner & Gas Furnace Split System - Upflow/Horizontal. Say goodbye to discomfort and exorbitant energy bills, regardless of the season.
This innovative system boasts a high-efficiency DC inverter and a 95% AFUE furnace, ensuring optimal climate control without breaking the bank. Installation is a breeze, thanks to MrCool's No-Vac Quick Connect pre-charged line sets for the condenser and evaporator coil. With this 2 to 3 Ton 70k BTU Central Air Conditioner and Gas Furnace Split System from MrCool, enjoy the best in comfort for years to come.
Embrace cooling bliss during the scorching summer months with the R-410A charged evaporator coil. Designed to keep you comfortable and sweat-free, it safeguards against high pressure, high discharge temperature, overload, IPM, and PFC. The 2 to 3 ton Universal condenser offers versatile installation options, whether using pre-charged line sets, sweat braze fittings, or flare fittings. It performs admirably in a wide temperature range, from scorching heat to as low as 39.2 degrees F. Don't endure another sweltering summer – indulge in the Universal system.

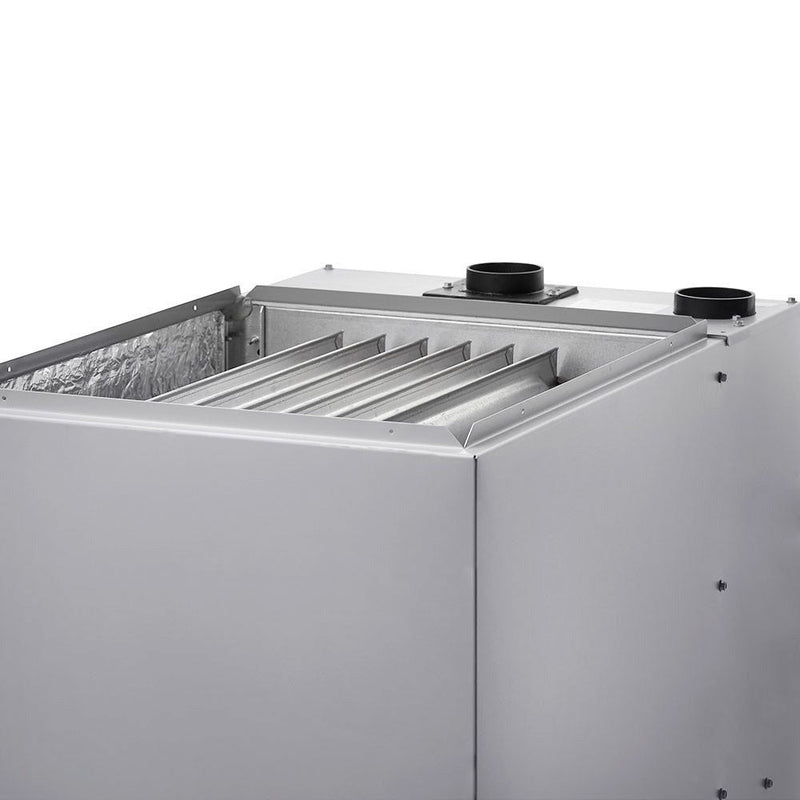

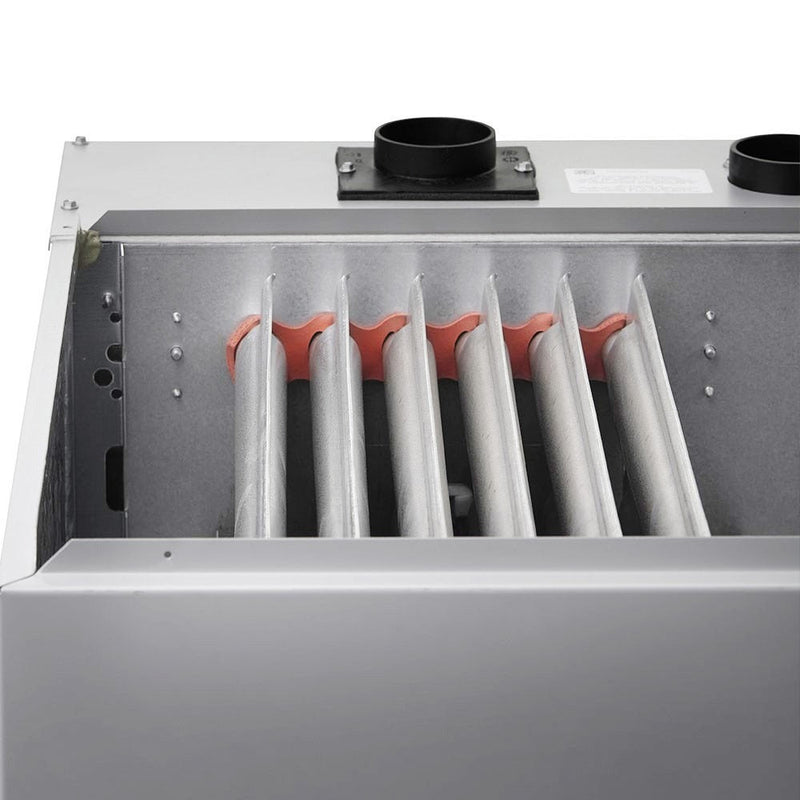

As winter approaches, your home will be shielded from the cold with the 70k BTU 95% AFUE gas furnace. Featuring an aluminized steel crimped non-welded primary heat exchanger and an AL 29-4C stainless steel secondary heat exchanger, it provides consistent, efficient warmth. The multi-speed high-efficiency constant torque blower motor ensures even heat distribution without wasting energy. This compact, user-friendly gas furnace guarantees your entire home is enveloped in efficient warmth.
Selecting a new HVAC system doesn't need to be stressful, and it won't be with this AHRI-rated and ETL-listed system, backed by robust warranties. Say goodbye to discomfort and energy woes – trust in the 2 to 3 Ton 20 SEER 70k BTU 95% AFUE MrCool Universal Central Air Conditioner and Gas Furnace Split System to create the perfect climate for your home.

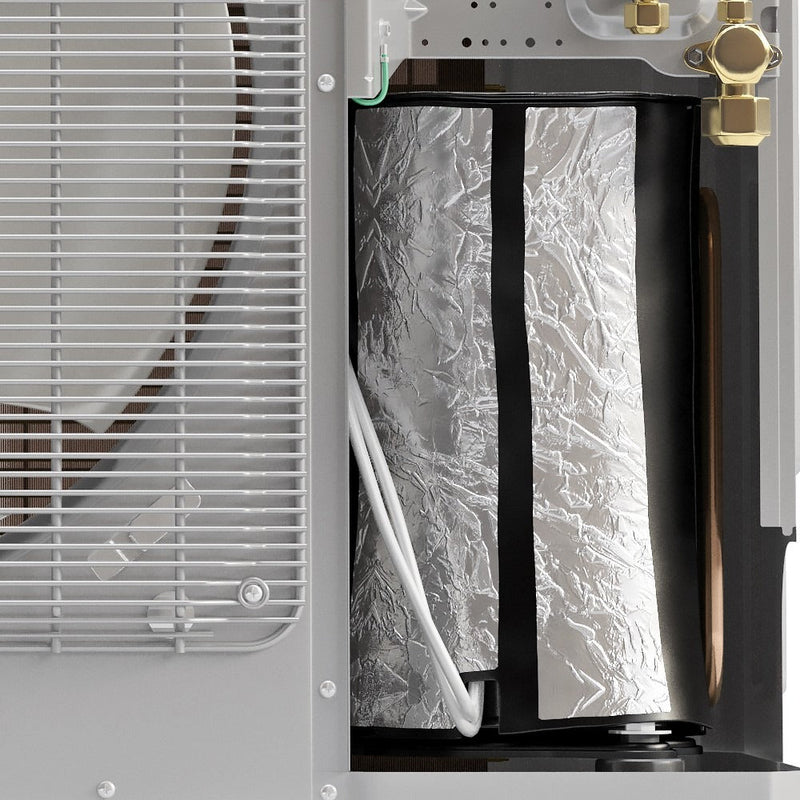

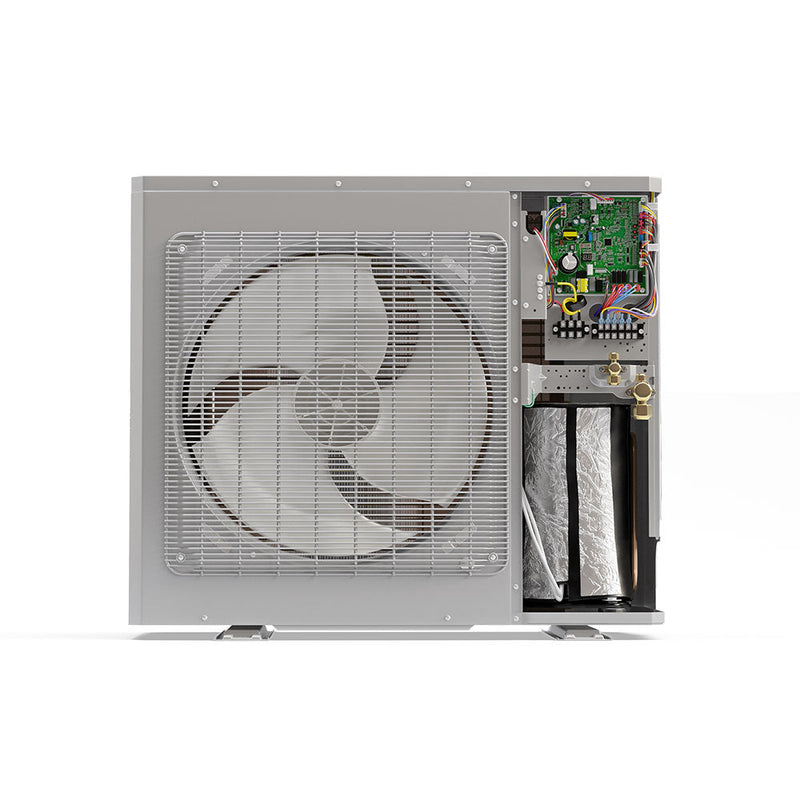

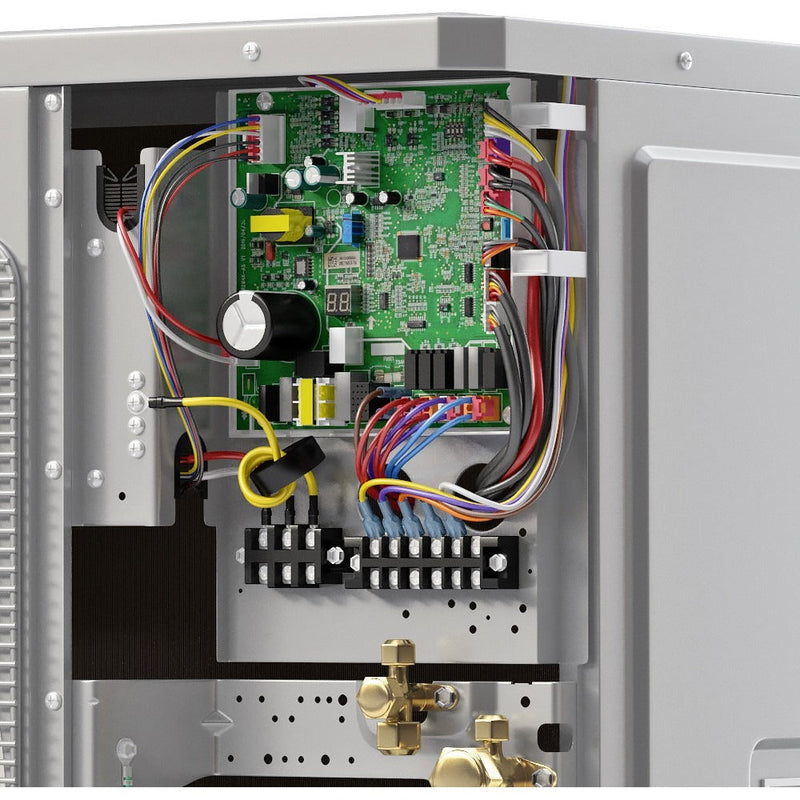

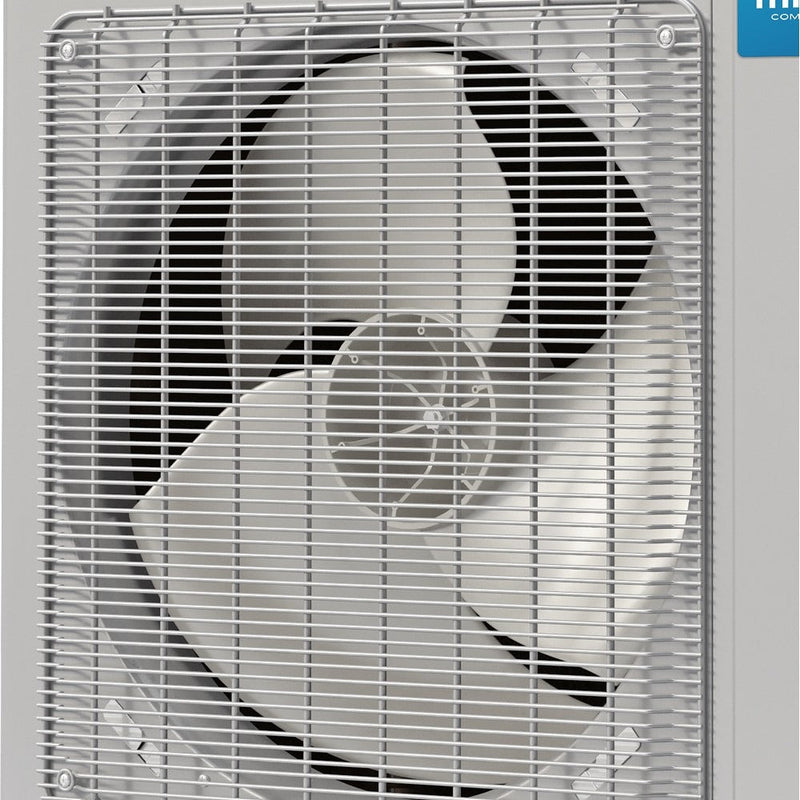

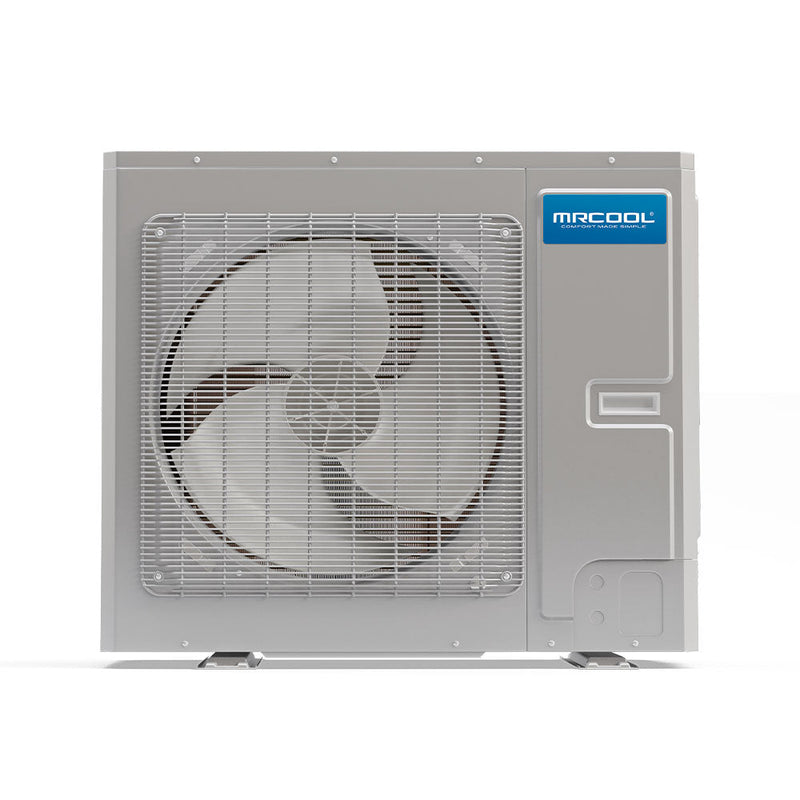

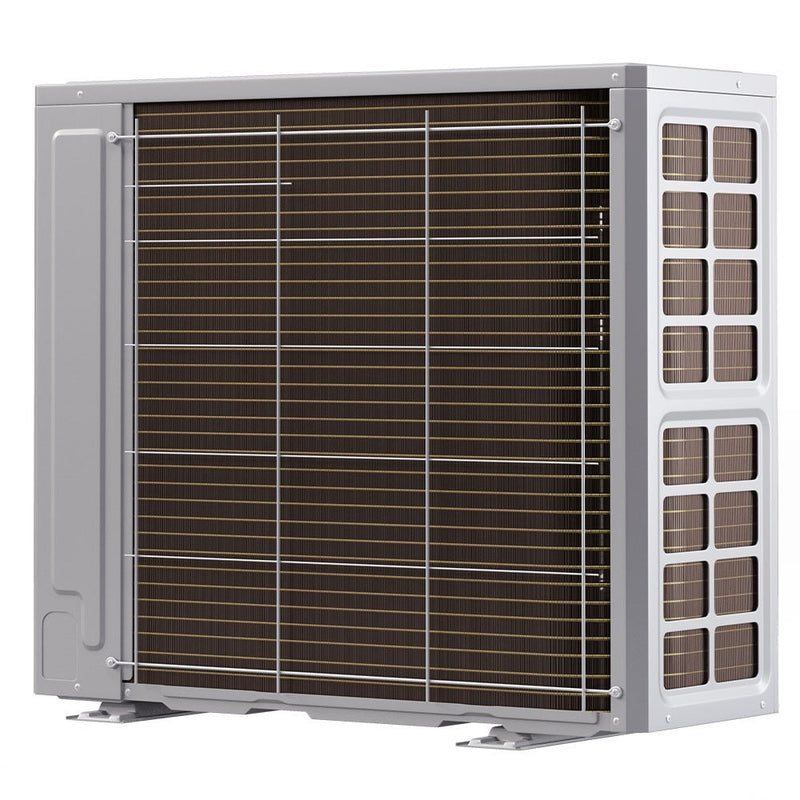

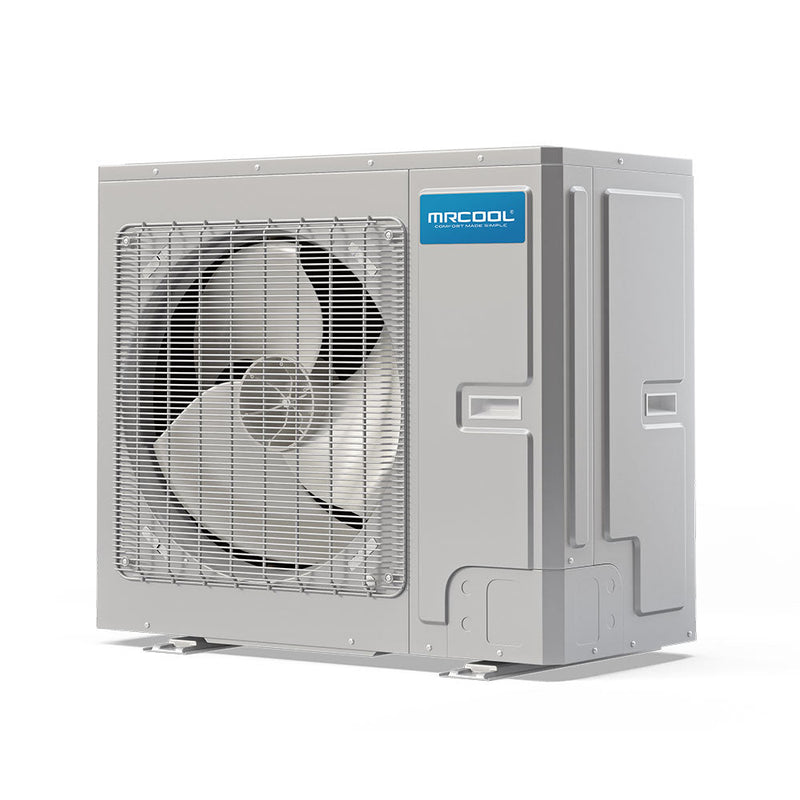

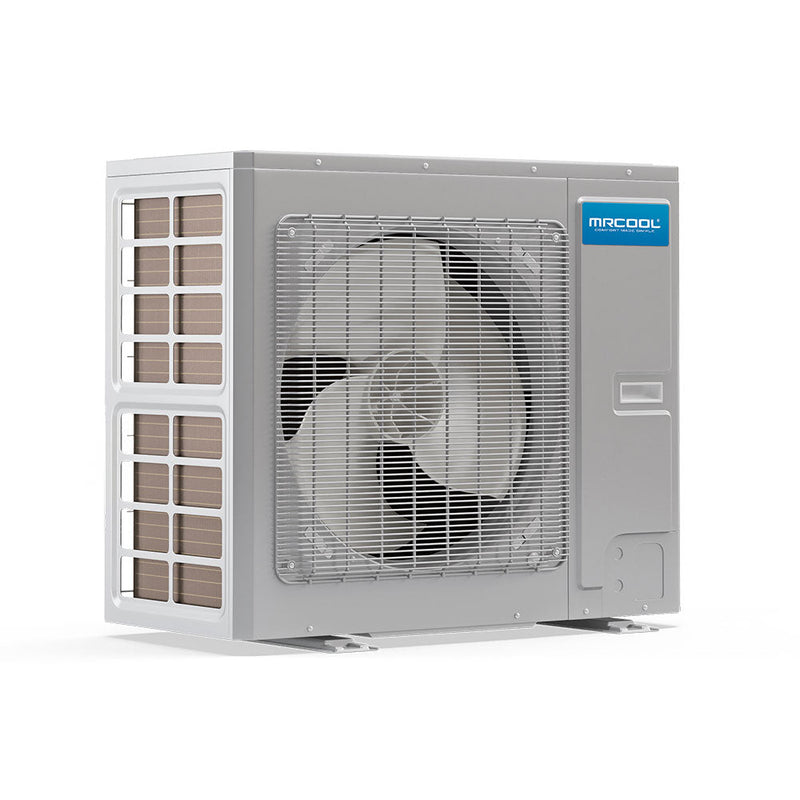

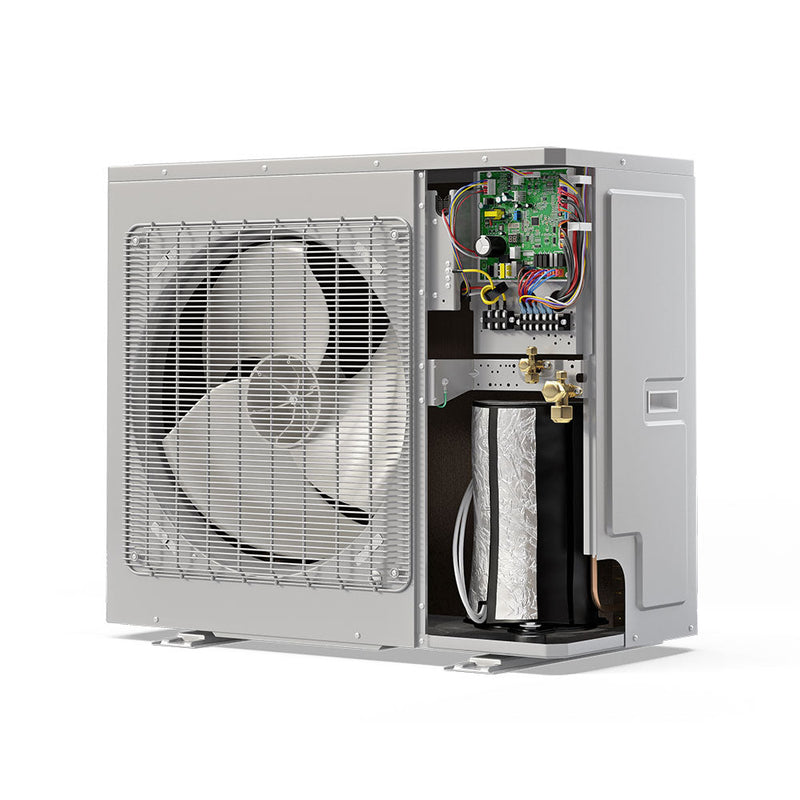

The Universal Cooling-Only Condenser has been designed with versatility and efficiency in mind. With its compact side-discharge design, this Universal condenser is ideal for places where limited space is a factor. It also offers different options when it comes to installing and connecting the refrigerant piping. These include soldering, flared-screw connections, or the MRCOOL signature No-Vac Quick-Connect Line Set, for DIY installers or those who want to simplify and shorten the installation process. The Universal Cooling-Only Condenser comes complete with multiple safeguards that protect and monitor the unit to help ensure safe and smooth operation over the life of the system. All of this in a unit that is capable of a 20 SEER rating.
Features:

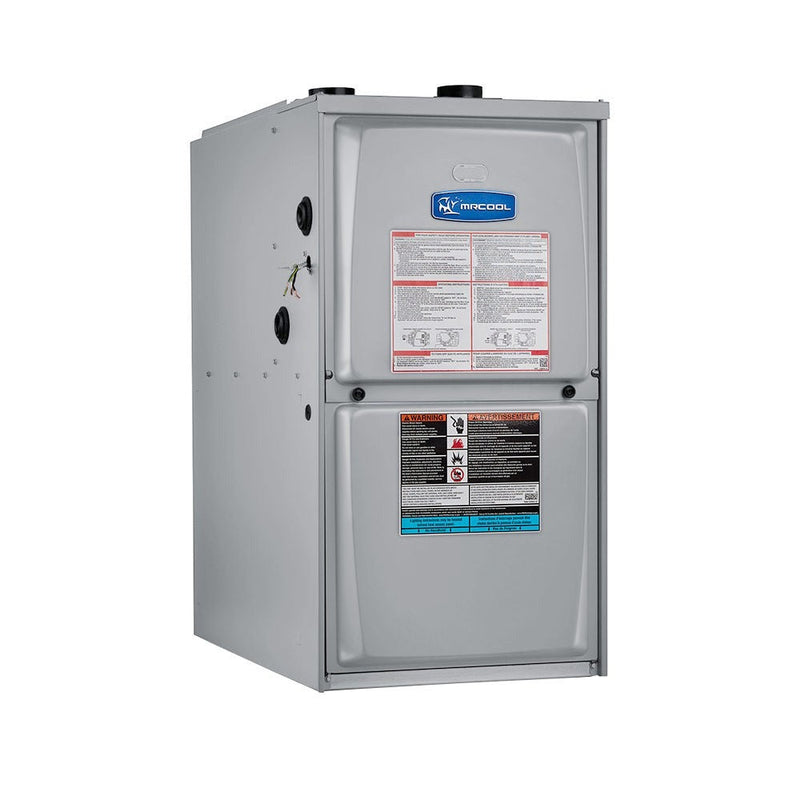

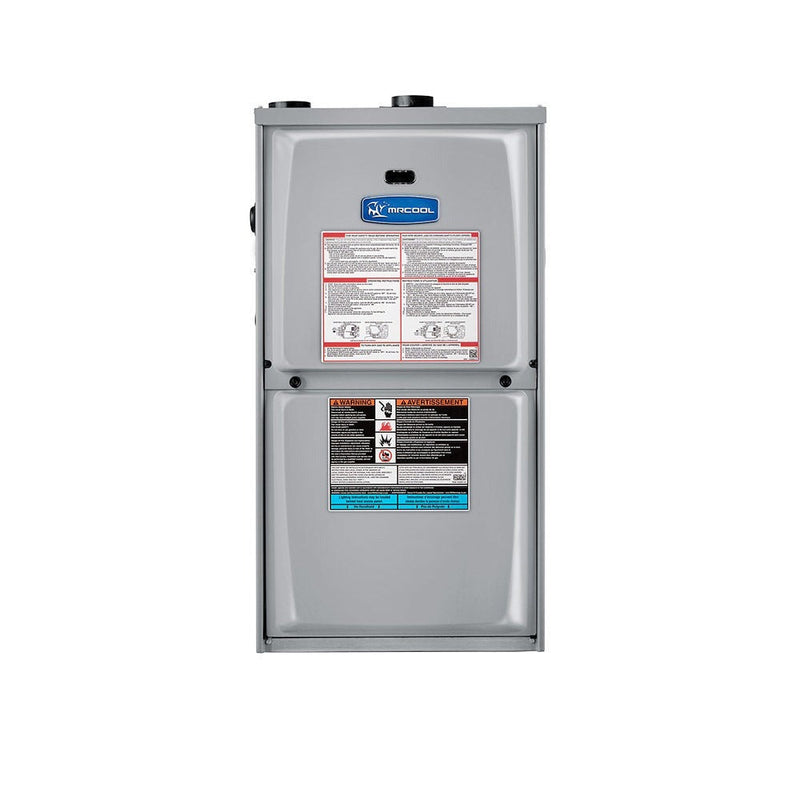

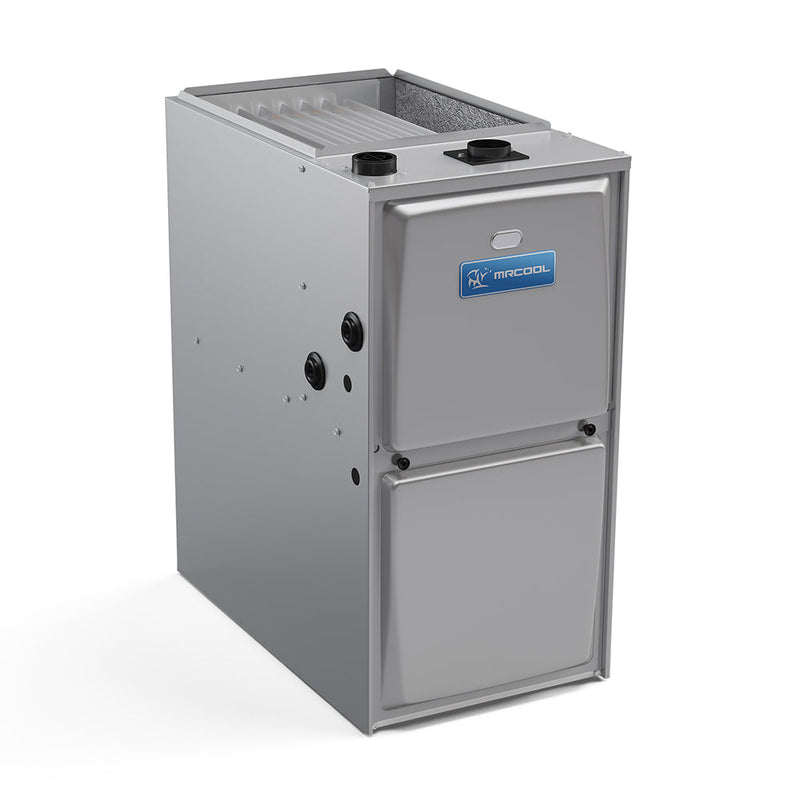

There's nothing like your first high gas bill of the season to make you dread a long, cold winter. If that's the boat you're in, you need to make a change. You need to invest in a powerful, high quality, and energy efficient heater like the 70k BTU 95% AFUE multi-positional gas furnace by MRCOOL. Unlike a lot of other furnace models, the MRCOOL 70K BTU 95% AFUE furnace wastes a minimal amount of fuel. This ensures most of your dollar is spent wisely rather than wasted, and that in turn means you have to spend less of those dollars to keep your house warm all winter long. Depending on the severity of winter weather where you live, that might mean the difference between a few dozen dollars or a few hundred dollars. So don't dread winter. Instead, choose the efficient, versatile and high quality heat of the MRCOOL. It's also protected by a 20 year Heat Exchanger Warranty, and a 10-Year Registered Parts Warranty.
Features:

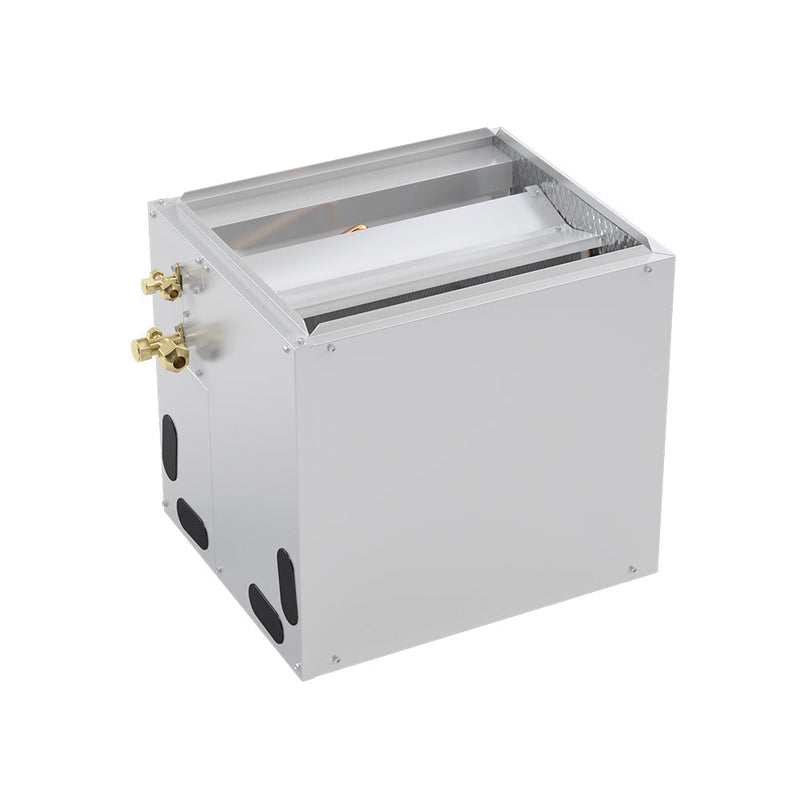

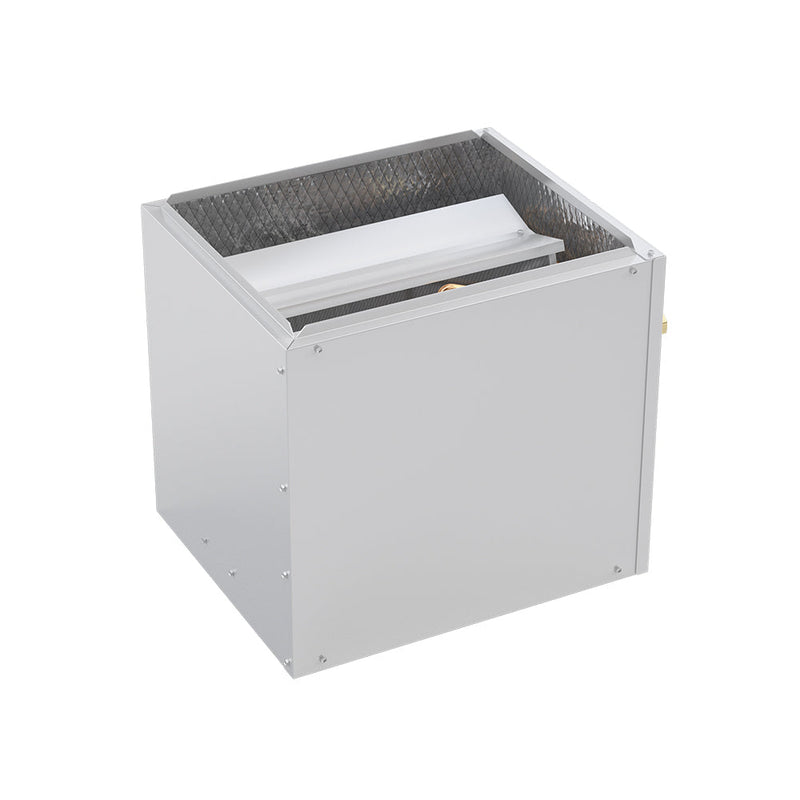

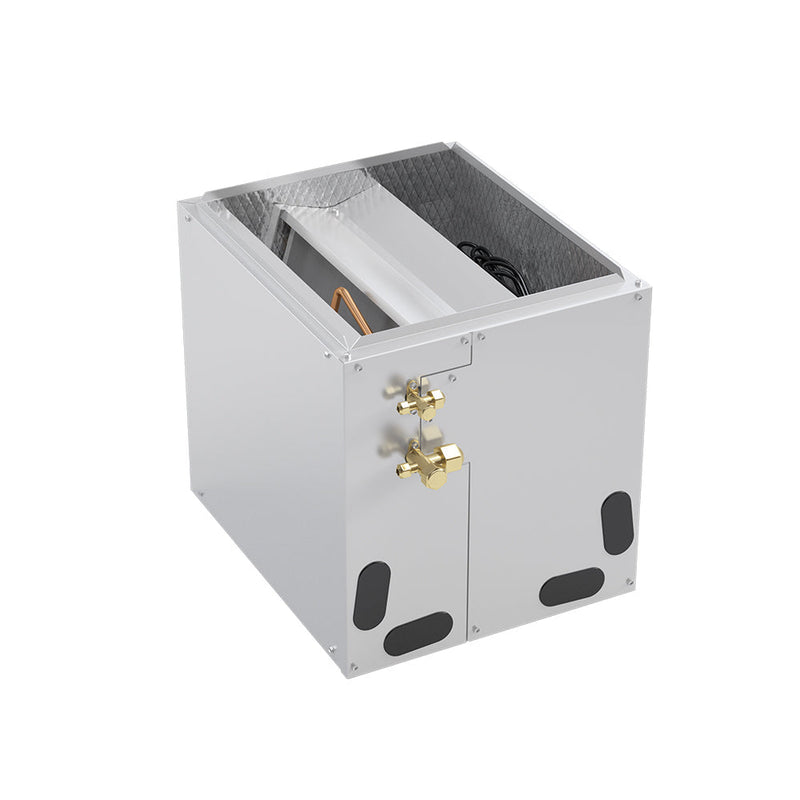

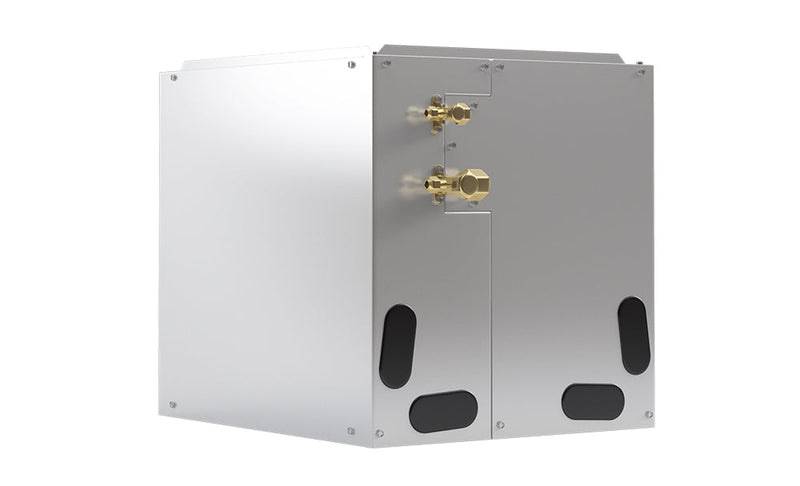

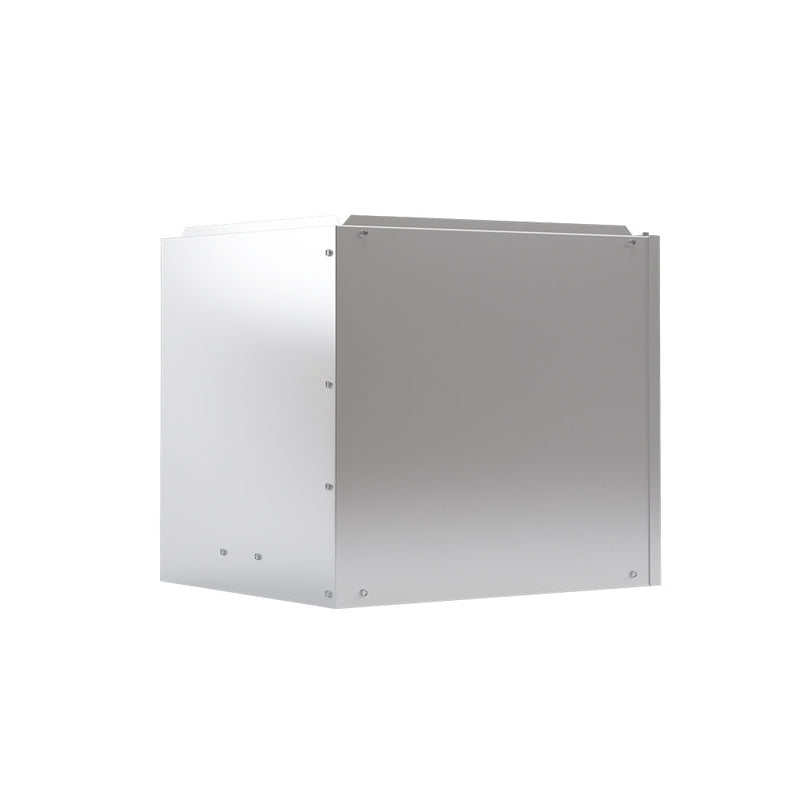

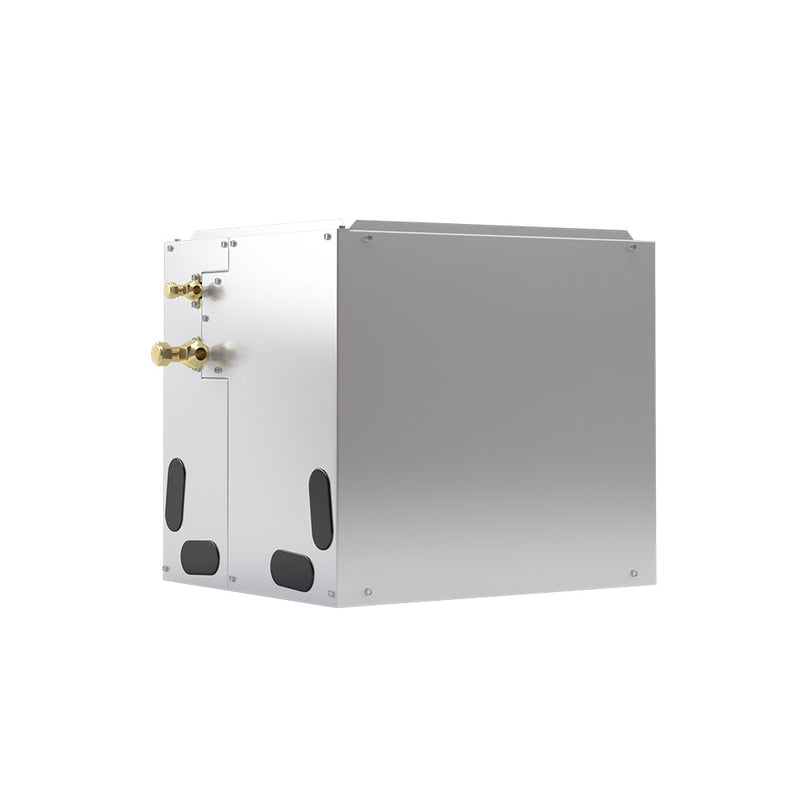

The Universal A-Coil is a versatile and adaptable option for your home comfort. It can be paired with other Universal units or as a replacement for an outdated, ineffective A-coil in your current system. The Universal A-Coil offers quieter operation and quick installation than many competitor models. It also features a liquid pipe designed to guard against excessive condensation. That could save you from costly property damage. It is equipped with multiple safeguards including protection against, high-pressure, high-discharge temperature, overload, IPM, and PFC in order to ensure effective and efficient operation for the life of the unit.
| Brand | MRCOOL |
| Model | MDAGM0240369570 |
| UPC | 840255512114 |
| Gas Furnace Efficiency | 95% |
| Bundle Cooling Capacity | 1.5 Ton, 2 Ton, 2.5 Ton, 3 Ton |
| Bundle Cooling Efficiency | 19 SEER and Above |
| EER | 12.5 (2 Ton), 11 (3 Ton) |
| Series | Universal |
| Region Compatibility | Nationwide |
| California Residents | Prop 65 WARNING |
| Brand | MRCOOL |
| Model | MDUCO18024036 |
| UPC | 810063867485 |
| Avg Coverage Area | 1,000 - 1,500 Sq Ft |
| Compressor | Inverter |
| Cooling Capacity | 1.5 Ton, 2 Ton, 2.5 Ton, 3 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect, Flared, or Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 35 amps |
| Product Height (in) | 32.25 |
| Product Length (in) | 37 |
| Product Width (in) | 18.125 |
| Refrigerant | R-410a |
| Cooling Efficiency | 19 SEER and Above |
| Series | Universal |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
| Weight (lbs) | 208.3000 |
| Region Compatibility | North, Southeast |
| Brand | MRCOOL |
| Model | MGM95SE070B3XA |
| UPC | 810512031320 |
| AHRI Number | 204085888 |
| Gas Furnace Efficiency | 95% |
| Air Flow Direction | Horizontal, Upflow |
| Configuration | Floor Mounted |
| Avg Coverage Area | 1,250 - 1,500 Sq Ft |
| Blower Motor | High Efficiency |
| Cooling Compatibility (up to) | 3 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | PVC |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Primary Heating Capacity | 65,001 - 70,000 BTU |
| Product Height (in) | 33 |
| Product Length (in) | 28.5 |
| Product Width (in) | 17.5 |
| Series | Signature |
| System Application Type | Central Split Systems |
| Vent Connection | 2 inches, 3 inches |
| Voltage | 120 |
| Warranty | 10 Year Parts, Lifetime Heat Exchanger |
| Weight (lbs) | 128.0000 |
| Brand | MRCOOL |
| Model | MDUCC15024036 |
| UPC | 810063867522 |
| Air Flow Direction | Downflow, Horizontal, Upflow |
| Cooling Capacity | 1.5 Ton, 2 Ton, 2.5 Ton, 3 Ton |
| Line Set Connection Type | Quick Connect, Flared, or Sweat |
| Liquid Line Size | 3/8 inch |
| Product Height (in) | 23 |
| Product Length (in) | 21.25 |
| Product Width (in) | 17.5 |
| Refrigerant | R-410a |
| Series | Universal |
| Suction Line Size | 3/4 inch |
| Warranty | 5 Year Parts |
| Weight (lbs) | 75.0000 |
