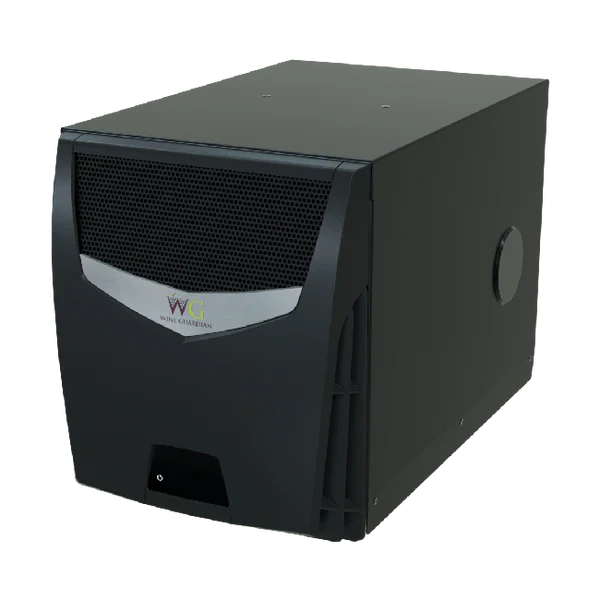

Wine Guardian Through-The-Wall Wine Cellar Cooling Unit - 60 HZ - TTW009

• Cooling Capacity @ 75 F: 1130/875 BTUH
• Airflow: 90 cfm (cubic feet per minute)
• Weight: 60 lbs.
• Capacity: 400 Cu. Ft.
• Condensate Drain: .25" ID

It’s time to get serious about your fine wine collection. Wine Guardian patented Through-the-Wall (TTW) wine cellar cooling units bring exceptional airflow and optimal temperature control to ensure you enjoy 100% of the flavors of your wine.

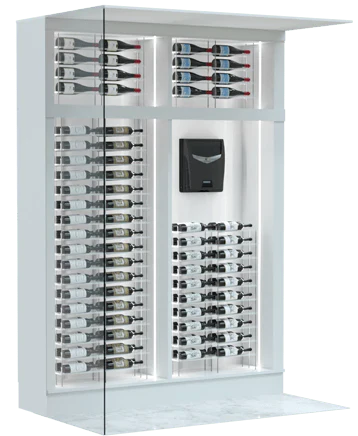

TTW units match maximum efficiency with quiet operation to create peak wine storage conditions for your small- to mid-sized wine room or wine wall.

Wine is your passion. Preserving it is ours.

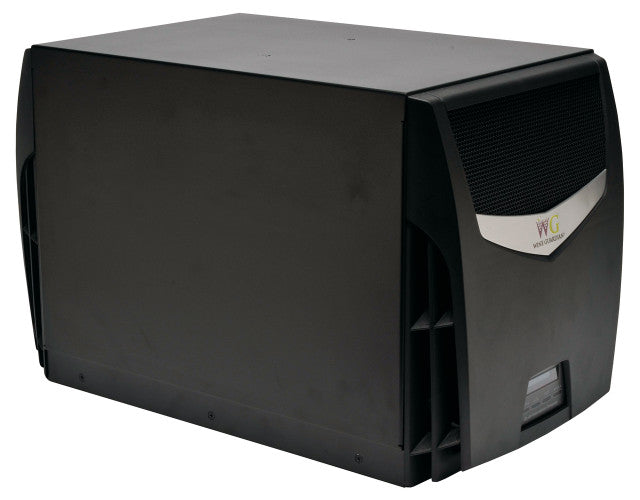

The Through-the-Wall (TTW) wine cellar cooling Unit from Wine Guardian® offers a contemporary design that will match the unique style of today’s modern wine cellar. This small wine cooling unit is available in two capacities, perfect for small to mid-sized cellars. This innovative system offers exceptional airflow and maintains optimal temperature and humidity with the quietest operation in its class.

Quality, sophistication, and a host of other features that are standard to Wine Guardian

• Commercial-grade, corrosion resistant components long-term durability
• The only TTW system that displays both temperature & humidity and controls temperature
• Digital remote interface control featuring Wireless2Base technology
• Quiet and efficient operation
• EasyMount one-piece wall bracket and support frame included
• Wine Guardian® TTW Systems can directly replace most competitors through-the-wall models. See your distributor for details

Additional Standard Features

• Integrated condensate evaporation system
• Drain overflow connection
• Aluminum, corrosion-resistant cooling coil
• Power cord connections on both sides of system to connect power from front or back of unit

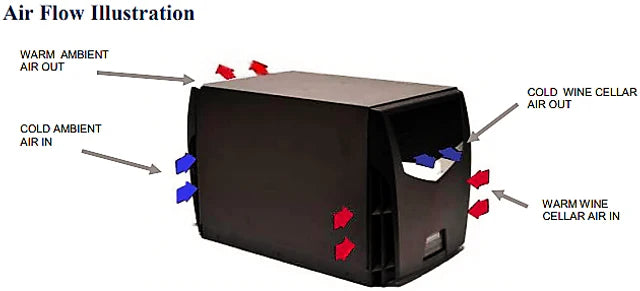

• Engineered for ideal airflow, including adjustable louvers for optimal cellar air circulation
• Can be mounted flush with the wall or racking

DESIGNED FOR THE DO-IT-YOURSELFER
The EasyMount™ one-piece wall bracket makes installation possible for any wine aficionado. Just insert the TTW into your cellar wall, make your drain connection, and plug it in. It’s really that simple to get set up and start enjoying your wine.

SLEEK AND MODERN. JUST LIKE YOUR CELLAR.
The TTW’s stylized air vents, bold silver faceplate, curved edges, and sleek touchscreen controls were designed to seamlessly integrate into the unique style of the modern wine cellar. These systems are engineered to look beautiful – and stay beautiful. Commercial-grade, corrosion resistant components and an all-aluminum frame keep the TTW unit looking good as it ages alongside your wine collection.

COMPLETE CELLAR CONTROL
With a built-in thermostat, Wine Guardian lets you monitor temperature and humidity and control temperature right at the face of the TTW unit. Want to control and monitor the conditions while in your kitchen or den? Not a problem. Thanks to Wireless2Base™ technology, an additional controller and sensors can connect to your TTW anywhere in your home — so you can control your wine cellar wherever is most convenient to you.

PAIRS WELL WITH A HUMIDIFIER
A properly humidified wine space ensures the ultimate preservation and enjoyment of wine. As with improper temperature conditions, uncontrolled humidity can have devastating effects on wine like mold, loss of liquid, and dried out corks — just to name a few. Wine Guardian TTW units can be paired alongside a Wine Guardian Humidifier to create an environment perfectly curated for wine storage.

• Model: TTW009


Performance

• Compressor (HP): 0.125
• @ 75 Deg F Ambient (BTUH): 1130 / 875
• @ 85 Deg F Ambient (BTUH): 1090 / 830
• @ 95 Deg F Ambient (BTUH): 820 / 680

Controls

• Type: Digital electronic via local or remote interface
• Temperature Accuracy / RH% Accuracy: ± 1°F / +/-5%

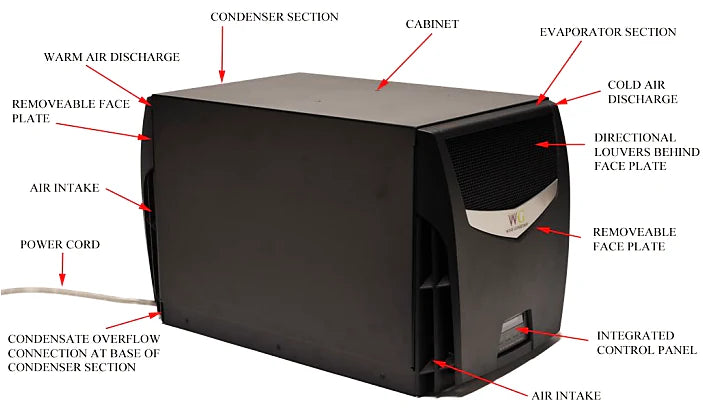

Evaporator Section

• Fan Motor Size (Watts): 35
• Air Flow (CFM): 90

Air-cooled Condenser Section

• Fan Motor Size (Watts): 35
• Air Flow (CFM): 90
• Air Flow with 12' flex duct (CFM): 80

Electrical Requirements

• Power Requirements (V/P/H): 115/1/60
• Current Draw - Cooling mode (Amps): 2.6
• Minimum Circuit Size (Amps): 5

Typical Testing Data (Factory)

• Head Pressure (psig): 140
• Suction Pressure (psig): 40
• Evaporator Inlet Temperature (Deg F): 58/ 54%RH
• Evaporator Outlet Temperature (Deg F): 50
• Condenser Inlet Temperature (Deg F): 75
• Condenser Outlet Temperature (Deg F): 95

Cabinet

• Construction: 0.060" Aluminum
• Finish: Textured Black Morton #41-784
• Weight (pounds): 60
• Dimensions (inches): 25"L x 14-1/4"W x 15-7/8"H
• Condensate Drain (inches): .25 I.D. (inside dimensions)
• Agency Approval(s): ETL - Conforms to UL Std. 484, Can/CSA C22.2 #117

• Exhaust Duct Collar
• Duct Collar Kit

Additional Accessories

• Remote Interface Controller
• Remote Sensor
• Mounting Brackets
• Condensate Pump
• 3 Year Extended Warrenty
