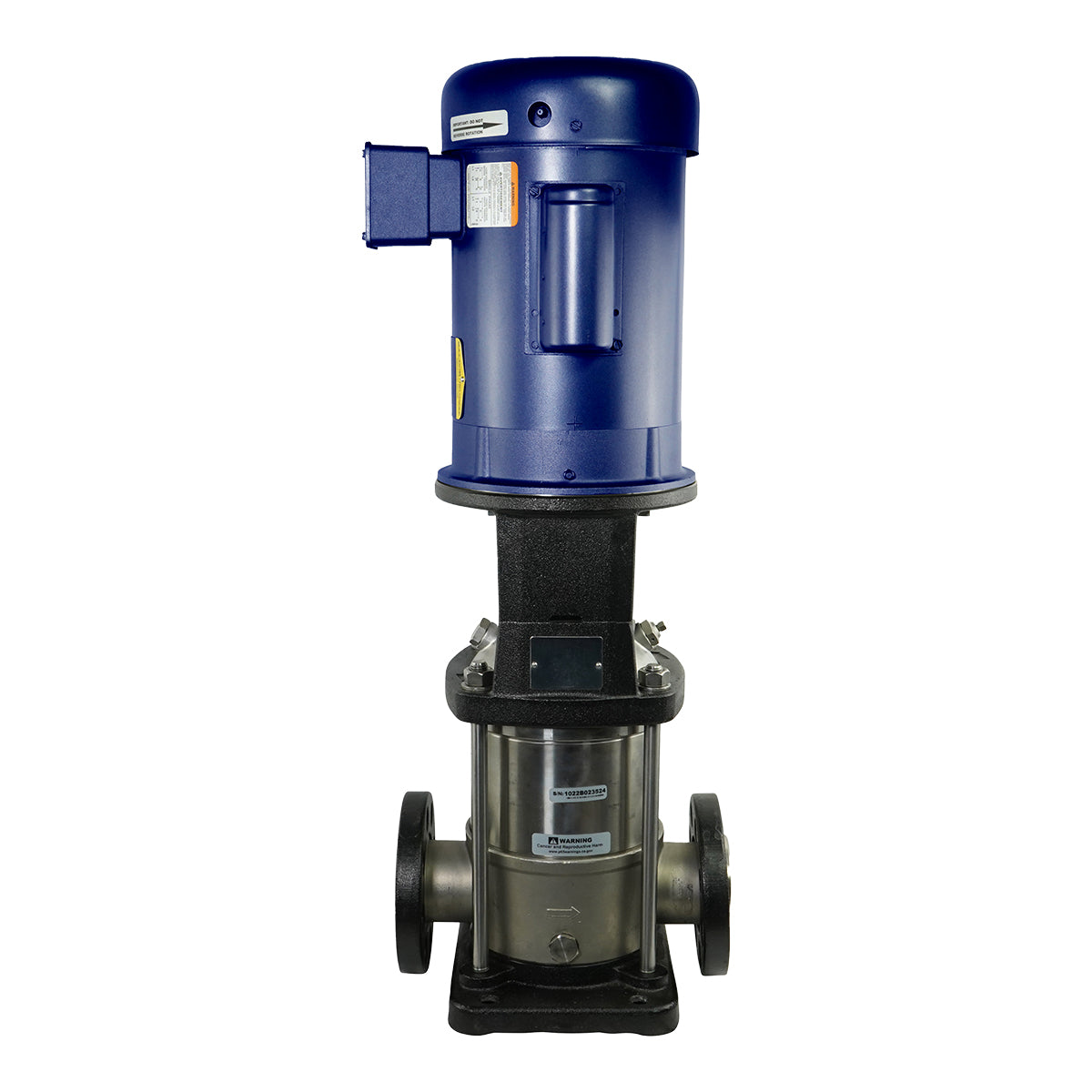

NV45B4FE3T Vertical Pump

Installation Instructions for NV45B4FE3T Vertical Pump

1. Preparation:
   • Inspect the pump and motor for any visible damage during shipping. Report any damage to the carrier or dealer.
   • Ensure the installation site is level, stable, and provides adequate space and ventilation for service and cooling.
   • Verify that the pump model matches the system specifications and is suitable for the intended application.
2. Mounting the Pump:
   • Secure the pump base to a flat, solid surface to prevent vibration during operation.
   • Align and support suction and discharge piping to avoid excessive strain on the pump.
   • Install isolation valves on both the suction and discharge sides for easier maintenance.
3. Piping Connections:
   • Ensure piping matches the pump’s flanged connections (2" ANSI 150#).
   • Install appropriate gaskets to prevent leaks, ensuring they do not restrict flow.
   • Remove any protective covers or caps from the flanges before installation.
   • For hot water systems, include a bleed valve in the discharge line to relieve pressure during maintenance.
4. Electrical Connection:
   • Have a certified electrician verify that the power supply matches the motor’s specifications (3 HP, three-phase).
   • Ensure proper motor wiring and check for counterclockwise rotation when viewed from the motor’s rear.
   • If rotation is incorrect on a three-phase motor, reverse any two leads to correct it.
5. Priming the Pump:
   • Remove the fill plug and use a funnel to fill the pump casing with water.
   • Open the vent plug to allow air to escape as the pump fills with water.
   • Re-seal the vent plug and fill plug once a steady stream of water flows from the vent.
6. Testing the Pump:
   • Open the suction valve fully and partially open the discharge valve.
   • Apply power to the motor and check for smooth operation without unusual noise or vibration.
   • Gradually open the discharge valve to reach desired operating conditions.
7. Safety Precautions:
   • Never operate the pump without water to prevent damage to internal components.
   • Always replace coupling guards after installation to prevent injuries.
   • Ensure the pump is properly grounded and all connections are secure before starting.
