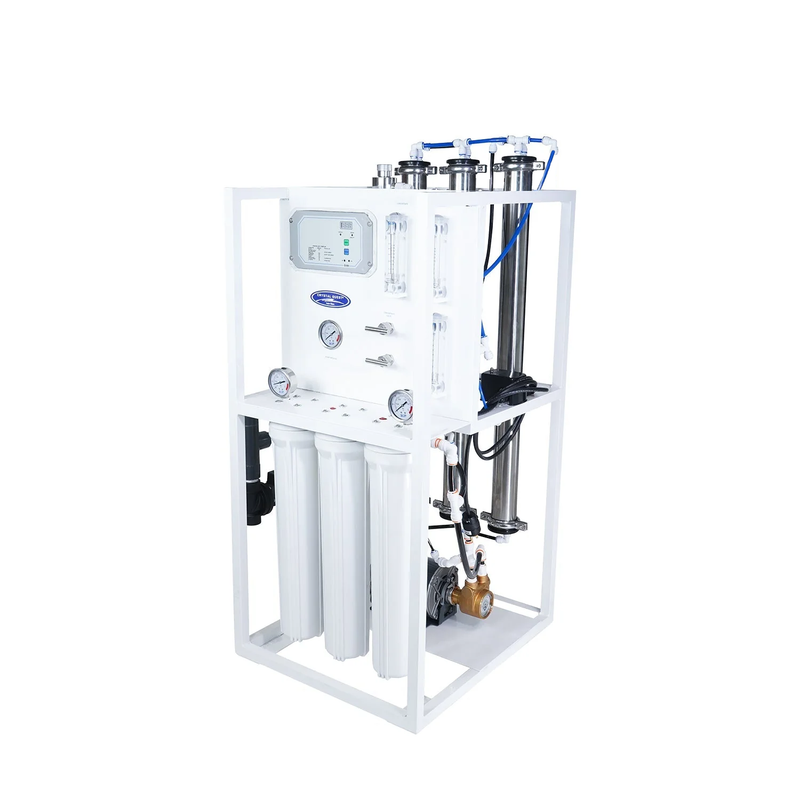

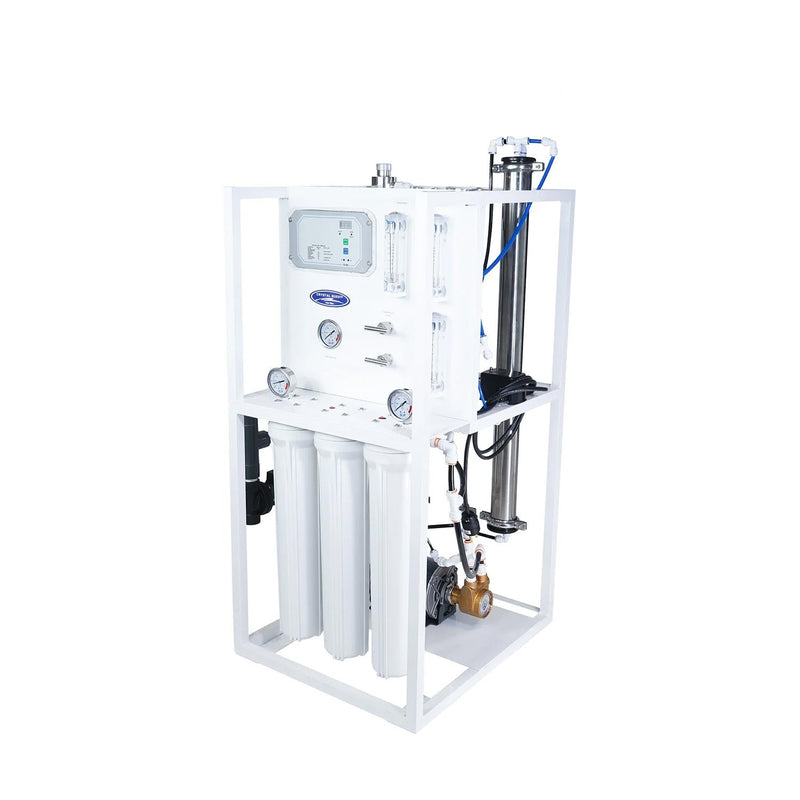

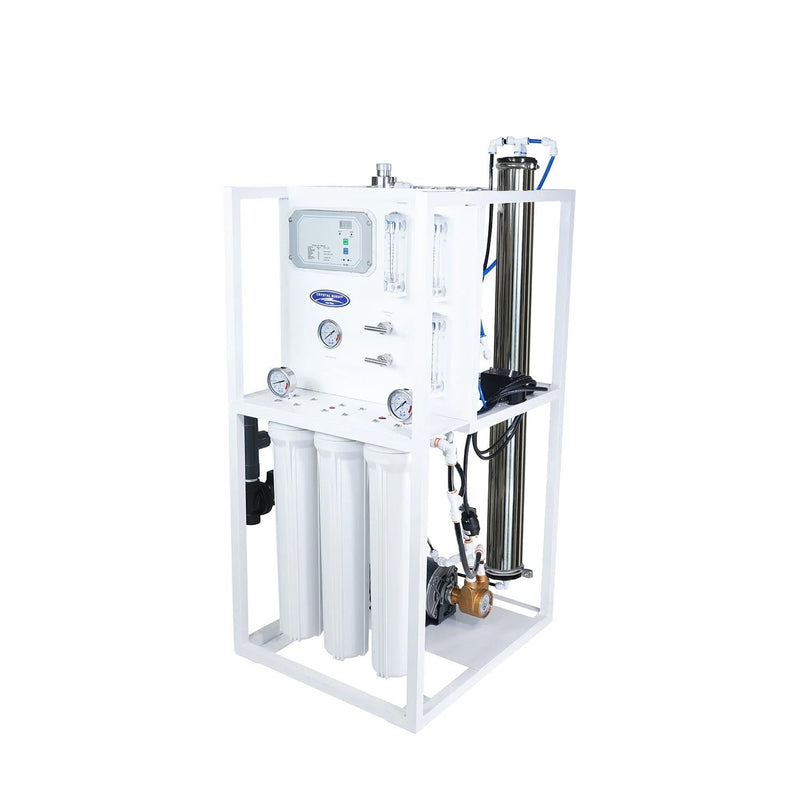

Construction: Aluminum white powder coated, corrosion-resistant, and lightweight
Stainless steel membrane housing: TFC membrane for maximum rejection of impurity and high flow
Brass Rotary Vane High-Pressure Pump designed for continuous use and built-in protection for loss of feedwater protection
High-Efficiency Carbonate Motor
SWP 316 Stainless steel concentrate valve: to control permeate versus concentrated water
SWP Flow meter: to display permeate and concentrated water flow
SWP 0-100 psi Pre-filter pressure gage Indicator to aids on timely cartridges change
SWP 0-300 psi pump pressure gauge indicator pump pressure gauge reading range from 120 – 200.
Low-pressure switch: Automatically shut off RO system motor to avoid pump run dry.
High-Pressure Tank Switch: Automatically turns off the RO system at a predetermined storage tank pressure. No need for expensive “plug/play”.
1” Feed solenoid valve. Automatically shuts off the feed water to the system.
Push/Pull fittings with locking safety clips
Benefits:
Compact Space Saving
Components Easily Accessible
Expandable and Lightweight Design
Fully Equipped and Customizable
Pre-plumbed, wired and assembled
Low Operation Costs
Low Maintenance Costs
Easily Maintenance and servicing
Factory Tested and Preserved
CE Compliant
1-Year Limited Warranty
Made in the USA
Upgrades:
All systems include a standard with a wide range of features. There are various options and upgrades available to accommodate a diverse range of water treatment applications. Listed below is a selection of the most popular upgrades.
Stainless-Steel Rotary Vane Pump: Offers a longer lifespan and increase resistance to high TDS feed water and corrosive materials, such as dosing chemical and antiscalants.
Concentrate recycle valve: Allows for an increase of RO systems efficiency by recycling back wastewater into the feed stream and increasing the system recovery
SWP Digital Dual TDS Controller: Allow for simultaneous monitoring of both feed TDS and permeate TDS levels, helping to monitor the RO system salt rejection and membrane performance.
SWP Digital TDS Controller: Allow for monitoring either feed TDS and Permeate TDS levels
SWP Digital TDS/Conductivity Controller: Allow for the monitoring of the RO permeate water TDS and conductivity levels, useful in evaluating overall system performance IF Computer Controller with feed flush: Allow for pre-treatment lockout functionality, tank level input, features a convenient LED status display indicator for increase ease of use.
S150 Computer Controller with Feed Flush: Allow for pre-treatment lockout functionality, tank level input, features a convenient LED status display and alarm function.
Chemical Pump Outlet: Provide an integrated power source with the RO system for connection of a chemical feed pump.
Blending Valve: Allows for a mixture of feed water into final RO permeate water to achieve desirable permeate TDS.
Permeate Sample Port: Allows for evaluation of individual membrane performance in on RO system and aids in system troubleshooting and maintenance.
240V 50-60Hz or 110V 50-60Hz: Allow for selecting sufficient voltage and hertz use requirement.
Single Wood Crate
###
Gallons Per Day (GPD) @ 77° F
500
750
1000
1500
1800
2500
4000
5000
7000
Model
CQE-CO-02024
CQE-CO-020024
CQE-CO-02025
CQE-CO-02026
CQE-CO-020027
CQE-CO-02027
CQE-CO-02028
CQE-CO-02029
CQE-CO-02030
Dimensions
14" x 20" x 27"
14" x 20" x 27"
14" x 20" x 27"
14" x 20" x 46"
14" x 20" x 46"
19" x 23" x 46"
19" x 23" x 46"
30" x 38" x 47"
30" x 38" x 47"
Weight (lbs)
140
140
145
160
160
180
235
250
265
Concentrate Re-Circulate
Optional
Optional
Optional
Optional
Optional
Optional
Optional
Optional
Optional
Auto Flush
Optional
Optional
Optional
Optional
Optional
Optional
Optional
Optional
Optional
Membrane Size
2521 TFC HF1
2540 TFC HF1
2521 TFC HF1
2540 TFC HF1
4040 TFC HF1
2540 TFC HF1
4040 TFC HF1
4040 TFC HF1
4040 TFC HF1
# of Membranes
2
1
3
2
1
3
2
3
4
Motor HP
1/2
1/2
3/4
3/4
3/4
3/4
1.5
1.5
1.5
Voltage (volts AC)
110/220
110/220
110/220
110/220
110/220
110/220
110/220
110/220
110/220
Hertz (cycles)
50/60
50/60
50/60
50/60
50/60
50/60
50/60
50/60
50/60
Feed Connection
3/4"
3/4"
1"
1"
1"
1"
1"
1"
3/4"
Product Connection
3/8”
3/8”
3/8”
3/8”
3/8”
3/8”
1"
1"
1"
Waste Connection
3/8”
3/8”
3/8”
3/8”
3/8”
3/8”
1"
1"
1"
Minimum Feed Pressure
45 psi
45 psi
45 psi
45 psi
45 psi
45 psi
45 psi
45 psi
45 psi
Minimum NaCl - % Rejection
96%
96%
96%
96%
96%
96%
96%
96%
96%
Minimum Feed (GPM)
1.5
1.5
1.5
1.5
1.5
4
6
7
10
Maximum Hardness (GPG)
15
15
15
15
15
15
15
15
15
Maximum TDS
2000 ppm
2000 ppm
2000 ppm
2000 ppm
2000 ppm
2000 ppm
2000 ppm
2000 ppm
2000 ppm
Operating Pressure
150 psi
150 psi
150 psi
150 psi
150 psi
150 psi
150 psi
150 psi
150 psi
Maximum NaCl - % Rejection
98.5%
98.5%
98.5%
98.5%
98.5%
98.5%
98.5%
98.5%
98.5%
Maximum Feed (GPM)
3
3
3
5
5
10
15
15
15
pH Range
3-11
3-11
3-11
3-11
3-11
3-11
3-11
3-11
3-11
Dimensions (L x W x H) - Commercial RO’s
GPD
Dimensions (L x W x H)
200 GPD
17” x 23” x 35”
300 GPD
17” x 23” x 35”
500 GPD
24” x 25” x 55”
750 GPD
24” x 25” x 55”
1,000 GPD
24” x 25” x 55”
1,500 GPD
24” x 25” x 55”
1,800 GPD
24” x 25” x 55”
2,500 GPD
24” x 25” x 55”
4,000 GPD
31” x 38” x 56”
5,000 GPD
31” x 38” x 56”
7,000 GPD
31” x 38” x 56”
10,000 GPD
31” x 58” x 64”
###
SYSTEM
CARTRIDGE
SKU
500 GPD
4-5/8” x 9-3/4” Pleated Cellulose Sediment Cartridge
CQE-RC-04033
4-5/8” x 9-3/4” SMART Filter Cartridge
CQE-RC-04027
(2) 2.5” x 21” Freshwater Reverse Osmosis Membranes
CQE-RC-04084
750 GPD
4-5/8” x 9-3/4” Pleated Cellulose Sediment Cartridge
CQE-RC-04033
4-5/8” x 9-3/4” SMART Filter Cartridge
CQE-RC-04027
2.5” x 40” Freshwater Reverse Osmosis Membrane
CQE-RC-04109
1000 GPD
4-5/8” x 9-3/4” Pleated Cellulose Sediment Cartridge
CQE-RC-04033
4-5/8” x 9-3/4” SMART Filter Cartridge
CQE-RC-04027
(3) 2.5” x 21” Freshwater Reverse Osmosis Membranes
CQE-RC-04084
1500 GPD
4-5/8” x 20” Pleated Cellulose Sediment Cartridge
CQE-RC-04034
4-5/8” x 20” SMART Filter Cartridge
CQE-RC-04030
(2) 2.5” x 40” Freshwater Reverse Osmosis Membranes
CQE-RC-04109
1800 GPD
4-5/8” x 20” Pleated Cellulose Sediment Cartridge
CQE-RC-04034
4-5/8” x 20” SMART Filter Cartridge
CQE-RC-04030
4” x 40” Freshwater Reverse Osmosis Membrane
CQE-RC-04086
2500 GPD
4-5/8” x 20” Pleated Cellulose Sediment Cartridge
CQE-RC-04034
4-5/8” x 20” SMART Filter Cartridge
CQE-RC-04030
(2) 2.5” x 40” Freshwater Reverse Osmosis Membranes
CQE-RC-04109
4000 GPD
4-5/8” x 20” Pleated Cellulose Sediment Cartridge
CQE-RC-04034
4-5/8” x 20” SMART Filter Cartridge
CQE-RC-04030
4-5/8” x 20” Coconut Based 5-Micron Carbon Block Filter Cartridge
CQE-RC-04036
(2) 4” x 40” Freshwater Reverse Osmosis Membranes
CQE-RC-04086
5000 GPD
4-5/8” x 20” Pleated Cellulose Sediment Cartridge
CQE-RC-04034
4-5/8” x 20” SMART Filter Cartridge
CQE-RC-04030
4-5/8” x 20” Coconut Based 5-Micron Carbon Block Filter Cartridge
CQE-RC-04036
(3) 4” x 40” Freshwater Reverse Osmosis Membrane
CQE-RC-04086
7000 GPD
4-5/8” x 20” Pleated Cellulose Sediment Cartridge
CQE-RC-04034
4-5/8” x 20” GAC Filter Cartridge
CQE-RC-04106
4-5/8” x 20” Coconut Based 5-Micron Carbon Block Filter Cartridge
