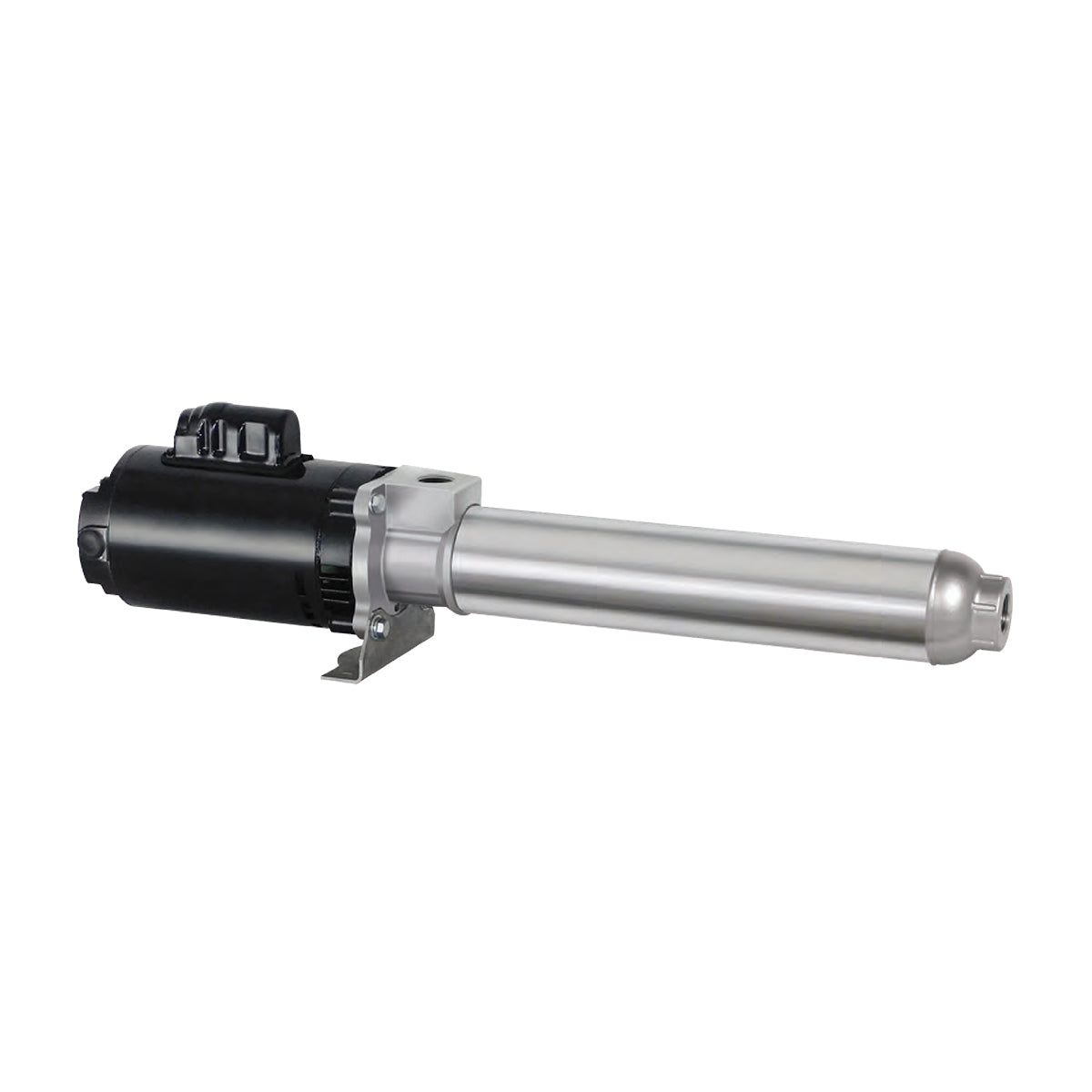

H35B12TW Horizontal Pump, 3HP

The H35B12TW Horizontal Pump is a powerful and durable solution designed for demanding industrial, commercial, and agricultural applications. With a 3HP motor and high-quality materials, this pump delivers reliable performance and efficient operation for water boosting and transfer needs.

Key Features:

• High-Performance Motor: Equipped with a 3HP motor for robust operation.
• Durable Construction: Built with stainless steel components for long-lasting reliability and corrosion resistance.
• Efficient Design: Provides smooth and steady water flow with optimized performance at capacities up to 35 GPM.
• Versatile Applications: Ideal for reverse osmosis, deionization, water transfer, and boosting systems.

Installation Manual

Installation Instructions

1. Preparation:
   • Inspect the pump for any damage and ensure all components are present.
   • Confirm that the motor voltage matches the power supply.
   • Verify the pump and motor alignment before installation.
2. Foundation:
   • Mount the pump on a flat and stable surface to reduce vibrations.
   • Secure the pump using anchor bolts for added stability.
3. Piping Connections:
   • Connect the suction and discharge pipes with proper gaskets and seals.
   • Ensure the piping system is properly supported to avoid stress on the pump connections.
   • Install a check valve and isolation valve on the discharge side for operational control.
4. Priming the Pump:
   • Fill the pump casing with liquid to ensure proper priming.
   • Use the vent valve to eliminate trapped air in the pump casing.
5. Electrical Wiring:
   • Wire the motor according to local electrical codes and safety standards.
   • Ensure proper grounding of the motor for safe operation.
   • Verify the motor rotation matches the direction indicated on the pump casing.
6. Startup:
   • Open the suction and discharge valves fully before starting the pump.
   • Start the motor and monitor the pump operation for any irregularities.
   • Check for leaks, vibrations, or unusual noises during startup.
7. Final Adjustments:
   • Adjust the flow and pressure as needed using the discharge valve.
   • Avoid throttling the suction side to maintain optimal efficiency.
8. Regular Maintenance:
   • Periodically inspect the pump and motor for wear or damage.
   • Lubricate bearings and other components as recommended by the manufacturer.
