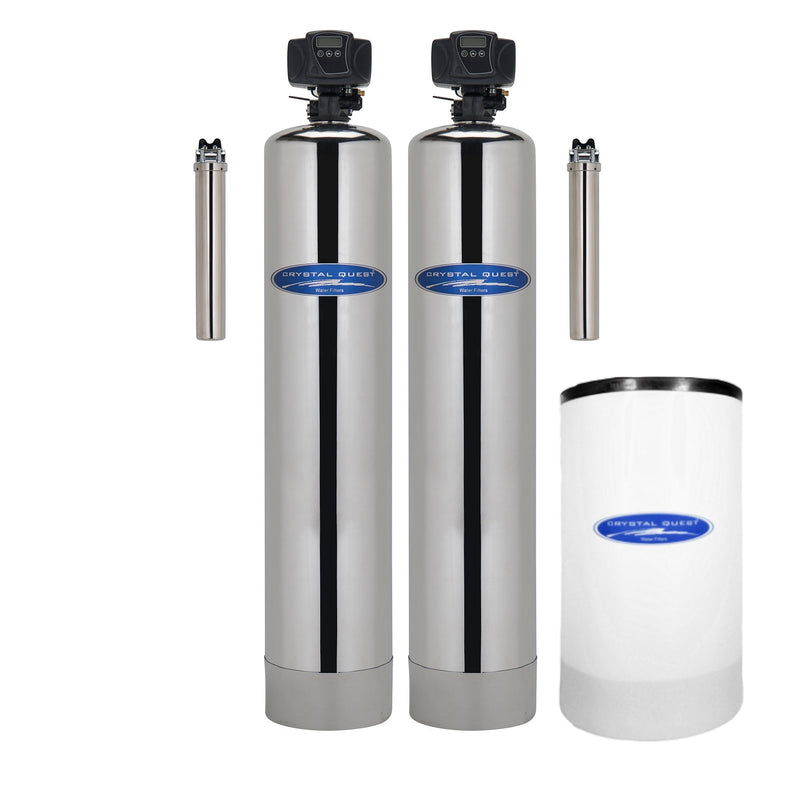

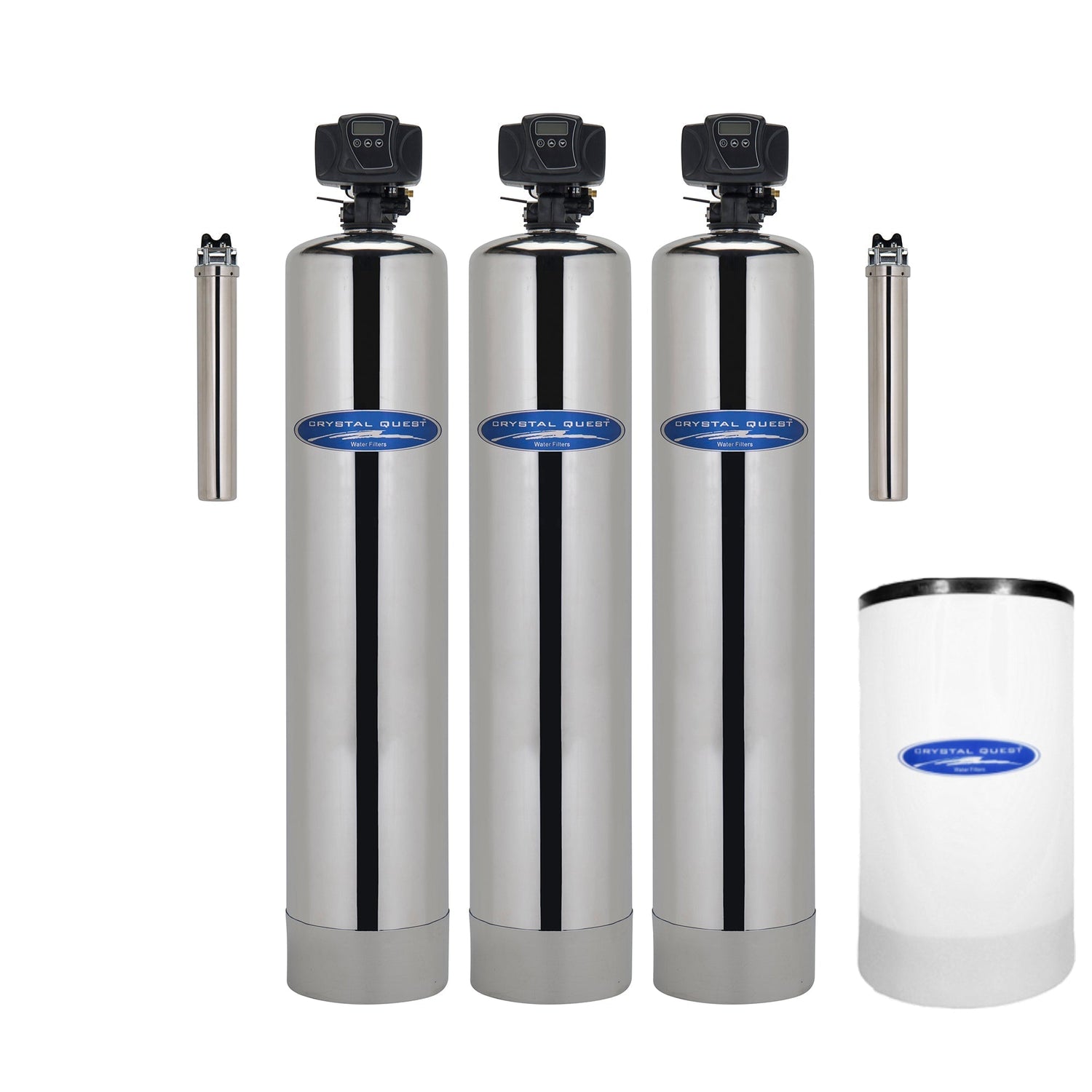

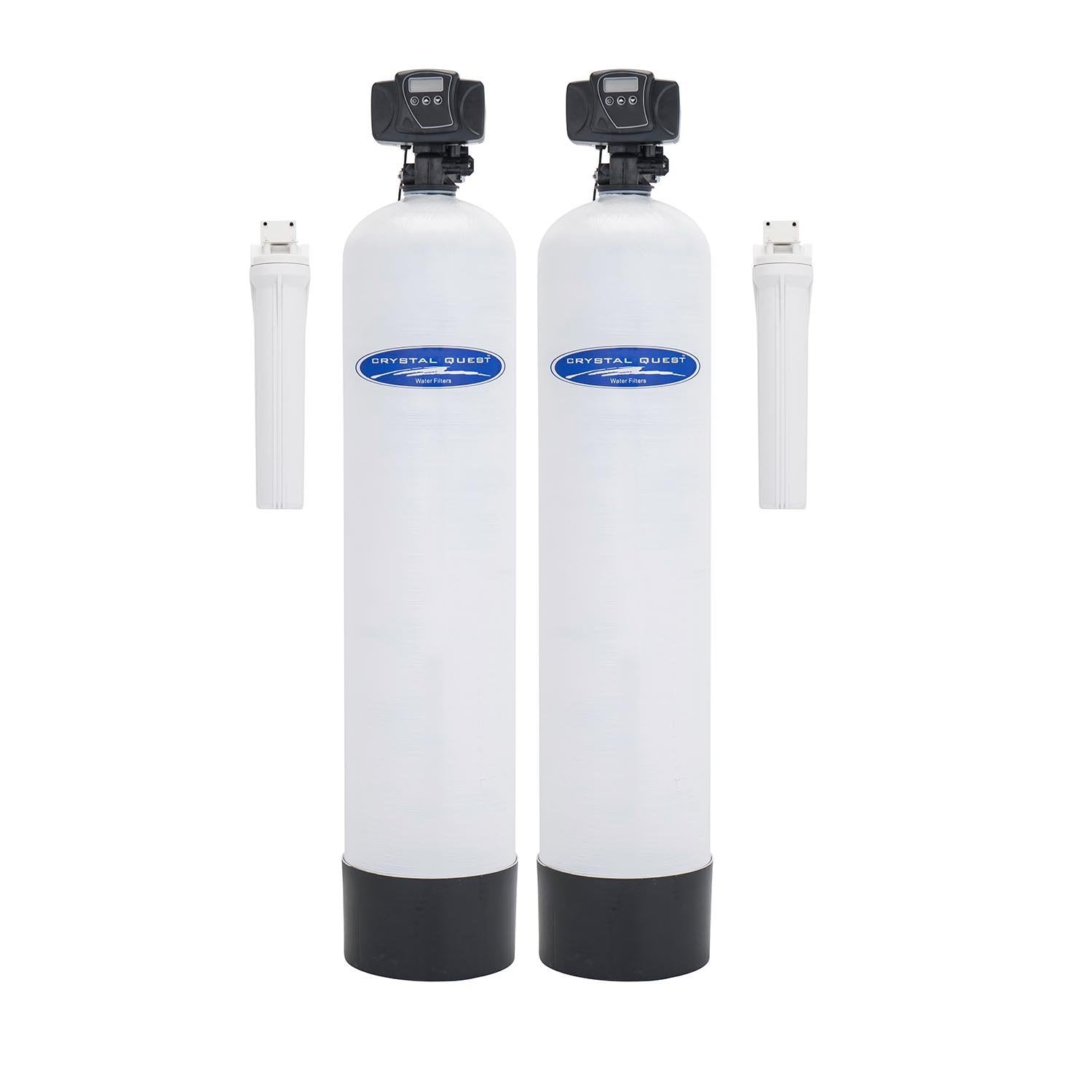

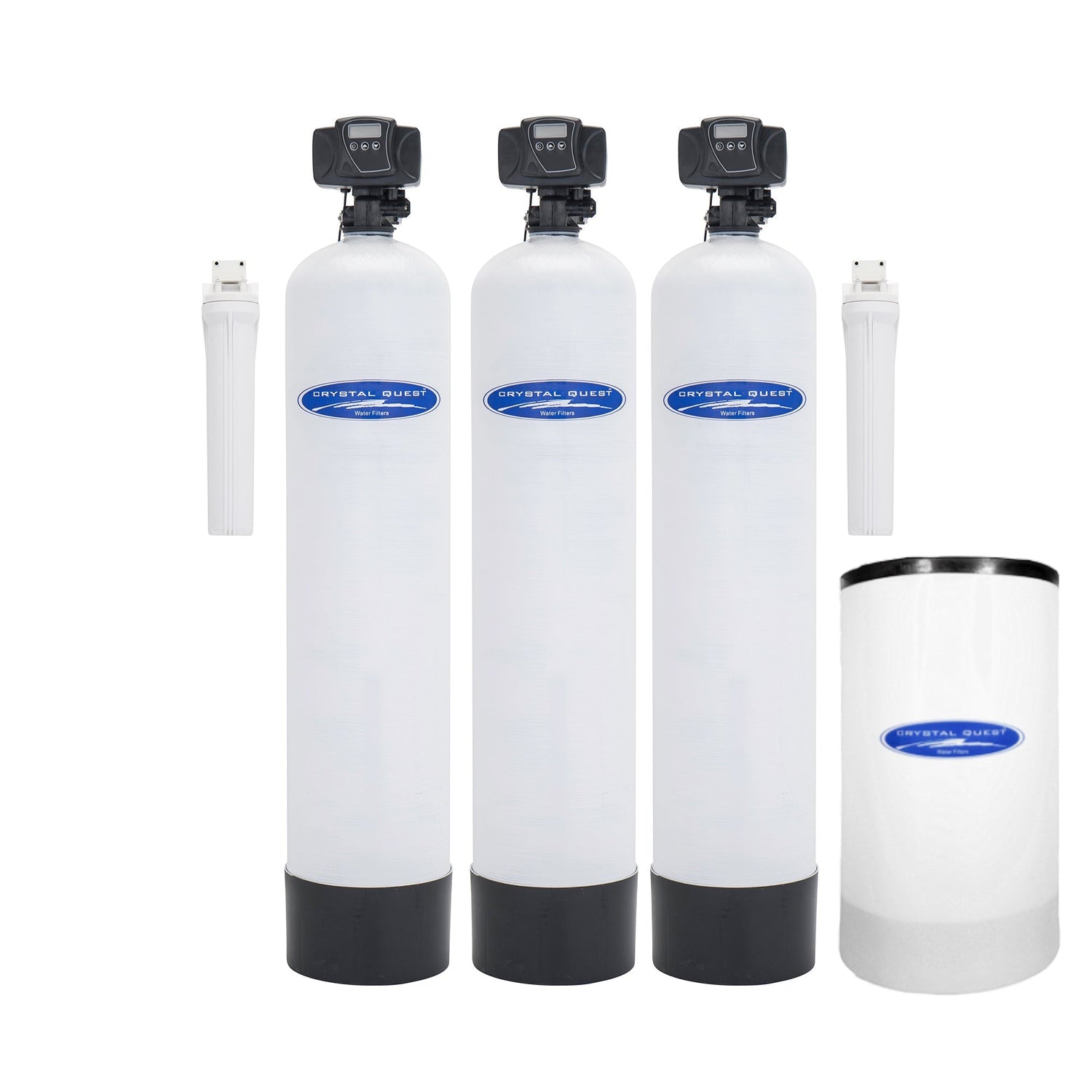

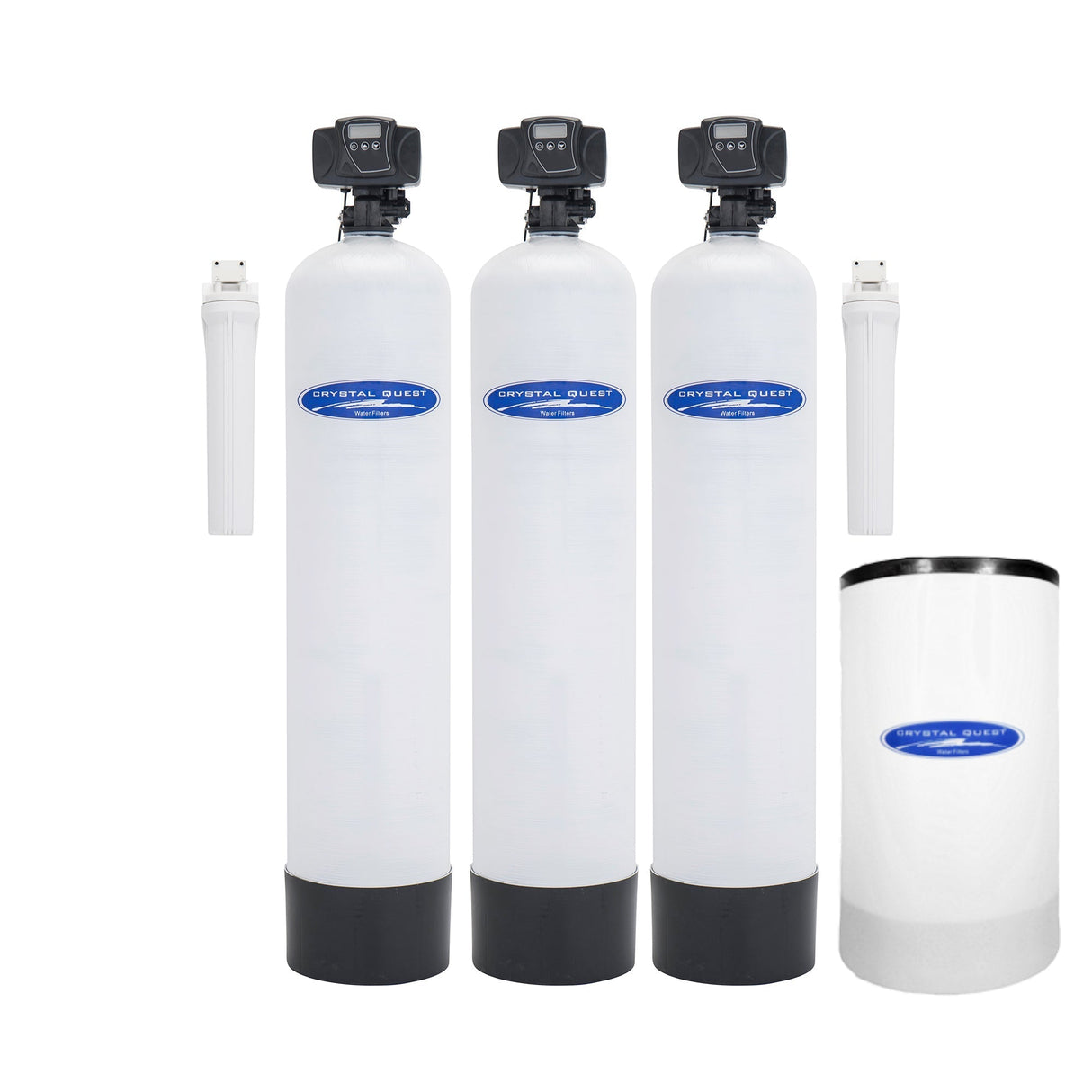

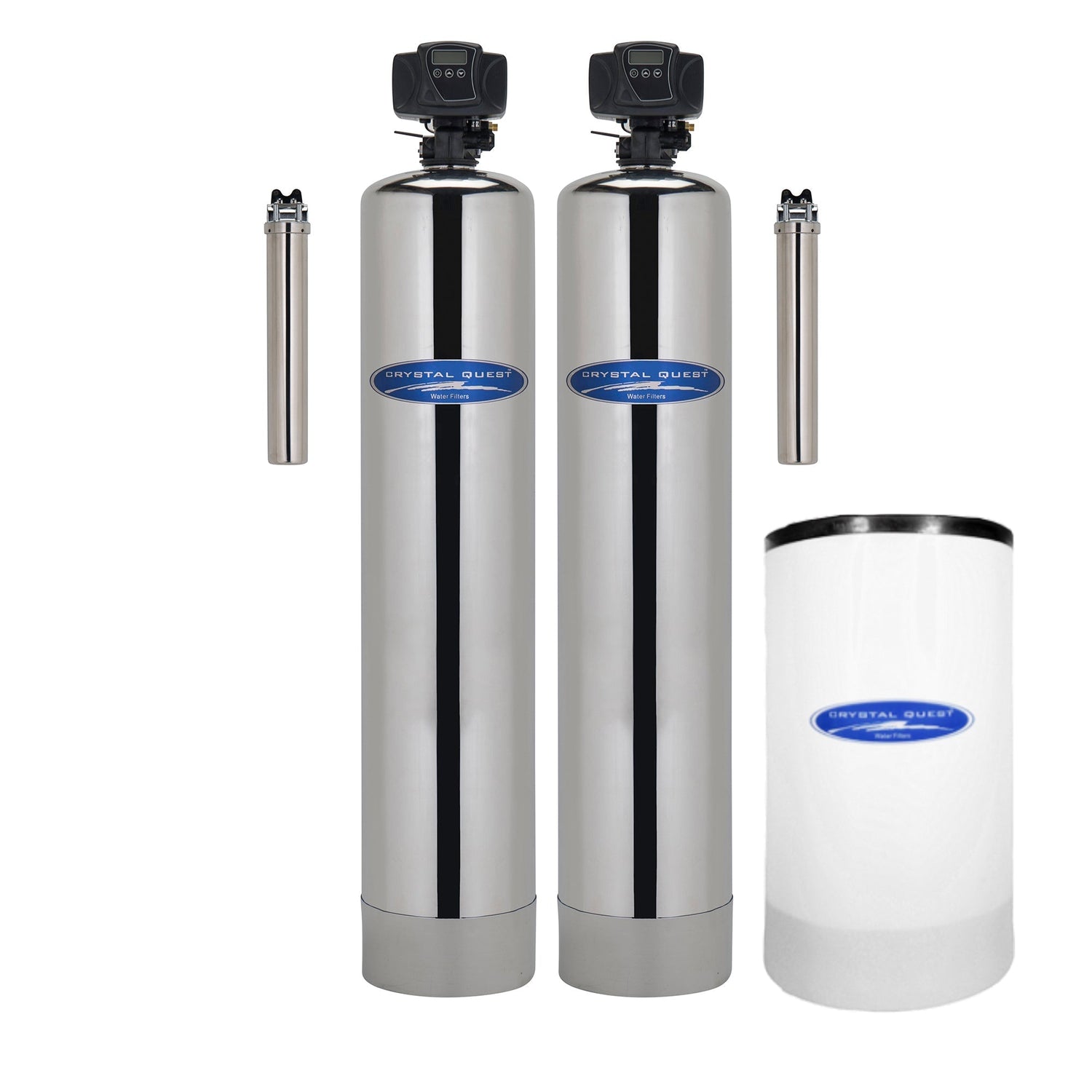

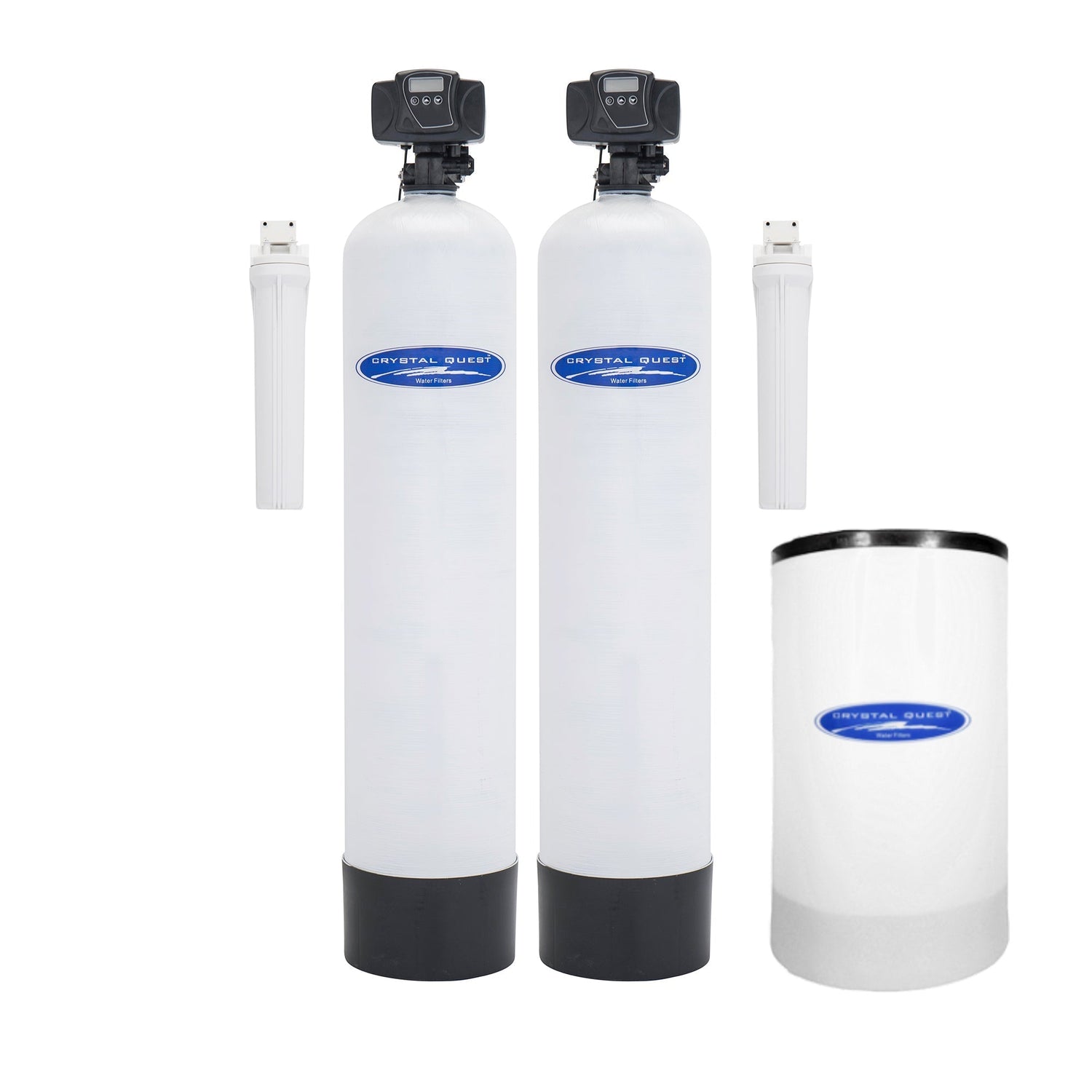

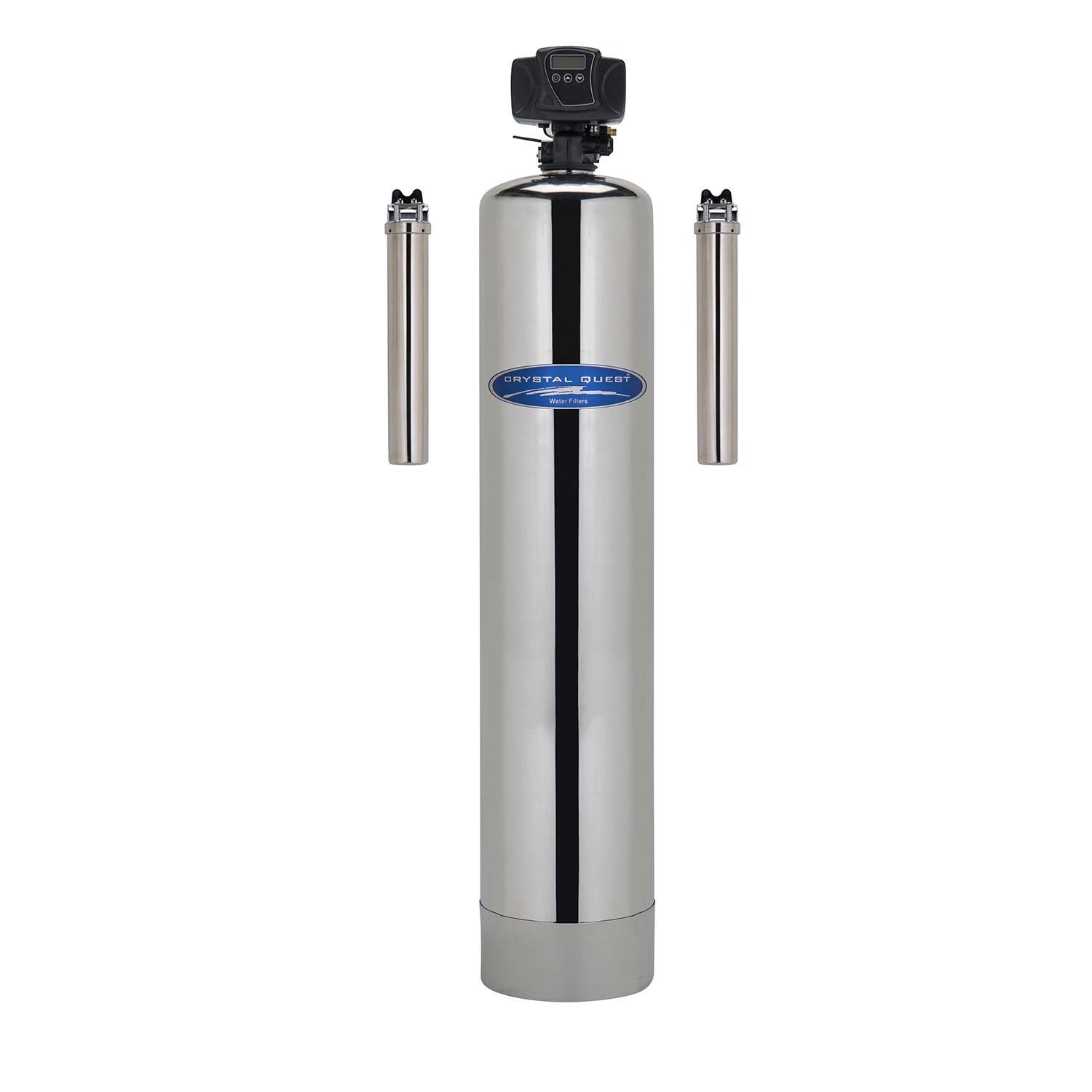

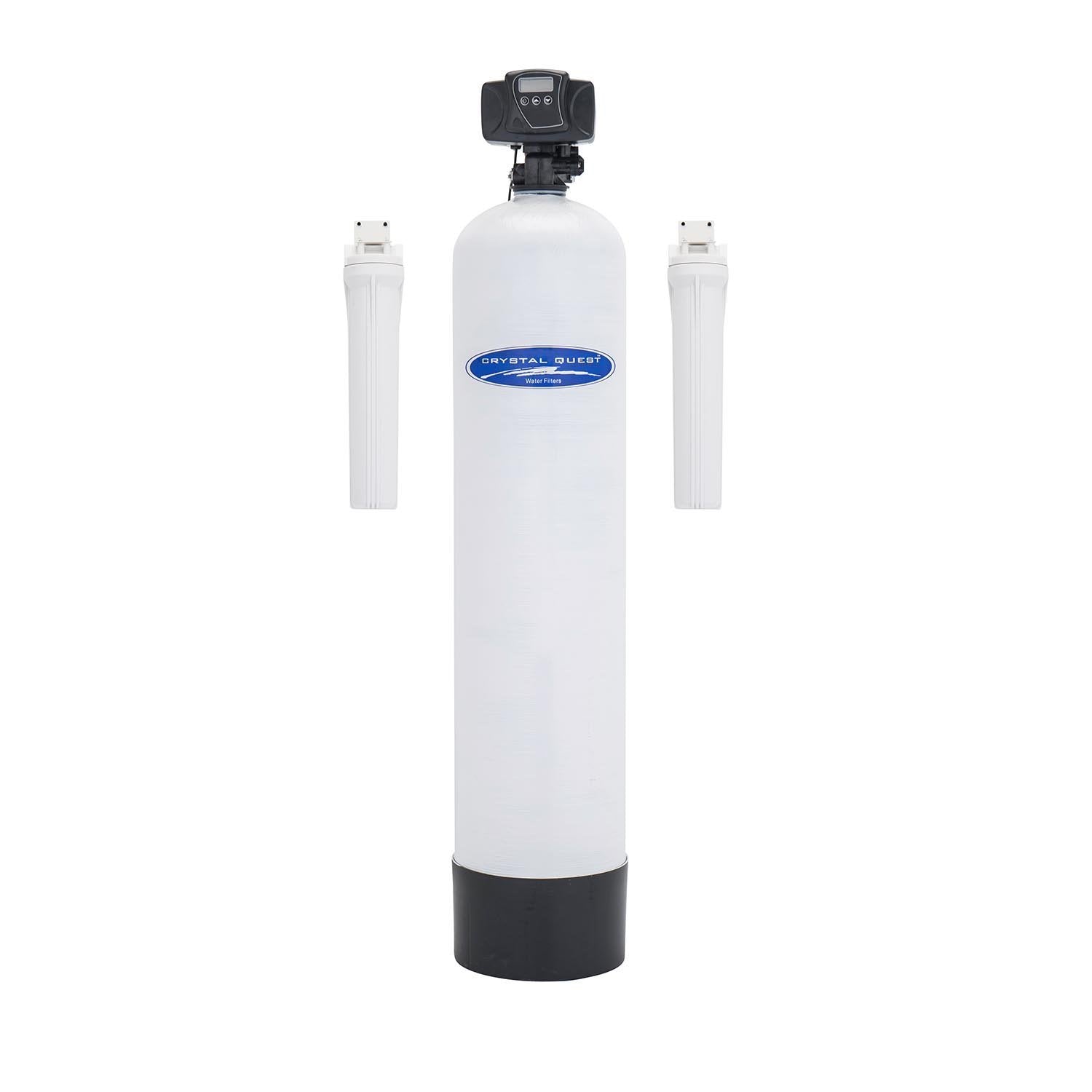

Arsenic Whole House Water Filter

Remove Arsenic from Your Drinking Water

Arsenic (As) enters drinking water supplies from natural deposits in the earth or from agricultural and industrial practices. Surface arsenic-related pollutants enter the groundwater system by gradually moving with the flow of groundwater from rains, melting snow, etc. Arsenic won’t affect the taste or smell of drinking water enough to call attention to such contamination. Like many contaminants in drinking water, arsenic is potentially hazardous at levels or concentrations that do not impart a noticeable taste, odor, or appearance of the water.

Arsenic is not easily dissolved in water. Therefore, if it is found in a water supply, it usually comes from mining or metallurgical operations or from runoff from agricultural areas where materials containing arsenic were used as industrial poisons. Arsenic in water has no color, taste or odor. Arsenic and phosphate easily substitute for one another chemically, therefore commercial grade phosphate can have some arsenic in it. Arsenic is highly toxic and has been classified by the US EPA as a carcinogen, which was derived from toxicity considerations rather than carcinogenicity. The current MCL for arsenic is 0.010 mg/l as of 01/23/06.

Pre-filtration

Water flows through a 20” sediment cartridge that removes sediment, silt, sand, and dirt.

Post-filtration

Water flows through a 20" solid carbon cartridge for removing volatile organic carbon compounds (VOC's), & any remaining insecticides, pesticides and industrial solvents.

Arsenic Removal Water Filter

Water flows through an Arsenic reducing mineral tank.

SMART Water Filter (optional)

Water flows through our SMART special house blend of 2 types of coconut-shell GAC (including Catalytic) with 2 types of Eagle Redox Alloys® (9500 & 6500) & anion exchange resin. This blend effectively reduces & removes heavy metals, chlorine & chloramine, pesticides & herbicides, pharmaceutical by-products & other inorganic substances such as petroleum byproducts. Ceramic and Tourmaline balls to enhance the water and maintain a more alkaline pH.

Water Softener (optional)

Water flows through an ion exchange resin and brine water conditioner.

Media may increase hardness in the water which is why a water softener is recommended. Water is hard when it contains minerals like calcium and magnesium. You may see staining on your sinks, tubs, showers, and clothing. You may also notice less lather from your shampoos and soaps and even a feeling of film on your skin. All these are symptoms of the need for softened water. Hard water also causes a higher risk of limescale deposits in household water systems. The negative effect of limescale buildup is that pipes are blocked and the efficiency of hot boilers and tanks is reduced. This increases the cost of domestic water heating by about fifteen to twenty percent. Another negative effect of limescale is that it has damaging effects on household machinery, such as laundry machines. Water softening means expanding the lifespan of household machines, and the lifespan of pipelines. It also contributes to the improved working and longer lifespan of solar heating systems, air conditioning units and many other water-based applications.

Additional Product Options

• 12 GPM UV Water Sterilizer: Specifically designed to meet the demanding microorganism control concern. These microorganisms can range from bacteria and viruses to algae and protozoa. A major advantage of UV treatment is that it is capable of disinfecting water faster than chlorine without cumbersome retention tanks and harmful chemicals to your drinking water.
• Leak Detector Valve: Used to detect a water leak within a water filter system and shuts down the water supply to prevent flooding.
• Vacuum Breaker: Recommended to be installed inline ahead of water filter systems as a precaution against the rare occurrence of negative pressure (a vacuum) in the water line which can cause damage to the filter tanks and housings.
• Metered Valve: The systems come standard with a timer valve which runs the backwashing schedule on a set number of days. (For example, every 7 days). The metered valve will run the backwashing based on a set number of gallons. (For example, 3,000 gallons).
• Oxidation System: Utilizes ozone for efficient water oxidation, improving water quality.

Important to Know

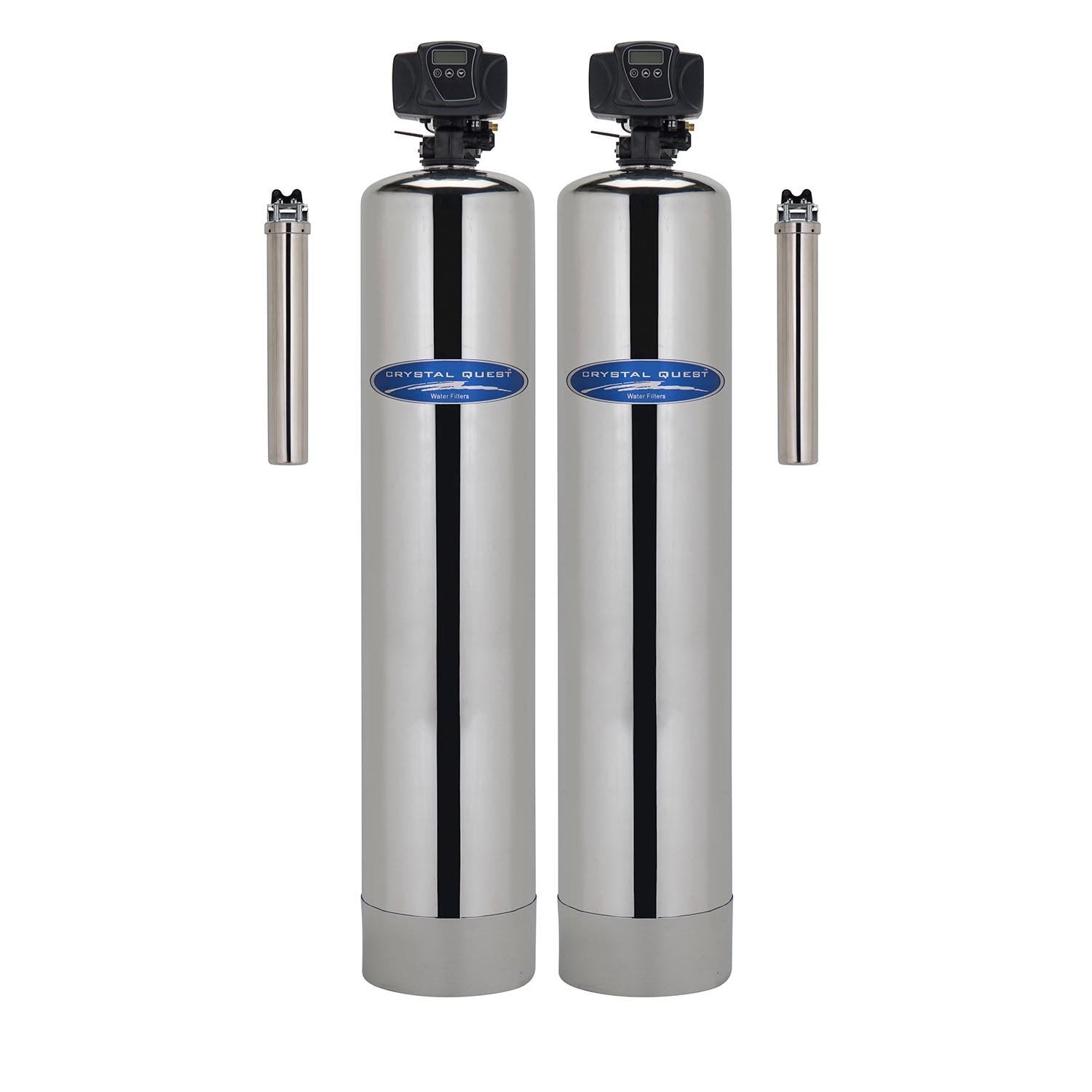

Pinholes or rust may occur on stainless steel tanks in environments with high humidity, when salt is present or if condensation remains on tank without being routinely wiped down. If your system will be exposed to one of these factors or you are unable to perform the needed maintenance, we recommend a fiberglass tank.

###

Specifications

*When you have a softener selected

###

Replacement Media

Replacement Cartridges

Whole House Manual

Leak Detector Manual

Guaranteed Performance
