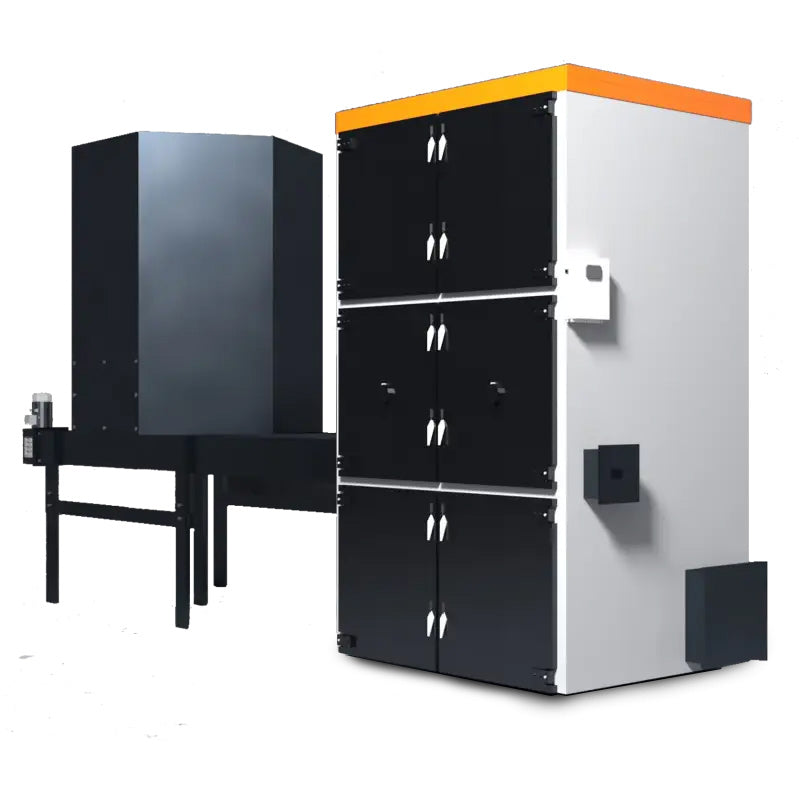

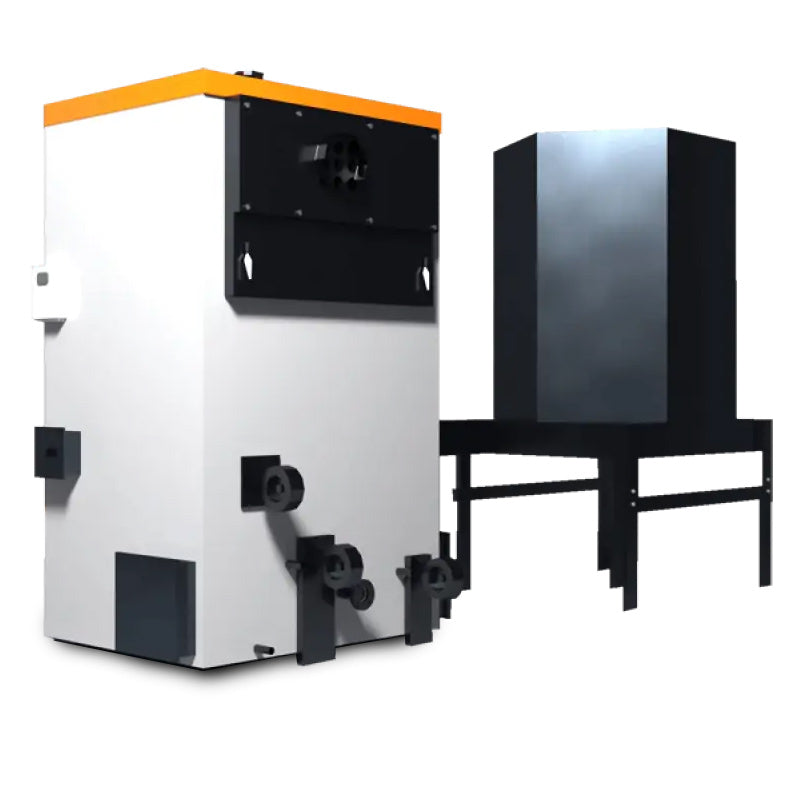

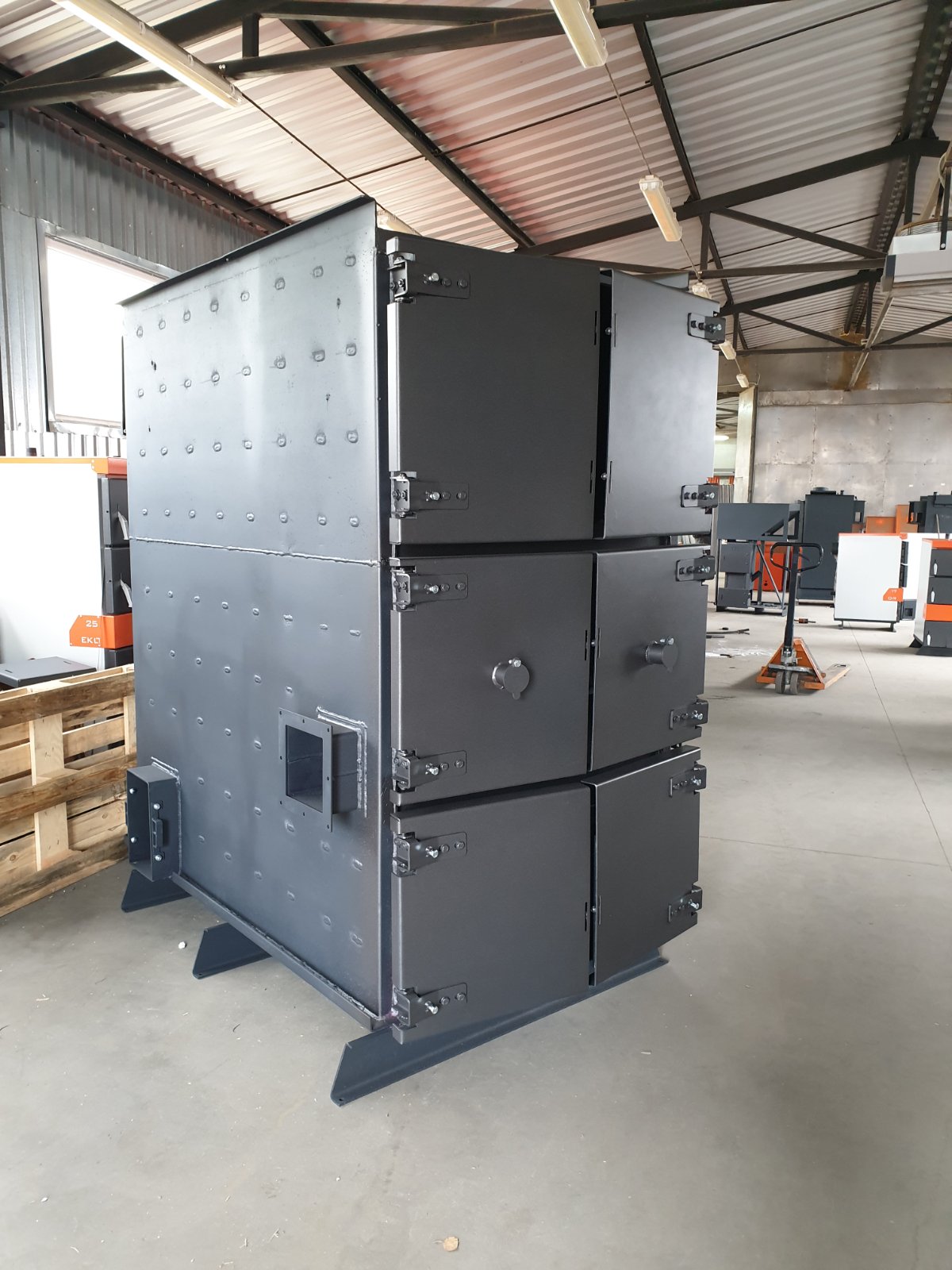

BIO DUO 500, Woodchip Boiler 1700K BTU

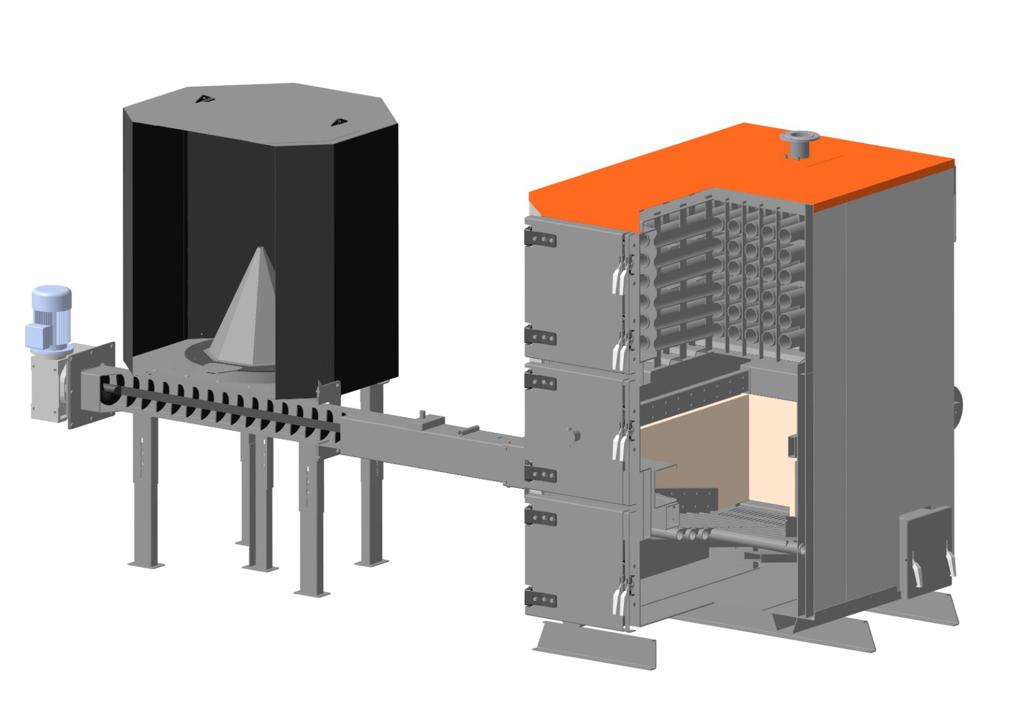

For Commercial use only. BIO DUO 500 is a modern boiler capable of heating output of 150 to 500 kW (500k BTU to 1700k BTU) with an automatic fuel supply for burning wood chips. The boiler is designed to operate in heating systems for residential and industrial facilities. Distinctive a feature of the boiler is the ability to operate on wood waste fuel of any quality. The boiler is completed with a feed hopper device and automation.

System safety (thermal water protection with sensor fuel line temperature control) protects the boiler from fuel ignition in the system auto-feed. Due to the design features boiler and unique manufacturing technologies maximum possible recovery is achieved by the thermal energy of the combusted fuel. The exhaust gas temperature is not more than 155 °С.

It can manually burn wood; You can also choose to have an automatic ash removal system and/or an automatic igniter system.

Heat: 50000 ft²
Weight: 9720 lb

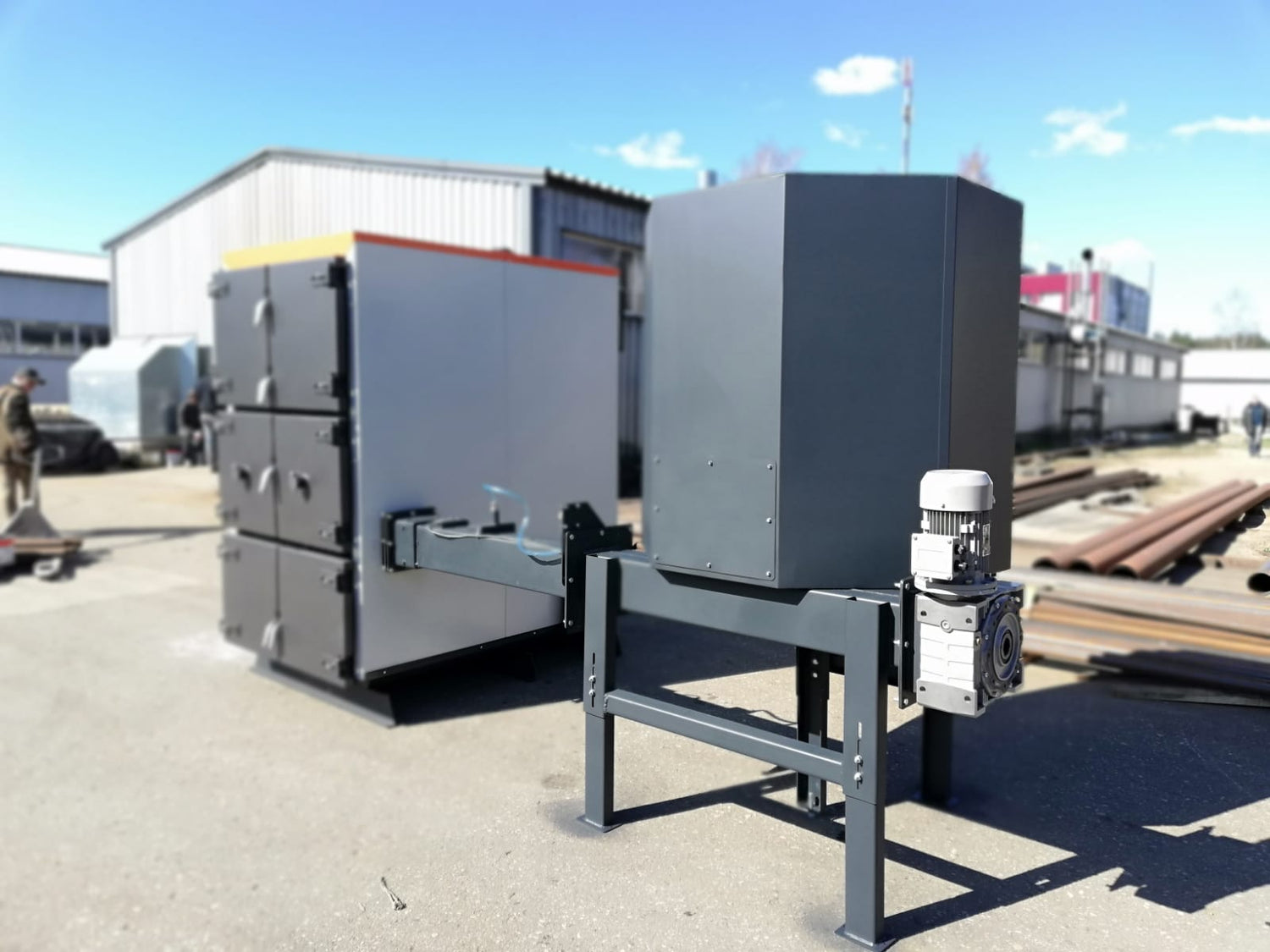

Hopper Volume: 500 gal - 5000 lb of woodchip
Power: 150-500 kW (500-1700k BTU)
Woodchip fuel
Made in Europe
Commercial Grade for Commercial Use

• Efficiency at rated power not less than 86%
• Made from the best high-strength boiler steel grade ASTM A106
• Thermal insulation 2” thick
• Powder-coated skin resistant to mechanical stress
• Wide door opening angle
• Cleaning and maintenance are carried out from the front boiler parts
• Reliable security system (thermal water protection with control sensor fuel line temperature)
• Equipped with automatic TIS TRONIC 660HD.

TIS TRONIC 660HD

• Boiler fan control
• Boiler feeder control
• Control of pumps for central heating (CH), hot water supply (DHW), hot water circulation (DHW) and mixing circuit;
• Temperature control of flue gases
• Operation according to data from the outside temperature sensor
• Work in modes -" winter-summer "
• Boil protection;
• Possibility of connecting a room thermostat, internet module TIS TRONIC 501

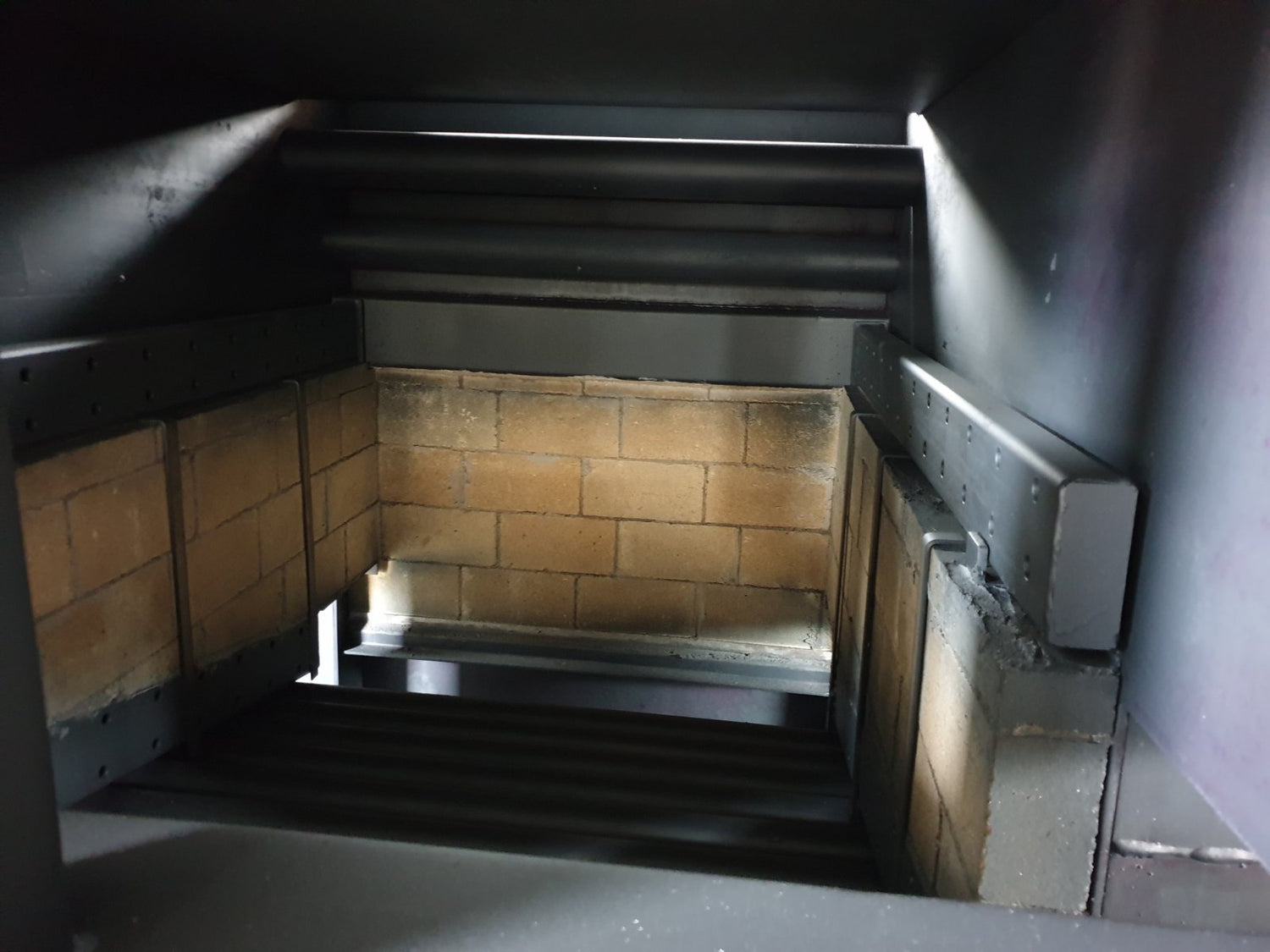

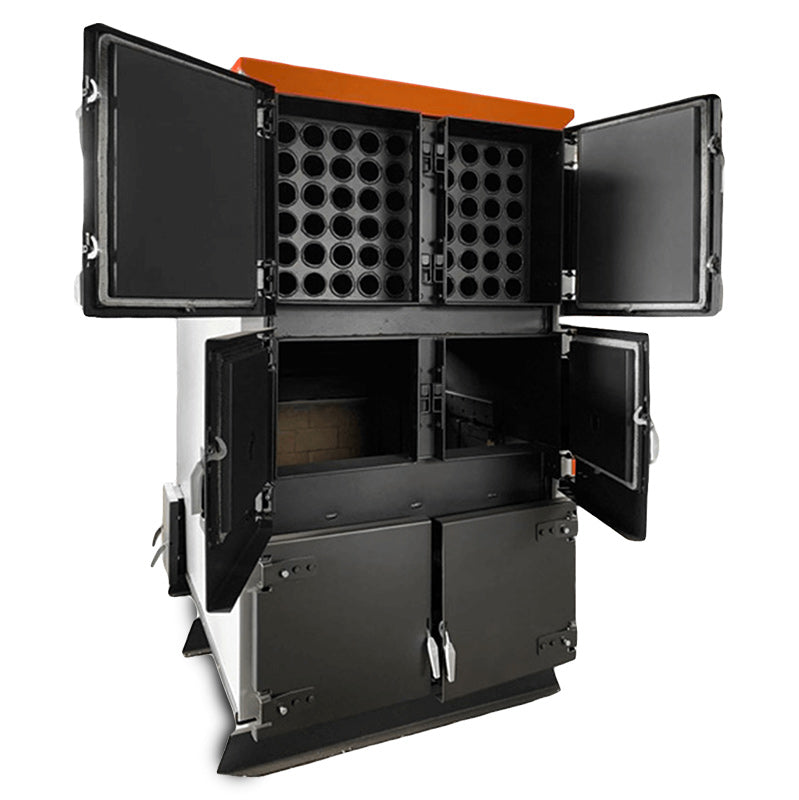

BIO HARD is manufactured with the finest certified boiler steel ASTM A106. The wide door openings make easy cleaning of the top heat exchanger, middle loading of biomass, and removal of ashes from the bottom. All maintenance is performed from the front and there is no need to unscrew anything else. High-quality multi-layer coating, non-combustible 2" insulation, and thermal protection systems ensure long-term and trouble-free operation.

Warranty: 10 years
