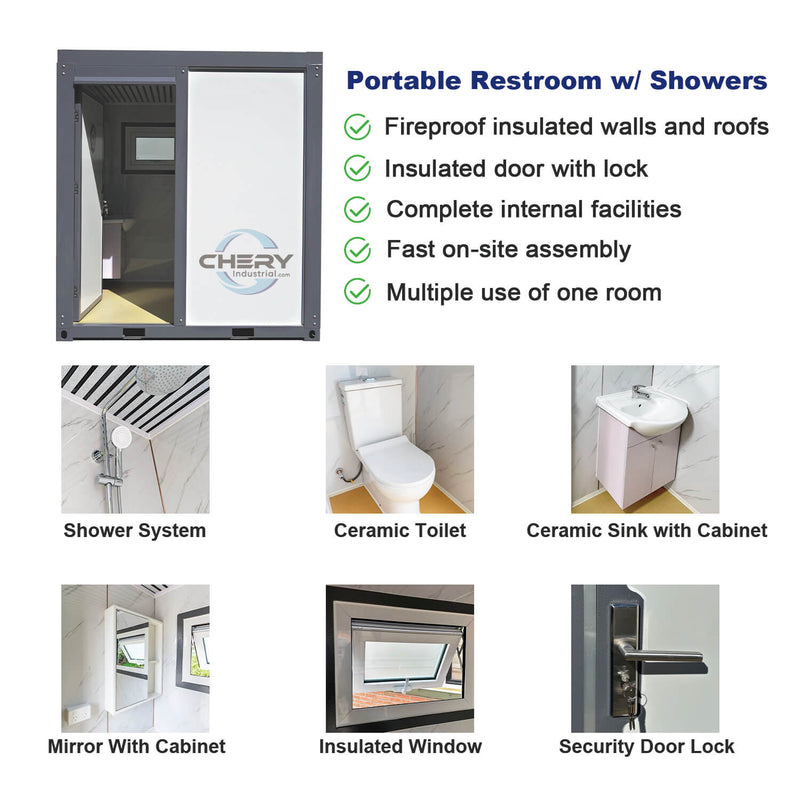

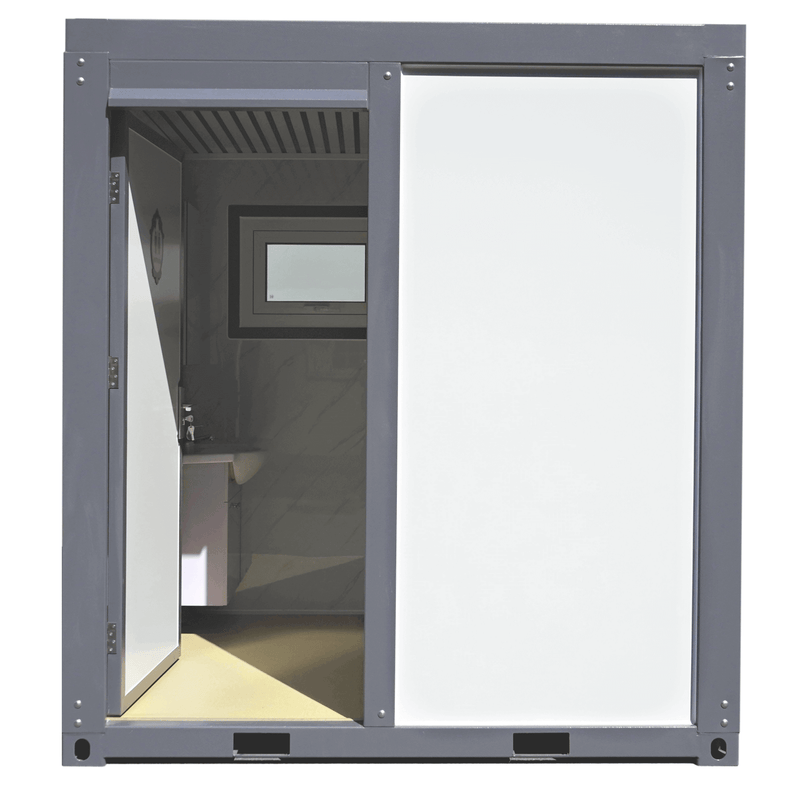

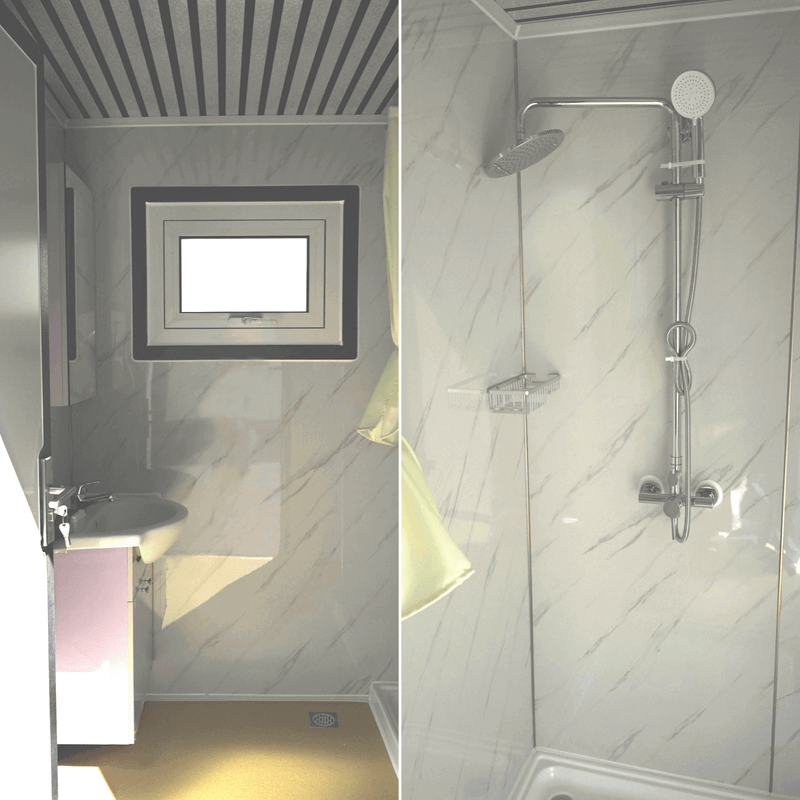

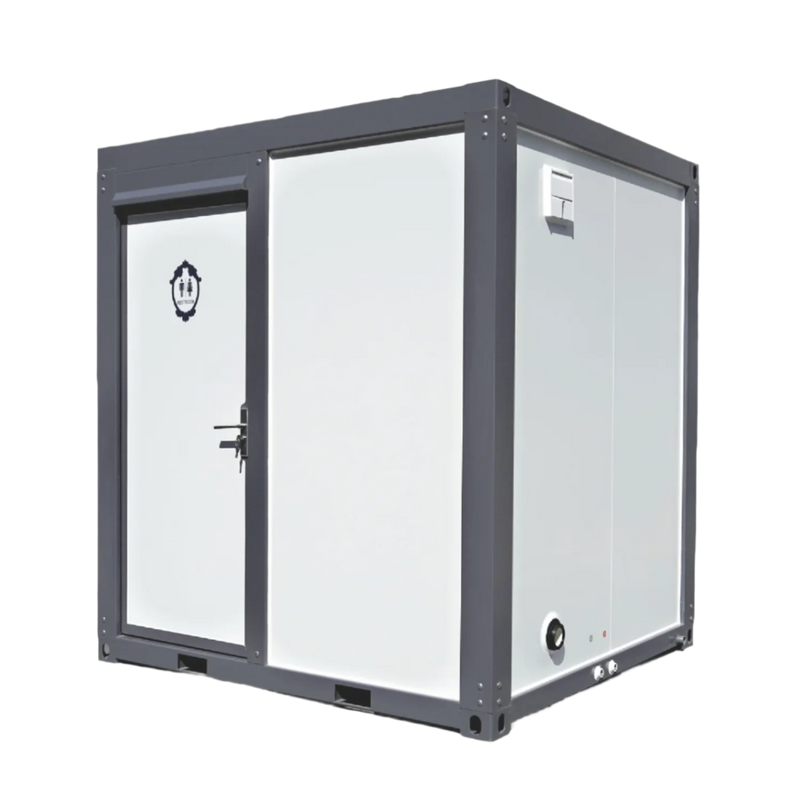

The Bastone Portable Restroom with Shower is perfect for outdoor camping and activities. This stand-alone mobile bathroom unit is very practical and easy to use. The compact design provides multiple functions all in one: toilet, sink, and shower. 110V power source, a water supply, and a septic system to tie in the waste from the toilet are needed for the proper operation of the complete unit. The modern interior design also adds more beauty to the unit.
| Description | Specifications |
| Model | Portable Restroom w/ Showers |

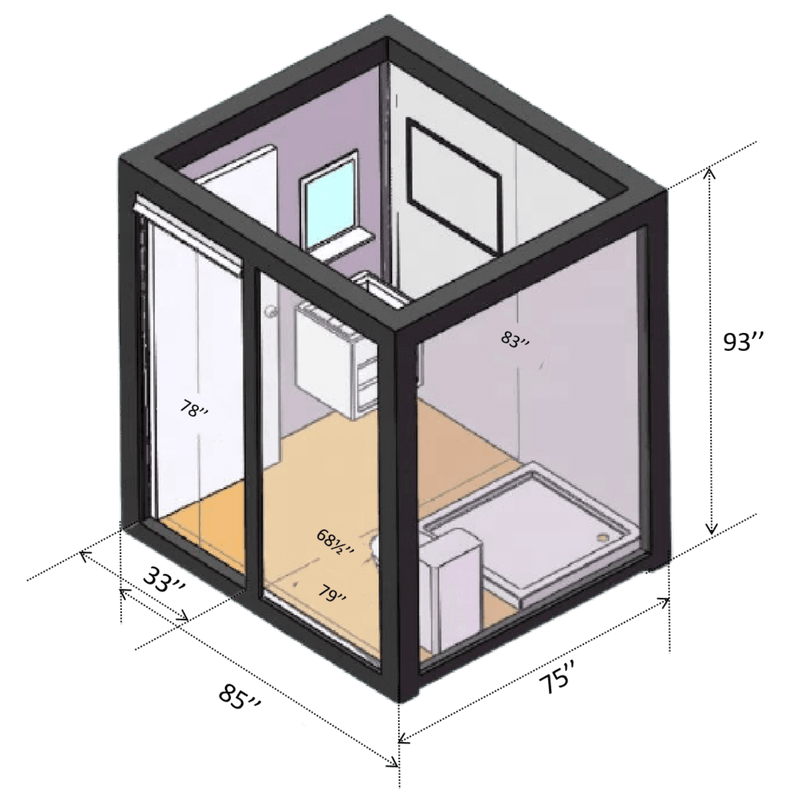

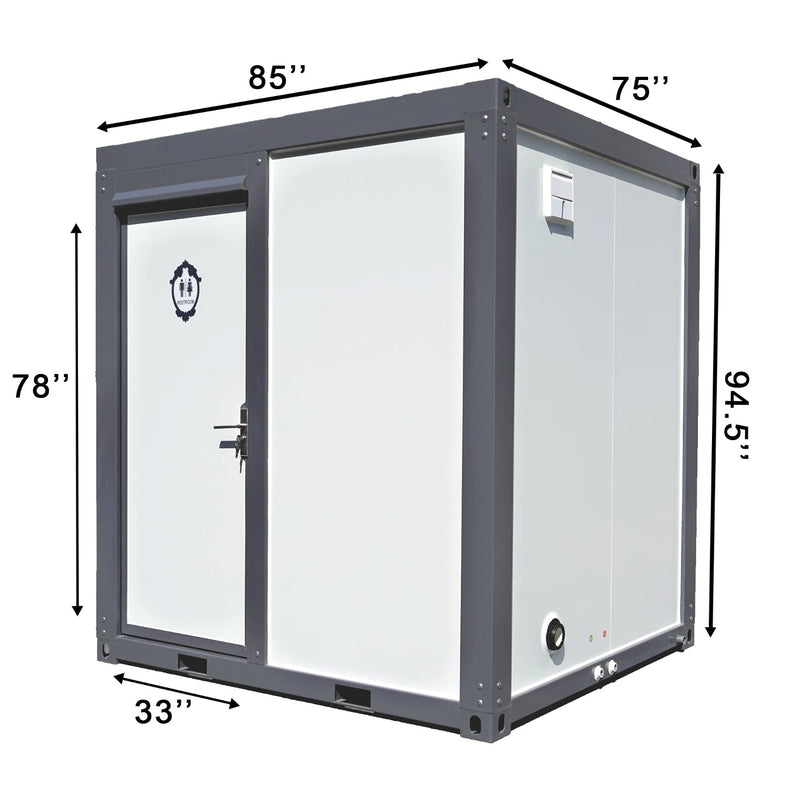

| Dimension (LxWxH) | 85"x75"x94.5" |

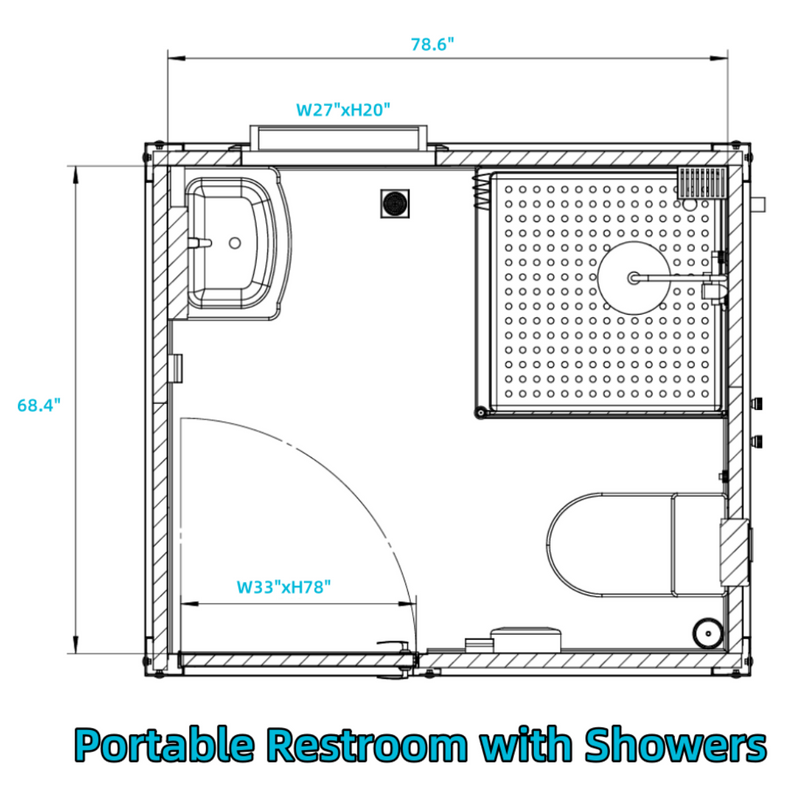

| Interior Dimension (LxW) | 78.6"x68.4" |
| Door Size | W 33" x H 78" |
| Net Area | 37.3 ft² |
| Frame | Steel |
| Surface Coating | High-Temperature Resistant Paint |
| Roof Material | 2-inch EPS fire-resistant & insulated wall panels |
| Wall Material | 2-inch EPS fire-resistant & insulated wall panels |
| Floor Material | Anti-skid and wear-resistant floor leather+Hard PVC board |
| R-value | 7.09~8.27 |
| Doors |
|
| Circuit Breaker Spec | 13~16 Amps |
| Power Supply | 110V~220V |
| Wire info | 3 core 2.5 sqmm |

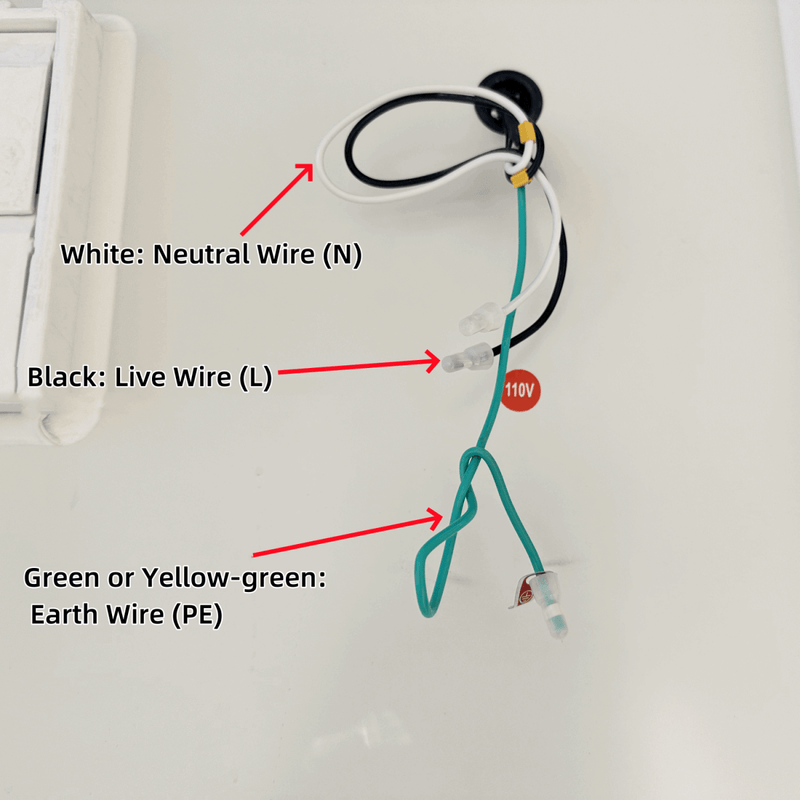

| Wiring Instructions | White Wire: Neutral Wire Black Wire: Live Wire Green or Yellow-green Wire: Earth Wire |
| Flush volume | 1.6 gpf |
| Inlet Pipe Material | PPR Pipe |
| Inlet Pipe Inner diameter | 4/5 inch |
| Outlet Pipe Material | PVC Pipe |
| Outlet Pipe Inner diameter |
|
| Lowest Pipe Working Temperature |
14℉ (if iced, please use 122℉ water to melt) |
| Fire-proof Level | B2 |
| Wind Load | 56 MPH |
| Snow Load | 125 lb/sqft |
| Forklift Pockets | Dimension: W7"x H3" Distance between forklift pocket: 28" |
| Lifespan | 15+ Years |
| Warranty | 1 Year |

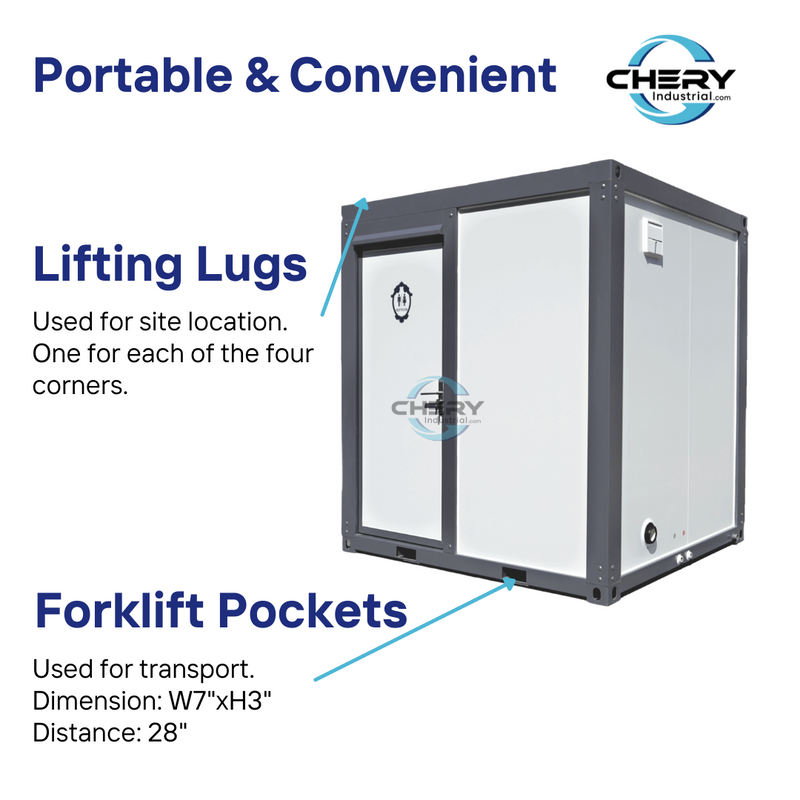

There are 4 lifting lugs for transportation on the top and a forklift slot on the bottom. The equipment needs to be unloaded using a crane or forklift.
Footing options
The customer must arrange for a licensed Electrician to supply and Install all wiring.
All pipe connection needs thread seal tape, instead of glue, to seal.
Our Portable Restrooms need to be supplied with city water or well pump water, and all portable toilet "sewage" needs to be connected to the city sewer system or a simple septic system.
If this Portable Restroom w/ Showers is used on a construction site, we recommend you connect toilets to the sanitary sewer system and connect water to the pipe system. If not, you may need tanks outside the structure for waste.
