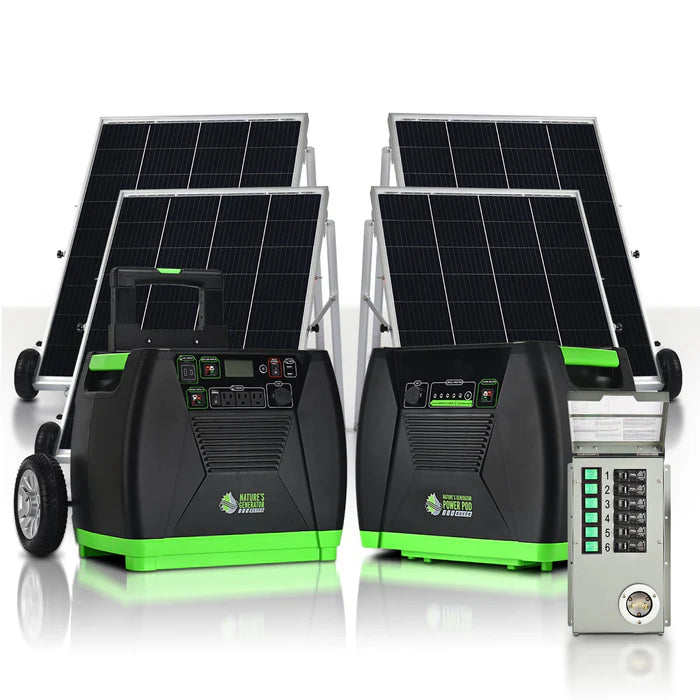

Nature's Generator Elite Platinum - PE System

Nature's Generator Elite Platinum - PE System 3600W Generator

Product Features

• Versatile Power Solution: The Nature's Generator Elite Platinum - PE System delivers up to 3600W peak power, making it ideal for home battery backup, camping, RV use, and off-grid setups.
• Expandable Design: Add additional battery units and solar panels to increase capacity and meet growing energy needs.

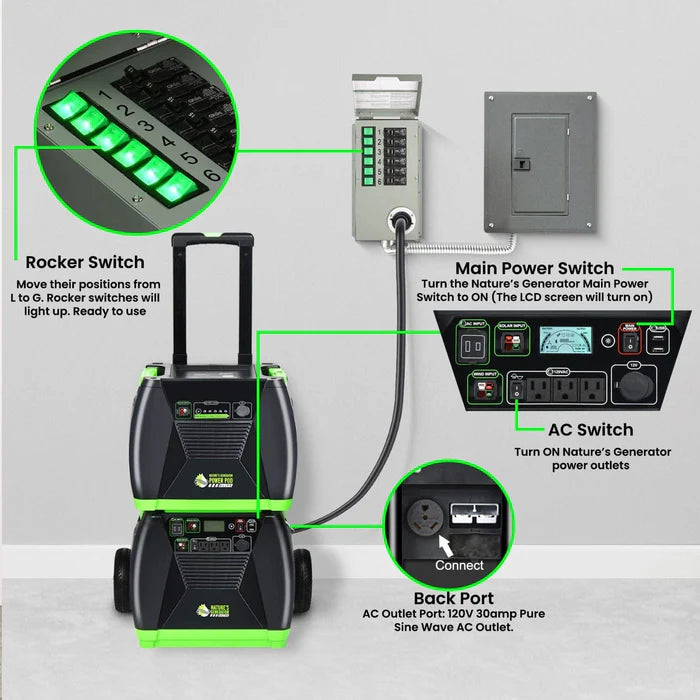

• Home Integration Ready: Compatible with transfer switches or power inlet boxes, providing seamless power backup for essential home circuits during outages.
• Eco-Friendly Operation: Utilizes solar and wind power, offering a sustainable, quiet, and renewable energy solution.

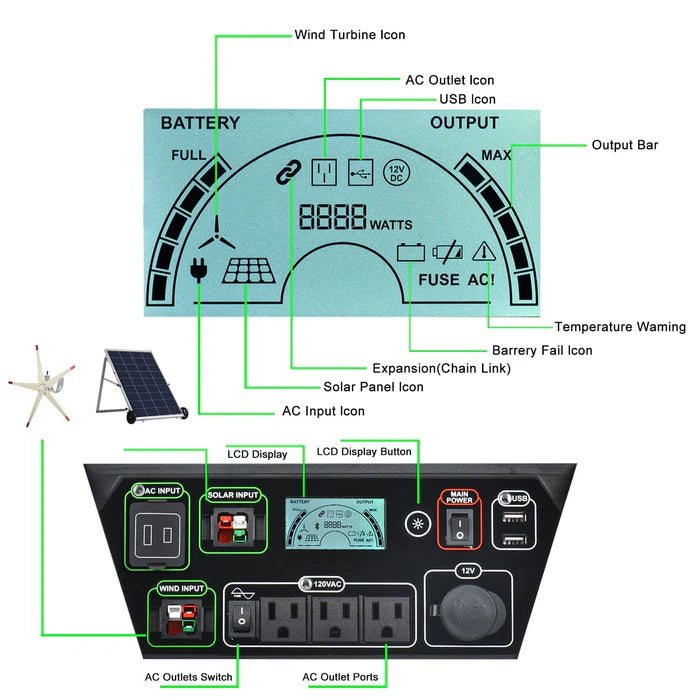

• User-Friendly Display: Integrated LED screen shows battery levels, wattage usage, and remaining power time for easy, real-time monitoring.

Key Features

• Three AC Outlets: Provides up to 3600W peak pure sine wave AC power.
• Monocrystalline Solar Panels: Generate up to 100W per panel (some assembly required).
• Integrated UPS Function: Uninterrupted power supply capability for critical devices.

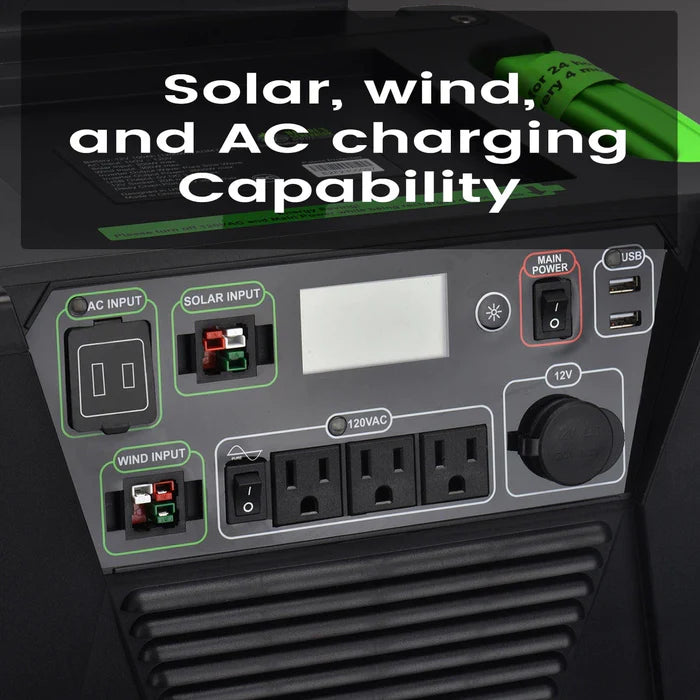

• 300W Charge Controllers: Separate inputs for solar and wind charging.
• 190W Built-in Quick Charge: Fast AC recharging option.

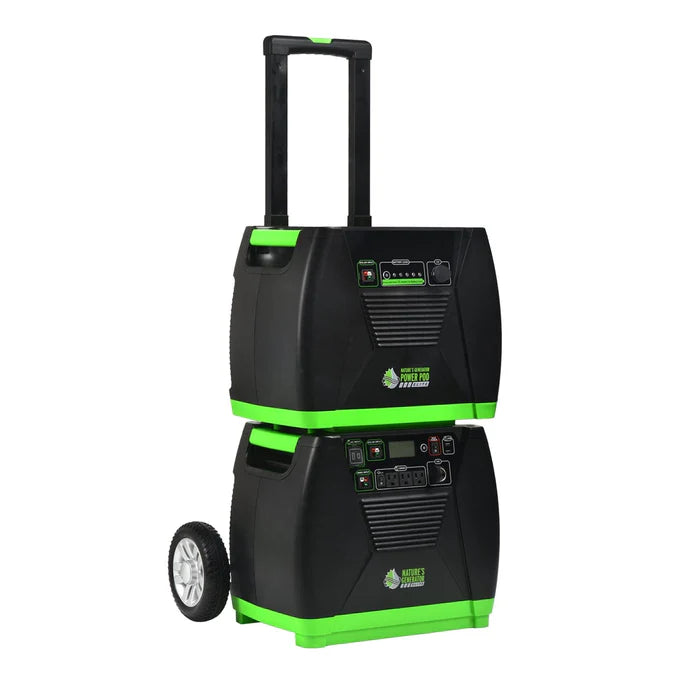

• Heavy-Duty Cart: Universal design supports the generator, Power Pod, or both (assembly required).
• Expansion Port: Connect an unlimited number of Power Pods via a 600V/350A expansion port.

How to Recharge Your Generator Elite Platinum System

1. Using Included AC Cord: Estimated recharge time: 10-15 hours.
2. Using the Nature's Generator Power Panel: Estimated recharge time: 10-15 hours.
3. Using the Nature's Generator Wind Turbine: (Sold separately, recharge times vary based on wind conditions).

What Can the Generator Power?

Nature's Generator Elite (Capacity: 1200Wh)

• 32" LED TV: 20+ hours
• CPAP Machine: 13+ hours
• Circular Saw: 6+ hours of normal use
• Smartphone: 100+ recharges
• Tablet: 50+ recharges
• Laptop: 20+ recharges
• Corded Drill: 13+ hours of normal use
• Modem & Router: 18+ hours
• Oscillating Fan: 20+ hours
• LED Light Bulb: 80+ hours
• Mini Fridge: 20-30 hours
• Refrigerator: 13-20 hours

Generator Elite + Power Pod (Capacity: 2400Wh)

• 32" LED TV: 40+ hours
• CPAP Machine: 25+ hours
• Circular Saw: 12+ hours of normal use
• Smartphone: 200+ recharges
• Tablet: 100+ recharges
• Laptop: 40+ recharges
• Corded Drill: 25+ hours of normal use
• Modem & Router: 35+ hours
• Oscillating Fan: 40+ hours
• LED Light Bulb: 160+ hours
• Mini Fridge: 40-60 hours
• Refrigerator: 26-40 hours

Technical Specifications & Warranty

Nature's Generator Elite

• Inverter:
  • Output Power: 3600W peak / 2880W continuous
  • Output Waveform: Pure Sine Wave
  • Output Voltage: 120V
  • Output Frequency: 60Hz
• Ports:
  • 3 × 120V AC outlets
  • 2 × USB ports (3A combined)
  • 1 × 12V DC port (240W max)

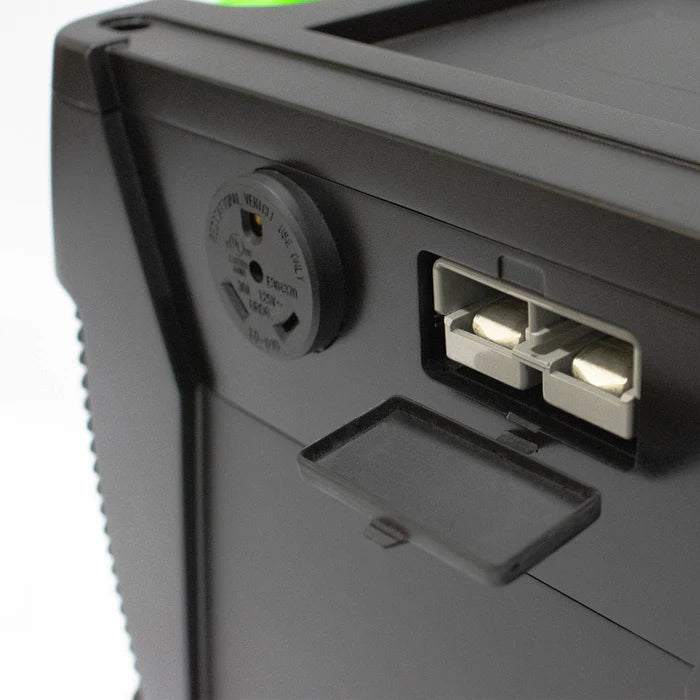

  • Expansion Port: 350A Fuse
• Charging Inputs:
  • AC Input: 190W
  • Solar Input: 300W max
  • Wind Input: 300W max
• Battery:
  • Type: AGM Sealed Lead Acid
  • Capacity: 12V 100Ah (1200Wh)
  • Recharge every 4 months of non-use.
  • Built-in charge controller and low battery protection.
• General:
  • Dimensions with Cart: 23 × 17 × 22 in (57 × 42 × 55 cm).
  • Dimensions without Cart: 18 × 12 × 15 in (47 × 30 × 38 cm).
  • Weight: 120 lbs.
  • Operating Temperature: 32-104 °F (0-40 °C).
  • Storage Temperature: 23–111 °F (-5–45 °C).
  • LCD Display: Provides battery level and output information.
  • Warranty: 12 months limited.

What's in the Box

Nature's Generator Elite

• 1 × 3600W Generator
• 1 × Accessory Box (Heavy Duty Cart)
• 1 × Power Cord (stored in back compartment)
• 1 × User Guide
• Manual & Quick Start Guide

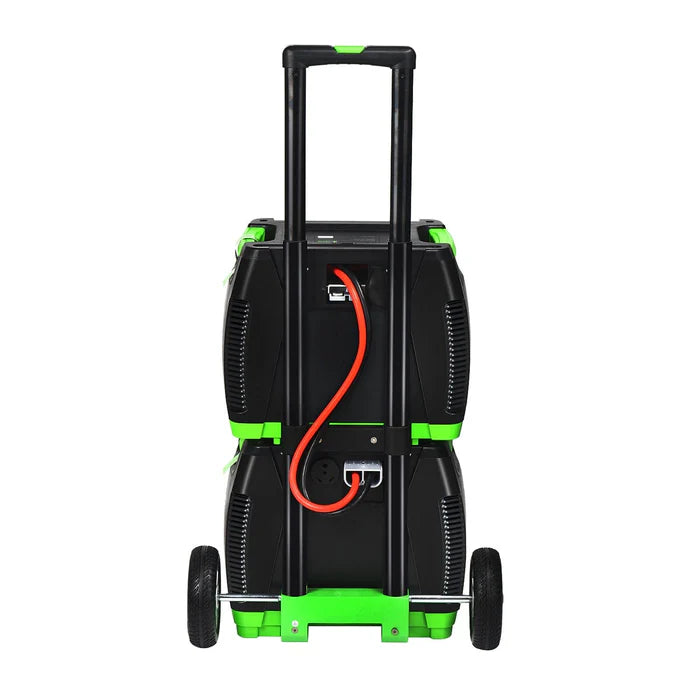

Heavy-duty cart supports up to two Power Pods (assembly required).

Nature's Generator Elite Power Pod

• 1 × Power Pod
• 1 × User Guide
• Hardware Box
• Manual & Quick Start Guide

Includes a top compartment for storing fuse connectors or small items.

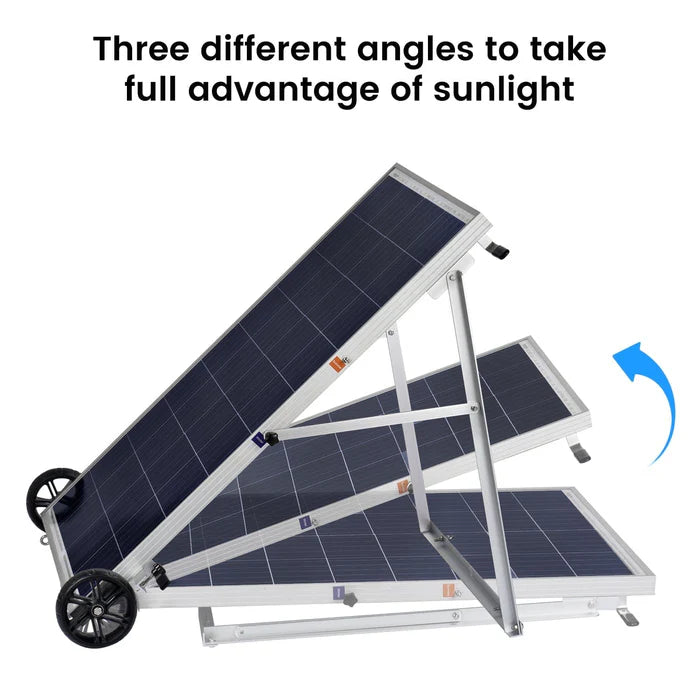

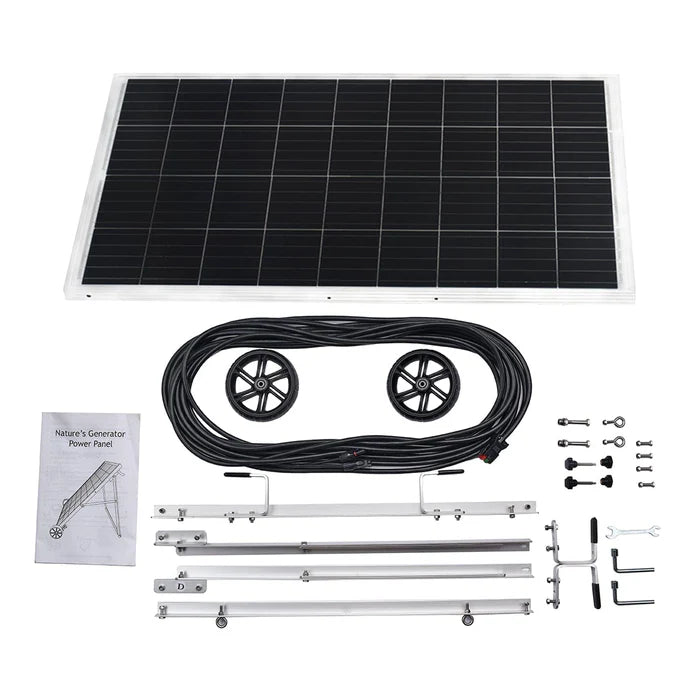

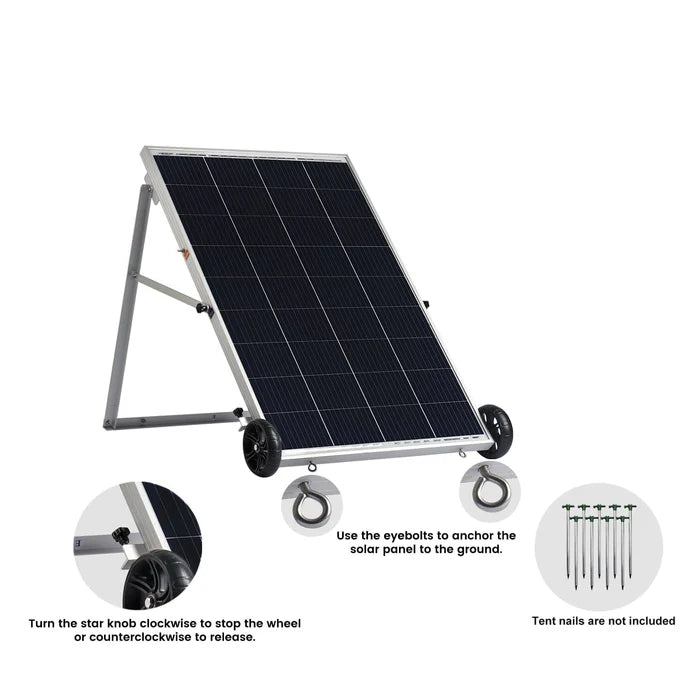

Nature's Generator Power Panel

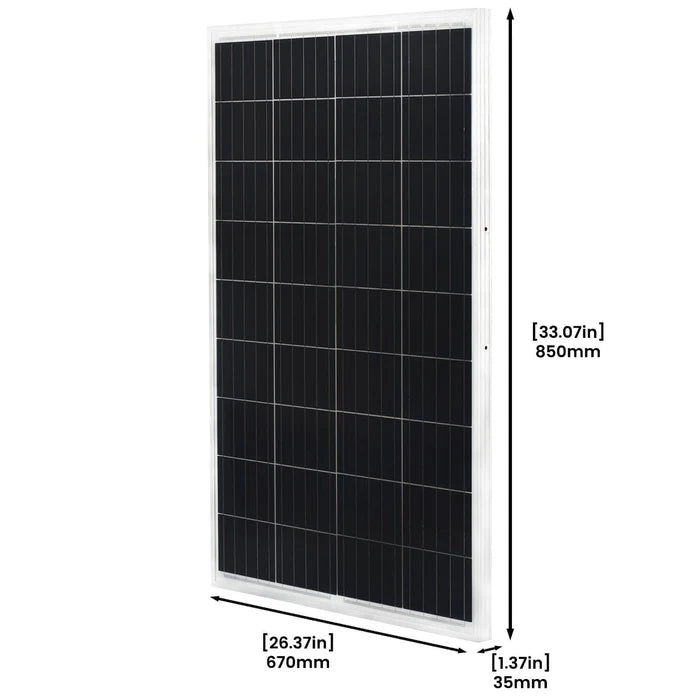

• 4 × 100W Monocrystalline Solar Panels
• 4 × Accessory Boxes (Stand and Wheels)
• 2 × UL-Approved 12-Gauge 50 ft Panel Cables
• 2 × MC4 Branch Connectors
• 1 × User Guide
• Manual & Quick Start Guide

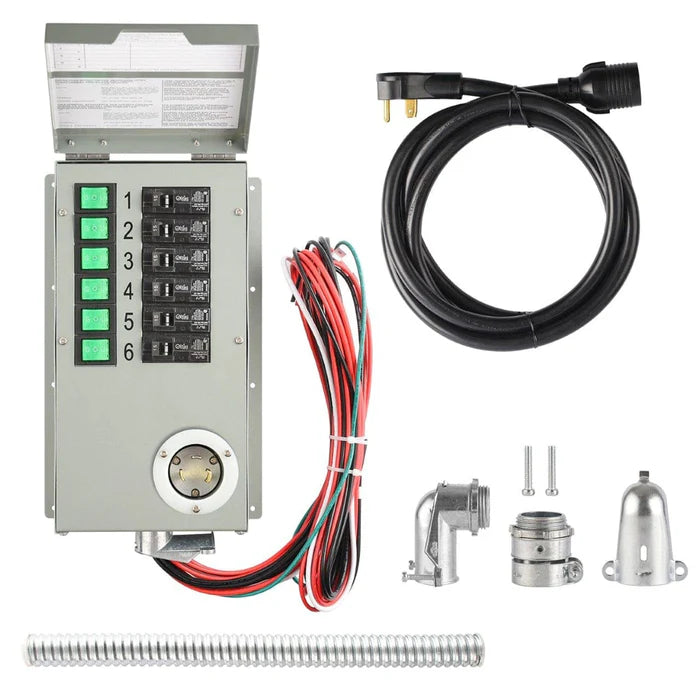

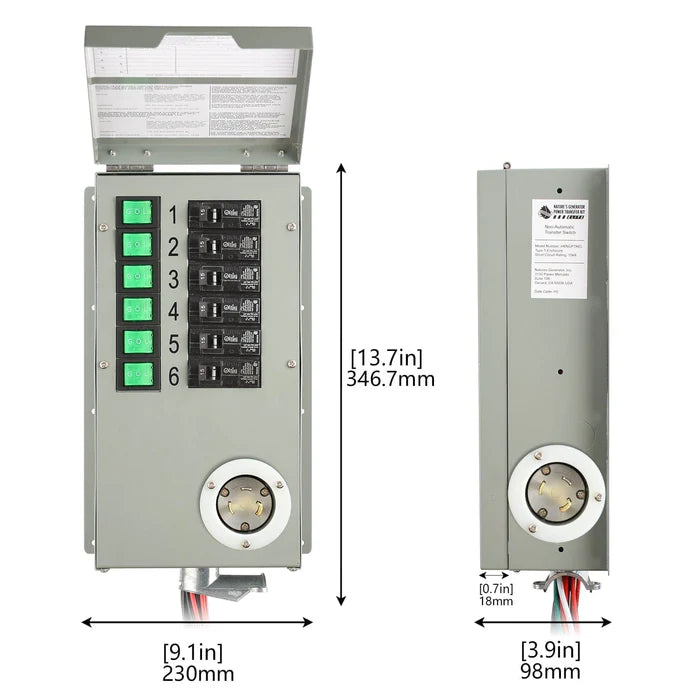

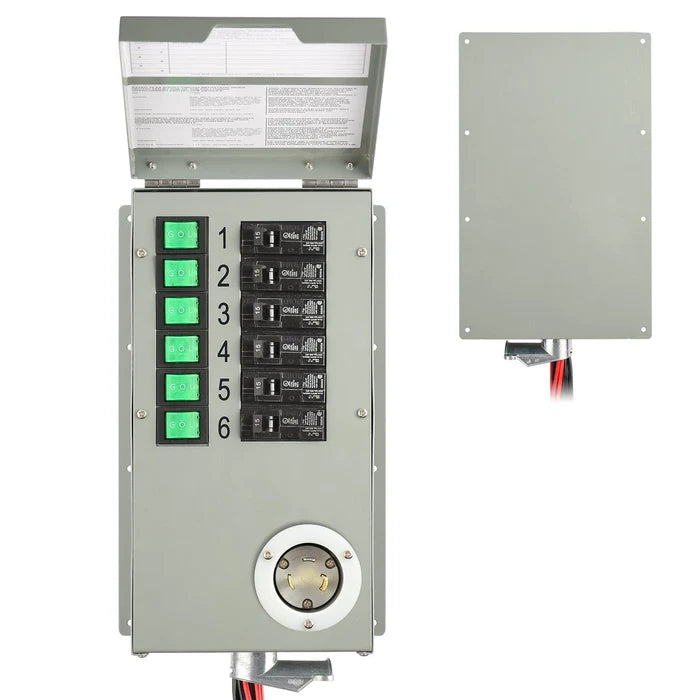

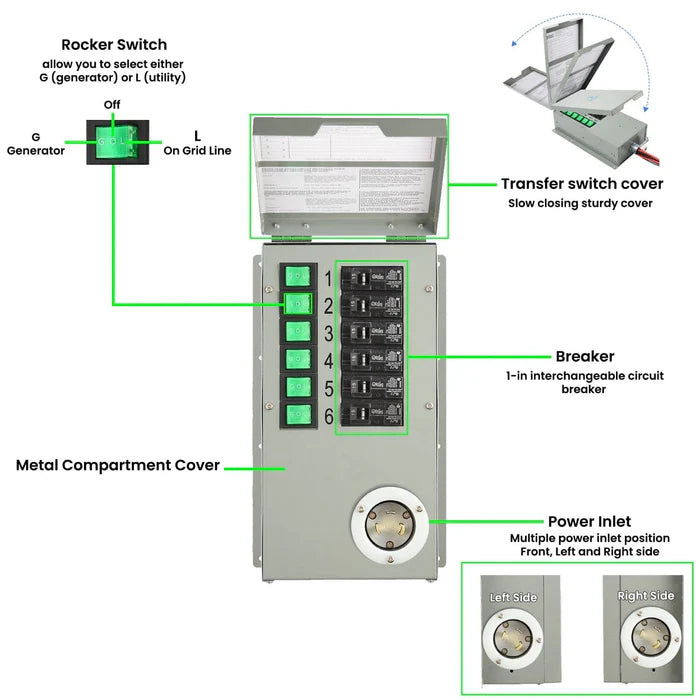

Nature's Generator Elite Power Transfer Kit

• 1 × Power Transfer Kit
• 1 × Conduit
• 1 × Cable Clamps
• 1 × 10-ft 10AWG Power Cord
• 1 × User Guide
• Manual & Quick Start Guide

IMPORTANT: Installation of the Power Transfer Kit must be performed by a qualified electrician in compliance with electrical codes. Do not use the AC input port to charge the generator while using the Power Transfer Kit.

The Nature's Generator Elite Platinum - PE System offers powerful, eco-friendly, and expandable energy solutions for any situation.
