SolarEdge SE5000H-US HD-Wave Inverter
SolarEdge Single-Phase HD-Wave Inverter
The SolarEdge single-phase HD-Wave inverter redefines residential solar power conversion. Recognized with the 2016 Intersolar Award and the 2018 Edison Award, it is built to work seamlessly with SolarEdge power optimizers. It includes a built-in DC safety switch, integrated rapid shutdown, and comes standard with a 12-year warranty, extendable to 20 or 25 years.
Simplified, High-Efficiency Design
By handling Maximum Power Point Tracking and voltage management at the module level, the inverter focuses solely on DC-to-AC conversion. This reduces complexity, boosts reliability, and ensures maximum efficiency regardless of string length or temperature conditions.

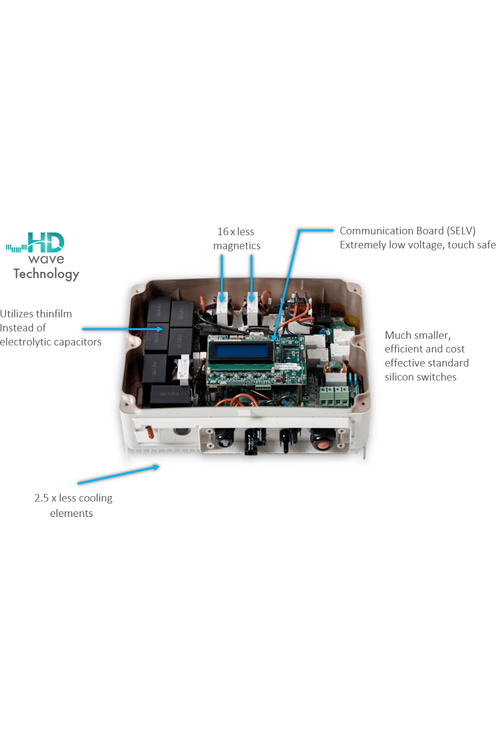

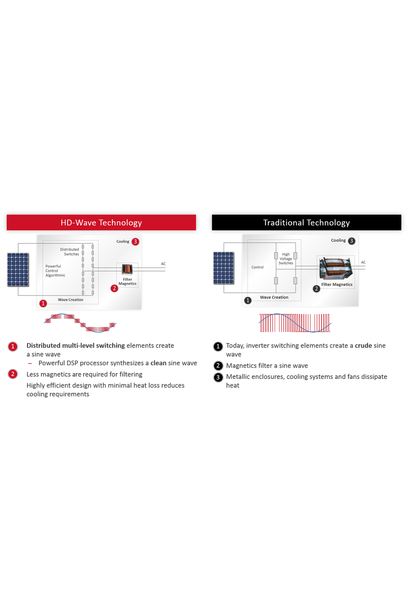

HD-Wave Technology
Using distributed switching and advanced DSP processing, this inverter produces a clean sine wave while minimizing magnetic components and heavy cooling elements. The result is a compact, lightweight unit that’s easy to ship, store, and install—even by a single installer. With a record 99% weighted efficiency, it maximizes energy production and improves return on investment.
Key Benefits
-
Designed to pair with SolarEdge power optimizers
-
Power range: 3 kW – 11.4 kW
-
Weighted efficiency: 99% (33–50% lower losses than typical inverters)
-
Lightweight, compact design for easy installation
-
Supports up to 155% DC oversizing
-
High reliability with reduced heat dissipation
-
Quick commissioning via SolarEdge SetApp
-
Built-in module-level monitoring
-
Internet connectivity: Ethernet or optional wireless (ZigBee® / cellular)
-
NEMA 4X rated for indoor or outdoor use
-
Integrated arc fault protection and rapid shutdown (NEC 2014 & 2017 compliant)
-
Optional built-in consumption and production metering (1% and 0.5% accuracy)
-
UL1741 SA certified for CPUC Rule 21 compliance
This inverter combines high efficiency, advanced safety, and simplified installation to deliver a robust solution for modern residential solar systems.
| GENERAL INFORMATION |
| Manufacturer: SolarEdge |
| Product Line: HD-Wave |
| Model ID: SE5000H-US000BEU4 |
Certifications and Safety Ratings:    |
| MECHANICAL DATA |
| Technology: Single Phase String Inverter |
|
Dimensions:17.70 x 14.60 x 6.80 inches |
| Weight: 25.10 lbs |
| Noise: <25dBA |
| Cooling: Natural Convection |
| AC Output Conduit Size: 3/4" Minimum / 14-6 AWG |
| DC Output Conduit Size: 3/4" Minimum / 1-2 Strings /14-6 AWG |
| Protection Rating: NEMA 4X (Inverter with Safety Switch) |
| ELECTRICAL DATA |
| Output |
| Rated AC Power Output: 5000VA |
| Maximum AC Power Output: 5000VA |
| AC Output Voltage: Minimum: 183VAC; Nominal: 208VAC; and Maximum: 229VAC |
| AC Output Voltage: Minimum: 211VAC; Nominal: 240VAC; and Maximum: 264VAC |
| AC Frequency (Nominal): 59.3 - 60 - 60.5 Hz |
| Maximum Continuous Output Current @208V:24.00 Amps |
| Maximum Continuous Output Current @240V:21.00 Amps |
| GFDI Threshold:1 |
| Utility Monitoring, Islanding Protection, County Configurable Set Points: Yes |
| Input |
| Maximum DC Power:7750 Watts |
| Maximum DC Power @208V:5100 Watts |
| Transformer-Less Ungrounded:Yes |
| Maximum Input Voltage:480VDC |
| Nominal DC Input Voltage:380VDC |
| Maximum Input Current @240V:15.50ADC |
| Maximum Input Current @208V:13.50ADC |
| Maximum Input Short Circuit Current:45 ADC |
| Reverse-Polarity Protection: Yes |
| Ground-Fault Isolation Detection:600kΩ Sensitivity |
| Maximum Inverter Efficiency:99.2% |
| CEC Weighted Efficiency:99% |
| Night-Time Power Consumption:< 2.5 Watts |
