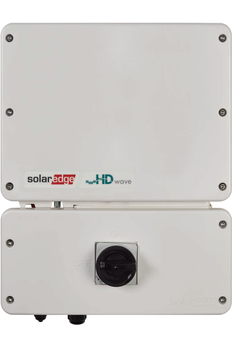

SolarEdge SE3800H-US HD-Wave Inverter
SolarEdge Single-Phase HD-Wave Inverter
The SolarEdge single-phase HD-Wave inverter transforms residential solar power with award-winning design, having earned the 2016 Intersolar Award and the 2018 Edison Award. Built specifically for use with SolarEdge power optimizers, it features a built-in DC safety switch, integrated rapid shutdown, and a standard 12-year warranty, extendable to 20 or 25 years.
Efficient, Simplified Design
Module-level Maximum Power Point Tracking (MPPT) and voltage management let the inverter focus solely on DC-to-AC conversion. This reduces system complexity, enhances reliability, and ensures optimal performance regardless of string length or temperature.

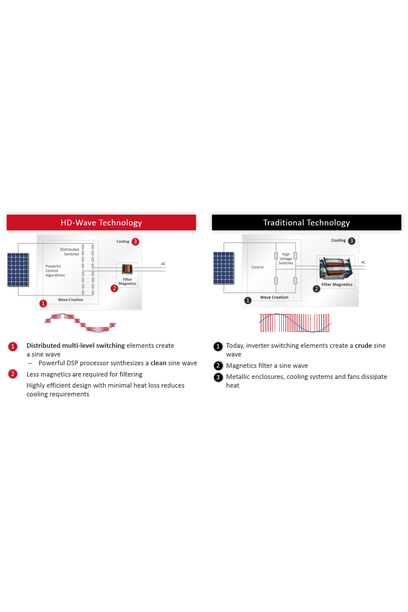

HD-Wave Technology

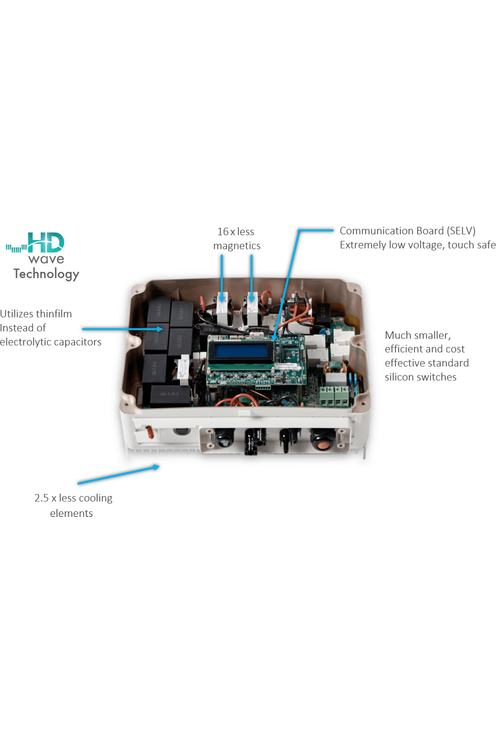

Advanced distributed switching and DSP processing allow the inverter to generate a clean sine wave while minimizing magnetic components and heavy cooling, resulting in a smaller, lighter unit. This compact design simplifies shipping, storage, and single-person installation. Record-breaking 99% weighted efficiency maximizes energy production and ROI.
Key Features
-
Designed for use with SolarEdge power optimizers
-
Power range: 3 kW – 11.4 kW
-
99% weighted efficiency (33–50% lower losses than market standard)
-
Lightweight and easy to install
-
Supports up to 155% DC oversizing
-
High reliability with reduced heat dissipation
-
Fast commissioning via SolarEdge SetApp
-
Built-in module-level monitoring
-
Internet connectivity: Ethernet or optional ZigBee® / cellular
-
NEMA 4X rating – indoor or outdoor installation
-
Integrated arc fault protection and rapid shutdown (NEC 2014 & 2017 compliant)
-
Optional consumption and production metering (1% and 0.5% accuracy)
-
UL1741 SA certified for CPUC Rule 21 compliance
This inverter delivers high efficiency, advanced safety, and easy installation for a modern, reliable residential solar system.
| GENERAL INFORMATION |
| Manufacturer: SolarEdge |
| Product Line: HD-Wave |
| Model ID: SE3800H-US000BEU4 |
Certifications and Safety Ratings:    |
| MECHANICAL DATA |
| Technology: Single Phase String Inverter |
|
Dimensions:17.70 x 14.60 x 6.80 inches |
| Weight: 22 lbs |
| Noise: < 25dBA |
| Cooling: Natural Convection |
| AC Output Conduit Size:0.75-1" Conduit / 14-6 AWG |
| DC Output Conduit Size:0.75-1" Conduit / 14-6 AWG |
| Protection Rating:NEMA 4X (Inverter with Safety Switch) |
| Cooling: Natural Convection |
| Protection Rating: NEMA 4X |
| ELECTRICAL DATA |
| Output - AC on Grid |
| Rated AC Power Output:3800VA @240V; 3300 @208V |
| Maximum AC Power Output:3800VA @240V; 3300 @208V |
| AC Output Voltage @240V:Minimum: 211VAC; Nominal: 240VAC; and Maximum: 264VAC |
| AC Output Voltage @208V:Minimum: 183VAC; Nominal: 208VAC; and Maximum: 229VAC |
| AC Frequency:Minimum: 59.30Hz; Nominal: 60.00Hz; and Maximum: 60.50Hz |
| Maximum Continuous Output Current @240V:16.00 Amps |
| Maximum Continuous Output Current @208V:16.00 Amps |
| GFDI Threshold:1 |
| Utility Monitoring, Islanding Protection, County Configurable Set Points:Yes |
| Input |
| Maximum DC Power @240V:5900 Watts |
| Maximum DC Power @208V:5100 Watts |
| Transformer-Less Ungrounded:Yes |
| Maximum Input Voltage:480VDC |
| Nominal DC Input Voltage:380VDC |
| Maximum Input Current @240V:10.50ADC |
| Maximum Input Current @208V:9.00ADC |
| Maximum Input Short Circuit Current:45ADC |
| Reverse-Polarity Protection:Yes |
| Ground-Fault Isolation Detection:600kΩ Sensitivity |
| Maximum Inverter Efficiency:99.2% |
| CEC Weighted Efficiency:99% |
| Night-Time Power Consumption:< 2.5 Watts |
