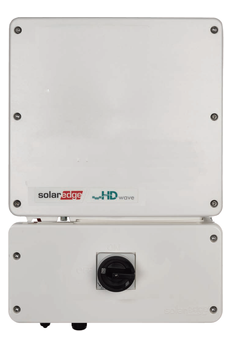

SolarEdge SE11400H-US HD-Wave Inverter
SolarEdge Single-Phase Inverter with HD-Wave Technology
The SolarEdge single-phase inverter with HD-Wave technology redefines residential solar inverters. Winner of the 2016 Intersolar Award and the 2018 Edison Award, it is engineered to work seamlessly with SolarEdge power optimizers. It features a built-in DC safety switch, integrated rapid shutdown, and comes with a standard 12-year warranty that can be extended to 20 or 25 years.
Efficient, Reliable Design
Because each solar module’s voltage and Maximum Power Point are managed by the power optimizer, the inverter focuses solely on converting DC to AC. This simplifies the design, lowers costs, and improves reliability. Its fixed string voltage ensures maximum efficiency regardless of string length or temperature.

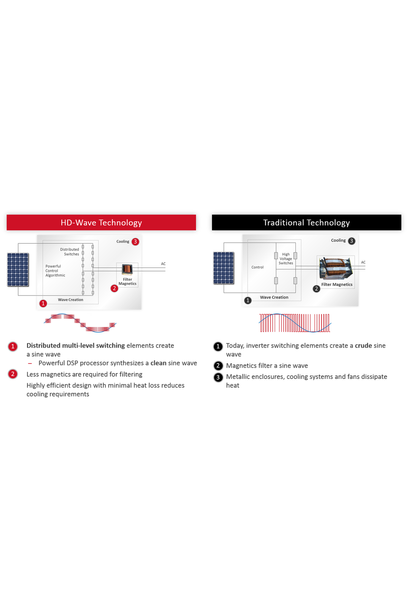

Advanced HD-Wave Technology

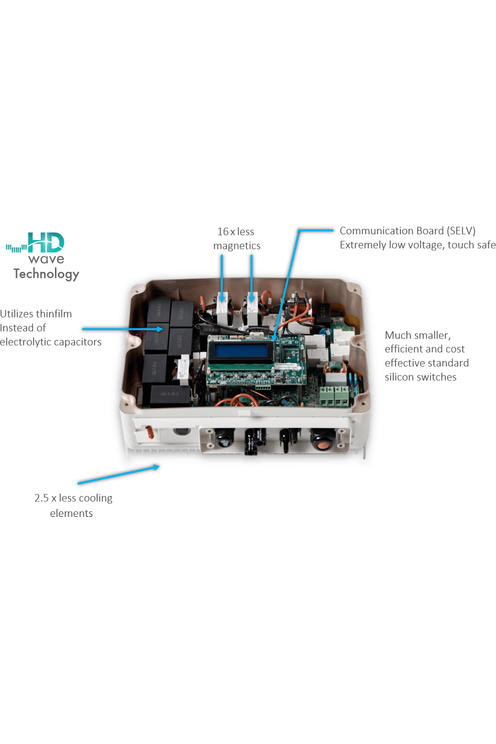

SolarEdge’s latest inverters use distributed switching and powerful DSP processing to generate a clean sine wave. This reduces the size of magnetics and cooling components, resulting in a lighter, smaller inverter that is easier to ship, store, and install—often by a single installer. With up to 99% efficiency, it delivers more energy and improves ROI.
Key Benefits
-
Designed specifically for use with SolarEdge power optimizers
-
Power range: 3 kW to 11.4 kW
-
99% weighted efficiency, reducing energy losses by 33–50% compared to standard inverters
-
Compact and lightweight for easier installation
-
Supports up to 155% DC oversizing
-
High reliability due to lower heat generation
-
Quick commissioning with the SolarEdge SetApp on a smartphone
-
Standard 12-year warranty, extendable to 20 or 25 years
-
Module-level monitoring built in
-
Ethernet or optional wireless communication (ZigBee® or cellular)
-
NEMA 4X rating for indoor or outdoor use
-
Integrated arc fault protection and rapid shutdown meeting NEC 2014 & 2017
-
Optional built-in consumption metering (1% accuracy) and revenue-grade production metering (0.5%, ANSI C12.20)
-
UL1741 SA certified and compliant with CPUC Rule 21
The SolarEdge HD-Wave inverter combines high efficiency, advanced safety, and simplified installation for a reliable, next-generation residential solar solution.
| GENERAL INFORMATION |
| Manufacturer: SolarEdge |
| Product Line: HD-Wave |
| Model ID: SE7600H-US000BEU4 |
Certifications and Safety Ratings:    |
| MECHANICAL DATA |
| Technology: Single Phase String Inverter |
|
Dimensions: 21.30 x 14.60 x 7.30 inches |
| Weight: 38.80 lbs |
| Cooling: Natural Convection |
| Noise:< 50dBA |
| AC Output Conduit Size:3/4" Minimum / 14-6 AWG |
|
DC Output Conduit Size:3/4" Minimum / 1-2 Strings - 14-6 AWG |
| Protection Rating:NEMA 4X (Inverter with Safety Switch) |
| ELECTRICAL DATA |
| Output |
| Rated AC Power Output: 11400VA @240V; 10000 @208V |
| Maximum AC Power Output: 11400VA @240V; 10000 @208V |
| AC Output Voltage @240V:Minimum: 211VAC; Nominal: 240VAC; and Maximum: 264V |
| AC Output Voltage @208V:Minimum: 183VAC; Nominal: 208VAC; and Maximum: 229VAC |
| AC Frequency (Nominal):59.3 - 60 - 60.5 Hz |
| Maximum Continuous Output Current @240V:47.50 Amps |
| Maximum Continuous Output Current @208V:48.50 Amps |
| GFDI Threshold: 1 |
| Utility Monitoring, Islanding Protection, County Configurable Set Points: Yes |
| Input |
| Maximum DC Power @240V: 17650 Watts |
| Maximum DC Power @208V: 15500 Watts |
| Transformer-Less Ungrounded: Yes |
| Maximum Input Voltage: 480VDC |
| Nominal DC Input Voltage: 400VDC |
| Maximum Input Current @240V: 30.05ADC |
| Maximum Input Current @208V: 27.00ADC |
| Maximum Input Short Circuit Current: 45ADC |
| Reverse-Polarity Protection: Yes |
| Ground-Fault Isolation Detection: 600kΩ Sensitivity |
| Maximum Inverter Efficiency: 99.2% |
| CEC Weighted Efficiency: 99% @240V; 98.5% @208V |
| Night-Time Power Consumption: < 2.5 Watts |
