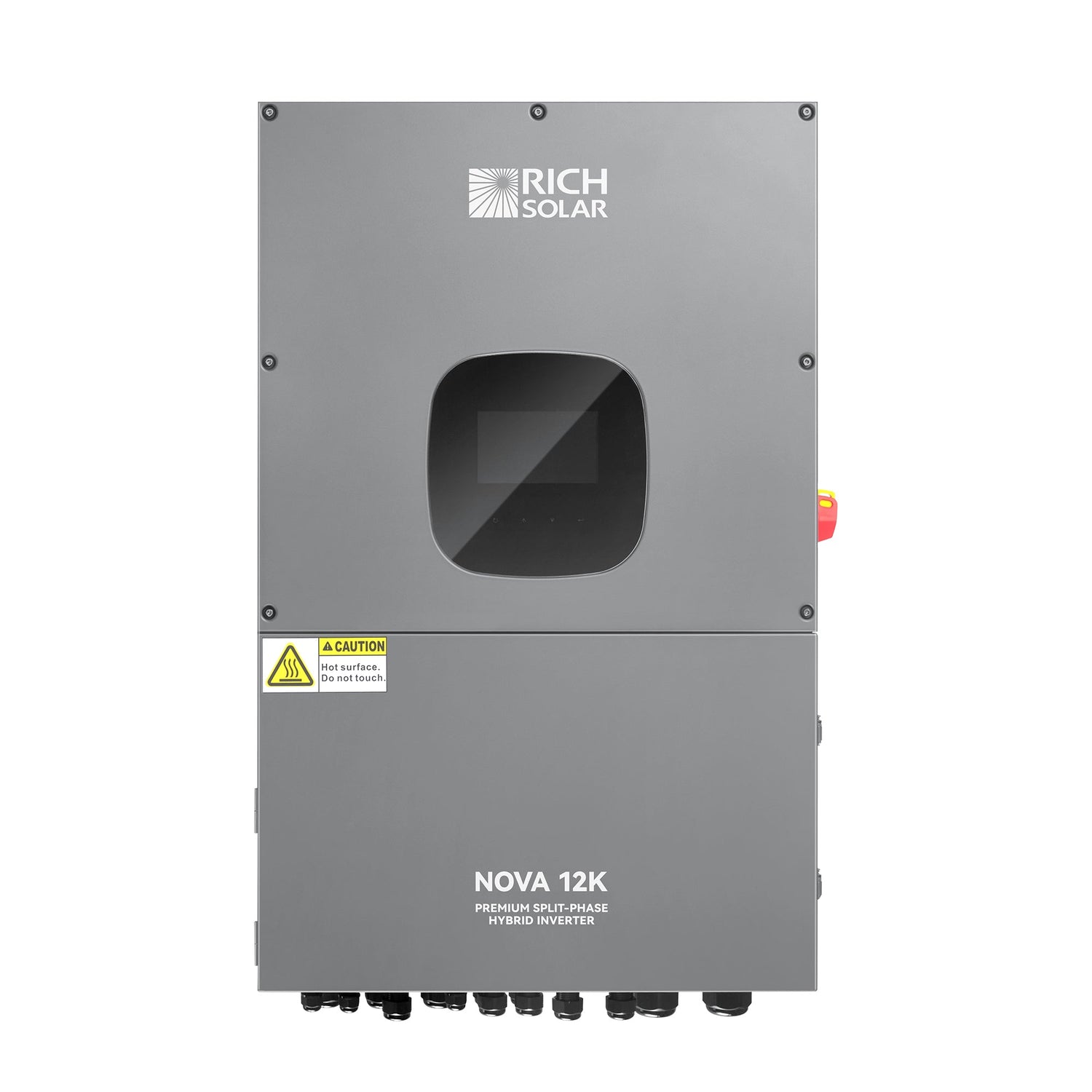

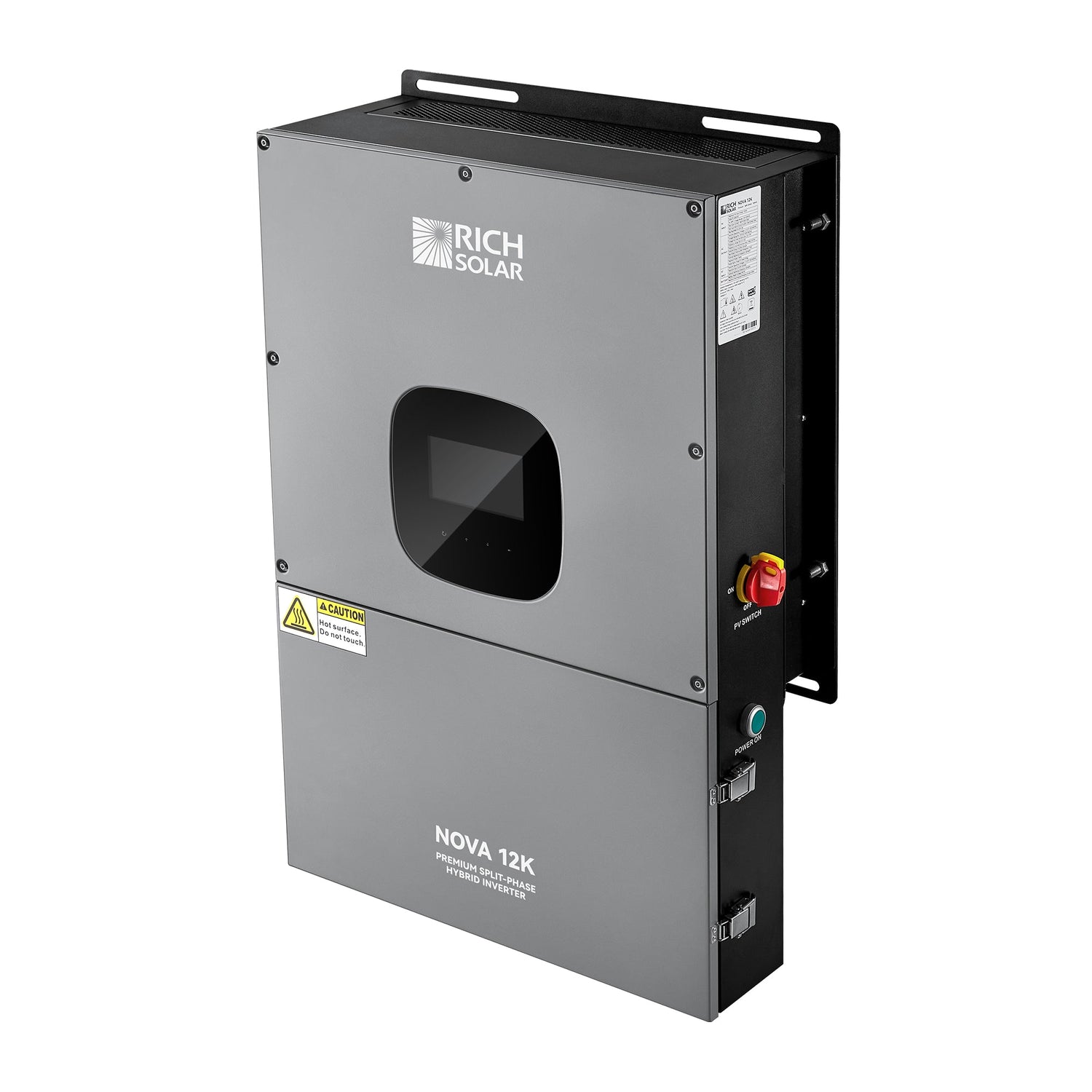

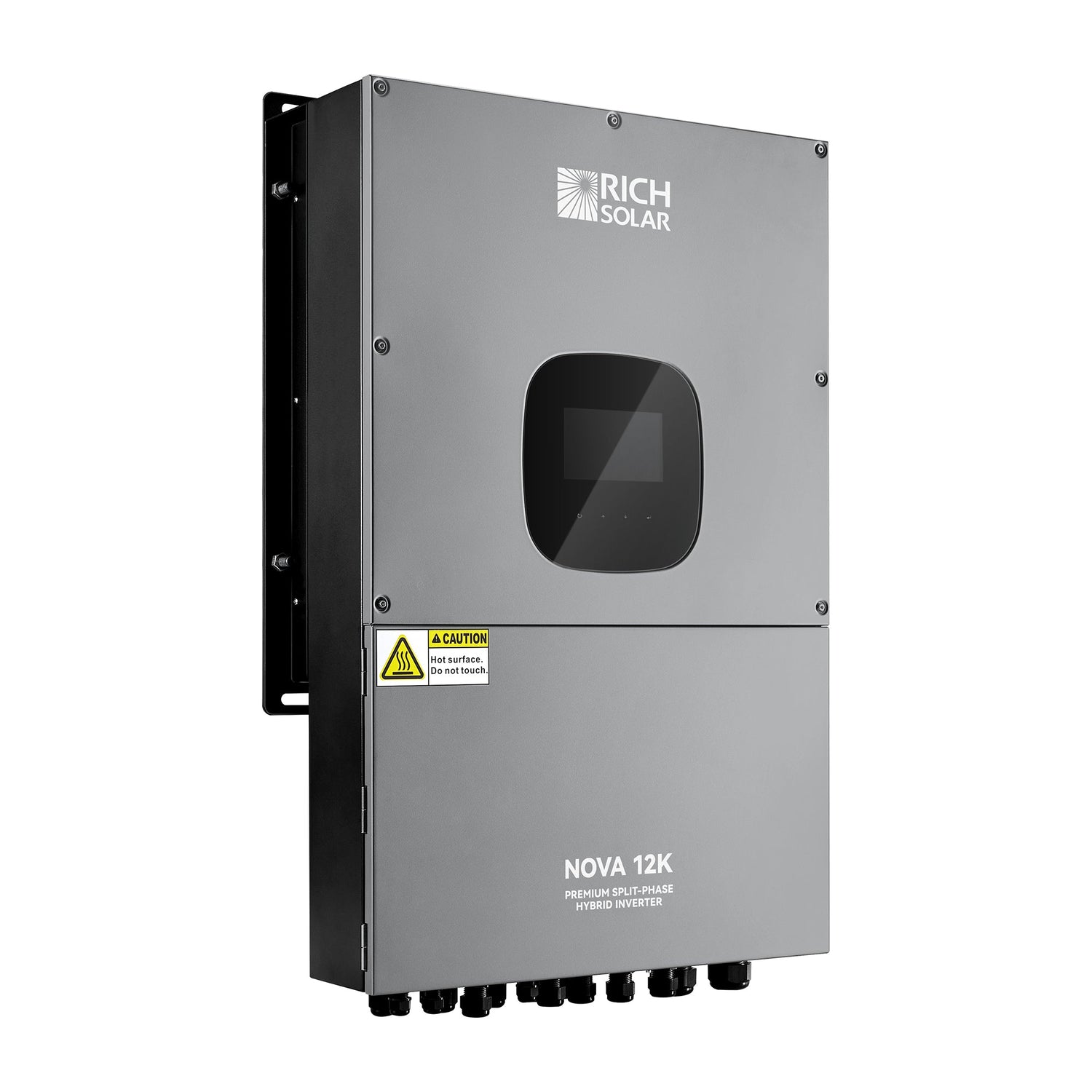

NOVA 12K | 12000 Watt 48V Split Phase Hybrid Inverter | 12000W PV Input, 10000W Continuous Output 120/240V | Premium 12000W 48V Hybrid Inverter for Cabins, ADUs, Tiny Homes, Residential, Agriculture, Off-Grid, On-Grid | UL Certified
NOVA 12K | 12000 Watt 48V Split Phase Hybrid Inverter | 12000W PV Input, 10000W Continuous Output 120/240V | Premium 12000W 48V Hybrid Inverter for Cabins, ADUs, Tiny Homes, Residential, Agriculture, Off-Grid, On-Grid | UL Certified is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
In Stock
ON SALE!
Clip coupon for additional at checkout
Ships same or next day *Exclusions May Apply*
Delivery and Shipping
Delivery and Shipping
We offer fast and reliable shipping across the continental U.S., with free shipping available on most orders (exclusions may apply based on brand and product type). Orders are typically processed within 1–2 business days and transit time is usually 4–7 business days. Larger items may ship via freight and require a scheduled curbside delivery. Please ensure your contact details are accurate at checkout. For questions about delivery timelines, shipping eligibility, or special requests, feel free to contact us directly. See Policy.
Do You Offer Financing?
Do You Offer Financing?
Shop Pay + After Pay - Choose the product you desire the most now and pay over time using Shop Pay / After Pay. Select your monthly payments and have your product delivered with no additional fees.
ACORN + APPROVE Financing - For larger purchase and businesses, ACORN and APPROVE offers flexible financing designed around their goals. Complete a 60-second application and connect with leading lenders—no effect on your credit score.
Price Match Guarantee
Price Match Guarantee
We’re committed to offering the best online prices—if you find a lower price from an authorized retailer, we’ll beat it. Our 100% Price Beat Guarantee excludes promotions, auction sites, and exchanges, and factors in item price, tax, and shipping. For price match inquiries, contact us at (833) 932-9683
NOVA 12K | 12000 Watt 48V Split Phase Hybrid Inverter | 12000W PV I...
Features
Power Flexibility- 120/240V split-phase or 120/208V split-phase
- Supports generator input & AC coupling
- Scalable to 6 parallel units
- Real-time monitoring via WiFi & mobile app
- BMS integration through RS485 interface
- External CT sensor for 100% self-consumption

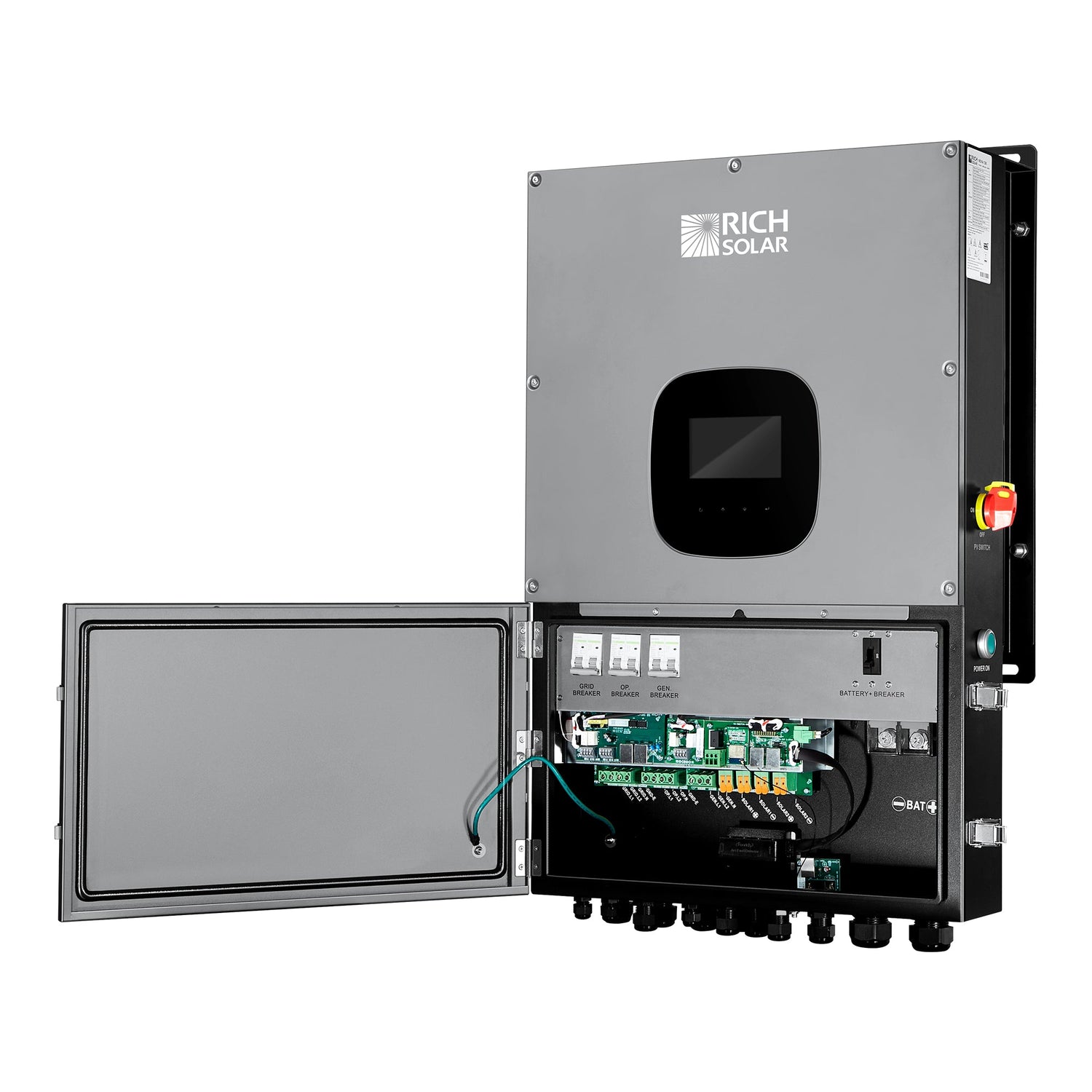

- 300A DC + 60A AC Integrated breaker
- AFD/RSD (NEC 690.11/690.12)
- Ground fault detection (NEC 690.5)
- PV input lightning protection
- 91% DC-to-AC efficiency | Pure sine wave
- Multi-mode operation: Grid-tie/Off-grid/Hybrid
Specifications
- Maximum PV input power: 12000W
- Parallel capability: 6 units
-
Input
- Maximum PV input power: 12000W
- Voltage range: 120–550VDC
- Startup voltage: 125V
- Mppt: Dual inputs — 2 × 18A (30A peak)
-
Output
- Rated output power: 10000VA/10000W
- Nominal output voltage: 120VAC(P-N)/208VAC(P-P)/240VAC(P-P)
- Output voltage range: 105.5–132VAC per phase
- Nominal output current: 41.7A per phase
-
Battery
- Battery DC voltage range: 40–62VDC/48VDC
- Maximum solar charging current: 200A
- Maximum AC charging current: 200A
- Maximum charging current: 200A
-
Operating Environment
- Operating temperature range: -13°F to 140°F(>113°F derating)
- Protection degree: IP65
- Communication port: RS232, RS485, Wi-Fi, USB
-
Physical

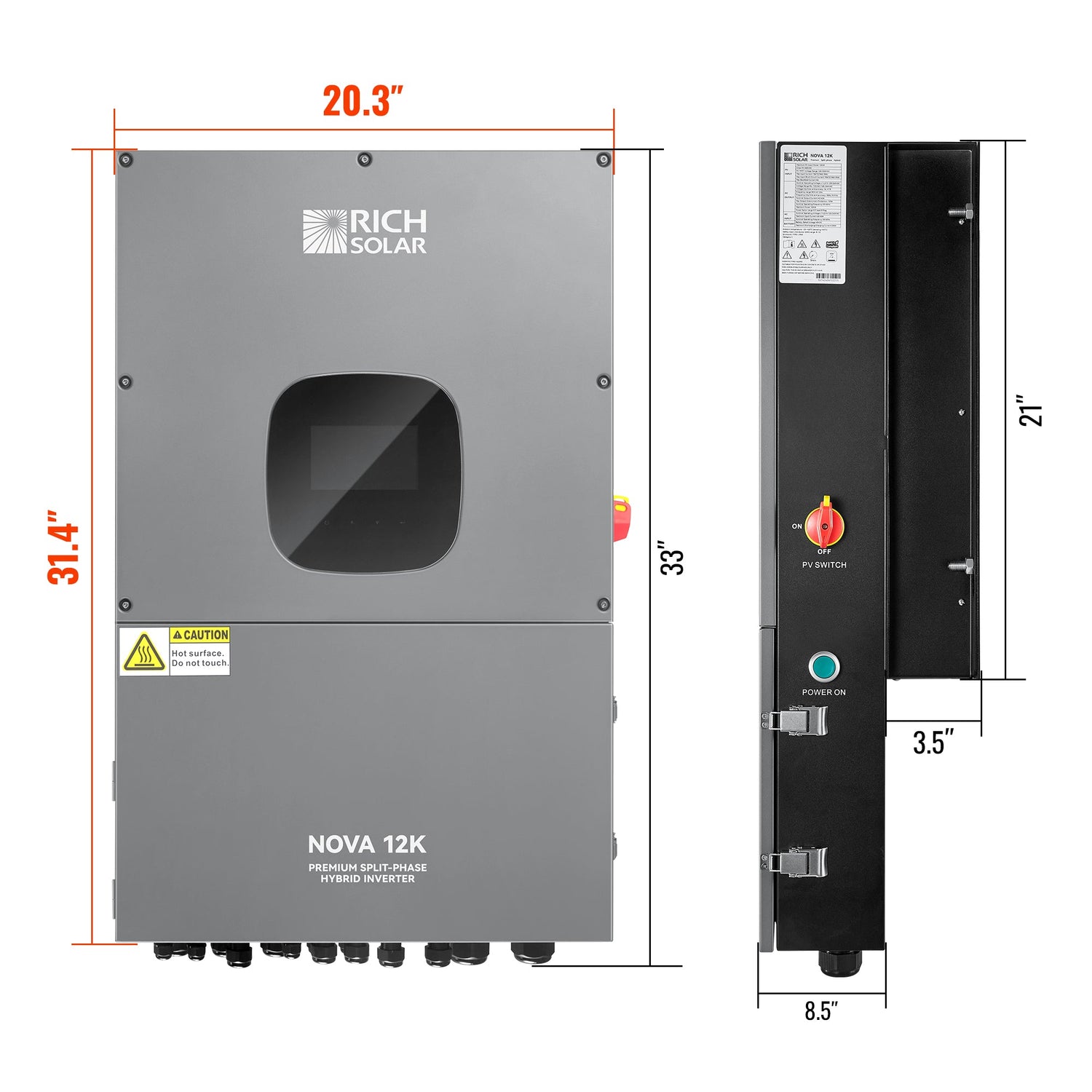

- Dimension (LxWxH): 8.5x20.3x28.1in/215x516x714mm
- Net weight: 112lb/51kg
-
Certificate
- Ul 1741SA/SB, CSA C22.2 No.107.1, IEEE 1547
- Cec-listed, FCC Part 15 Class B
- Compliant with CA rule 21 and HECO rule 14H
