The ALPHA 5 PRO supports CAN/RS485, making it compatible with many popular inverter brands, simplifying upgrades, reducing extra components, and enhancing system performance and reliability.

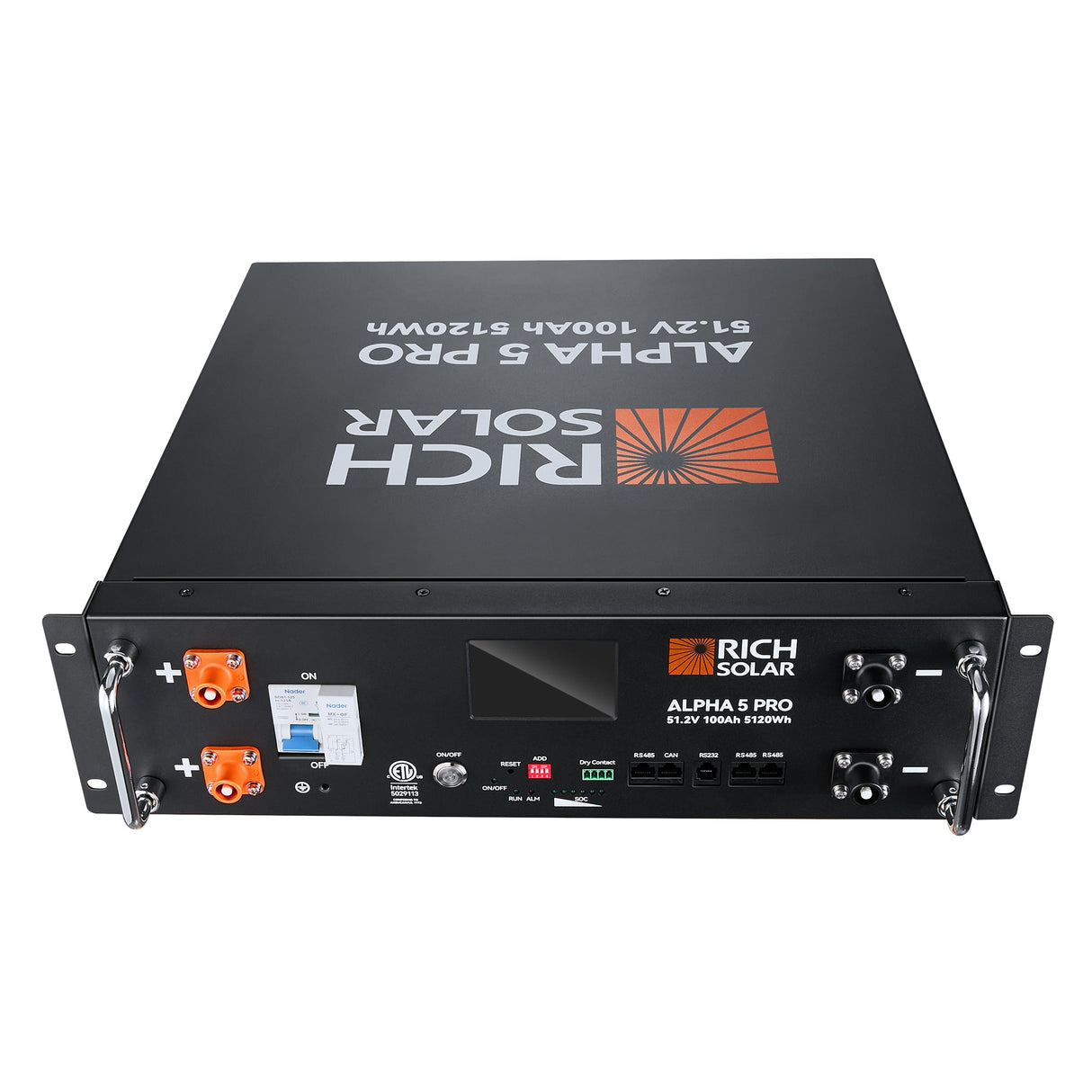

Monitor your battery effortlessly with our PC monitoring software. The 3.5-inch smart touchscreen provides instant access to live data, individual battery status, and system settings. LED indicators on the front panel show battery SOC, operational status, and alarms, ensuring you are always informed and connected.

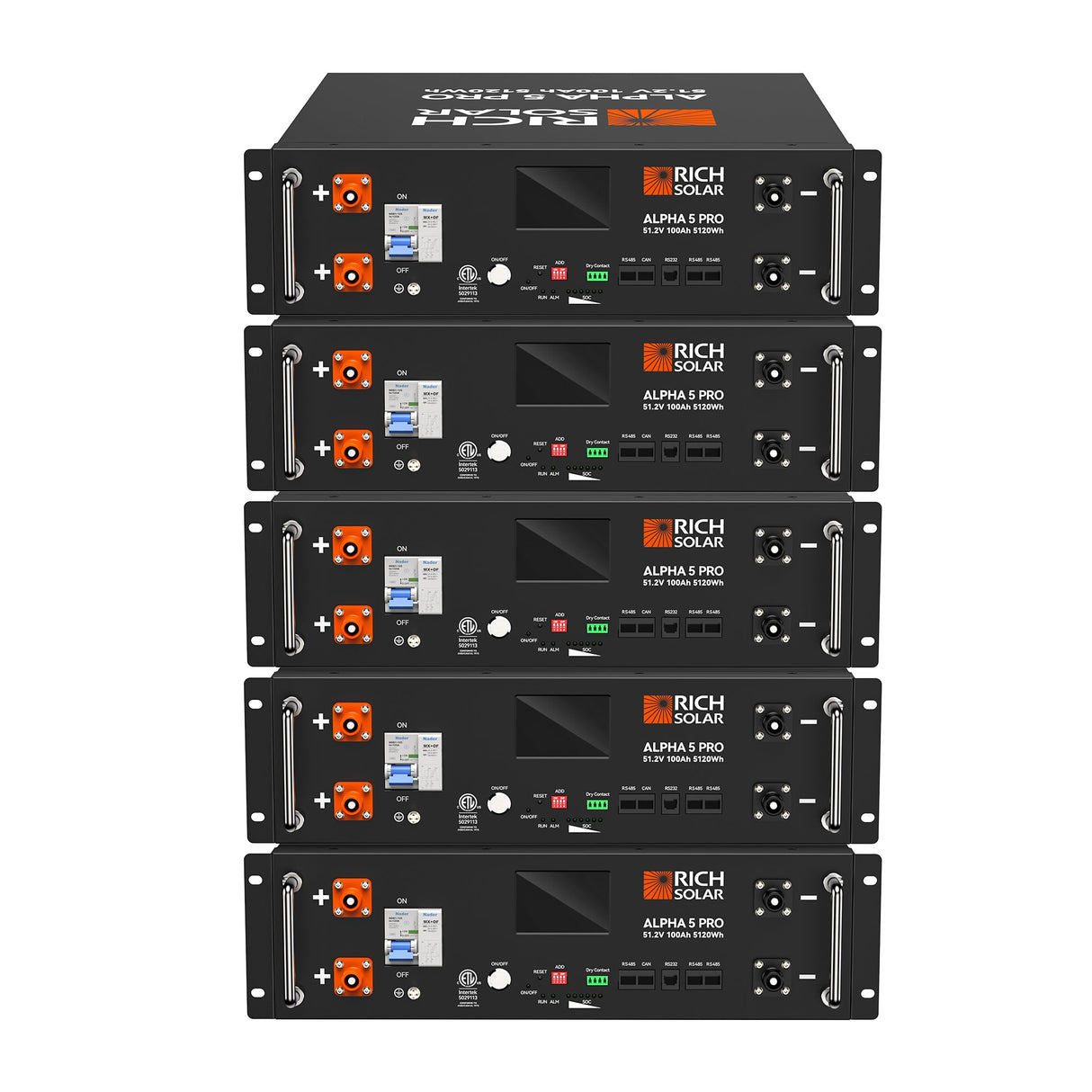

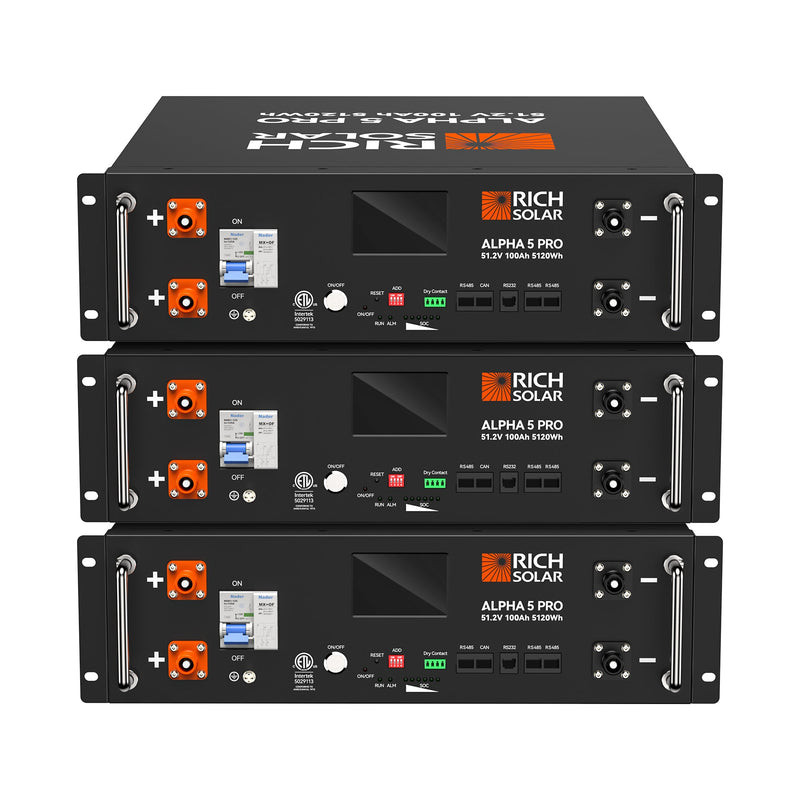

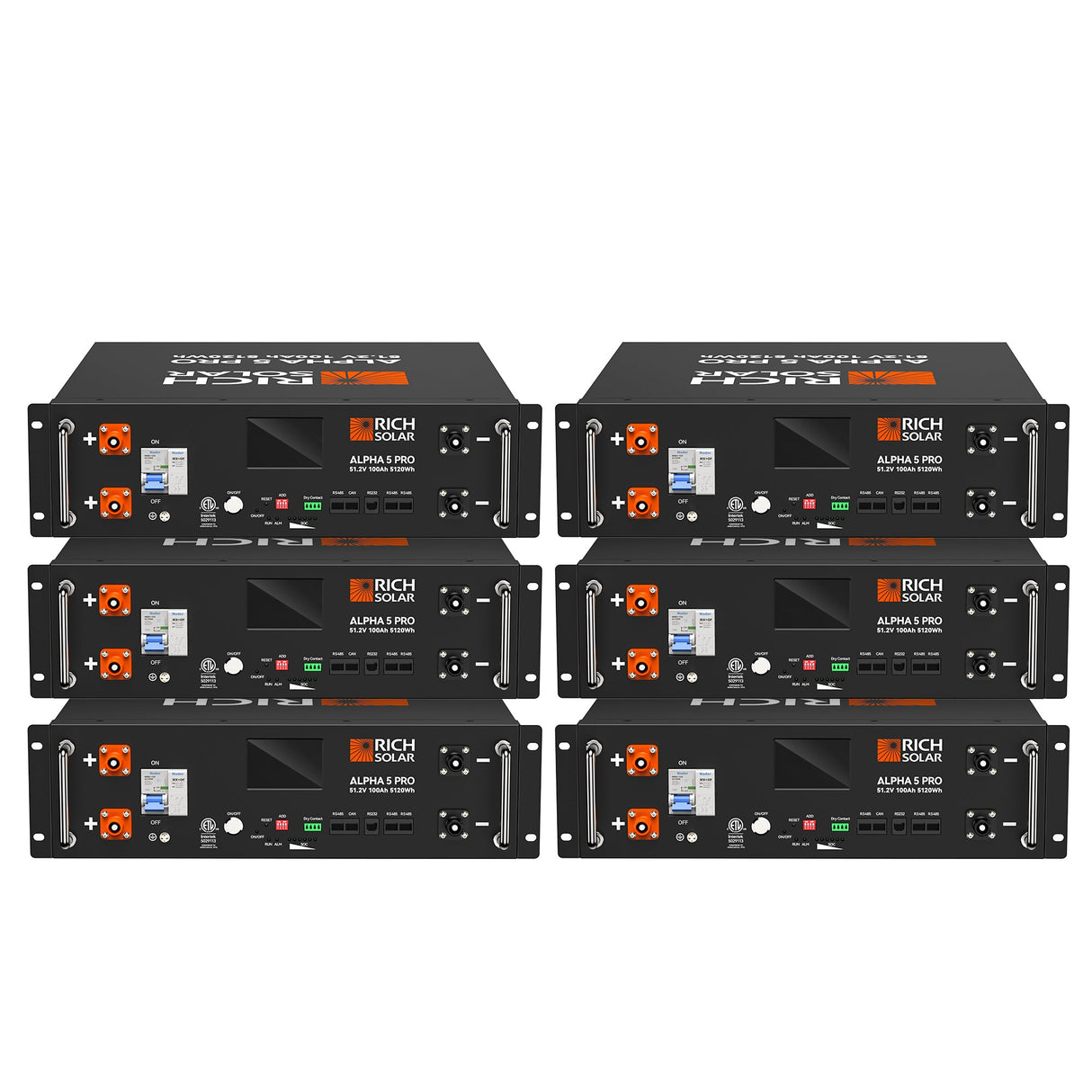

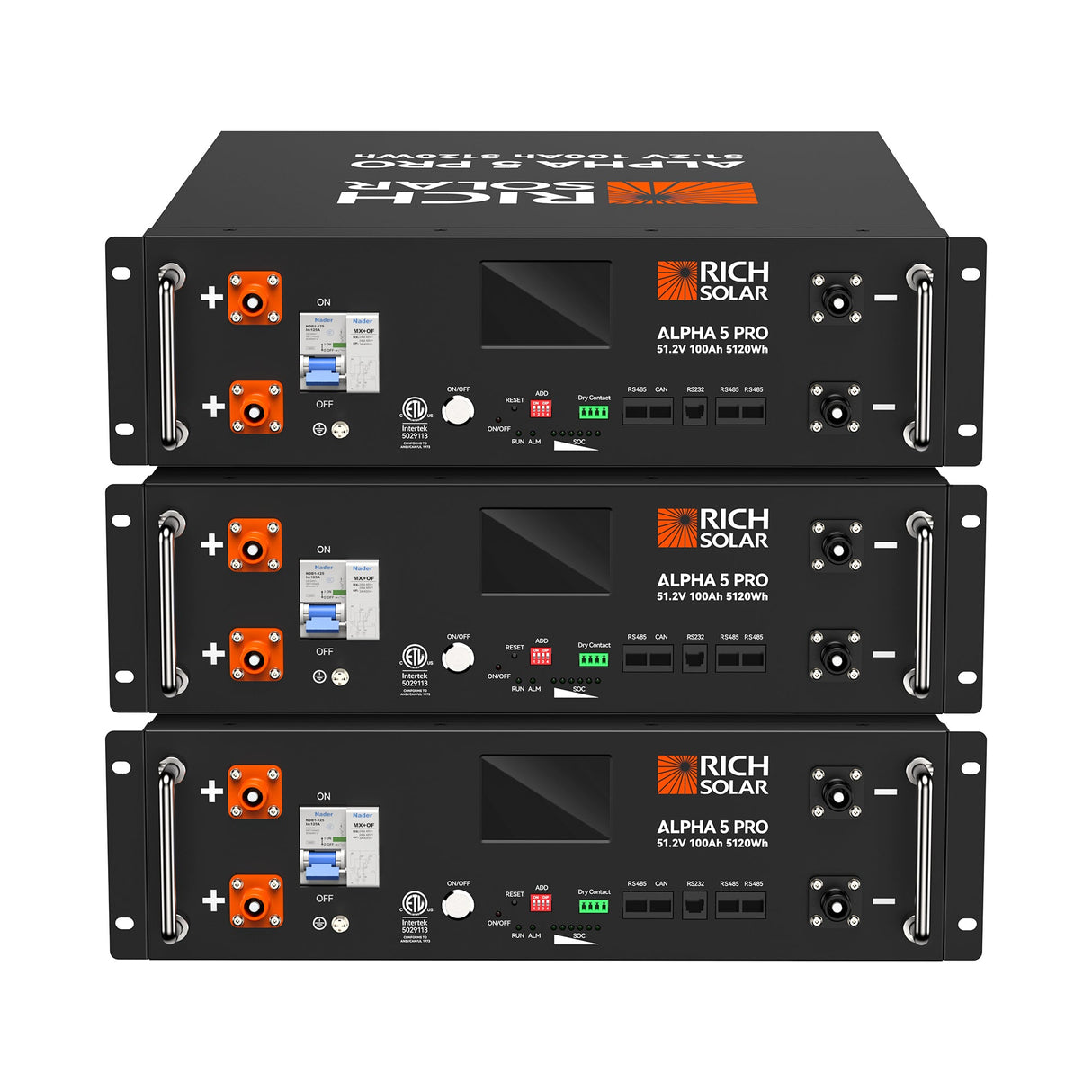

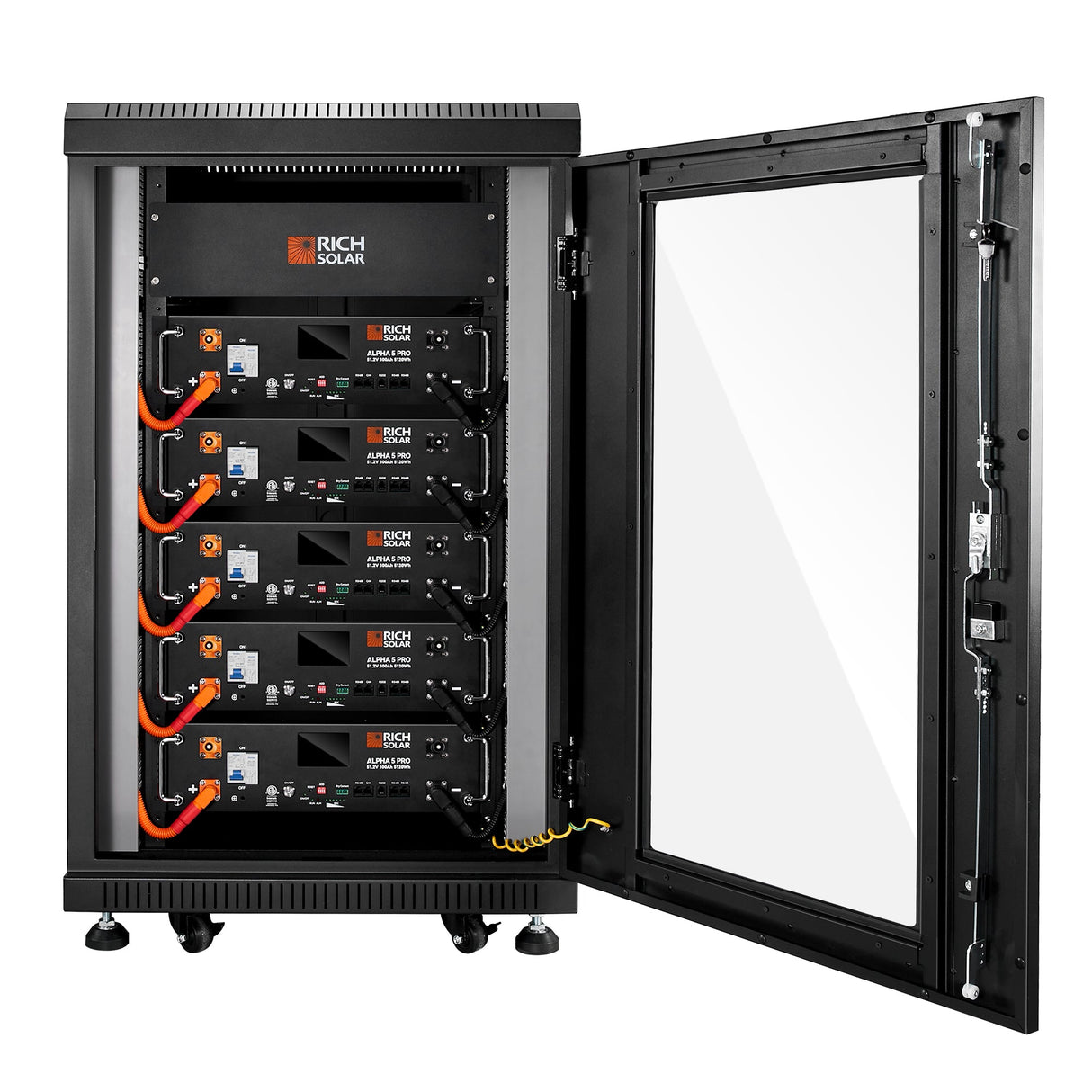

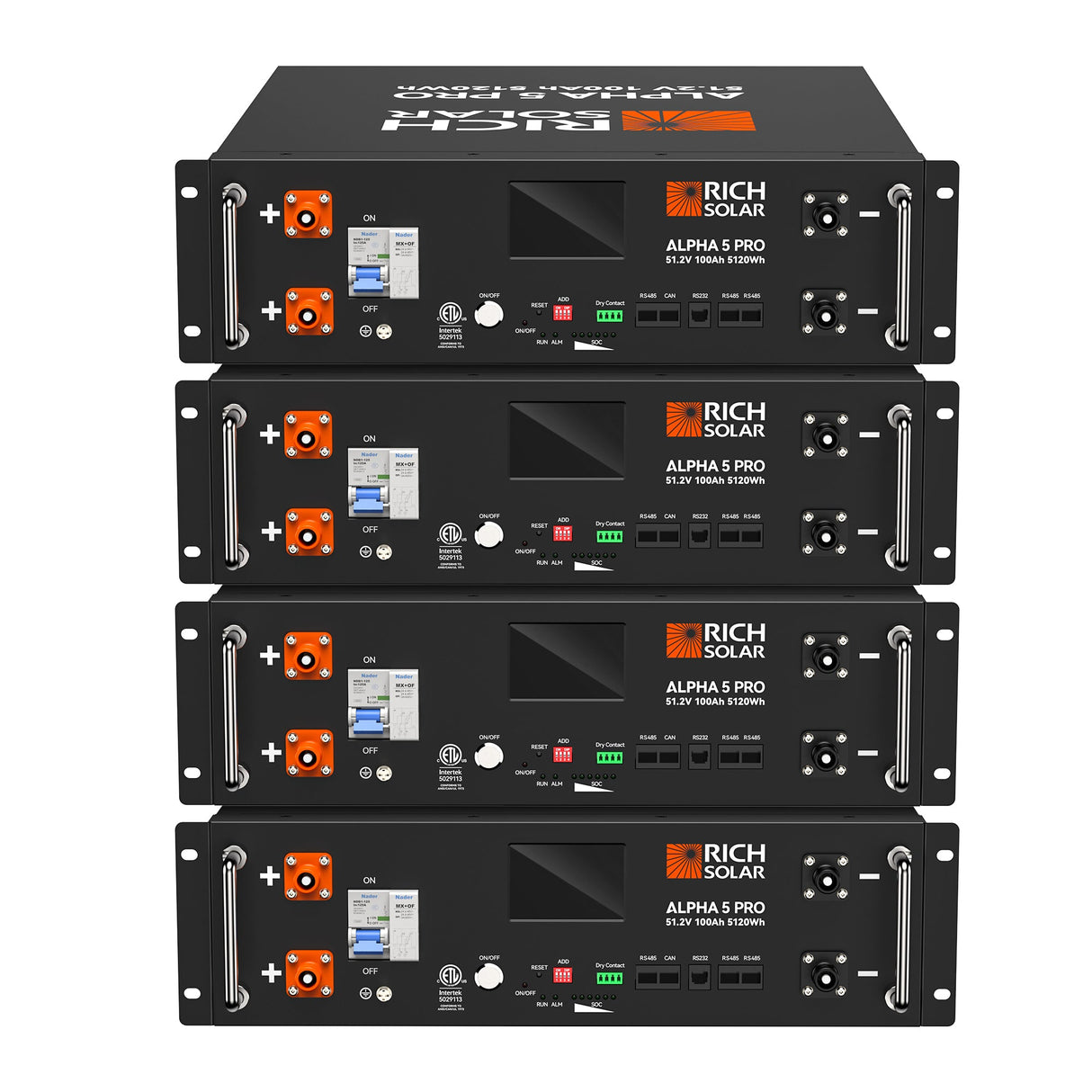

The ALPHA 5 PRO is expandable with up to 15 units in parallel, reaching up to a total of 76.8kWh. This extensive capacity is ideal for large-scale operations, emergency backup power, or off-grid energy. It effortlessly meets your highest energy demands, ensuring reliable power when and where you need it most.
The ALPHA 5 PRO features premium Grade A cells known for their exceptional safety, lightweight design, high energy density, and durability. With over 7000 cycles at 80% Depth of Discharge (DOD) and a 10+ year lifespan, you'll have long-term reliability with minimal maintenance.

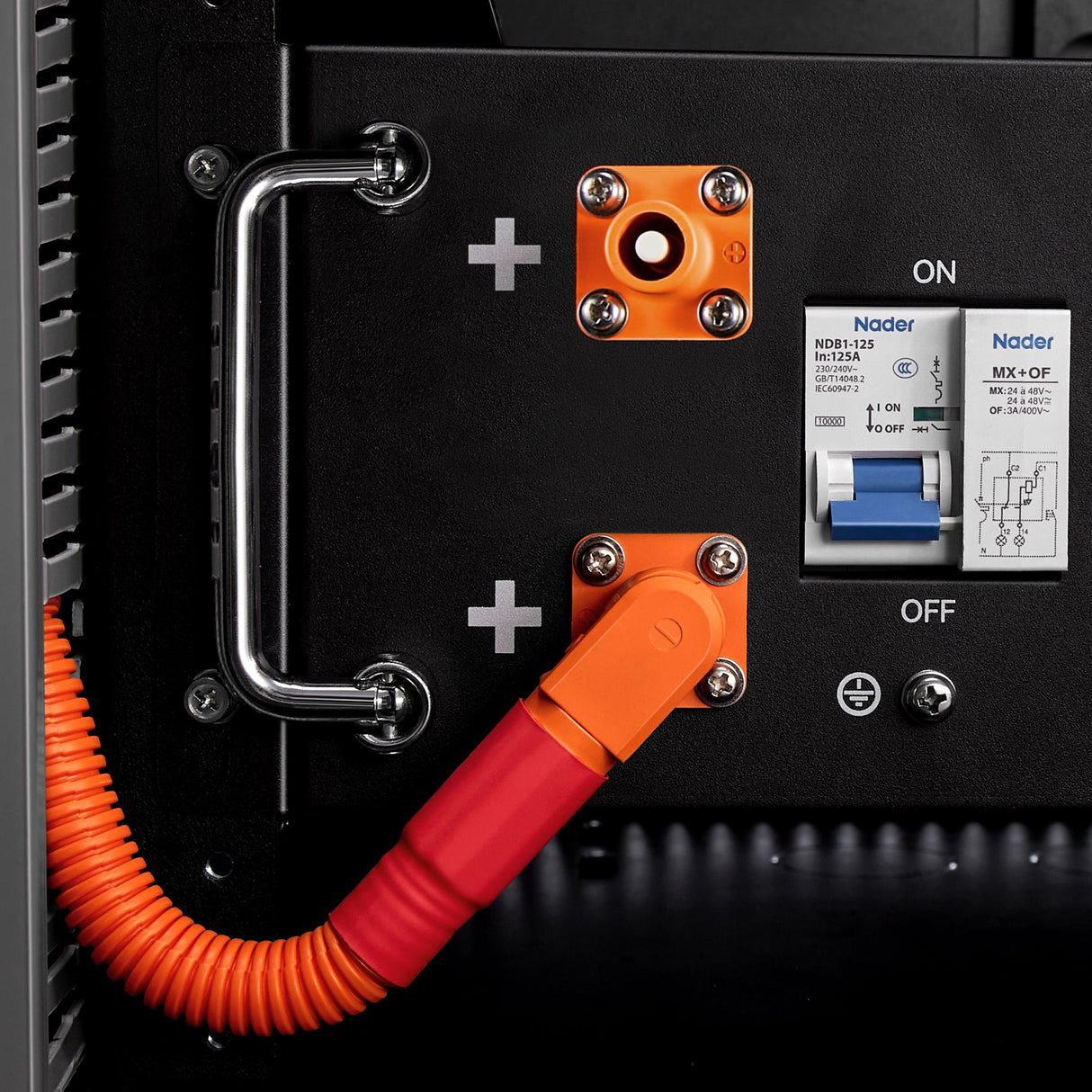

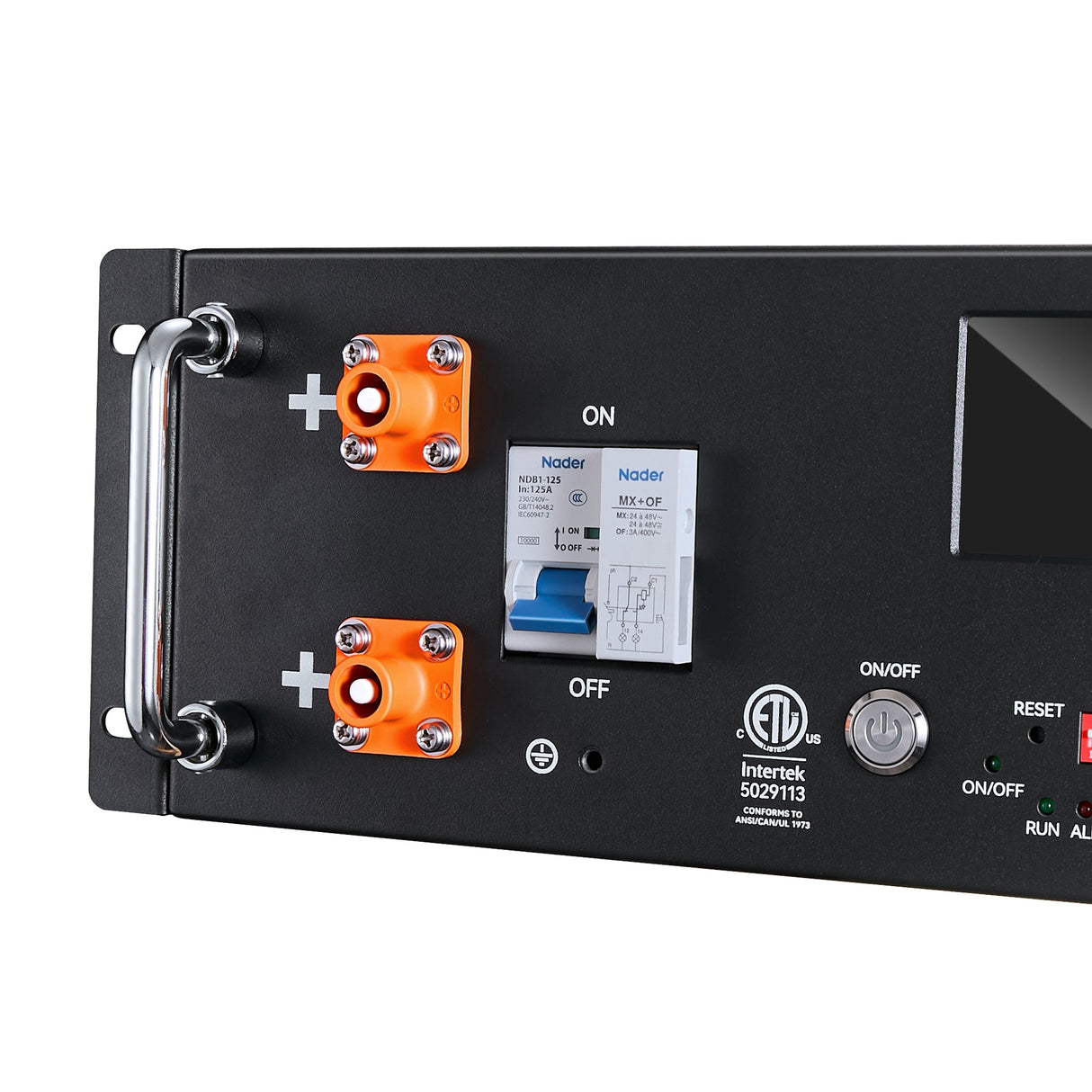

The ALPHA 5 PRO guarantees safety and reliability. The advanced Battery Management System (BMS), with a built-in circuit breaker, protects against overcharge, over-discharge, over-current, short circuits, high/low temperatures, and rare hardware failures in high-voltage solar charge controllers. Even with physical damage or excessive thermal exposure, the ALPHA 5 PRO will run as cleanly as before.
The ALPHA 5 PRO is built to handle extreme temperatures, operating safely from -4°F to 140°F. It stops charging below 32°F and discharging below -4°F, with an auto shut-off when temperatures exceed 140°F. You're guaranteed consistent performance no matter the conditions.

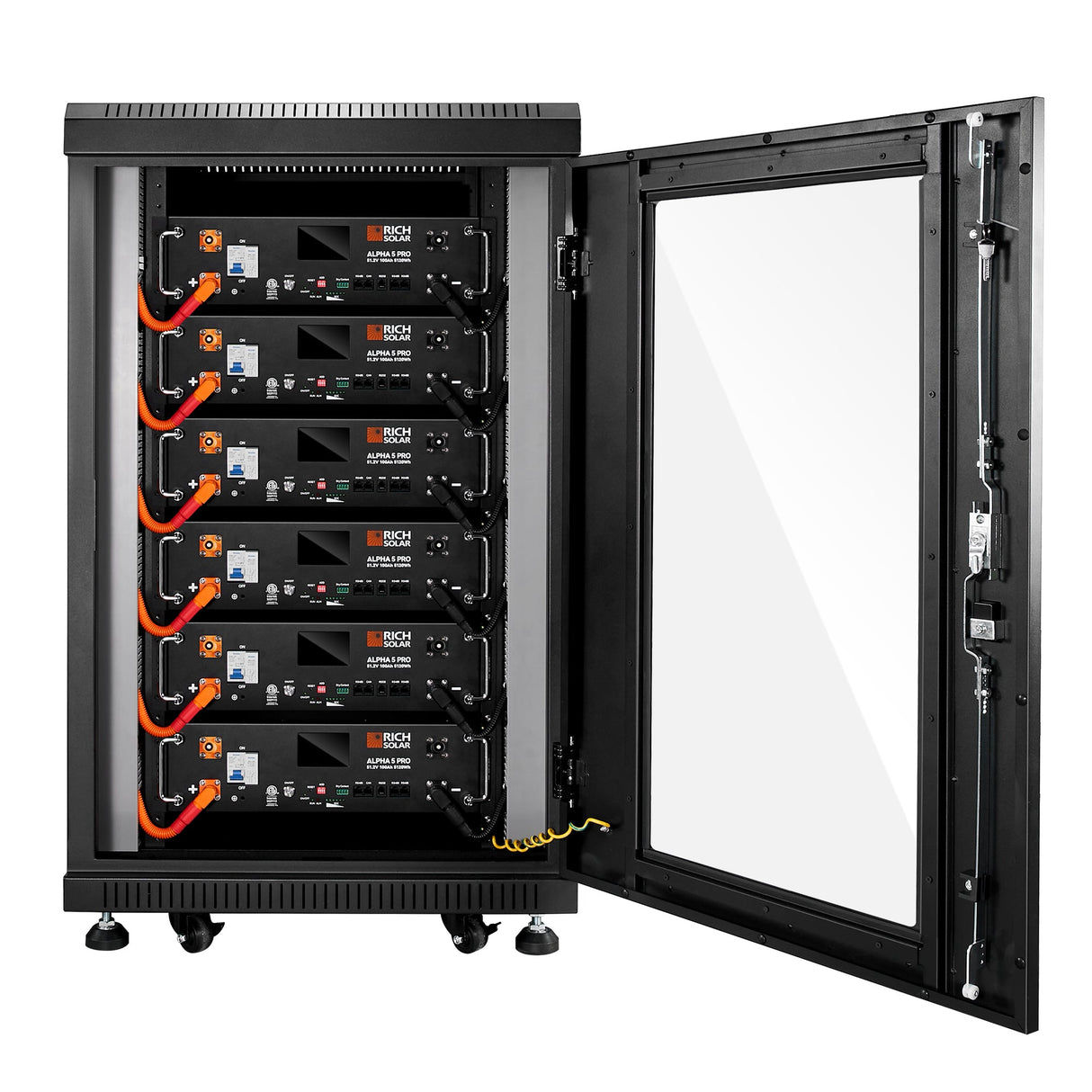

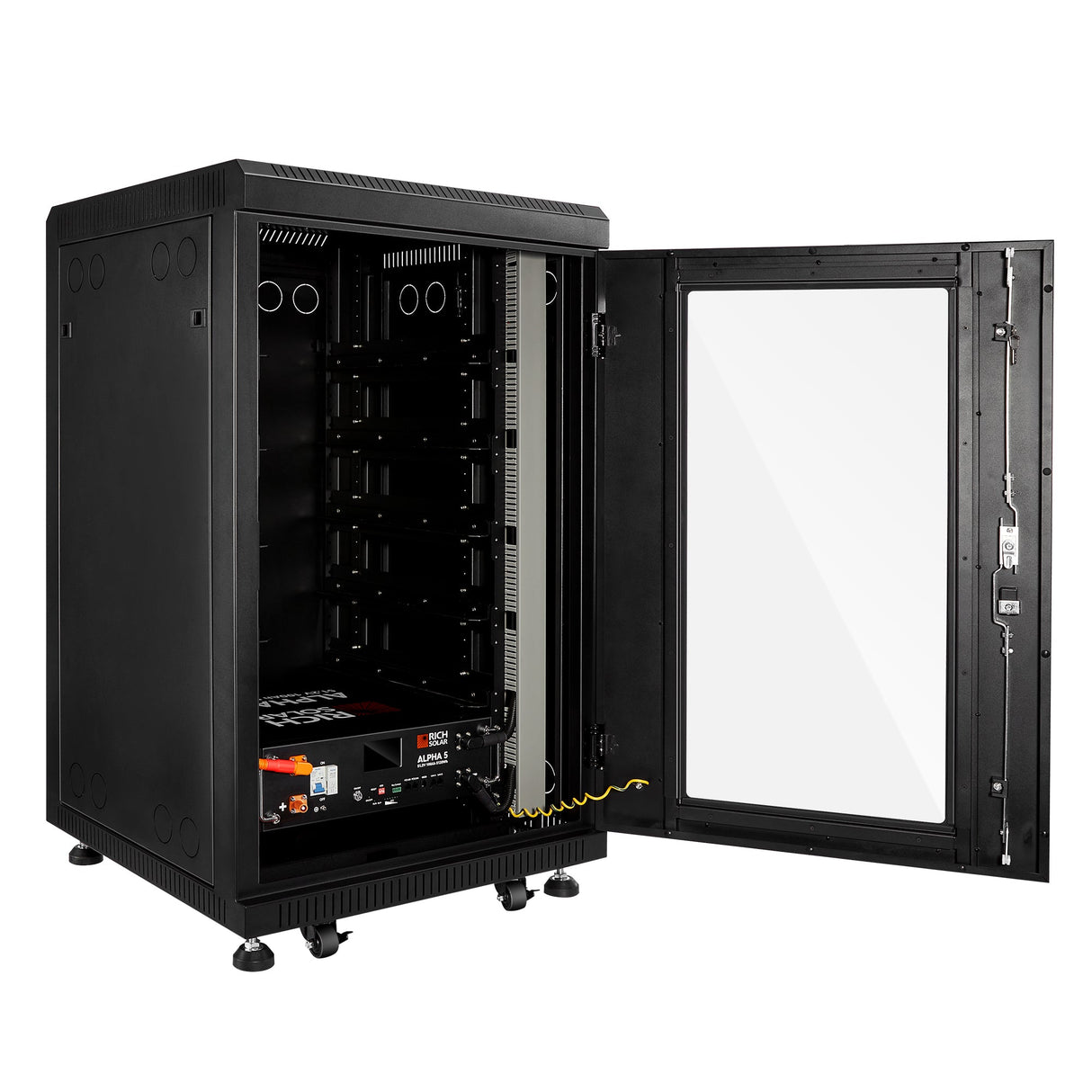

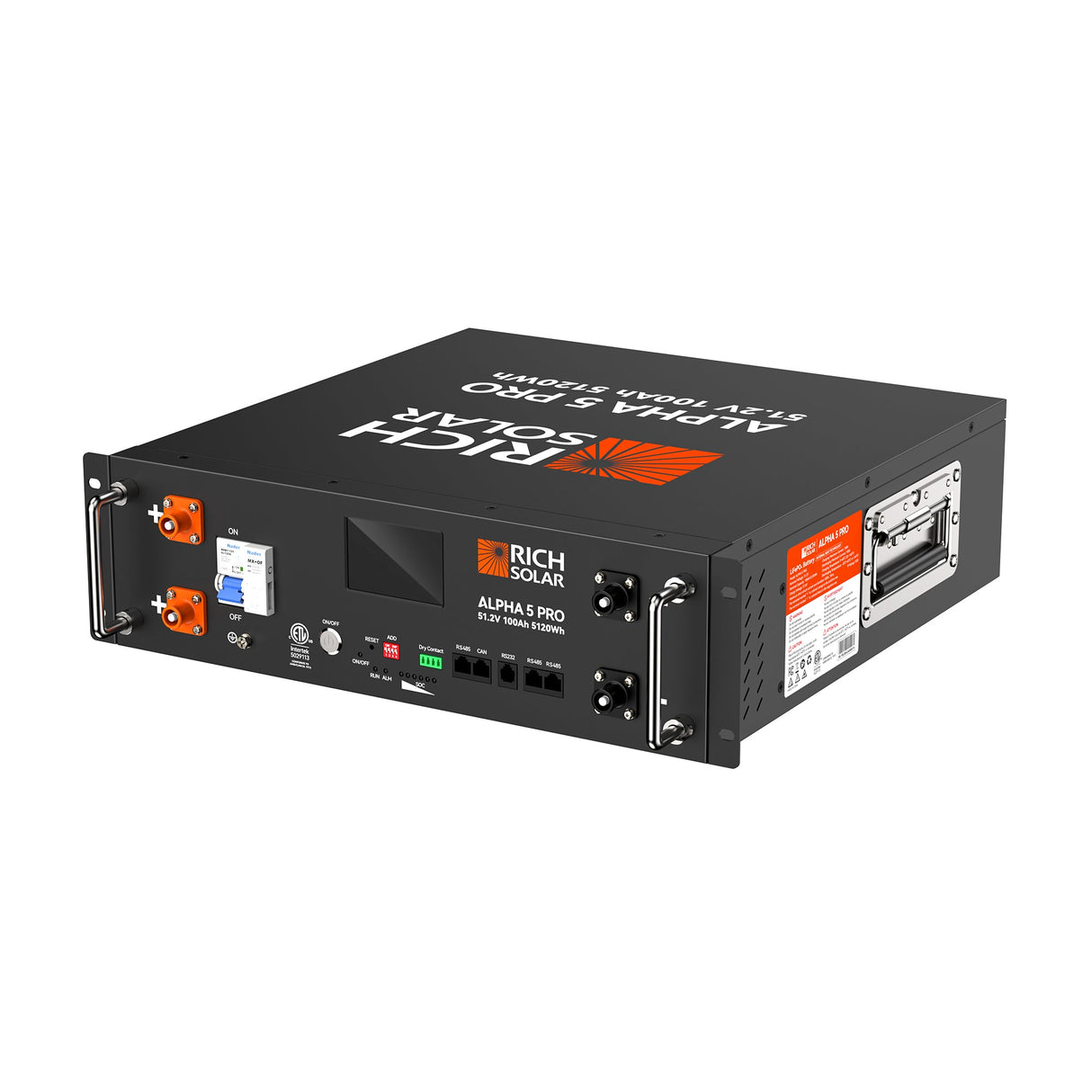

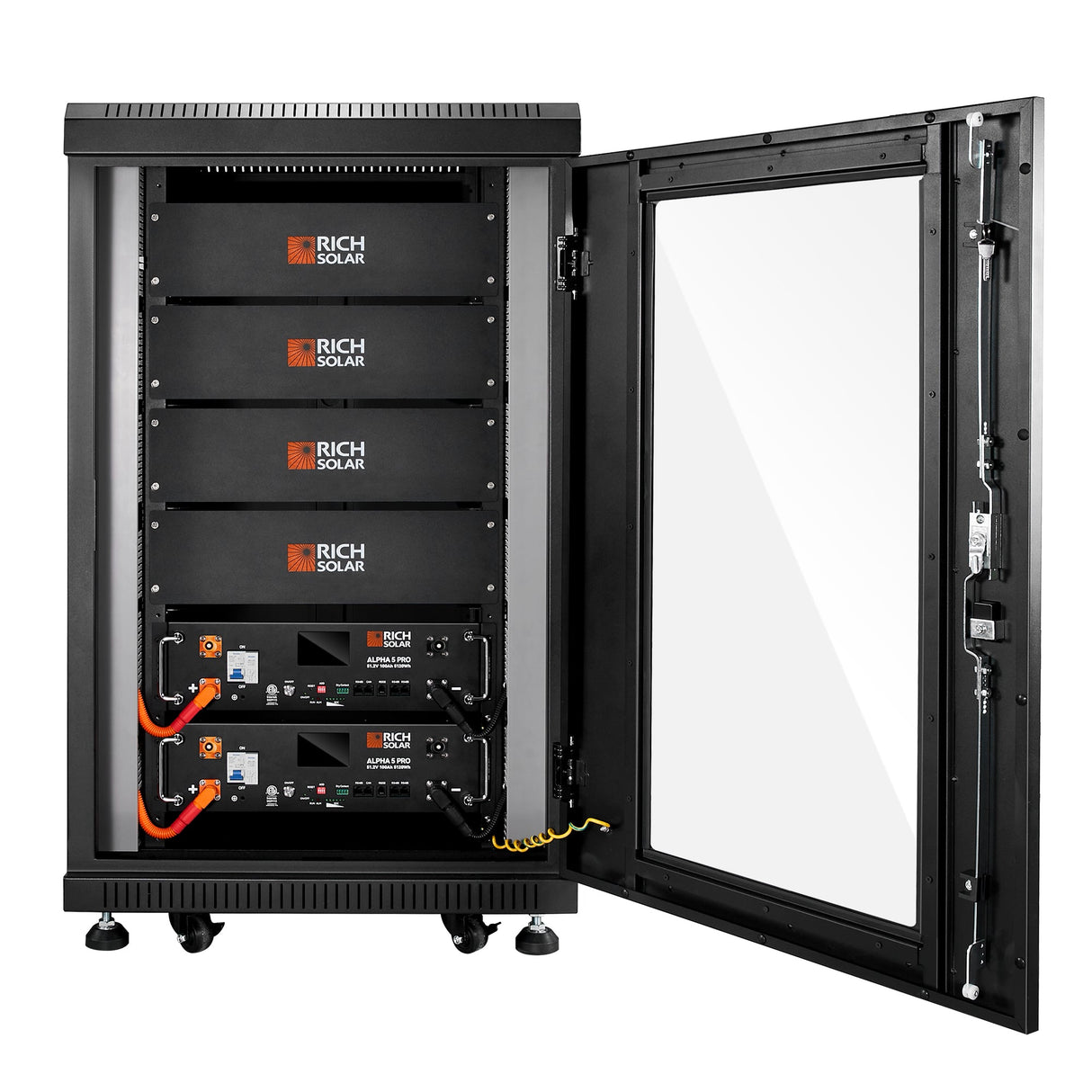

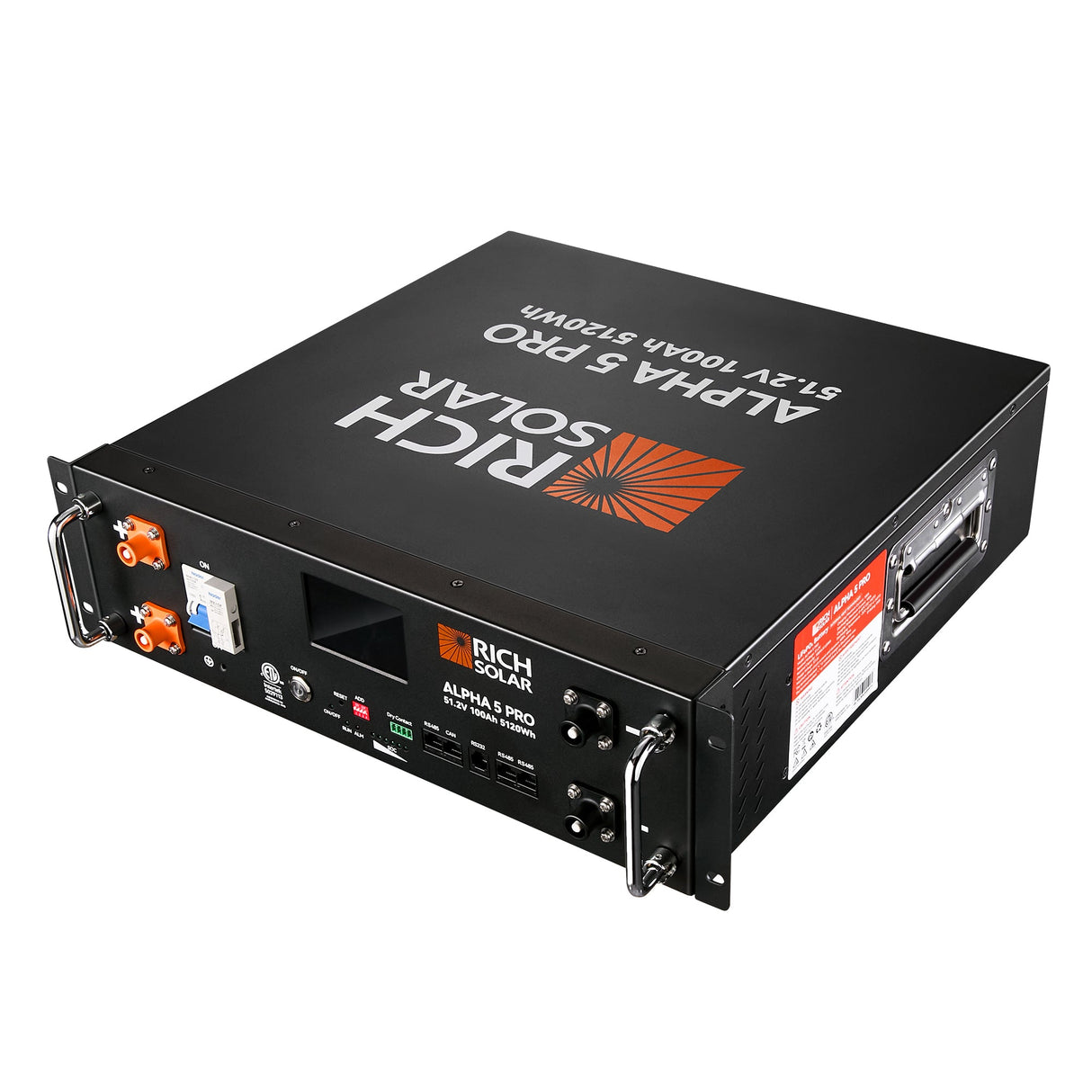

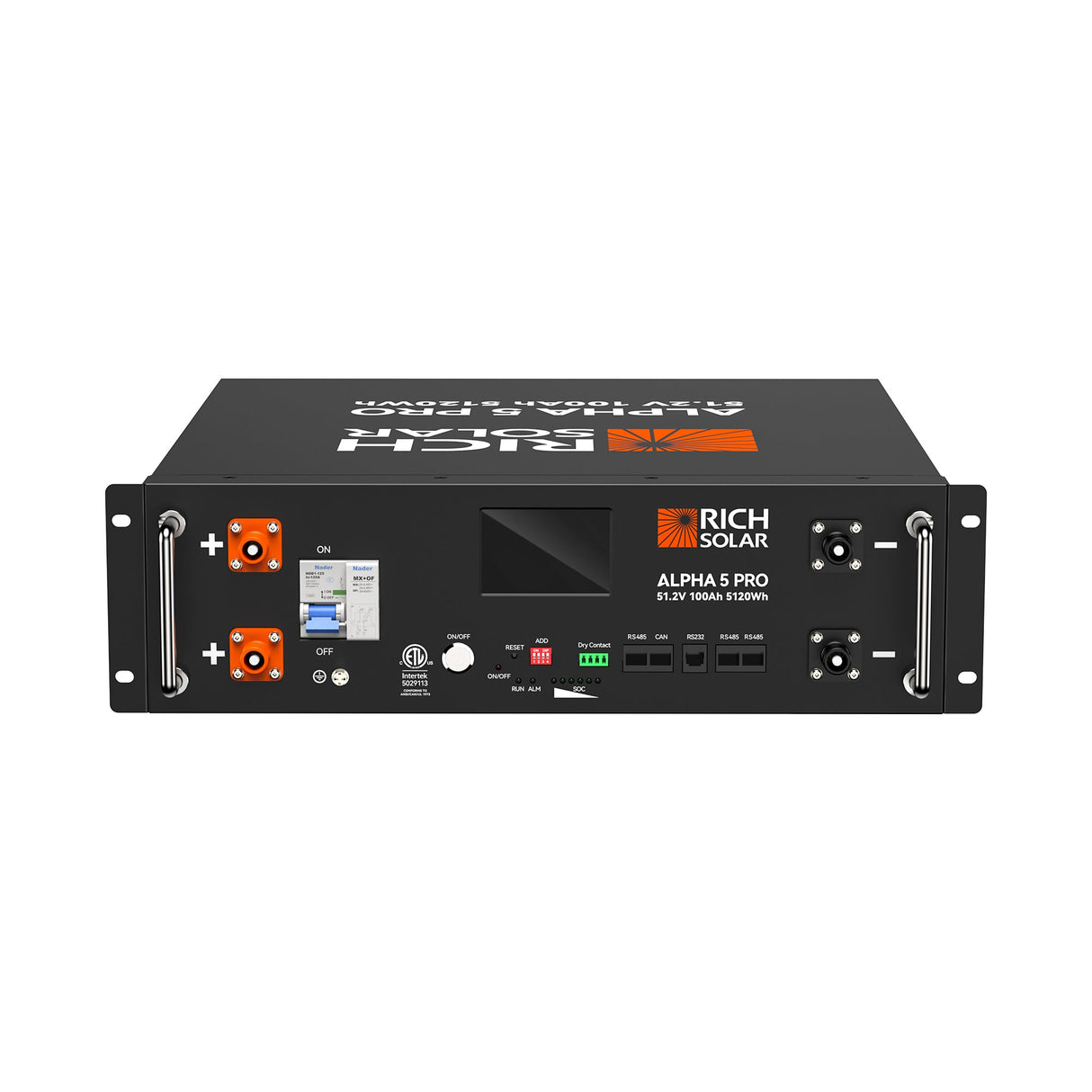

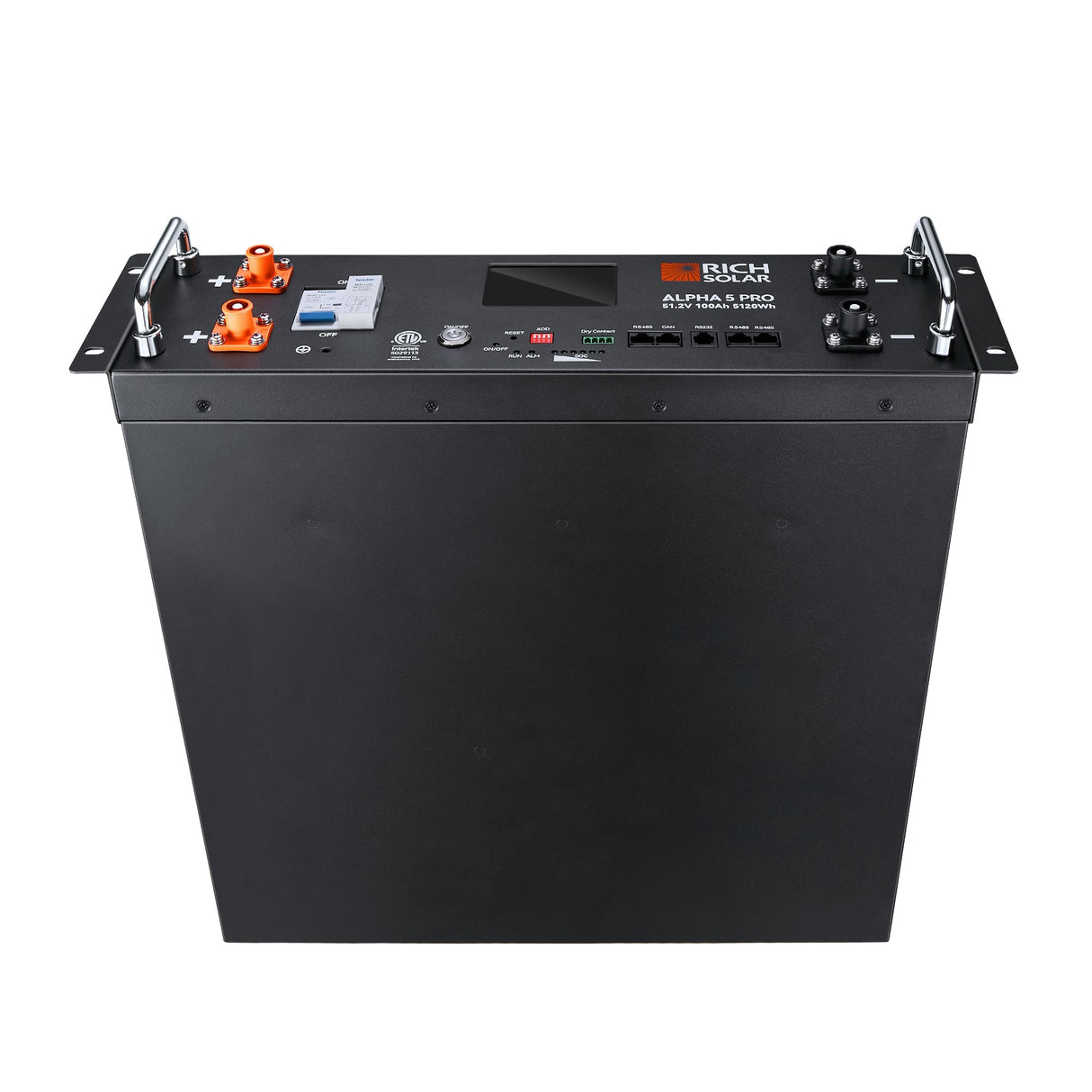

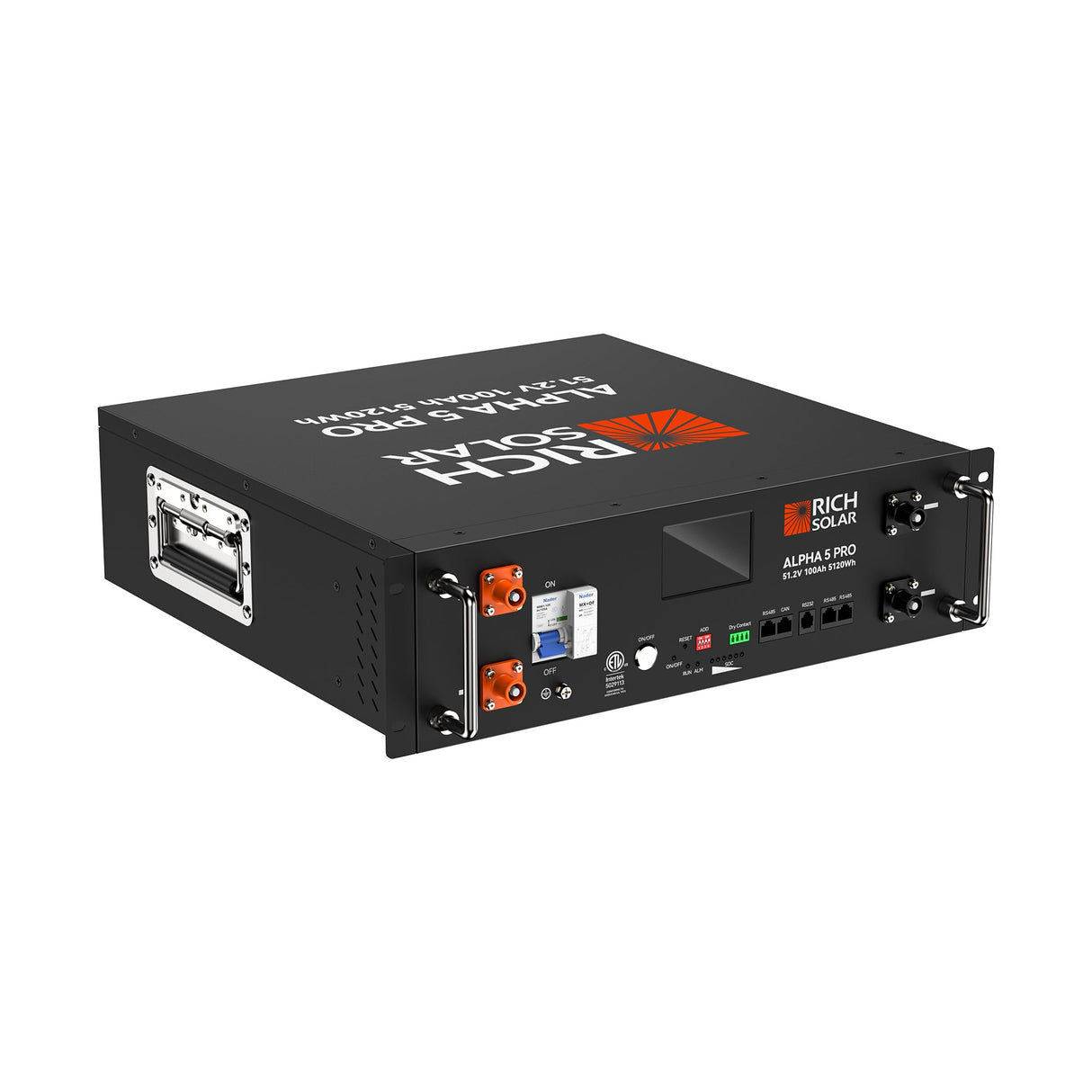

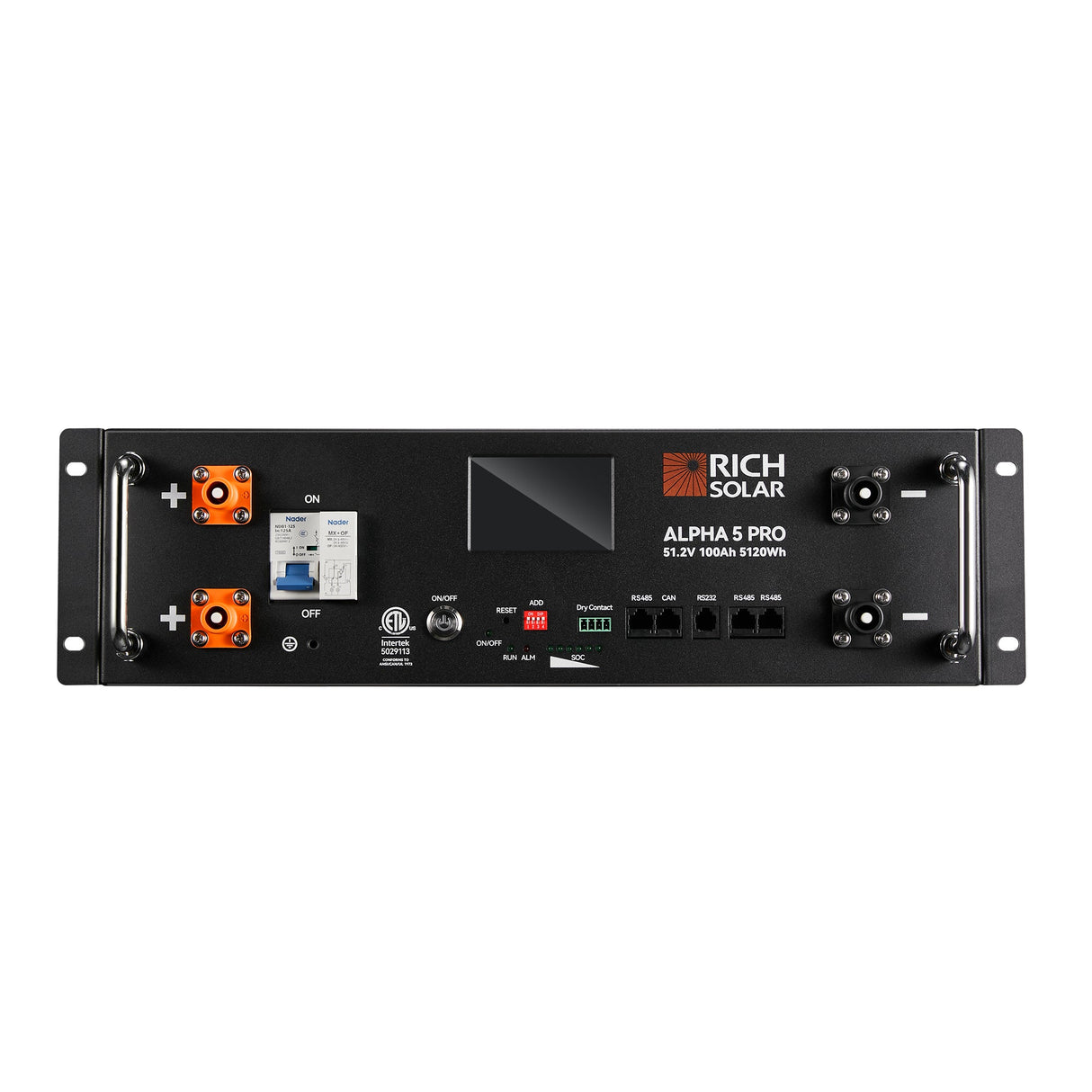

The ALPHA 5 PRO features a 3U rack-mount design, fitting seamlessly into server racks. Its robust sheet metal casing ensures durability and strength, while the removable carry handle simplifies transport and installation.
The ALPHA 5 PRO provides all the energy you need in a compact battery. It's eco-friendly, with a 10+ year lifespan. It's the smart, efficient choice for energy storage featuring a BMS for added safety and real-time monitoring.
Power up quickly with three flexible charging options: LiFePO4 battery chargers, solar panels, or generators. From off-grid living to emergencies, keep your home energized and ready for any situation.
Nominal Voltage:
51.2V
Nominal Capacity:
100Ah
Minimum Capacity:
99.5Ah
Nominal Capacity:
5120Wh
Charging Voltage:
56V
Discharging Cutoff Voltage:
44.8V
Maximum Charging Current:
100A
Continuous Charge Current:
100A
Maximum Discharge Current:
100A
Battery Dimensions:
17.7"L x 17.8"W x 5.2"H
Battery Weight:
99.2 lb

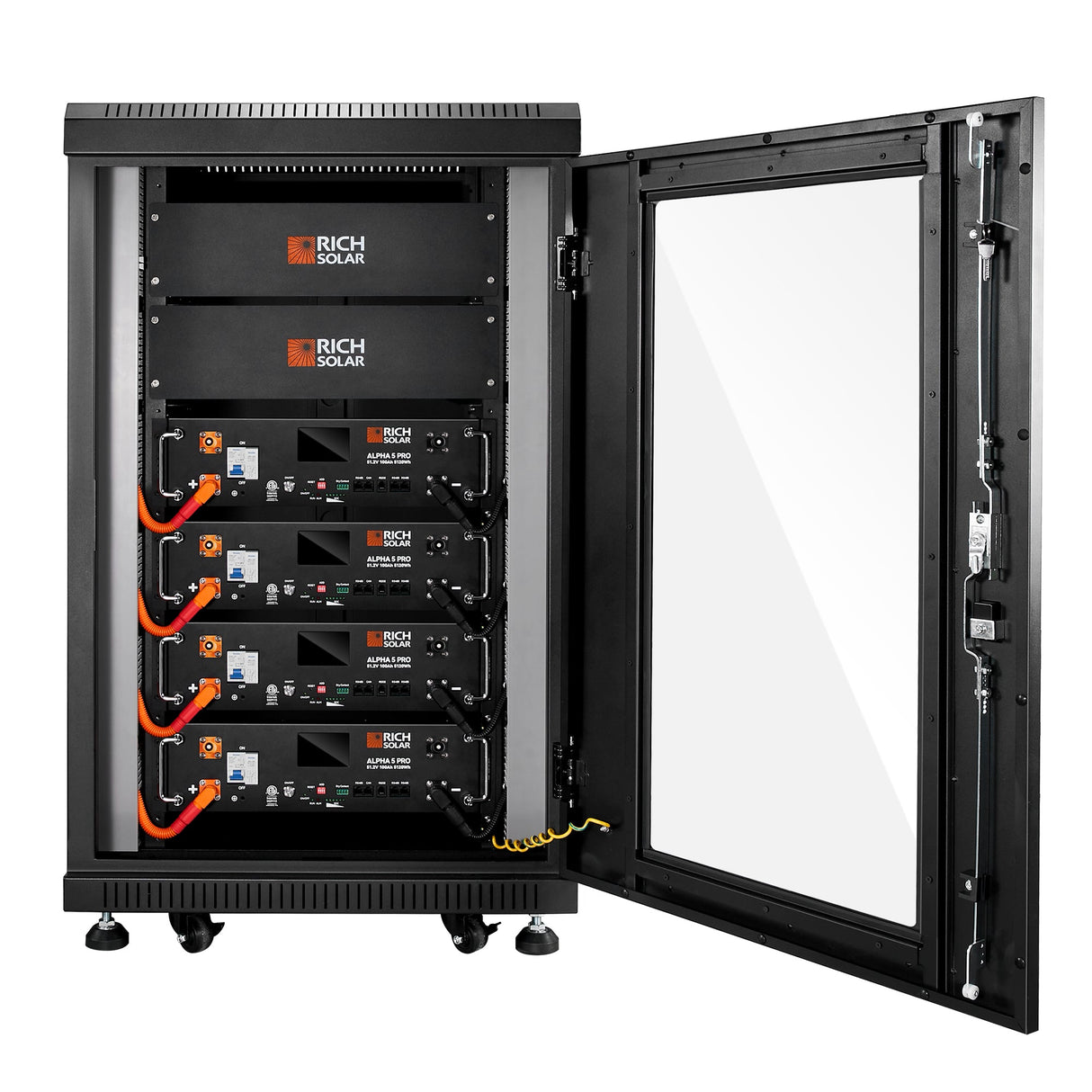

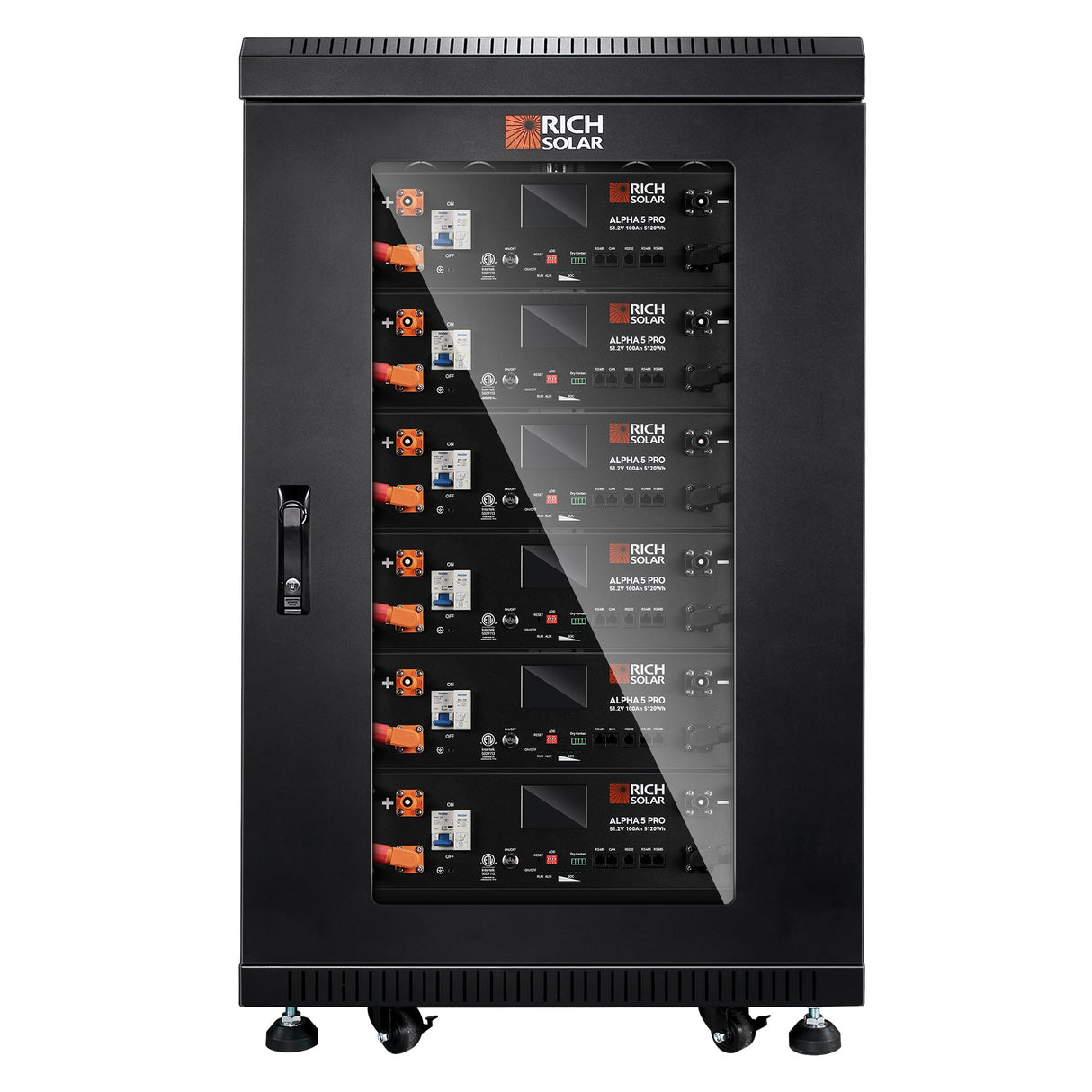

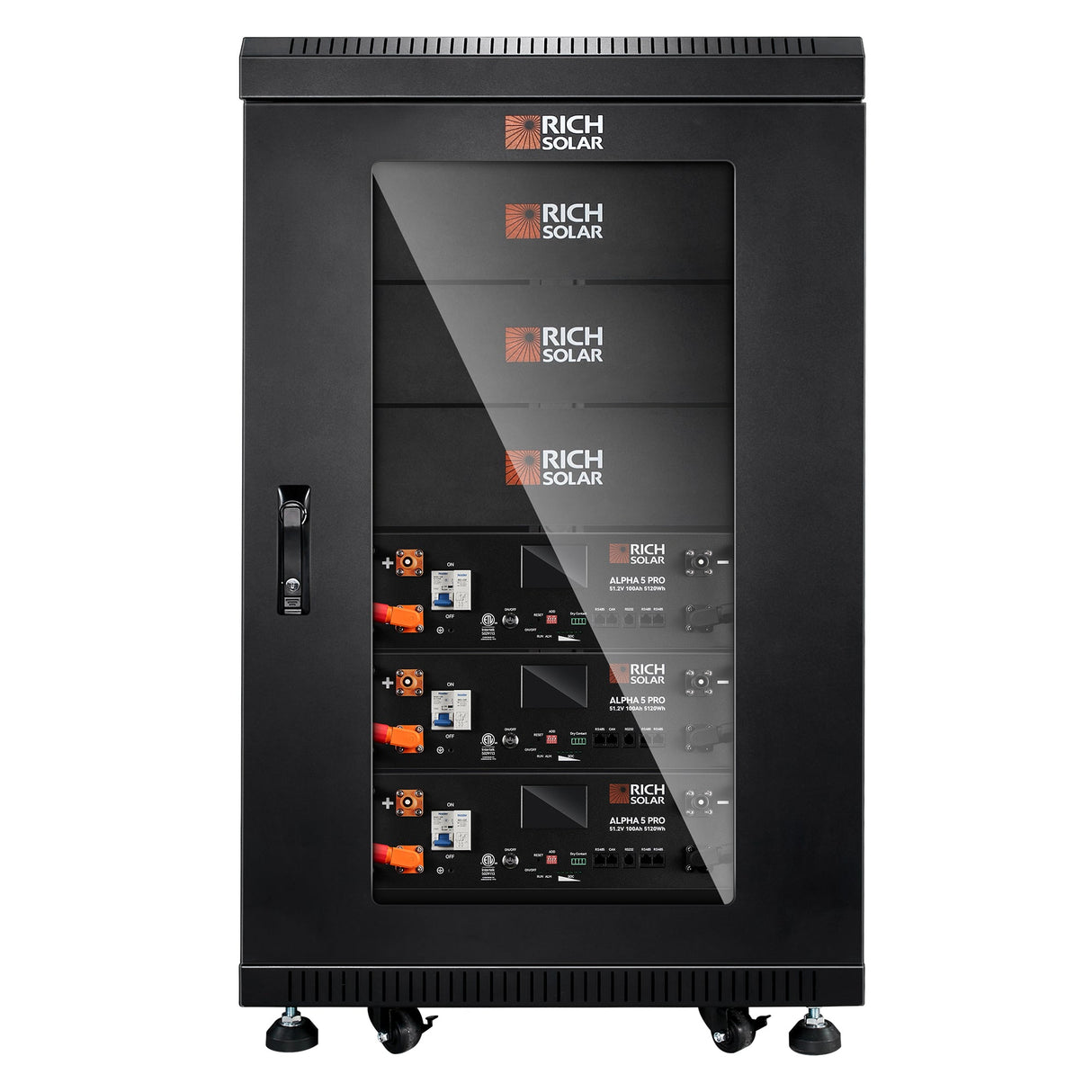

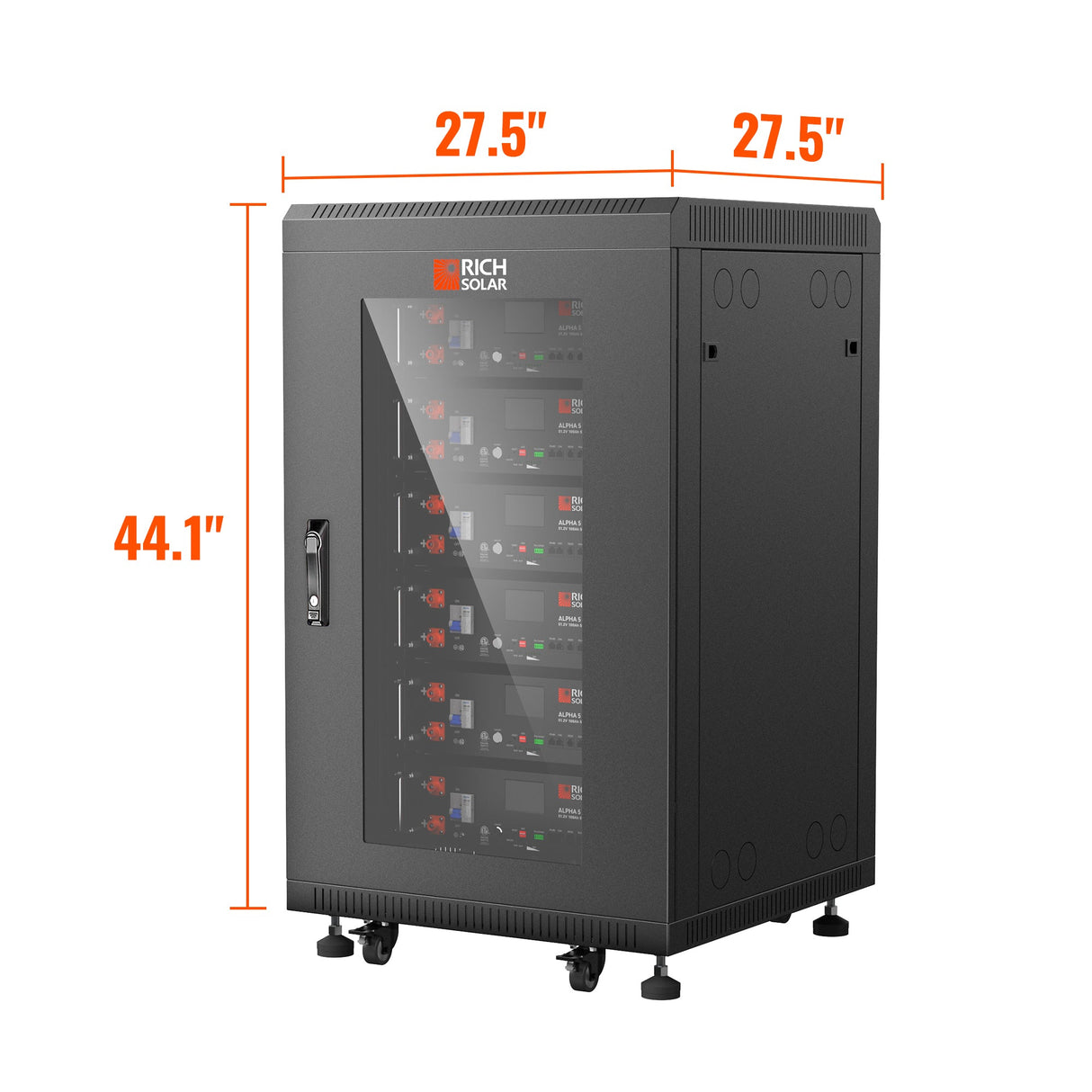

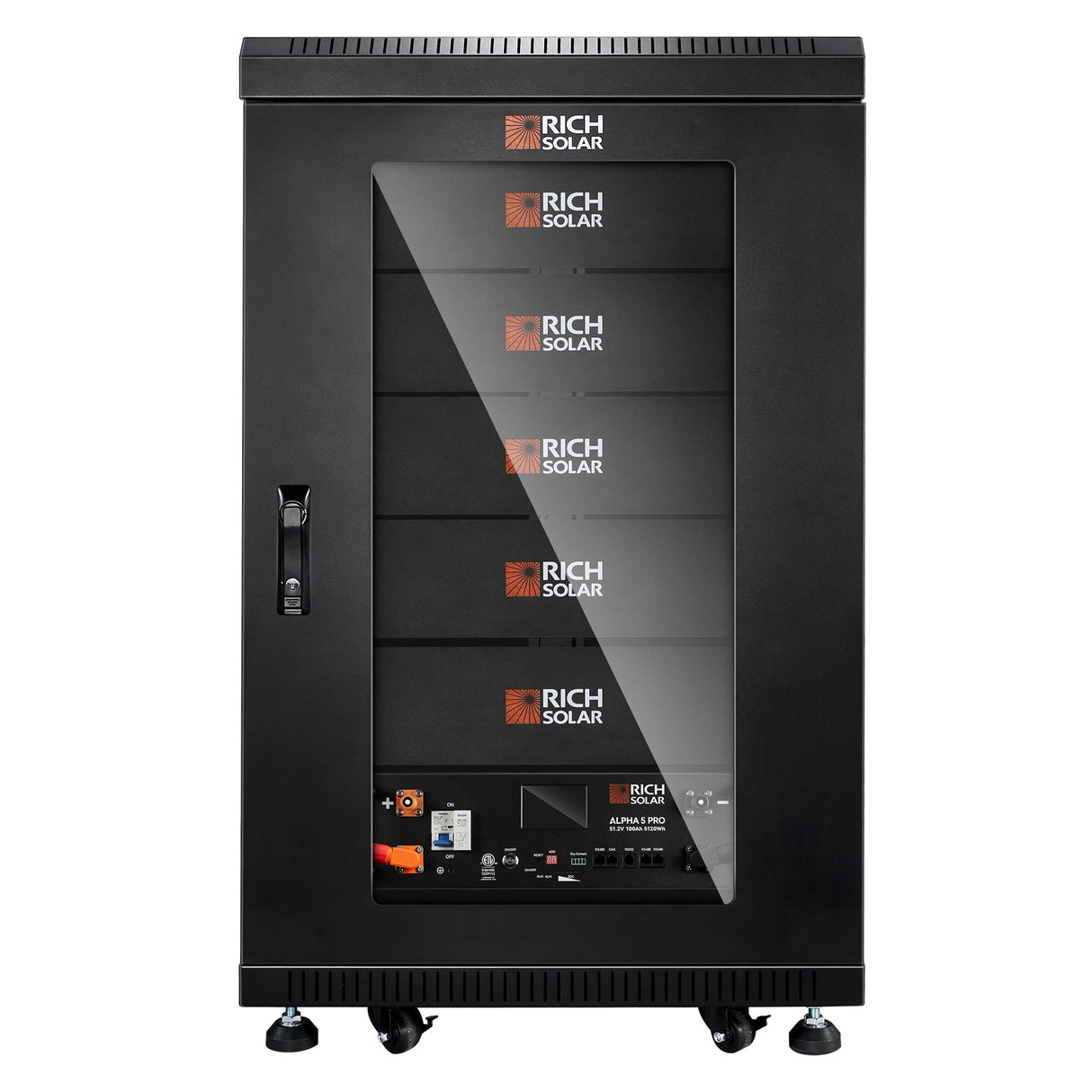

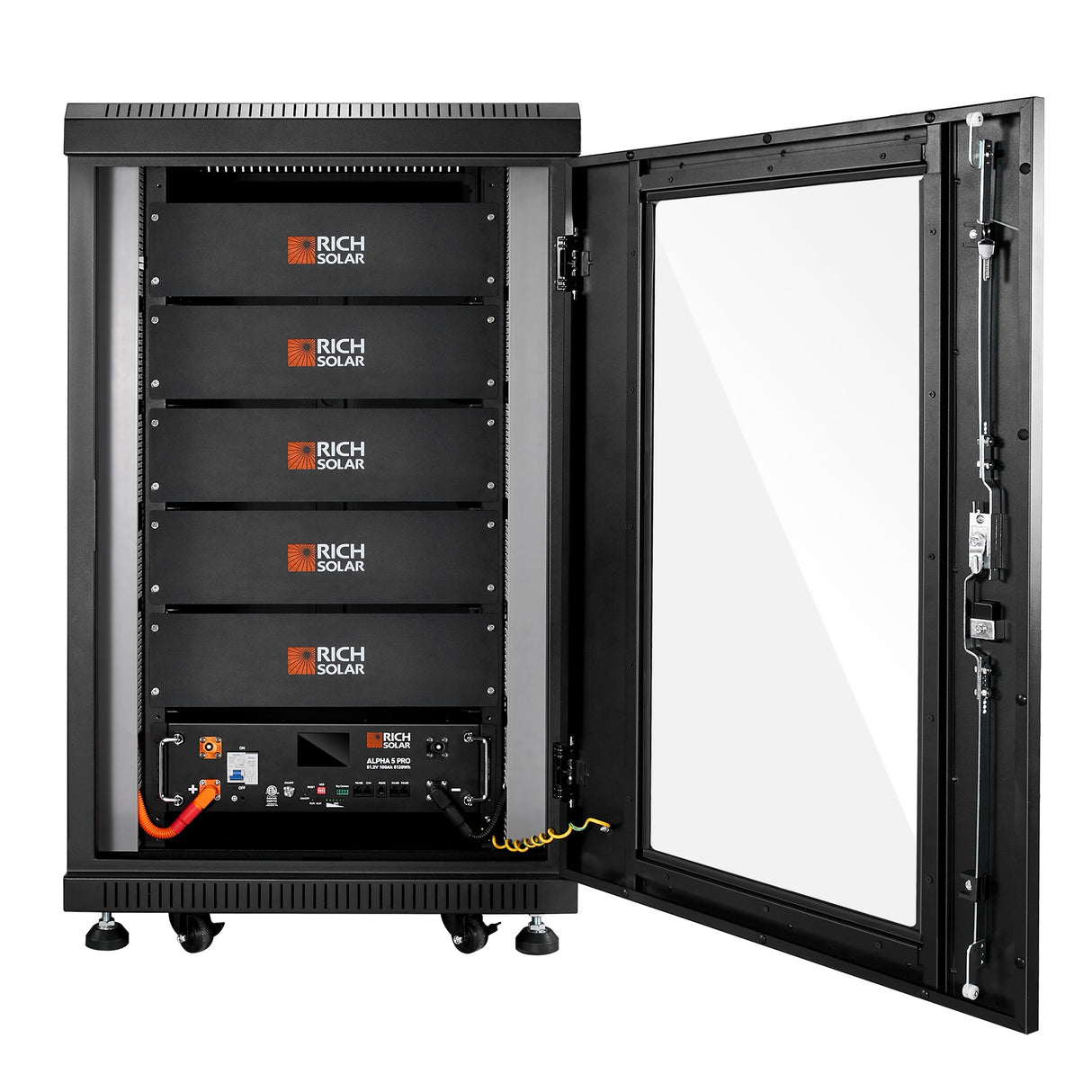

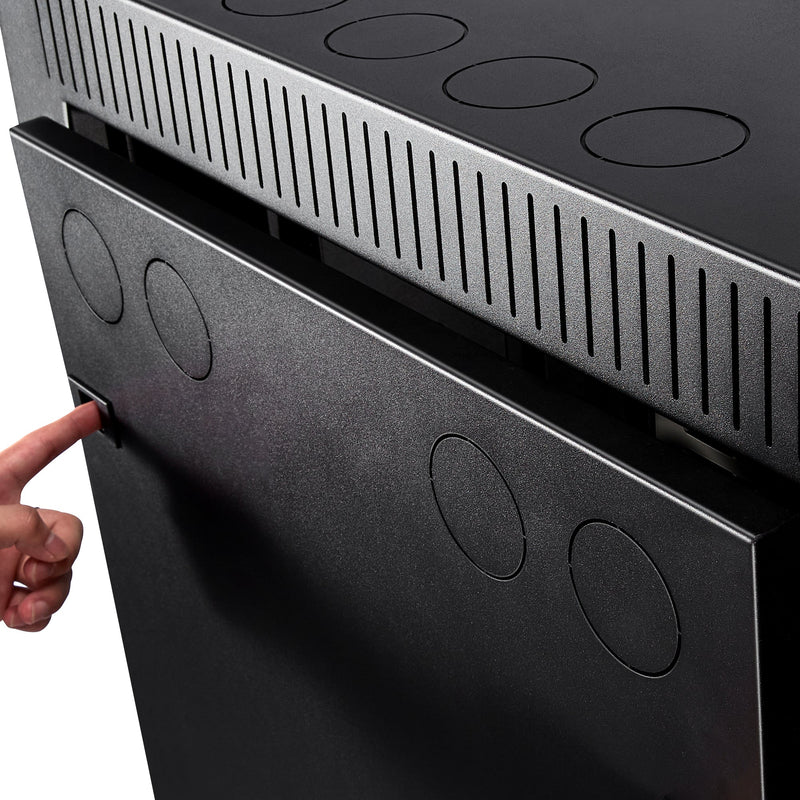

Server Rack Dimensions:
27.5"L x 27.5"W x 44.1"H (Doesn't include the height of wheels)
Server Rack Weight:
224.9 lb
Operation Voltage:
43.2~58.4V
Maximum Charging Current:
100A
Maximum Discharging Current:
100A
Maximum Charge Voltage (CC/CV):
57.6V
Overcharge Protection Voltage (Battery):
58.4V
Overcharge Protection Release Voltage (Battery):
54V
Over Discharge Protection Voltage (Battery):
43.2V
Over Discharge Protection Release Voltage (Battery):
47.2V
Over Discharge Primary Charge Overcurrent Protection Value:
110A
First Stage Charge Over Current Delay:
1s
Primary Discharge Overcurrent Protection Value:
110A
Primary Discharge Overcurrent Protection Delay:
1s
Secondary Discharge Overcurrent Protection Value:
150A
Secondary Discharge Overcurrent Protection Delay:
500ms
Charge Temperature:
0.1C@(32℉~50℉); 0.2C@(50℉~68℉); 0.5C@(68℉~77℉); 1C@(77℉~113℉); 0.3C@(113℉~131℉); 0.2C@(131℉~140℉);
Discharge Temperature:
-4℉~149℉ (The surface temperature of the cell should not exceed 149℉)
Storage Temperature:
-4℉~113℉ 90%RH Max(1 month); 32℉~95℉ 90RH Max(6 Months)
Recommended Storage Temperature:
32℉~113℉ 85%RH Max (The battery life would be reduced if the battery is stored at a high temperature)
Certification:
UL1973，UL9540A, FCC, UN38.3, MSDS
Max. Expansion:
15 pcs in parallel

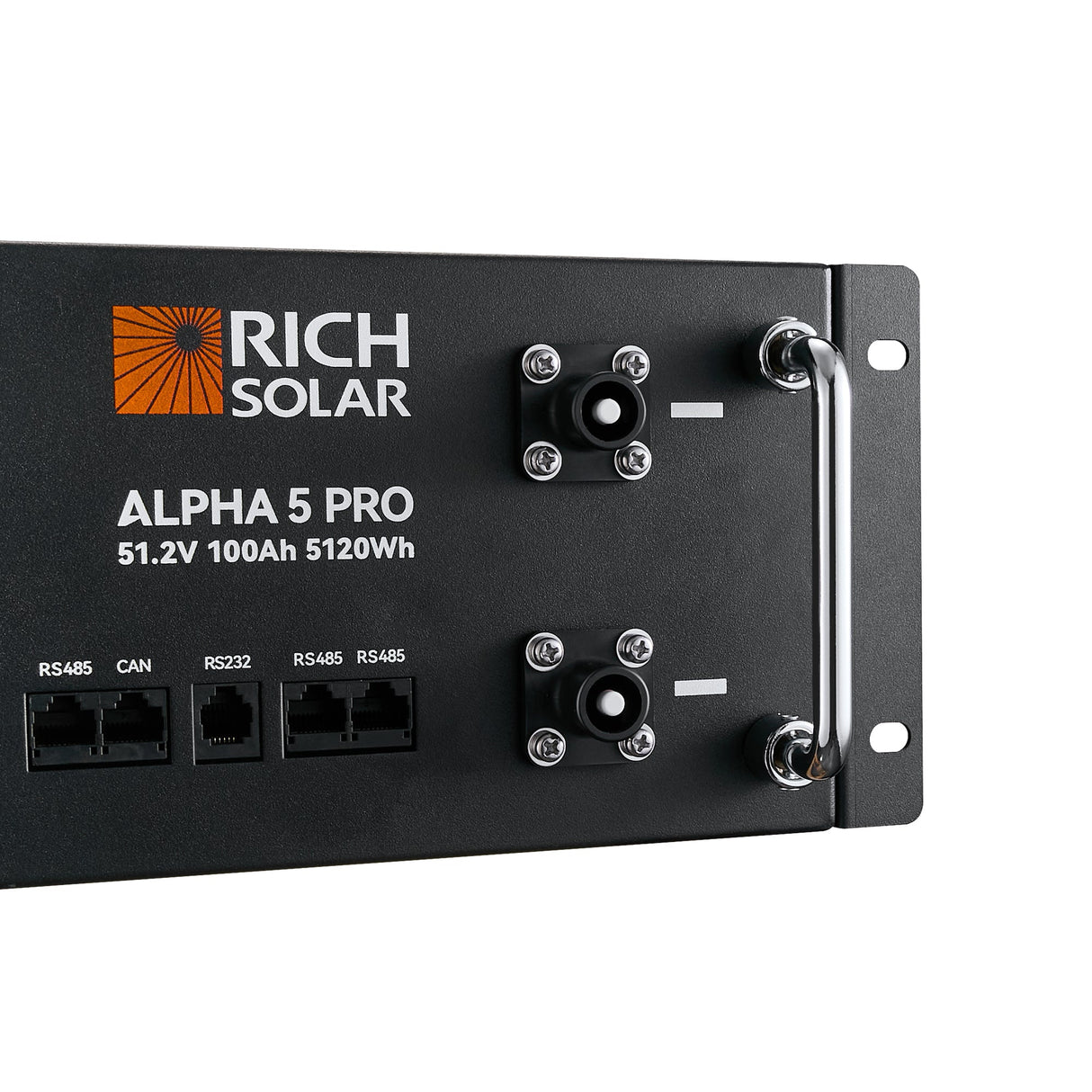

Communication Ports: RS485/RS232/CAN
Warranty: 10 Years Manufacturer Defect
