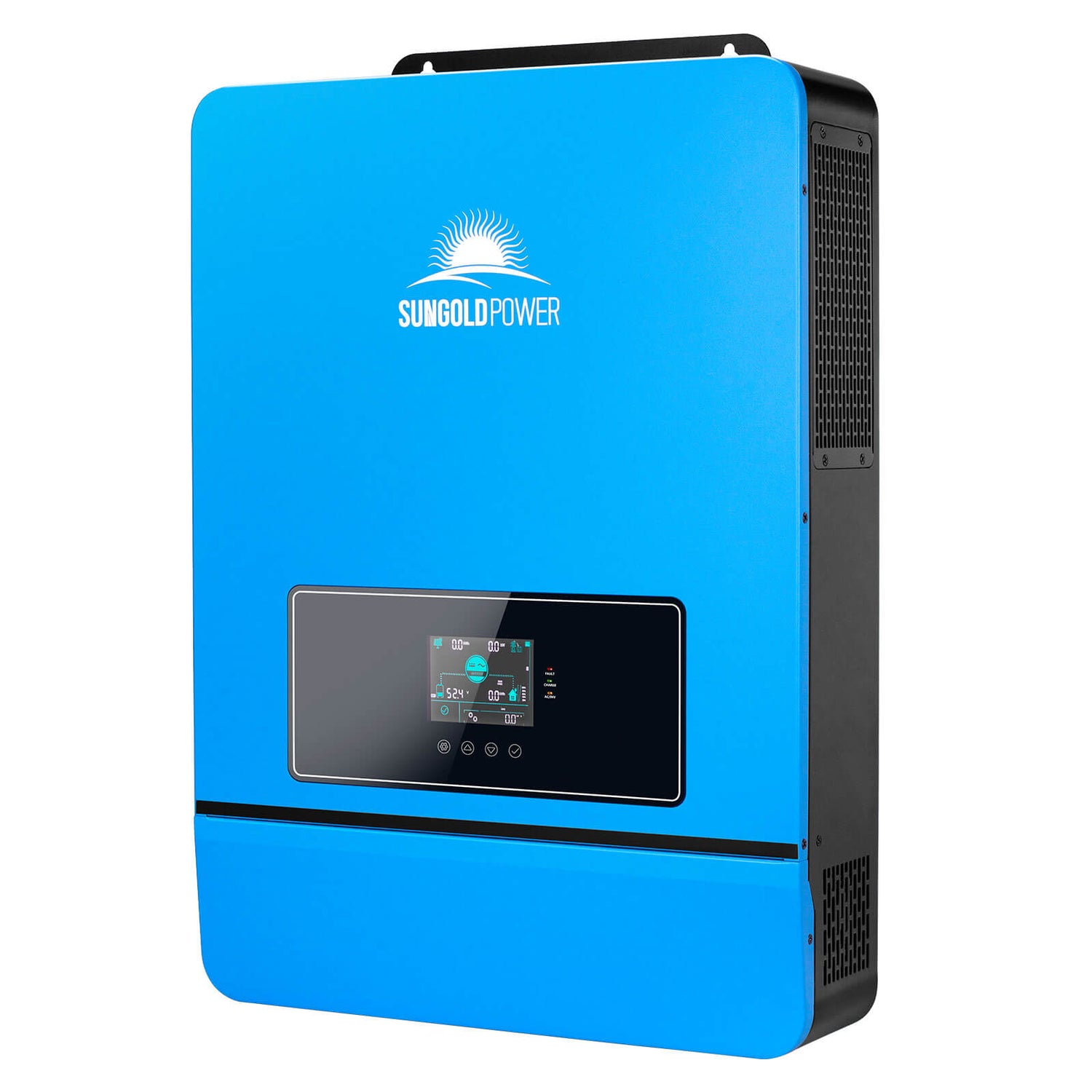

10KW 48V Split Phase Solar Inverter
Highlight:

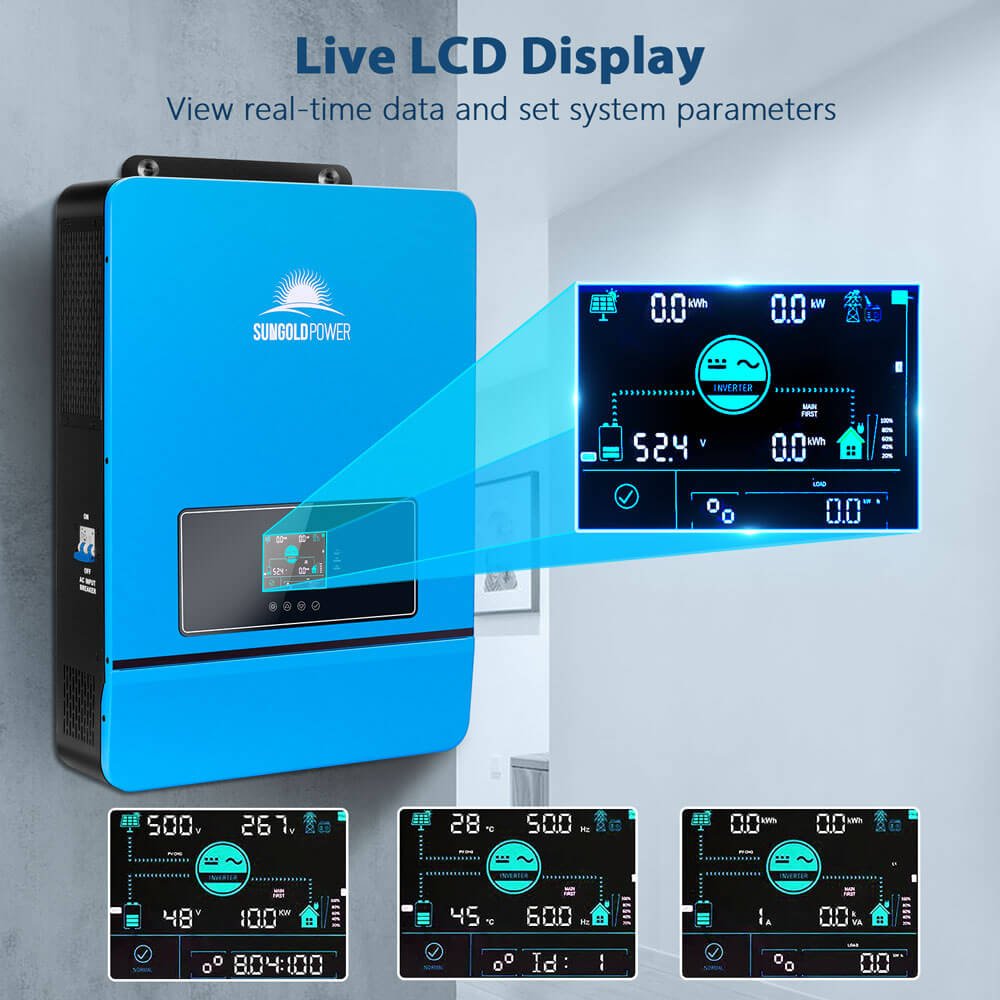

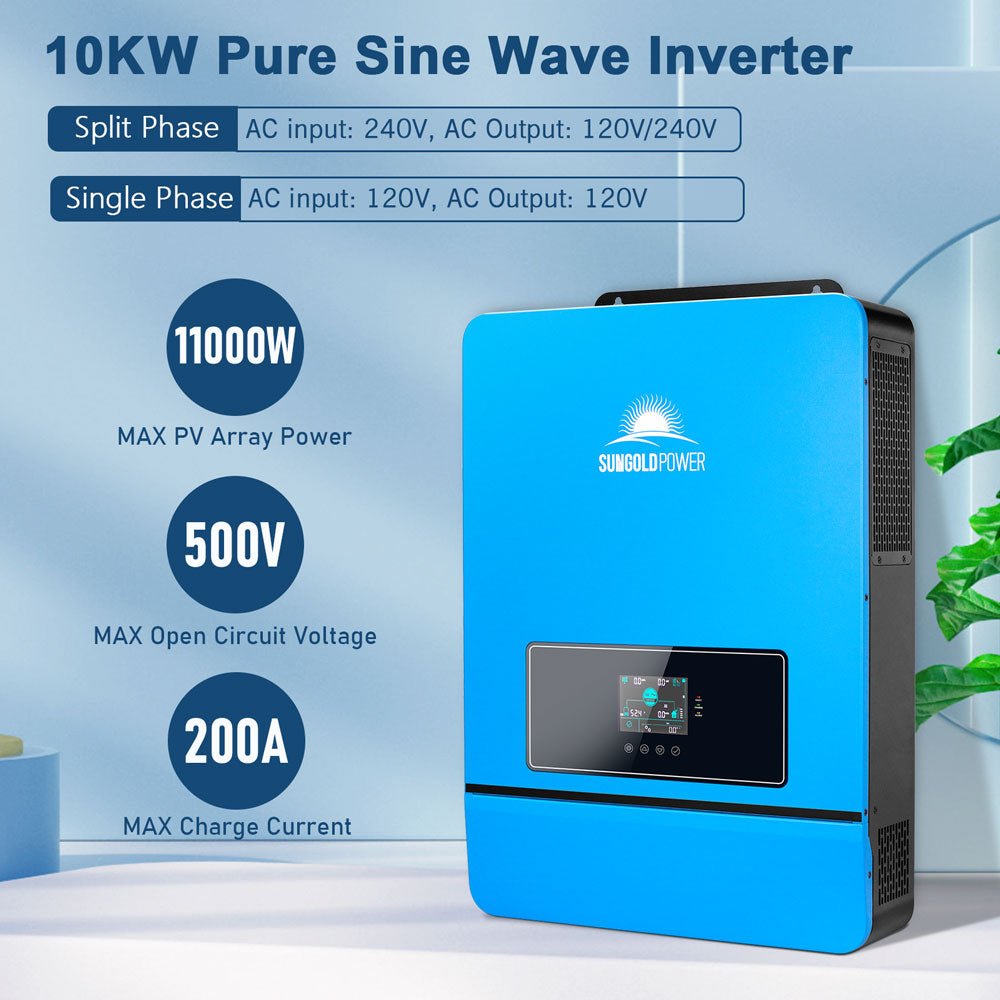

- ★ All-in-one: 10KW Pure Sine Wave Solar Inverter Combined with Max 200A battery charging, 2 MPPT Solar controller inbuilt w/ Max. Voltage of Open Circuit: 500VDC at each input. Run Split phase (120V/240V) or Single phase (120v) output. Wifi module is included for adjusting and monitoring via the mobile app. Certified UL 1741 by ETL for Off Grid Solar System

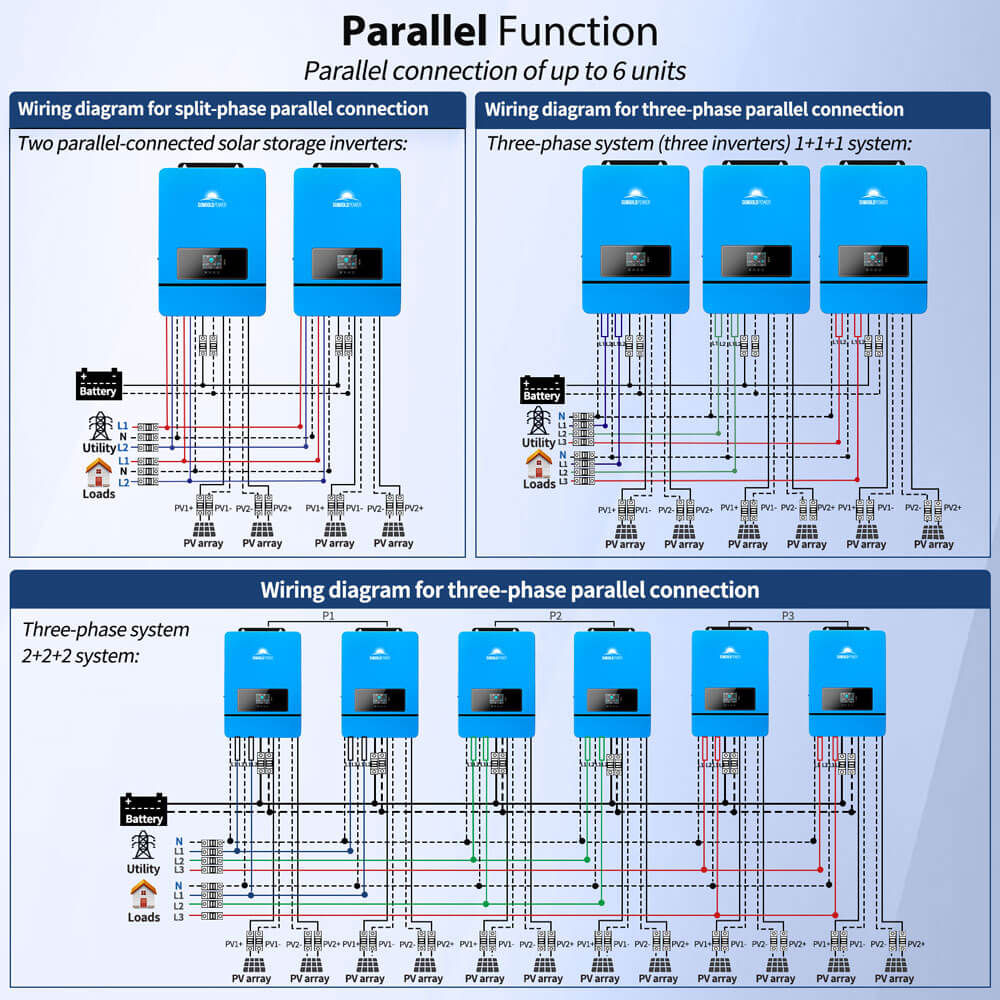

- ★ Parallel Kit: Parallel up to 6 units for 60kW power output for 120V Single Phase, 120V/240V Split Phase or 208V 3-Phase Support, which also increases the inverter power and surge capacity.
- ★ Stable AC output and Smart Protection: Rated Output Power: 10000W, Max Peak Power: 20,000W, loaded motor capacity 6HP, PV input over-voltage/current protection, AC input over-voltage protection, Battery over-voltage protection, Over-load protection and so on.

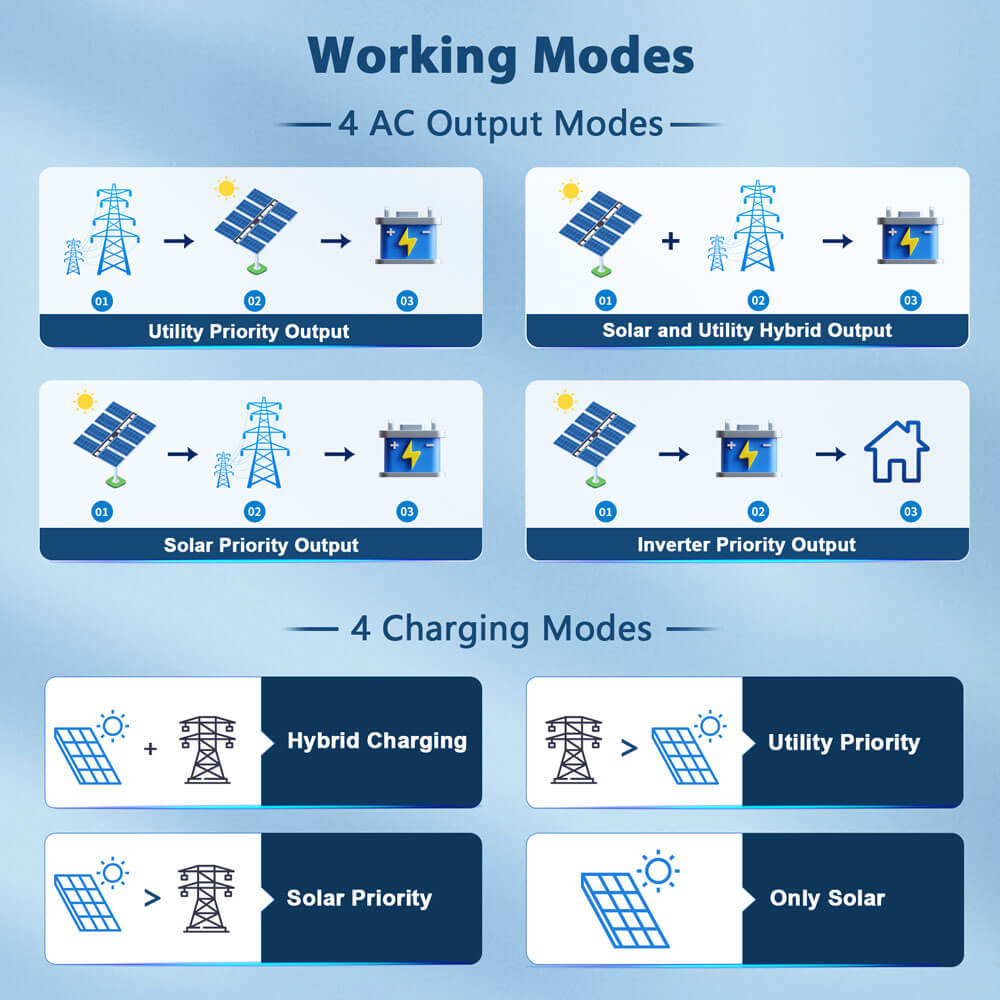

- ★ Four charging / Output modes: Charging modes include - Hybrid Charging / Utility Priority Charging / Solar Priority Charging / Solar-only Charging. AC Output modes include: Utility Priority / Solar + Utility Hybrid / Solar Priority / Inverter Priority. Schedule and adjust your system as your needs change.

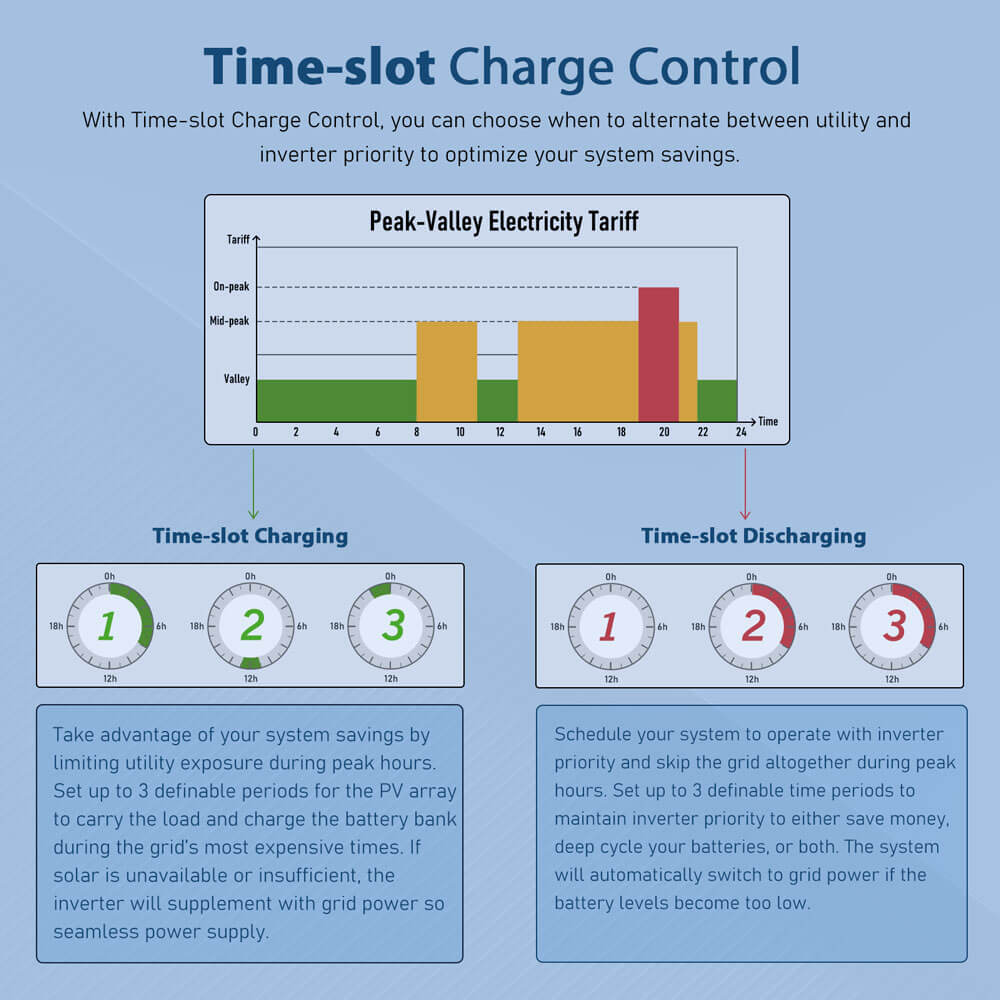

- ★ Time-slot charging/discharging function: This inverter is equipped with a time-slot charge/discharge function, which allows users to set different charging and discharging periods according to the local peak and valley tariffs.

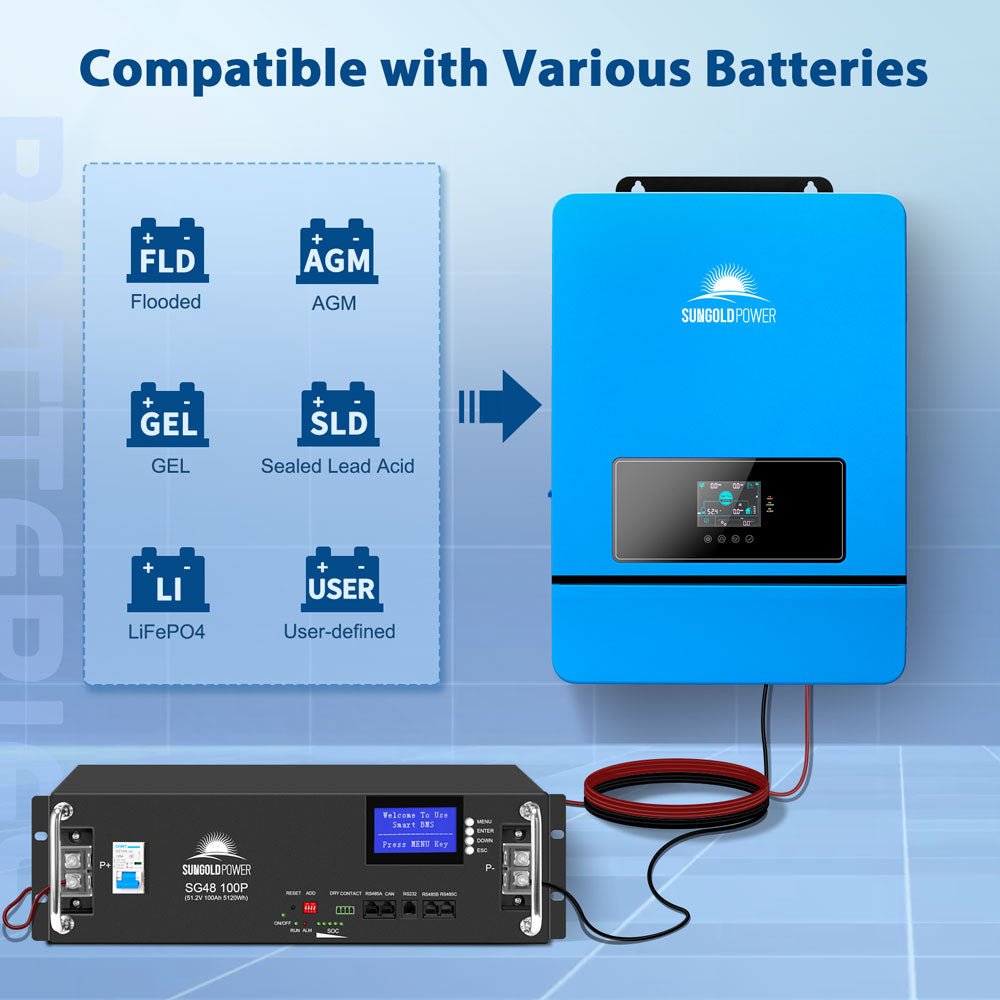

- ★ Battery types: Supports all 48V battery types including AGM/Sealed, Gel, Flooded, LiFePO4, batteries as well as a User Mode to work with all battery types. Supports battery-free activation from the grid or PV Panels if the battery is ever discharged too low. Supports CAN and RS485 communication with SunGoldPower batteries.
10KW 48V Split Phase Solar Inverter
Highlight:
- ★ All-in-one: 10KW Pure Sine Wave Solar Inverter Combined with Max 200A battery charging, 2 MPPT Solar controller inbuilt w/ Max. Voltage of Open Circuit: 500VDC at each input. Run Split phase (120V/240V) or Single phase (120v) output. Wifi module is included for adjusting and monitoring via the mobile app. Certified UL 1741 by ETL for Off Grid Solar System
- ★ Parallel Kit: Parallel up to 6 units for 60kW power output for 120V Single Phase, 120V/240V Split Phase or 208V 3-Phase Support, which also increases the inverter power and surge capacity.
- ★ Stable AC output and Smart Protection: Rated Output Power: 10000W, Max Peak Power: 20,000W, loaded motor capacity 6HP, PV input over-voltage/current protection, AC input over-voltage protection, Battery over-voltage protection, Over-load protection and so on.
- ★ Four charging / Output modes: Charging modes include - Hybrid Charging / Utility Priority Charging / Solar Priority Charging / Solar-only Charging. AC Output modes include: Utility Priority / Solar + Utility Hybrid / Solar Priority / Inverter Priority. Schedule and adjust your system as your needs change.
- ★ Time-slot charging/discharging function: This inverter is equipped with a time-slot charge/discharge function, which allows users to set different charging and discharging periods according to the local peak and valley tariffs.
- ★ Battery types: Supports all 48V battery types including AGM/Sealed, Gel, Flooded, LiFePO4, batteries as well as a User Mode to work with all battery types. Supports battery-free activation from the grid or PV Panels if the battery is ever discharged too low. Supports CAN and RS485 communication with SunGoldPower batteries.

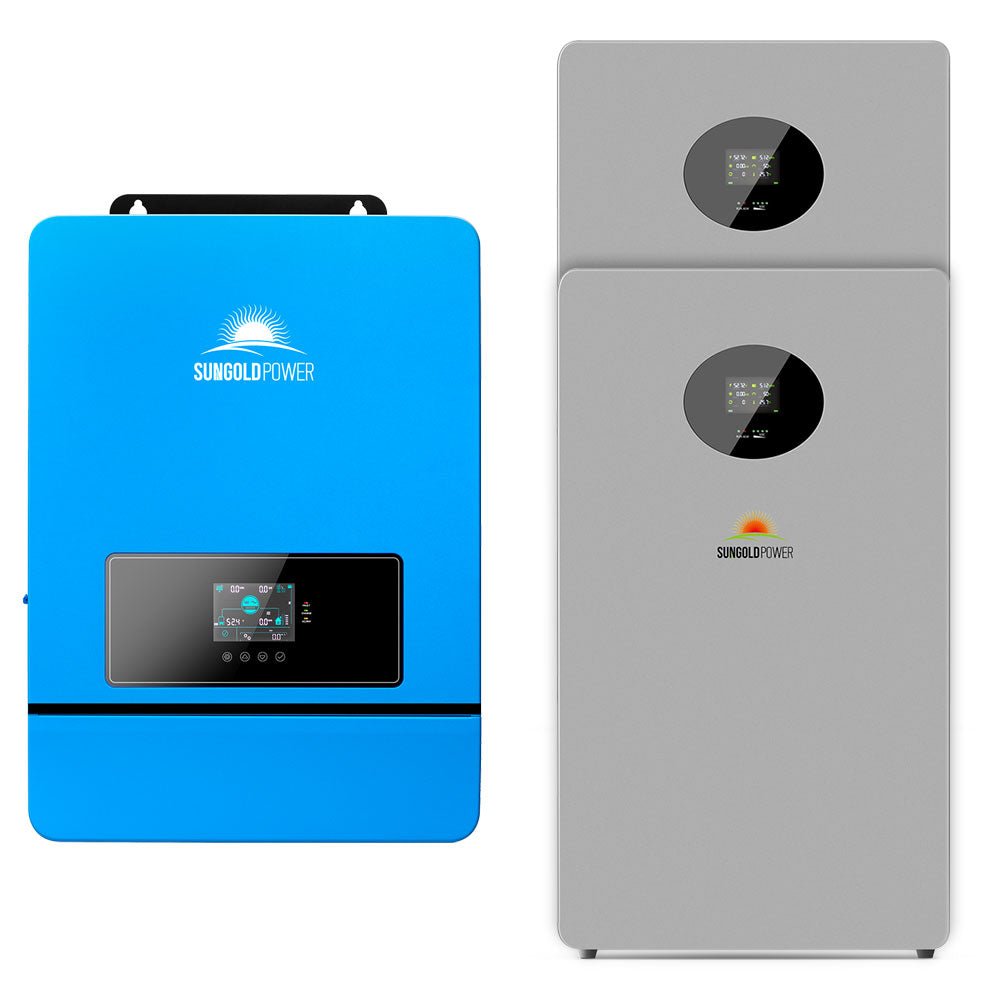

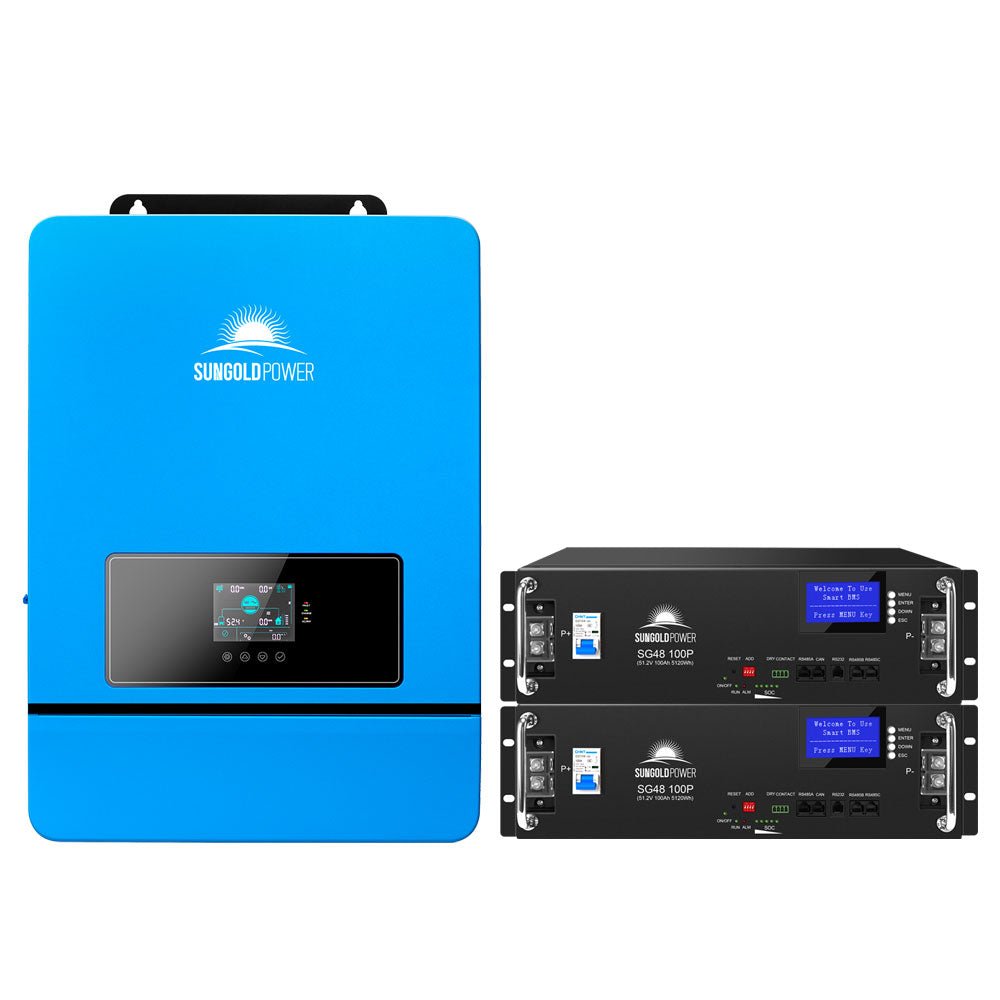

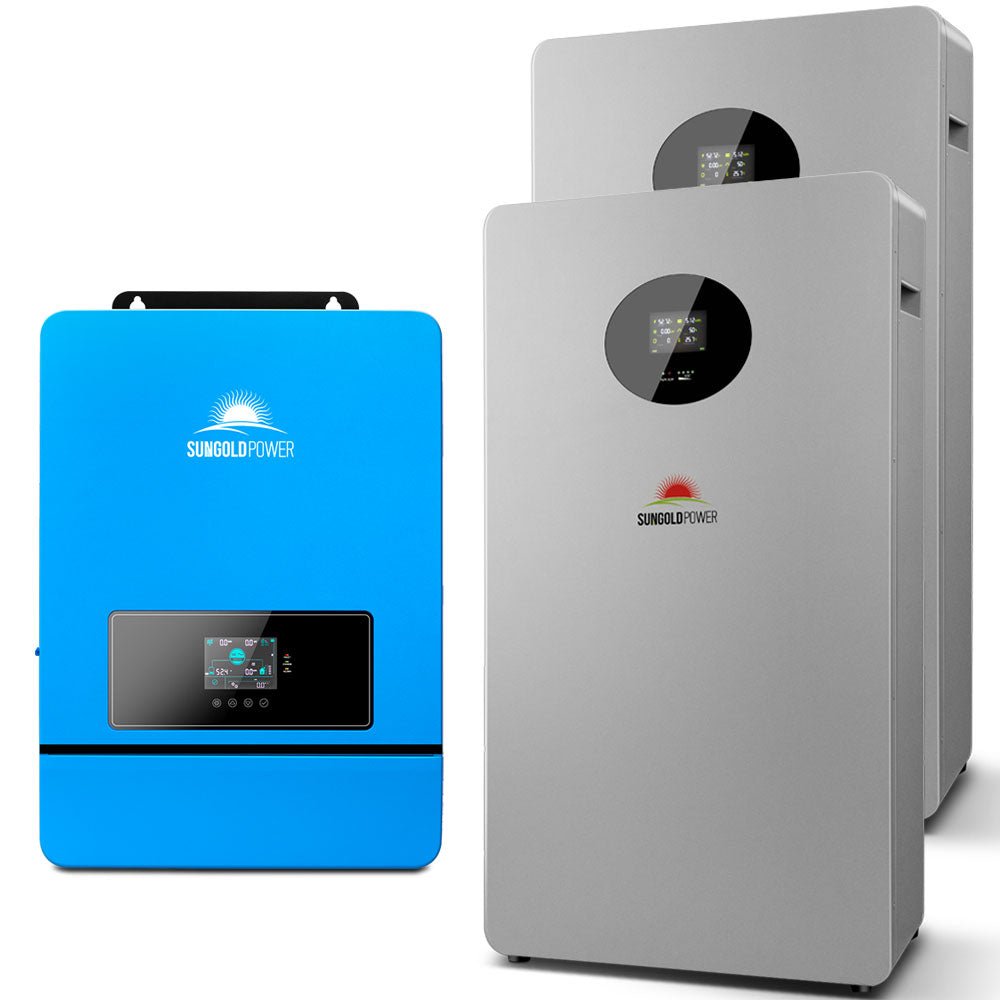

Battery Option
