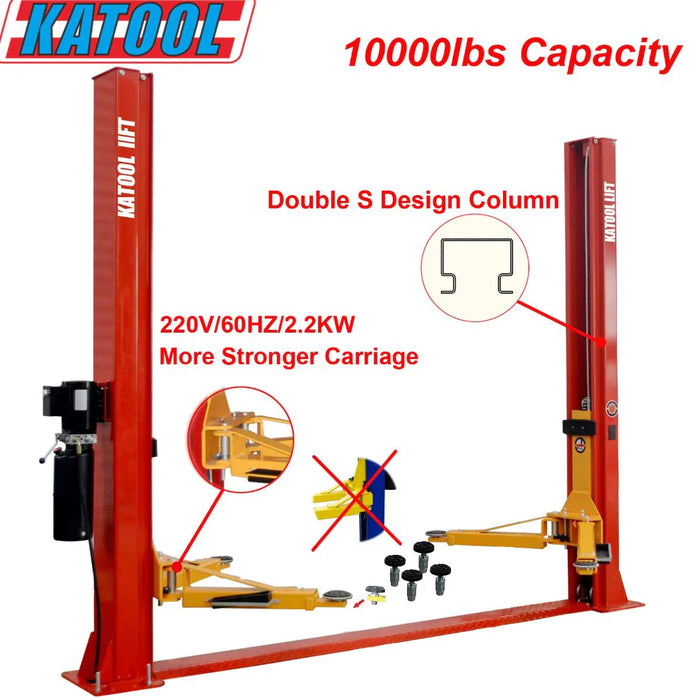

Boost Your Shop's Efficiency with the Katool KT-H100 Two Post Vehicle Lift!
The Katool KT-H100 is built for strength and reliability, offering an impressive 10,000 lbs lifting capacity—perfect for handling a wide range of vehicles in your auto repair shop. CE-certified and engineered with safety in mind, it includes dual safety releases, a sturdy base plate, and protective guardrails for dependable operation.
Key Features
High-Capacity Performance
Handles up to 10,000 lbs, making it suitable for everything from compact cars to light trucks.
Enhanced Safety
CE-approved and rigorously tested, featuring dual safety locks, a reinforced base plate, and protective guardrails for added peace of mind.
Flexible Vehicle Support
Adjustable arm extensions and customizable height settings allow for secure lifting of various vehicle types and sizes.
Smooth Hydraulic Operation
Equipped with dual chain-drive hydraulic cylinders for stable, efficient lifting performance.
Built to Last
A symmetric arm design paired with a rugged base plate ensures long-term durability and consistent use.
Customizable Power Options
Choose between 220V/60Hz/1PH or 110V/60Hz/1PH configurations to suit your shop’s power setup.
A Smart Investment in Safety and Efficiency
Order the Katool KT-H100 today and elevate your shop’s lifting capabilities!
⚠️ Installation Note: For optimal safety, ensure your concrete floor meets the minimum requirement of 5.9 inches thickness with a 3000 PSI rating before installation.
Features
-
10,000lbs Lifting Capacity: Handles a wide range of vehicles for workshop versatility.
-
CE-Certified with Safety Features: Dual safety releases, secure base plate design, and protective guardrails prioritize user safety.
-

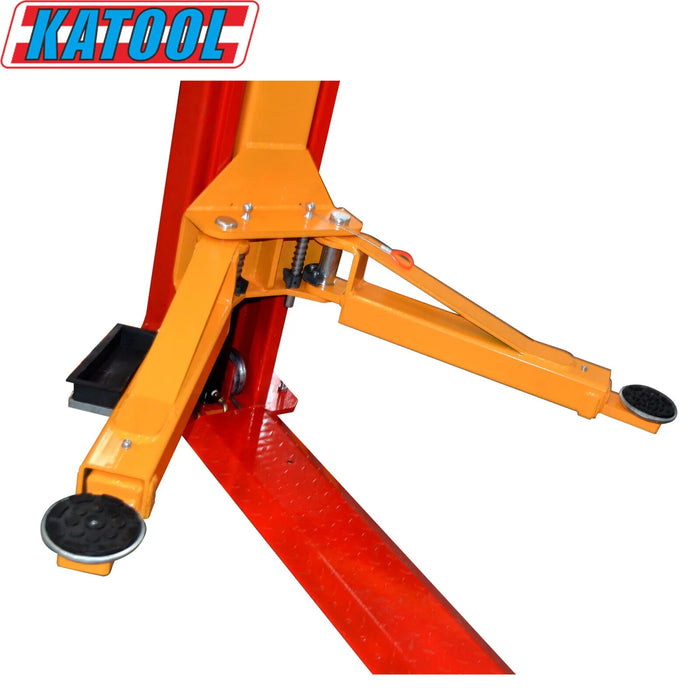

Adjustable Arm Extensions (+30mm & +120mm): Accommodates various vehicle types for wider applicability.
-
Multiple Height Settings: Offers flexibility for diverse lifting tasks.
-
Dual Hydraulic Chain-Drive Cylinders: Ensures smooth and efficient lifting operations.
-
Symmetric Arm Design & Reliable Base Plate: Provides long-lasting durability.
-
Optional Voltage Configurations (220V/60HZ/1PH or 110V/60HZ/1PH): Offers installation flexibility for your shop's electrical setup.
-
Tools Box Included: Provides convenient storage for essential tools.
12 Months All Parts Warranty

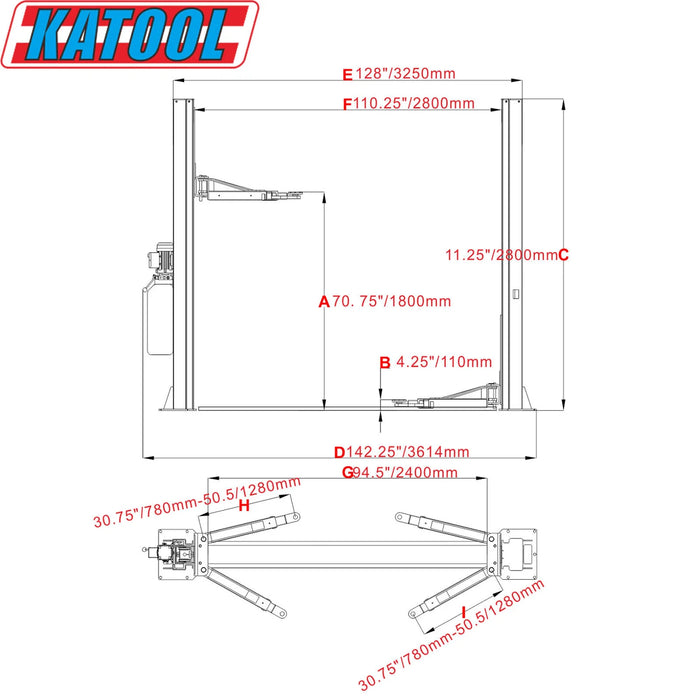

Specification
-
Lifting Capacity: 10,000lbs / 4500kg
-
Max. Lifting Height: 70.75" / 1800mm
-
Min. Height: 4.25" / 110mm
-
Overall Height: 110.25" / 2800mm
-
Overall Width: 142.25" / 3614mm
-
Outside Column Height: 128" / 3250mm
-
Inside Column Height: 110.25" / 2800mm
-
Drive-Thru Clearance: 94.5" / 2400mm
-
Front Arm Reach (Min): 30.75" / 780mm (2 stages)
-
Front Arm Reach (Max): 50.5" / 1280mm (2 stages)
-
Rear Arm Reach (Min): 30.75" / 780mm (2 stages)
-
Rear Arm Reach (Max): 50.5" / 1280mm (2 stages)
-
Motor: 220VAC/60HZ/1PH/2.2KW
