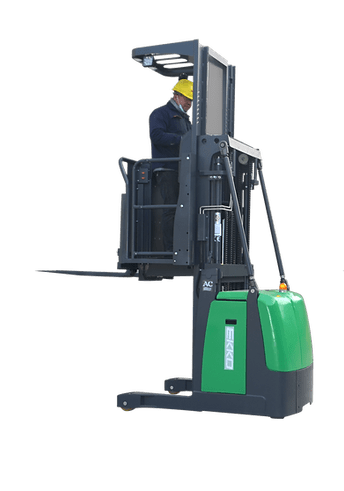

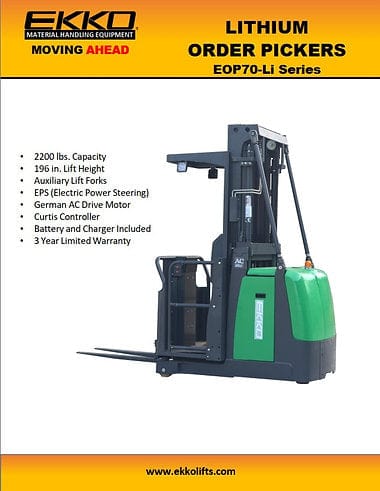

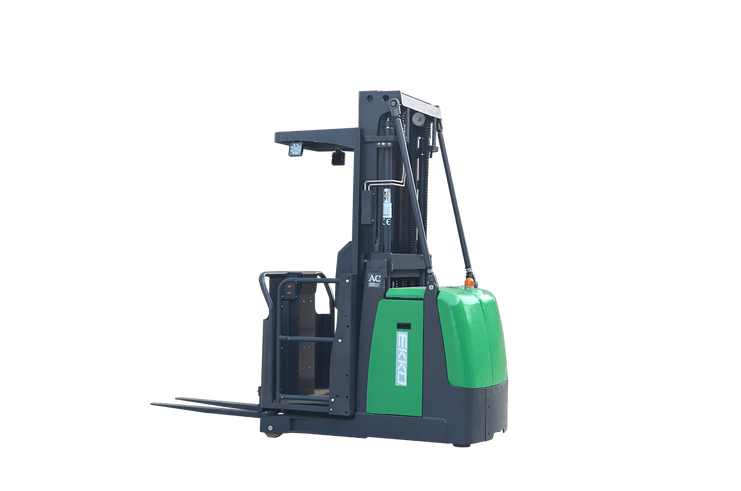

Enhanced Efficiency and Eco-Friendly Operation: EKKO EOP70-LI Electric Order Picker
The EKKO EOP70-LI Electric Order Picker is specifically designed to streamline picking tasks in warehouses, storage facilities, manufacturing floors, and similar environments, while offering potential environmental benefits. Here's why the EOP70-LI is a strong choice for efficient and eco-conscious order fulfillment:
Additional Features:
|
Model |
|
EOP70-LI |
|
Power unit |
|
Lithium |
|
Operation |
|
Stand on |
|
Rated loading capacity |
Q (lbs) |
2200 |
|
Load centre |
c (Inch) |
19.68 |
|
Between fork backrest & front wheel |
x (Inch) |
7.56 |
|
Wheelbase |
y (Inch) |
53.46 |
|
Serviceweightwithbattery |
lbs |
6860 |
|
Wheels type |
|
PU |
|
Driving wheel size |
Φ×w(Inch) |
Φ9.84×5 |
|
Bearing wheel size |
Φ×w(Inch) |
Φ5.9×3.23 |
|
Wheels, number front/rear (x = driven) |
|
1，/2 |
|
Track width |
b11 (Inch) |
37.8 |
|
Lowered mast height |
h1 (Inch) |
93.11 |
|
Lifting height |
h4 (Inch) |
196" |
|
Extended mast height |
h4 (Inch) |
285 |
|
Height of overhead guard(cabin) |
h6 (Inch) |
89.48 |
|
height of seat/stand-on platform |
h7 (Inch) |
10.67 |
|
Additional lift height |
h9 (Inch) |
30.71 |
|
total lift height |
h10 (Inch) |
227 |
|
Platform lifting height |
h12 (Inch) |
206.873 |
|
Lowered fork height |
h13 (Inch) |
1.97 |
|
Picking height |
h15 Inch) |
258.01 |
|
Overall length |
l1 (Inch) |
111.41 |
|
Body Length |
l2 (Inch) |
69.29 |
|
Overall width |
b1/ b2 (Inch) |
39.37/145.28 |
|
Fork Size |
s/e/l (Inch) |
1.37/3.93/42.13 |
|
Width of fork fixing frame |
b3 (Inch) |
35.83 |
|
outside fork width |
b5 (Inch) |
34.33 |
|
Min. Ground clearance |
m2 (Inch) |
1.97 |
|
Aisle width for pallets 39.37*47.24 crossways |
Ast (Inch) |
122.24 |
|
Aisle width for pallets 31.5*47.24 lengthways |
Ast (Inch) |
126.77 |
|
Turing Radius |
Wa (Inch) |
61.81 |
|
Travel speed,laden/unladen |
(km/h) |
8 |
|
Lifting speed, with/without load(cabin) |
(mm/s) |
n/a |
|
Lifting speed, with/without load(Fork) |
(mm/s) |
n/a |
|
Lowering speed, with/without load(cabin) |
(mm/s) |
n/a |
|
Lowering speed, with/without load(Fork) |
(mm/s) |
n/a |
|
Climbing ability, with/without load |
(%) |
3/6 |
|
Brake Type |
|
Electromagnetic brake |
|
Drive Motor |
(kW) |
3 |
|
Lift Motor |
(kW) |
6 |
|
Battey, DIN 43531/35/36 A,B,C,no |
|
no |
|
Battery voltage/rate capacity |
(V/Ah) |
24/350 Lithium |
|
Type of drive control |
|
AC |
|
Noise level |
(dB(A)) |
≤75 |
