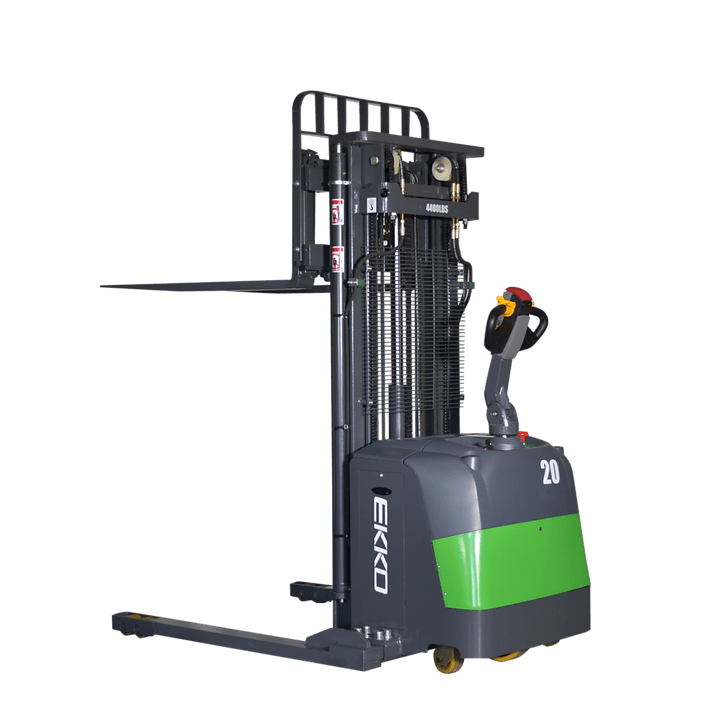

The EKKO EB20CS-189Li Lithium Electric Straddle Stacker is a versatile, high-performance solution for material handling needs. Combining the functionalities of a forklift, reach truck, and walkie stacker, this stacker is ideal for loading and unloading trucks, managing stockrooms, manufacturing floors, and warehouses. With its exceptional 4,400 lb capacity and a raised height of 189" (15.75 ft), this equipment delivers unmatched efficiency and reliability.
Key Features
-
Load Capacity: 4,400 lbs
-
Maximum Lifting Height: 189" (15.75 ft)
-
Side Shift: Included for precise load positioning
-
Adjustable Fork Width: 8.7" 32.1"
-
Adjustable Leg Width: 39.8" 55.5"
-
Triple Mast: Offers a compact footprint with high reach
-
Fork Length: 45.3"
-
Motors: 24V AC Drive Motor and Lift Motor
-
Battery: 24V/150Ah Lithium with 24V/50A Charger Included
-
Robust Construction: Steel frame with robotic welding for durability
-
Polyurethane Wheels: For smooth and quiet operation
-

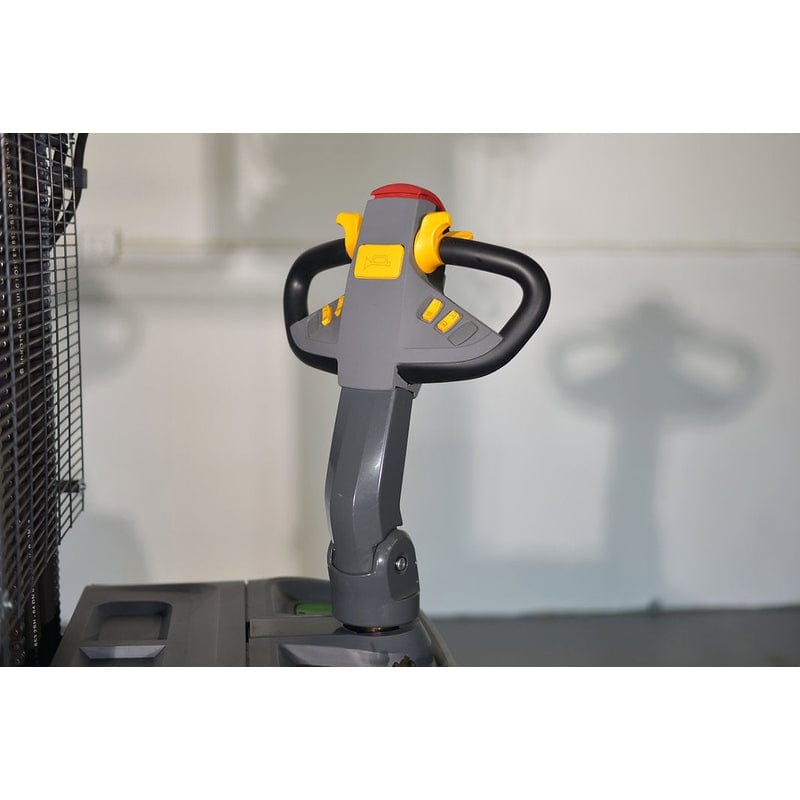

Ergonomic Handle and Controls: Designed for operator comfort and ease of use
Specifications
| Model: |
EB20CS-189Li |
| Load Capacity: |
4,400 lbs |
| Maximum Lifting Height: |
189" |
| Fork Length: |
45.3" |
| Adjustable Fork Width: |
8.7" 32.1" |
| Adjustable Leg Width: |
39.8" 55.5" |
| Turning Radius: |
65" |
| Minimum Ground Clearance: |
1.2" |
| Extended Mast Height: |
217.7" |
| Lowered Mast Height: |
83.1" |
| Battery: |
24V/150Ah Lithium |
| Charger: |
24V/50A |
| Lifting Motor: |
3,000W |
| Driving Motor: |
1,500W |
| Service Weight: |
3,000 lbs |
Why Choose the EKKO EB20CS-189Li?
The EKKO EB20CS-189Li is engineered for demanding tasks, offering a combination of power, precision, and durability. Its triple mast design, ergonomic features, and lithium battery technology make it a standout choice for handling materials with efficiency and reliability in any workspace.
