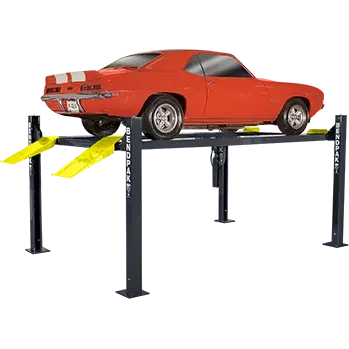

BendPak HD-9ST 9,000 lb. 4 Post Lift
9,000-lb. Capacity / Four-Post Lift / Narrow Width
4 Post Car Lift - This narrow-width, 9,000-lb. HD-9ST 4-post lift offers the same power and safety features of the HD-9, but in a smaller package.
A Slim, Safe and Certified Lift

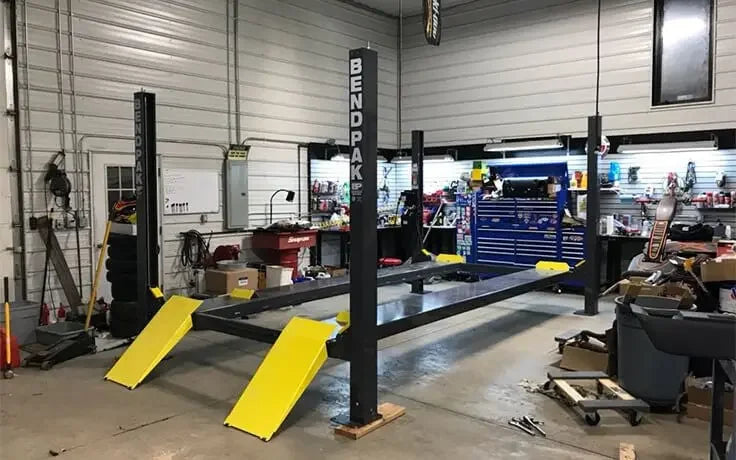

Some garages are just a bit too cozy for a standard-width four-post lift. The trick is to find a smaller-footprint lift that won’t sacrifice functionality. The HD-9ST is perfect for small garages and spaces that are already filled to near-capacity. Its narrow width is designed for spaces and service bays that need to fit more lift in less space.
A slim lift is a smart choice for owners more compact vehicles. Because the HD-9ST features an open center, it doubles as both narrow parking lift and maintenance lift. This makes it the ideal four-post lift for wrenchers with a limited amount of space. In addition to the narrow design, the columns are only 88” high, so it’s low-profile too. The runways raise to a max height of 75”, so the HD-9ST fits easily in low ceilings yet doesn’t sacrifice lifting height. Ample clearance underneath ensures that full-grown men and women over 6-feet tall will have no problem performing oil changes, comfortably adjusting transmission jacks and removing and replacing exhaust systems. Other lifts may sacrifice lifting height as they reduce their overall widths to accommodate smaller vehicles, but not this one. This is one four-post lift that’s every bit as comfortable to use as its standard-width and super-wide sister models in the HD-9 series.
The HD-9ST may be smaller, but it’s not weaker than other designs, nor is it a hobby lift. In fact, this car lift is fully ALI certified. It’s used every day in professional shops around the world, and many motorists prefer it to the standard-length HD-9 simply because it leaves more room in their garage for tools and equipment.
Product Features
- 9,000-lb. maximum lifting capacity
- CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
- Two different ramp lengths to choose from
- Narrow width for space efficiency
- Freestanding design

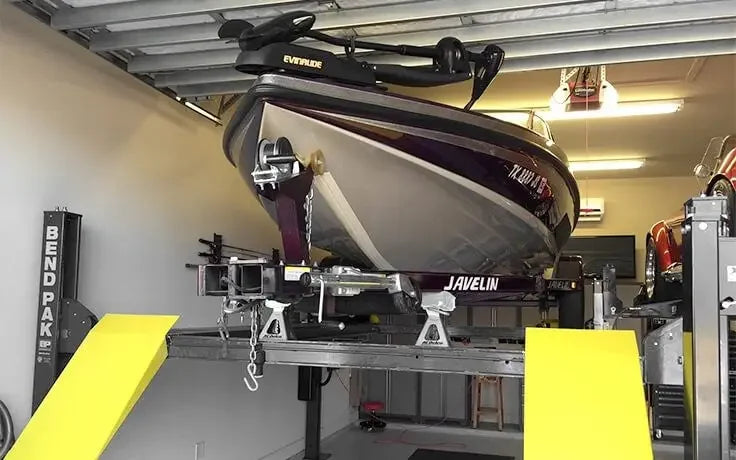

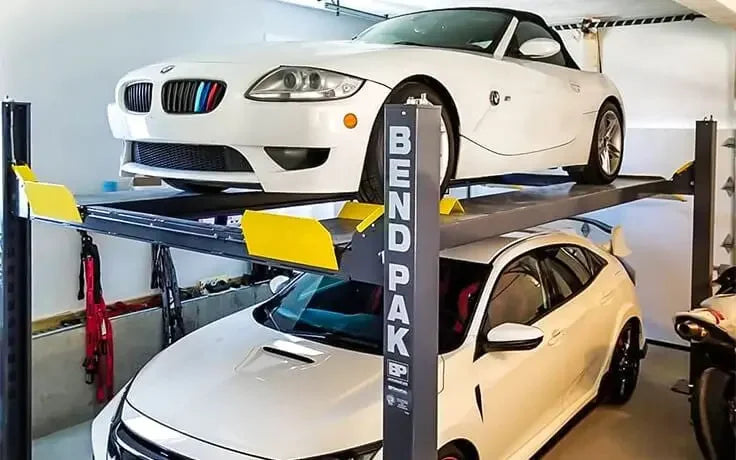

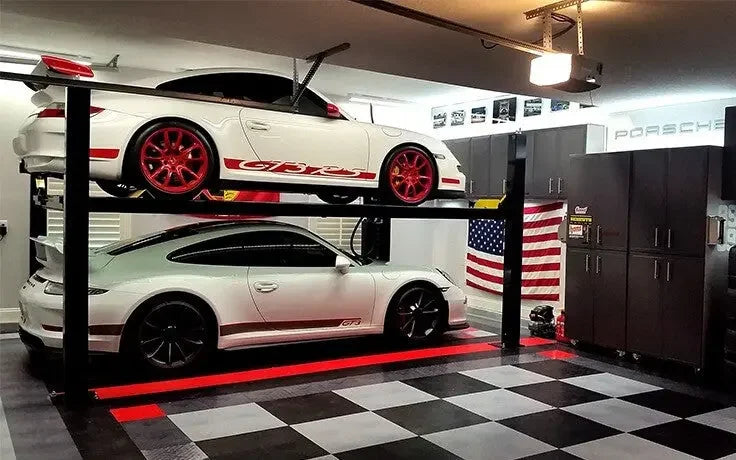

- Perfect for parking, storage and service
- Runways accommodate narrow and standard vehicles
- Runways include rail-kit for optional accessories
- Electric / hydraulic power system
- Single hydraulic cylinder mounted underneath runway

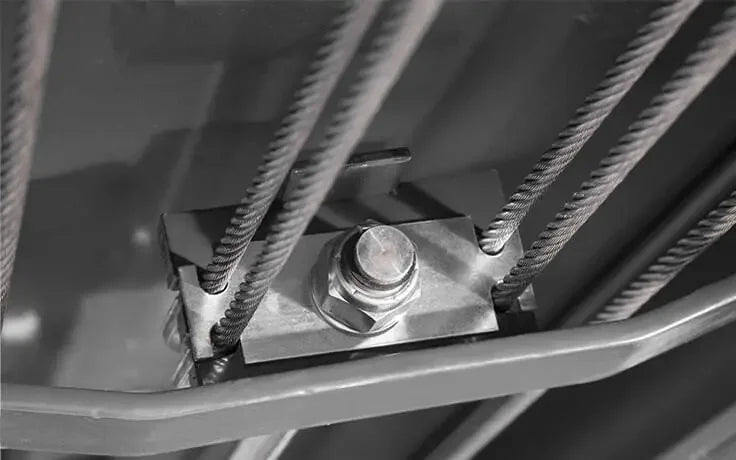

- Fully enclosed lifting cables, safety locks and sheaves
- Internal anti-sway slider blocks in each column

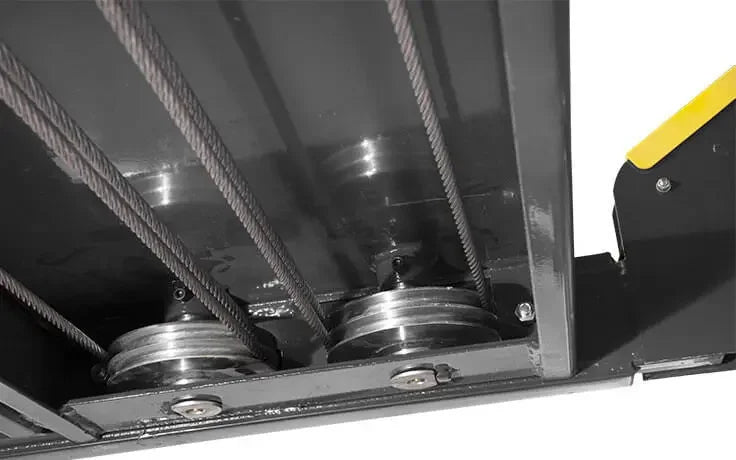

- Oversized self-lubricating cable rollers
- Features heavy-duty 3/8" aircraft cable
- Rugged 1.25" roller axles
- Multi-position safety locks in each column
- Adjustable lock ladders
- Runways feature a durable matte finish
- Push-button pneumatic safety release

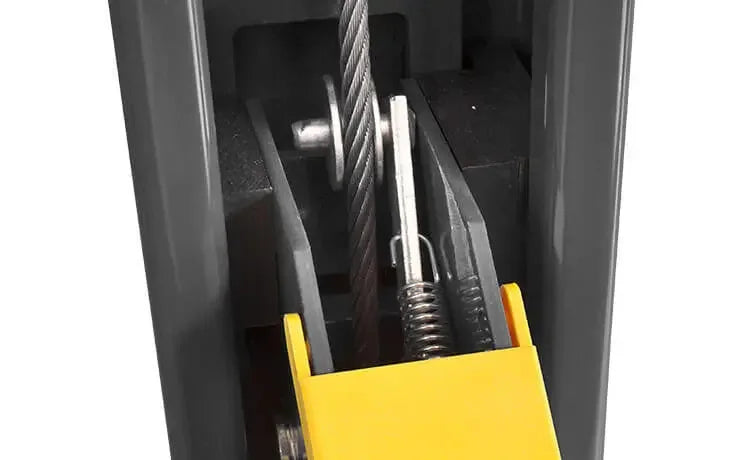

- Independent backup slack-cable safety latches
- Customizable power unit location
- Removable approach ramps for additional drive-under clearance
- Longer approach ramps for low-ground clearance vehicles
- Optional drive-thru ramps available
- Optional drip trays available
- Optional solid deck available to increase storage capacity
- Optional 4,500-lb. air / hydraulic rolling jacks available (Model RJ-45)
- ETL Approved

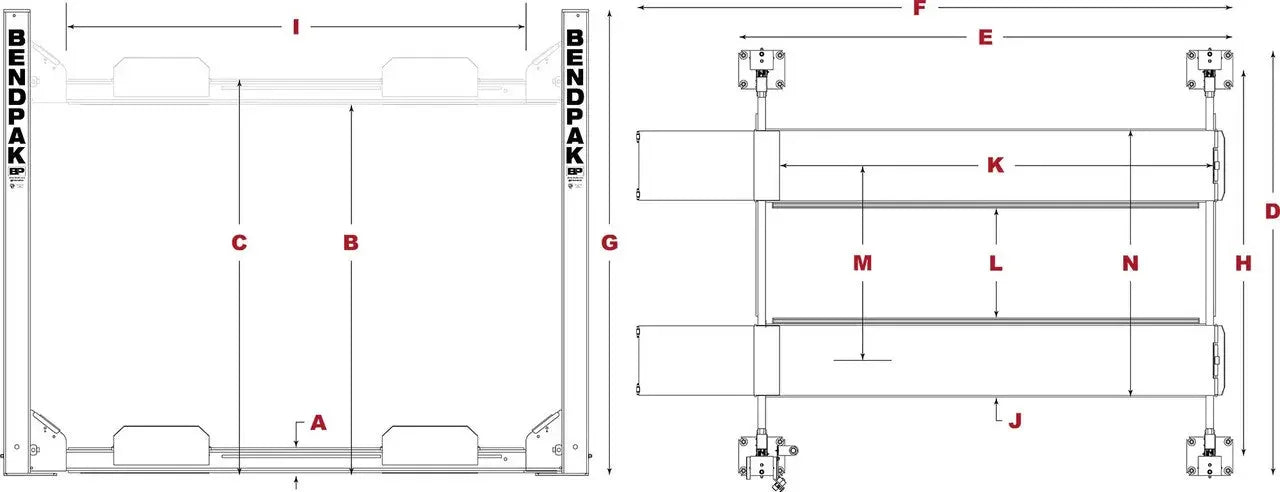

Product Specifications
Capacity
| Lifting Capacity: | 9,000 lbs. (4,082 kg) |
| Max. Capacity / Front Axle: | 4,500 lbs. (2,041 kg) |
| Max. Capacity / Rear Axle: | 4,500 lbs. (2,041 kg) |

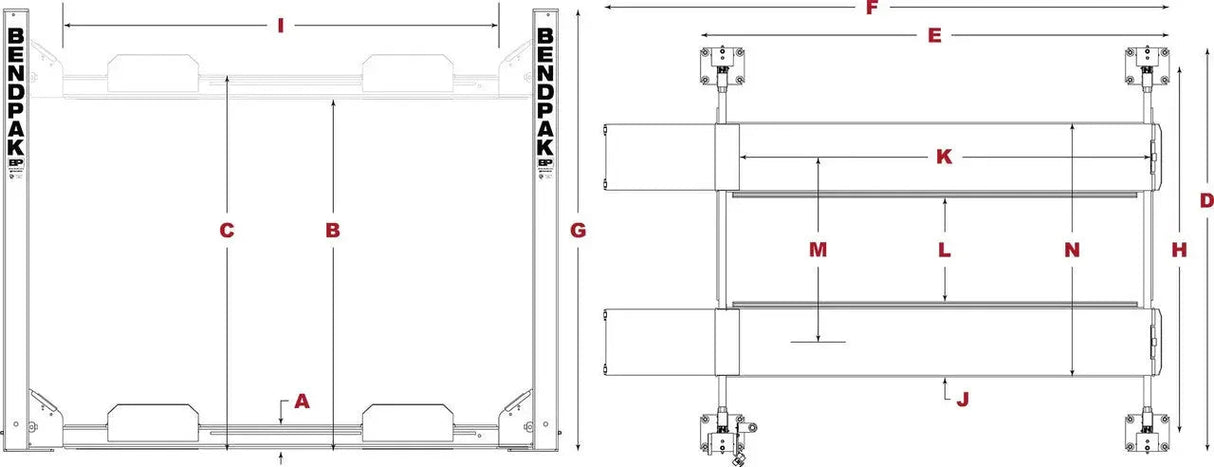

Rise
| A - Min. Runway Height | 4.5" (114 mm) |
| B - Max. Rise | 70" (1,778 mm) |
| C - Max. Lifting Height | 74.5" (1,892 mm) |
| Lifting Time: | 50 Seconds |
Outside Dimensions
| D - Overall Width | 110.25" (2,800 mm) |
| E - Outside Length | 174" (4,420 mm) |
| F - Overall Length | 200" (5,080 mm) |
| G - Height of Columns | 88" (2,235 mm) |
Inside Dimensions
| H - Width Between Columns | 89.75" (2,280 mm) |
| I - Drive-Thru Clearance | 76.5" (1,943 mm) |
Runways
| J - Runway Width | 19" (483 mm) |
| K - Length of Runways | 164" (4,166 mm) |
| L - Width Between Runways | 37.5" (952 mm) |
| M - Runway Centerline | 56.5" (1,435 mm) |
| N - Outside Edge of Runways | 75.5" (1,918 mm) |
Minimum Wheelbase
| Rated Capacity | 115" (2,921 mm) |
| 75% Capacity | 100" (2,540 mm) |
| 50% Capacity | 85" (2,159 mm) |
| 25% Capacity | 70" (1,778 mm) |
Locking
| Locking Positions | 12 |
| Lock Spacing: | Every 4" (102 mm) |
Power Unit
| Motor | 220 VAC /60 Hz / 1Ph |
| Noise | 45 dB |
Shipping
| Weight: | 1,592 lbs. (722 kg) |
| Dimensions (LxWxH): | 167" x 22" x 28" (4,242 mm x 558 mm x 711 mm) |
