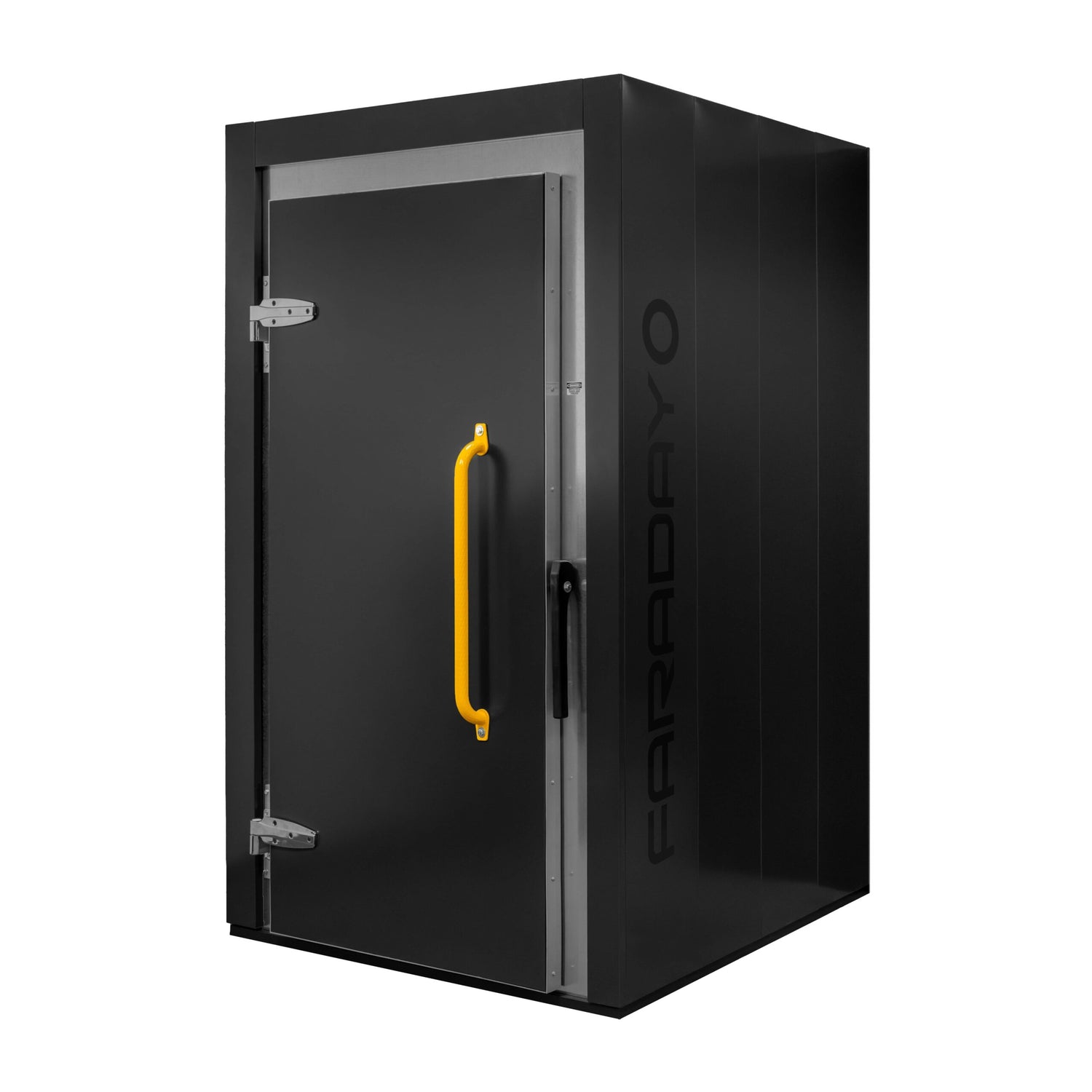

Hardwall Modular Faraday Enclosure – RF/EMI Portable Shielding Room – Faraday Cage

Dimensions: 4′ x 4′ x 7′ (accommodates one individual)

The 4′ x 4′ x 7′ is our smallest walk-in Faraday cage enclosure, designed primarily as a storage space for devices while providing room for one individual to operate inside. If you need to set up a full workstation or accommodate multiple people, we recommend opting for a larger, custom-sized solution.

Recommended Additions:

• 4′ x 6′ vestibule/mantrap to act as a signal “airlock.”
• 7′ height for standard rooms, 8′ height for rooms 10′ or taller.

Features:

• Two shielded honeycomb vents: lower intake with fan and sleeve, upper exhaust.

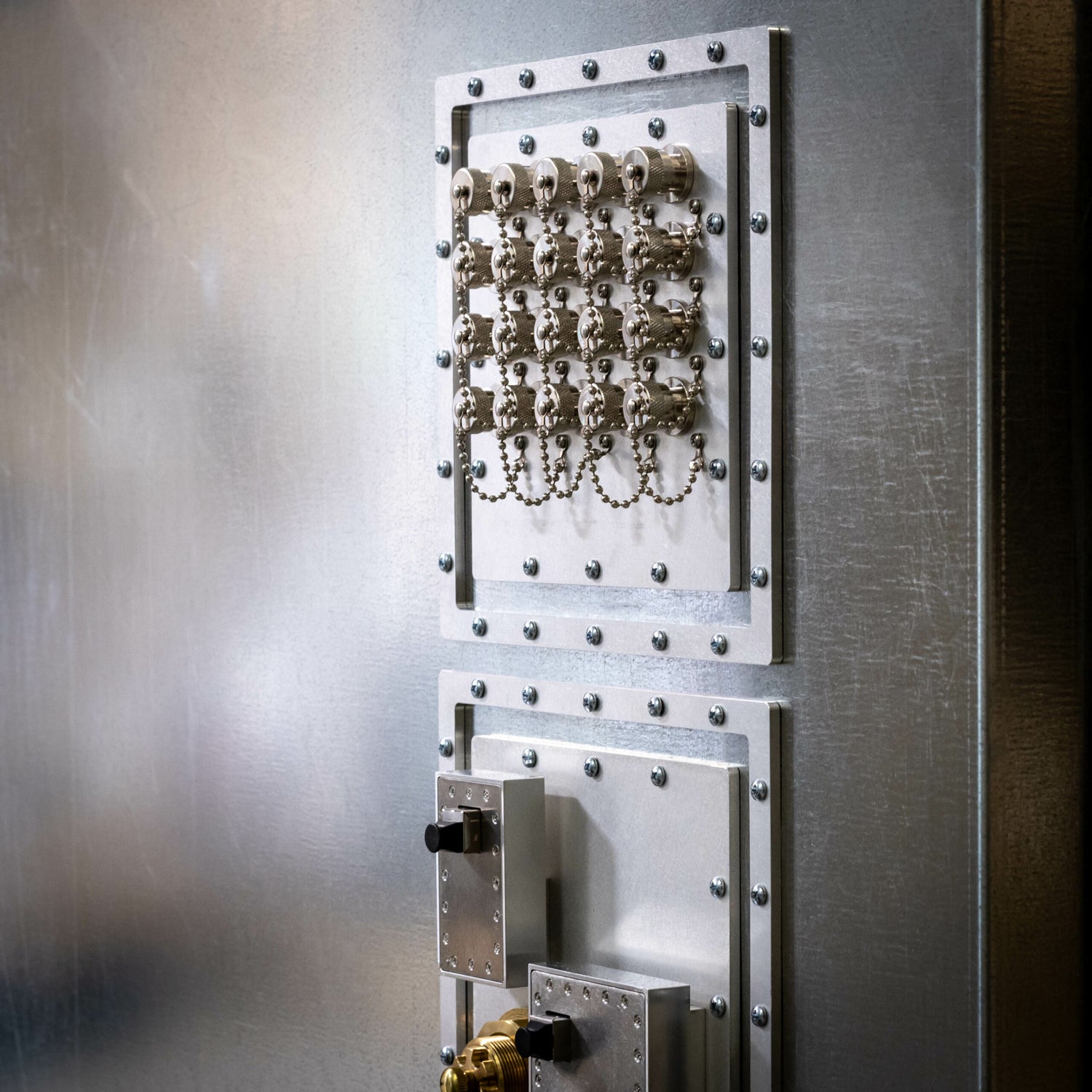

• AC Power and 1G Ethernet (can be customized for additional or alternative options).
• Custom-fabricated panels with tight-fitting seams.
• Floating door hinges.
• Gasketed sealing mechanism.
• Lightweight for easy LTL transportation.
• Optional fire suppression system.
• Test range: The enclosure offers an average shielding effectiveness of >85 dB attenuation from 400 MHz to 11 GHz, tested using IEEE 299 methods.

Faraday Cage Enclosures provide top-level security for forensic and anti-espionage investigations. These enclosures secure both devices and the surrounding area, ensuring that investigators can work in a protected space free from concerns of remote tampering or location detection.

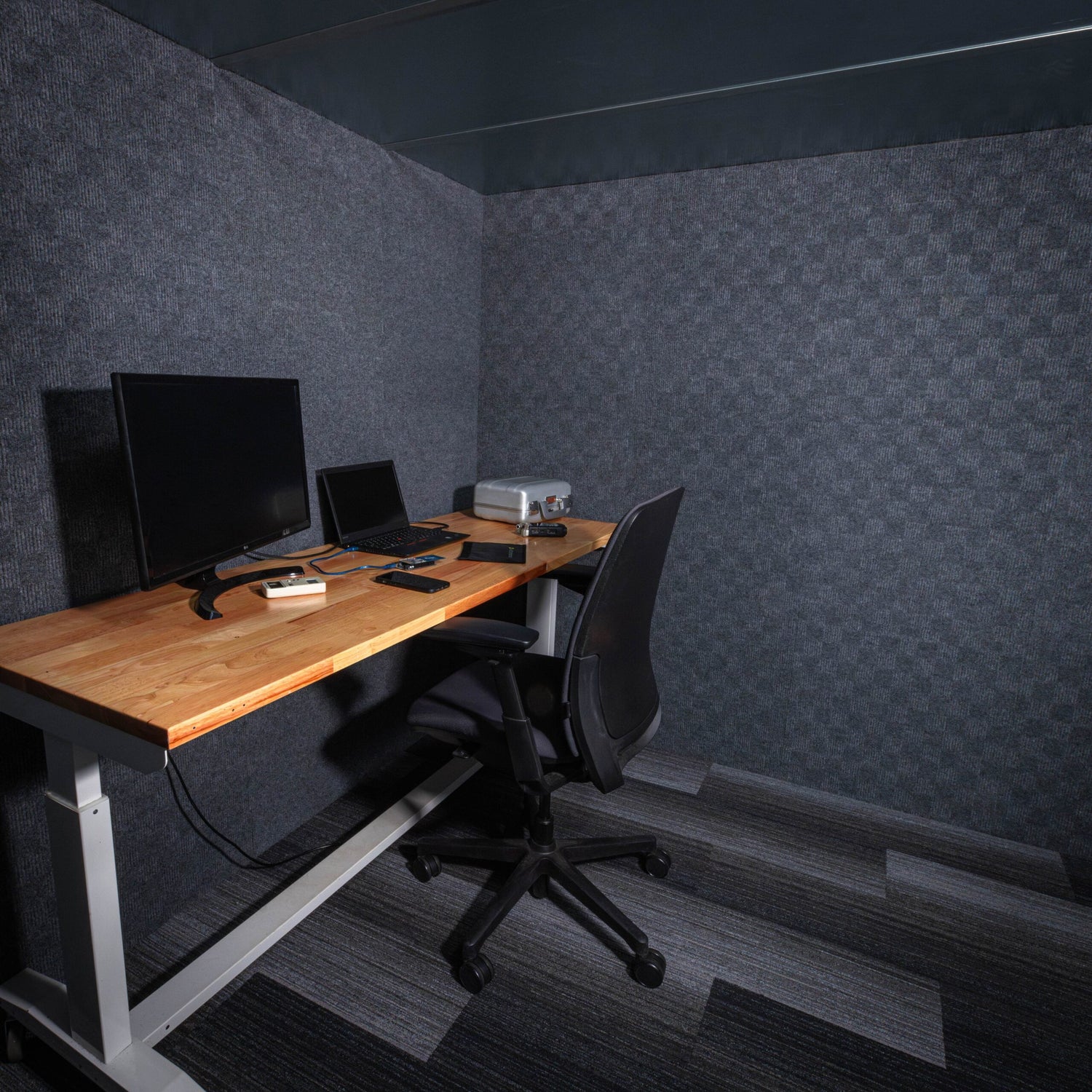

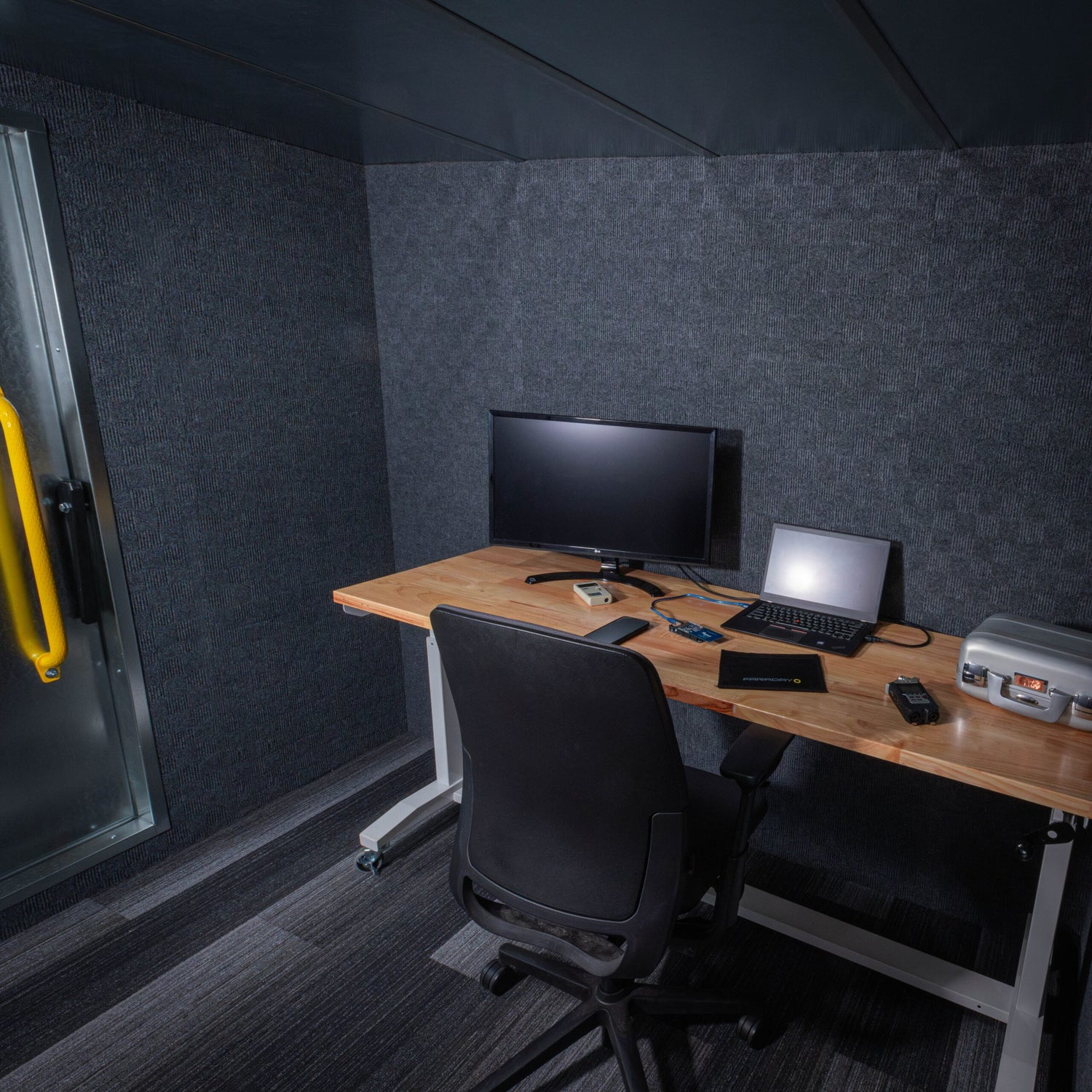

Inside the enclosure, transmitters are blocked, enabling secure communication for anti-espionage investigations, device storage, and other isolation-required tasks. Each enclosure features custom paneling, positive air ventilation, LED lighting, and options for shielded, customizable input/output configurations.

Faraday Cage Enclosures are crucial in various forensic scenarios. We offer both standard packages and fully customizable options to meet your precise needs.
