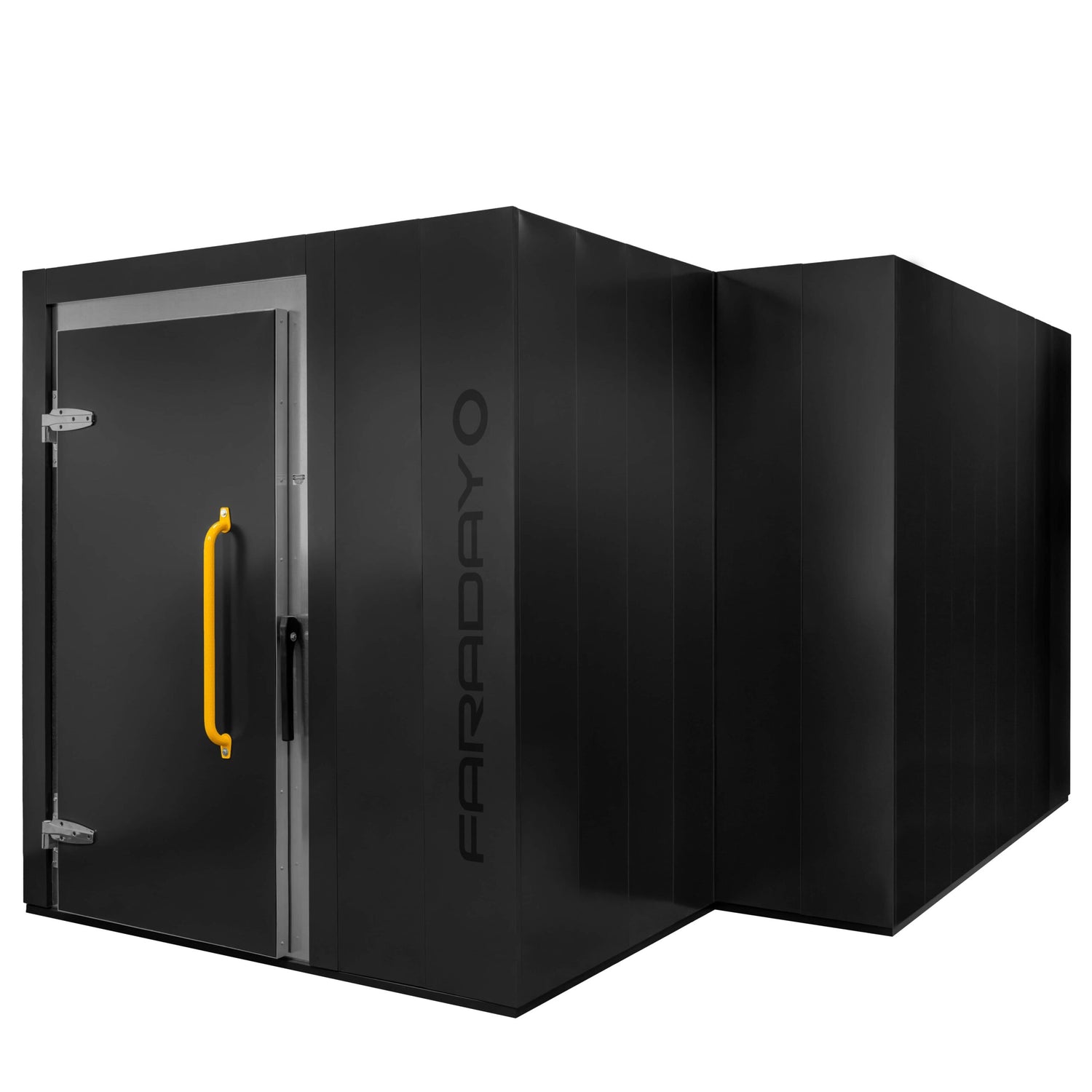

Hardwall modular faraday enclosure – rf/emi portable shielding room (8′ x 8′ x 7′) with vestibule (4′ x 6′ x 7′)

Dimensions: 8′ x 8′ x 7′ with a 4′ x 6′ x 7′ Vestibule

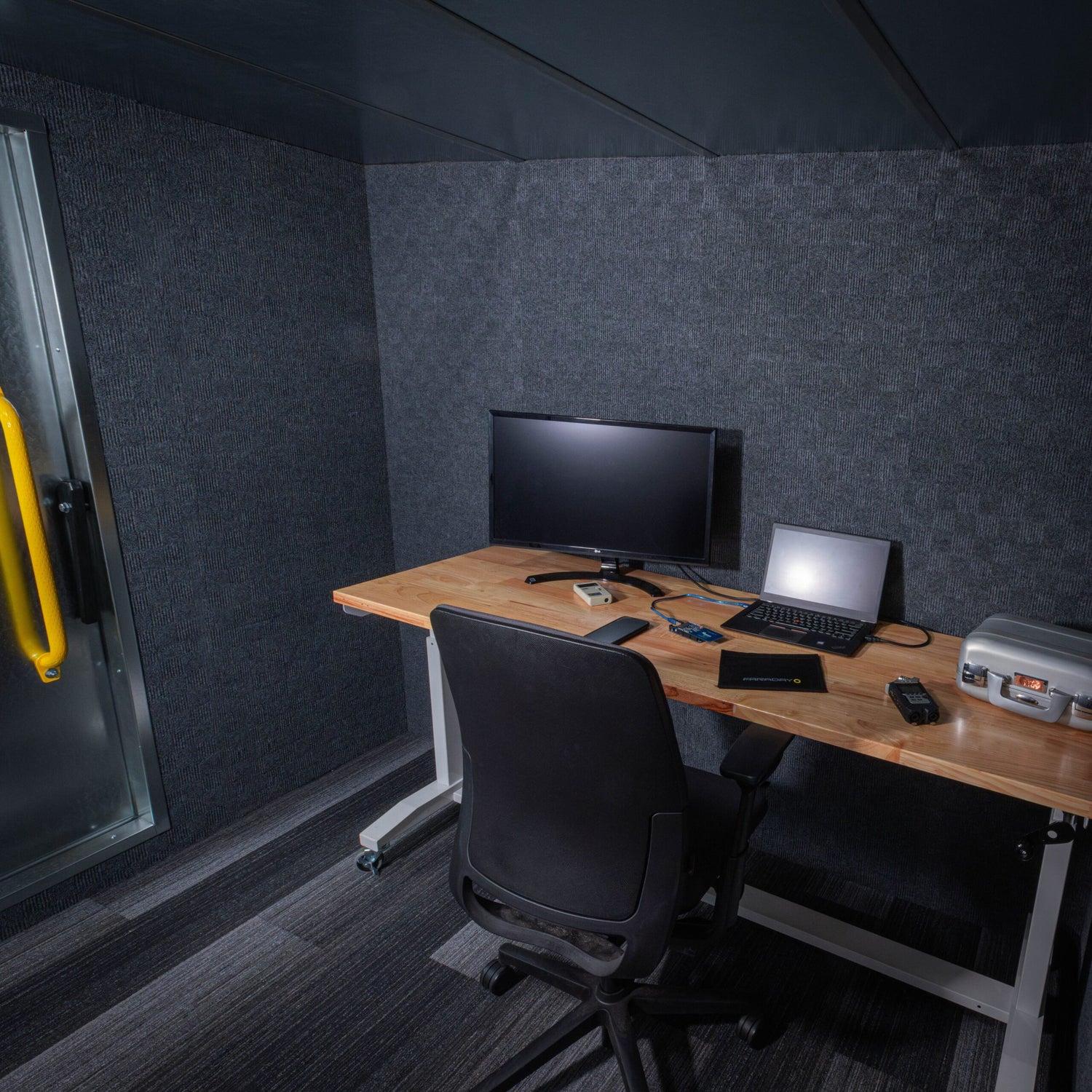

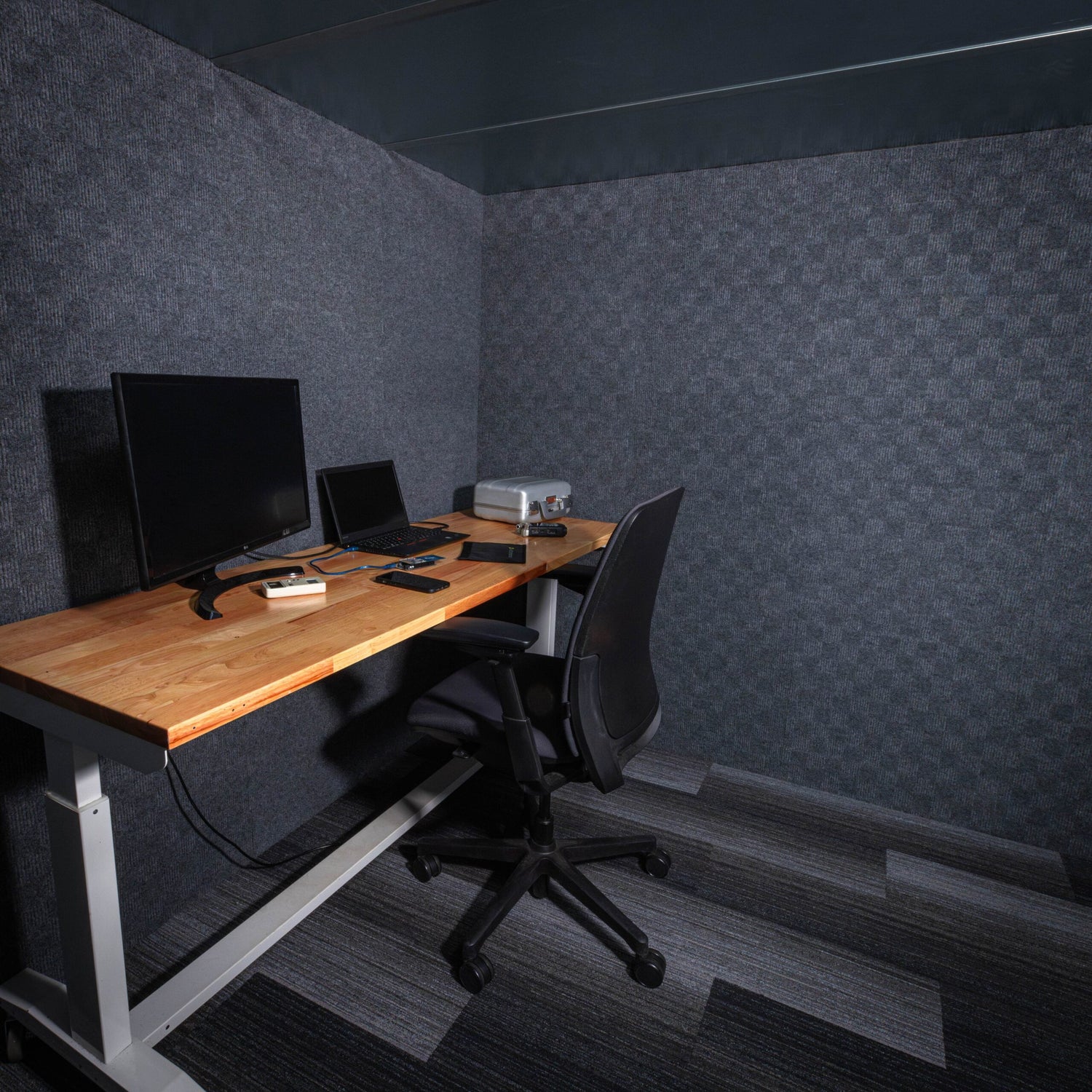

The 8′ x 8′ x 7′ enclosure comfortably accommodates 2-3 individuals, along with a desk and equipment. It offers a mid-sized workspace ideal for digital forensics, private operations, and device storage. The unit includes a 4′ x 6′ x 7′ vestibule, ensuring continuous shielding even when entering or exiting the enclosure.

Features:

• Two shielded honeycomb vents: lower intake with fan and sleeve, upper exhaust

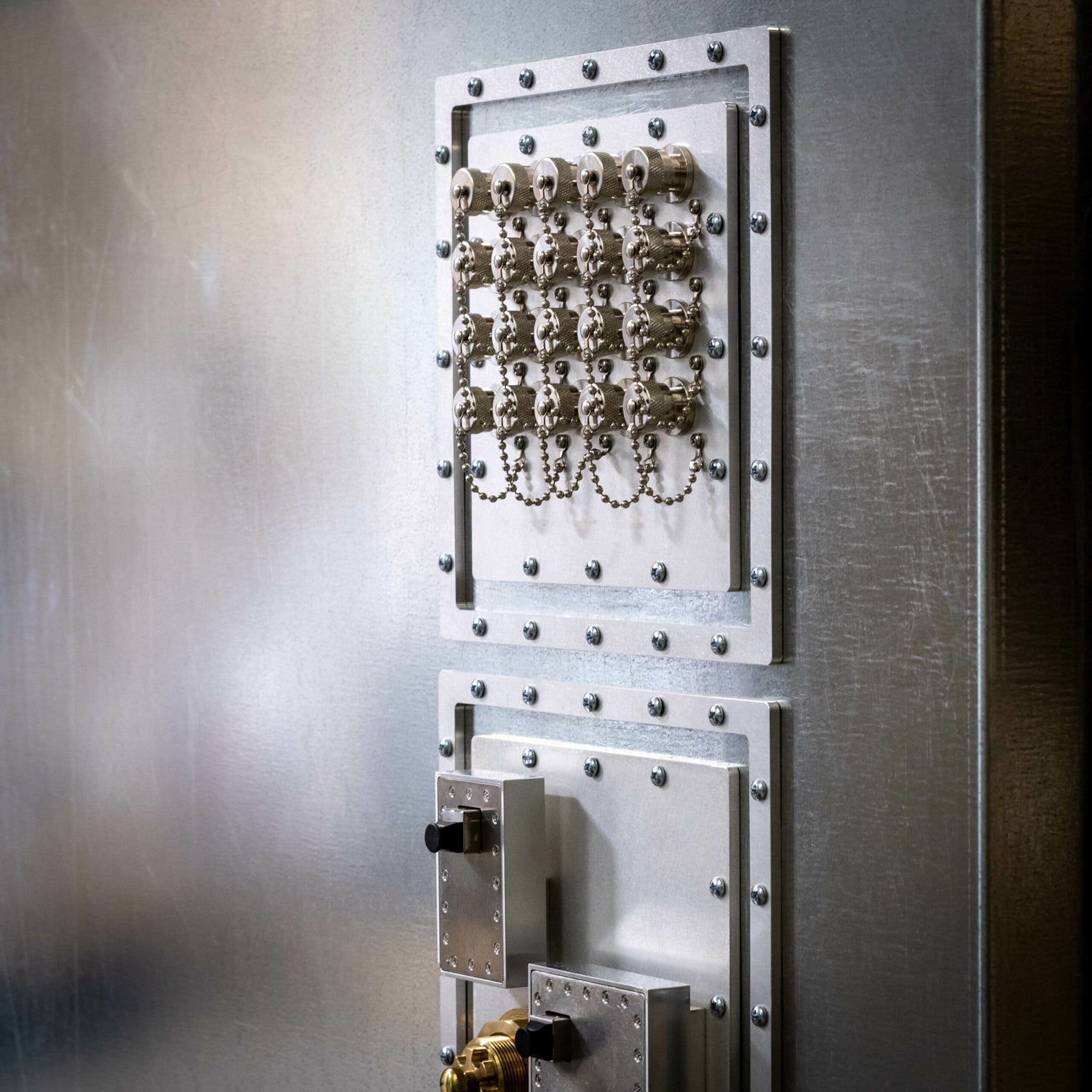

• AC Power and 1G Ethernet (customizable for additional or alternative options)
• Custom-fabricated panels with tight-fitting seams
• Floating door hinges
• Gasketed sealing mechanism
• Optional fire suppression system
• Test Range: The enclosure has an average shielding effectiveness of over 85 dB attenuation from 400 MHz to 11 GHz, tested using IEEE 299 methods.

Faraday Enclosures provide comprehensive security for forensic and anti-espionage investigations, ensuring that devices are protected and the entire space remains shielded from external threats. This allows investigators to work in a secure environment without the risk of remote tampering or location detection.

Inside the enclosure, transmitters are blocked, ensuring secure communication during anti-espionage operations, device storage, and any activities requiring isolation. Each structure is equipped with custom paneling, positive air ventilation, LED lighting, and customizable input/output options.

Faraday Enclosures are essential for a variety of forensic applications. We offer standard packages or can fully customize an enclosure to meet your specific needs.
