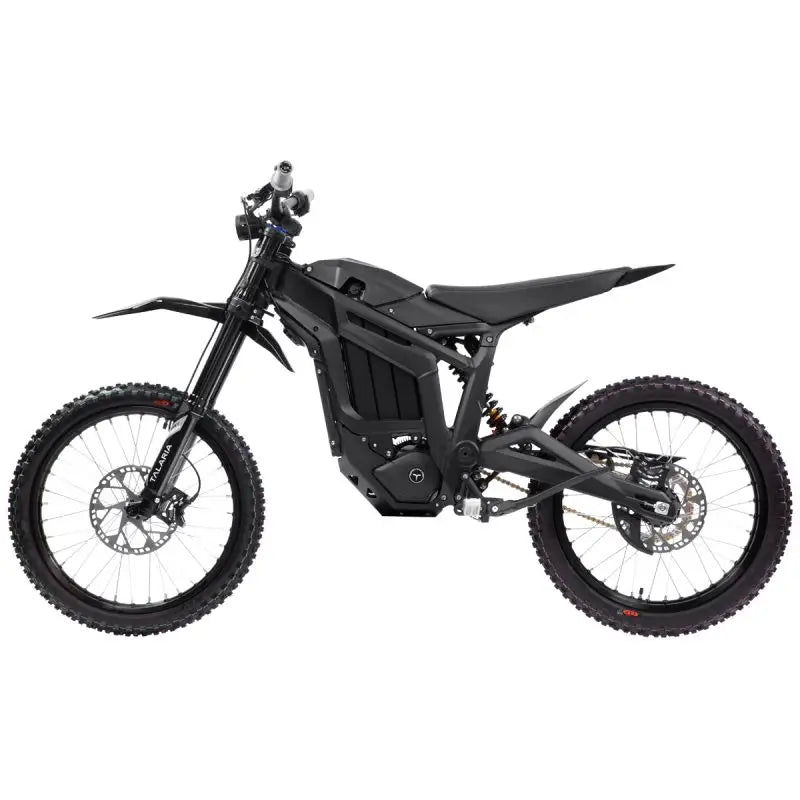

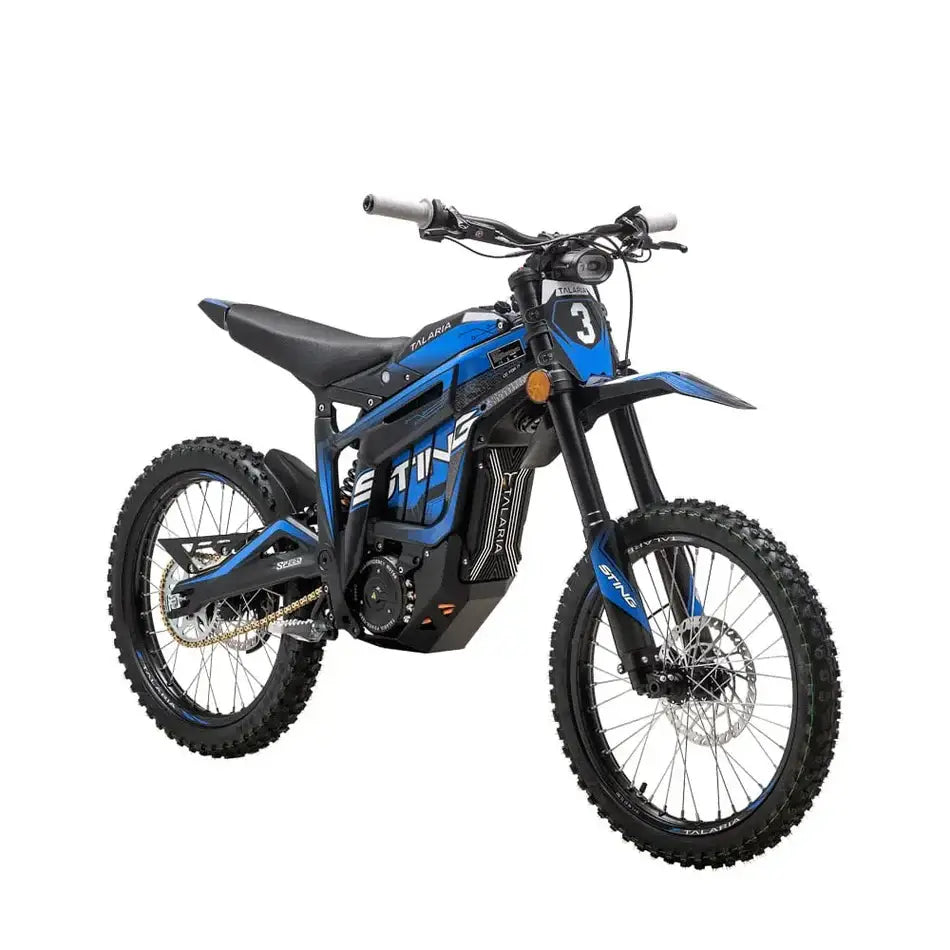

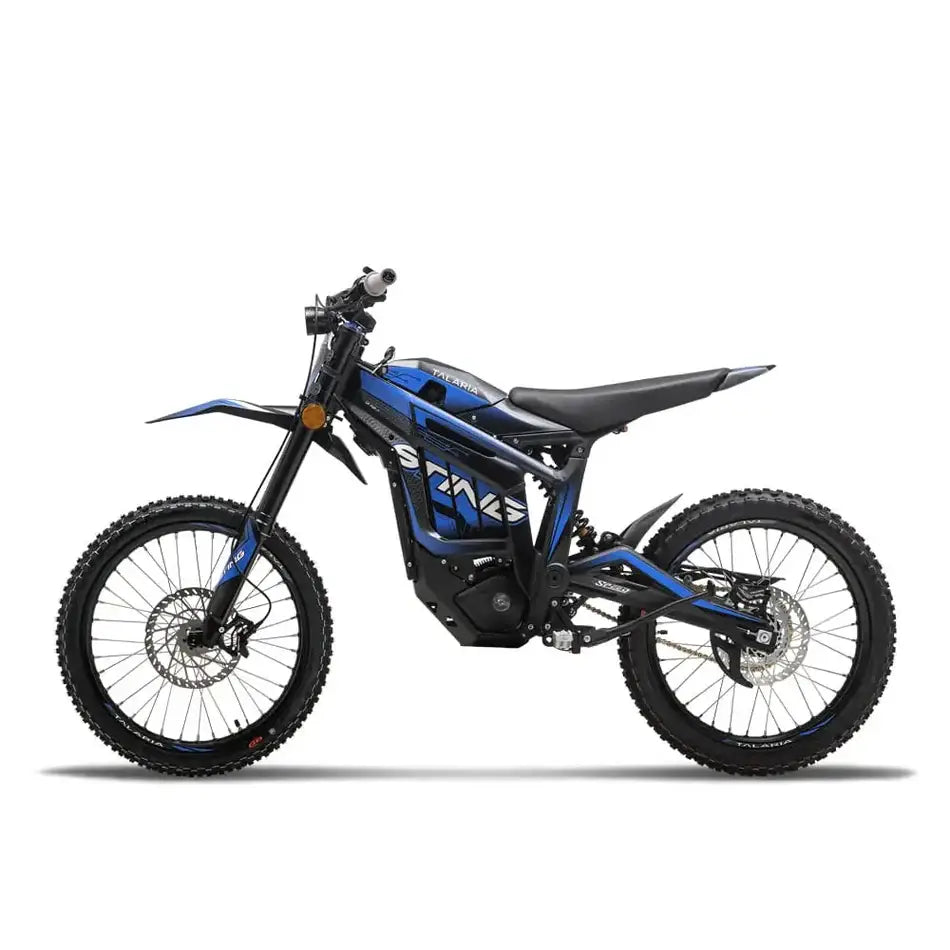

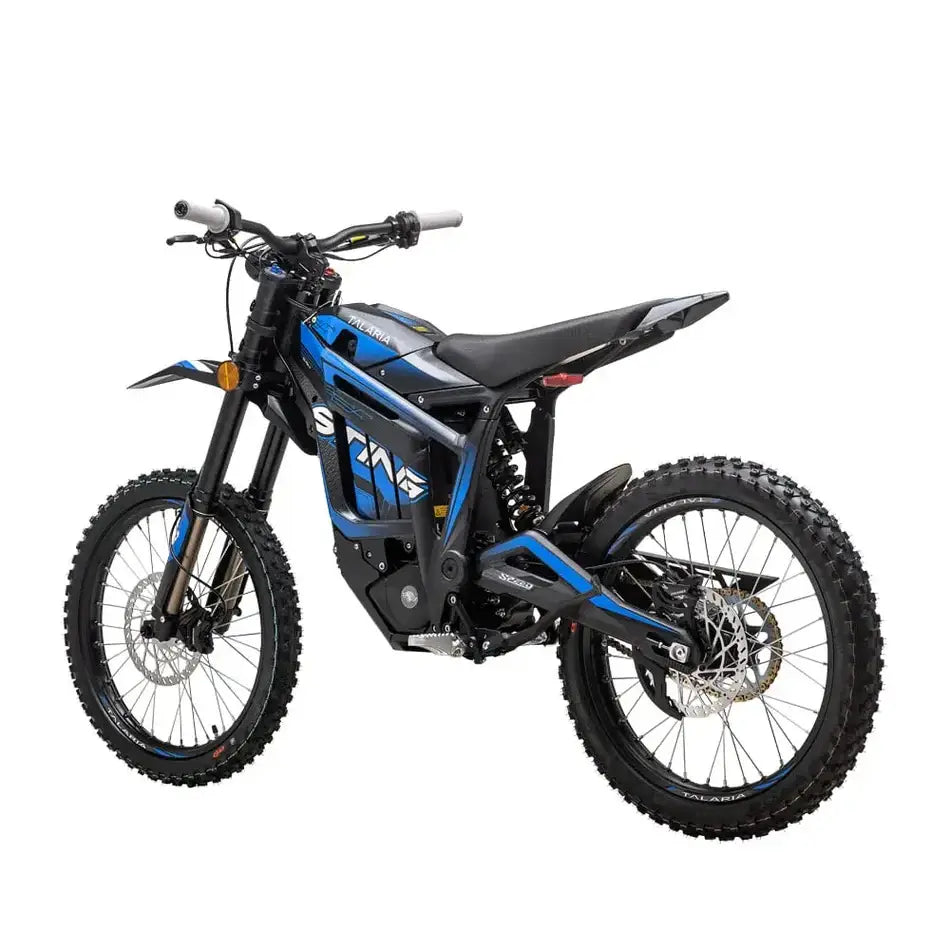

TALARIA STING R MX4

Talaria Sting R MX4 – Premier Electric Off-Road Bike

Introducing the Latest Talaria Sting R MX4 Model

Prepare yourself for exceptional off-road experiences with the Talaria Sting R MX4. This advanced electric dirt bike incorporates numerous improvements designed to elevate your riding adventures. Here are the key features that distinguish this bike:

Enhanced Longevity and Reduced Noise: The belt-driven system has been replaced with a gearbox mechanism, providing greater durability and significantly quieter operation for an improved riding experience. Maintenance is simplified with straightforward oil changes needed only every 3,000-5,000 miles, eliminating the need for frequent belt replacements.

Enhanced Stopping Performance: The bike prioritizes rider safety through an improved braking system that delivers excellent stopping capability and better heat management. Larger, thicker brake discs measuring 220mm x 2.3mm are installed on both wheels, paired with durable, noise-free brake pads for optimal control. Additionally, four adjustable levels of regenerative braking can be modified while riding, boosting efficiency, extending travel distance, and minimizing wear on the mechanical brakes.

Reasons to Select the TALARIA STING R

Advanced IPM Motor Technology: The MX4 utilizes an Interior Permanent Magnet motor with premium magnets and sophisticated engineering. This results in improved efficiency, superior heat management, and greater reliability. Issues with magnet displacement and demagnetization are eliminated. A magnetic encoder replaces traditional hall sensors, creating a more durable motor that can handle increased power while delivering smoother throttle response.

Powerful Battery System: Featuring a 60V 45Ah battery with LG 21700 cells, the Sting R MX4 provides 2,700 watt-hours of energy. This extends riding range while maintaining battery longevity—offering an 18% range increase over the Surron X battery, making it an excellent choice for off-road excursions.

Key Features:

• 30% increase in peak power, leading its class
• Rapid 3-hour charging capability
• Reinforced frame and swingarm construction
• Simple regenerative braking adjustment
• Enhanced battery connection system

2024 Model Improvements: The latest Talaria Sting R MX4 includes several significant upgrades:

• 30% power increase
• Extended range via 45Ah battery with LG cells
• Larger 220mm brake rotors
• 4-piston brake calipers and master cylinders
• DC IPM motor with 94% efficiency rating
• Fastace or Talaria Factory suspension options
• Redesigned seat
• Rear brake disc protection
• Upgraded 125-amp circuit breaker

Extended Range Capability: The Sting R includes a 60V 45Ah lithium-ion battery pack using LG 21700 cells. The battery is easily removable for unlimited riding possibilities. An advanced Battery Management System and optimized internal design ensure safe, high-performance operation during off-road use.

Sophisticated Controller: The controller provides excellent resistance to current fluctuations, interference protection, precise voltage and discharge management, error detection, temperature safeguards, runaway prevention, and intelligent energy recovery. This combination ensures powerful, thrilling, and safe riding with impressive range.

Clear OLED Display: A high-contrast OLED screen delivers easy-to-read information while consuming minimal power. Through CAN communication with the battery's BMS and motor controller, riders can view speed, remaining range, battery status, riding mode, and other vital data. The display is customizable for different riding scenarios.

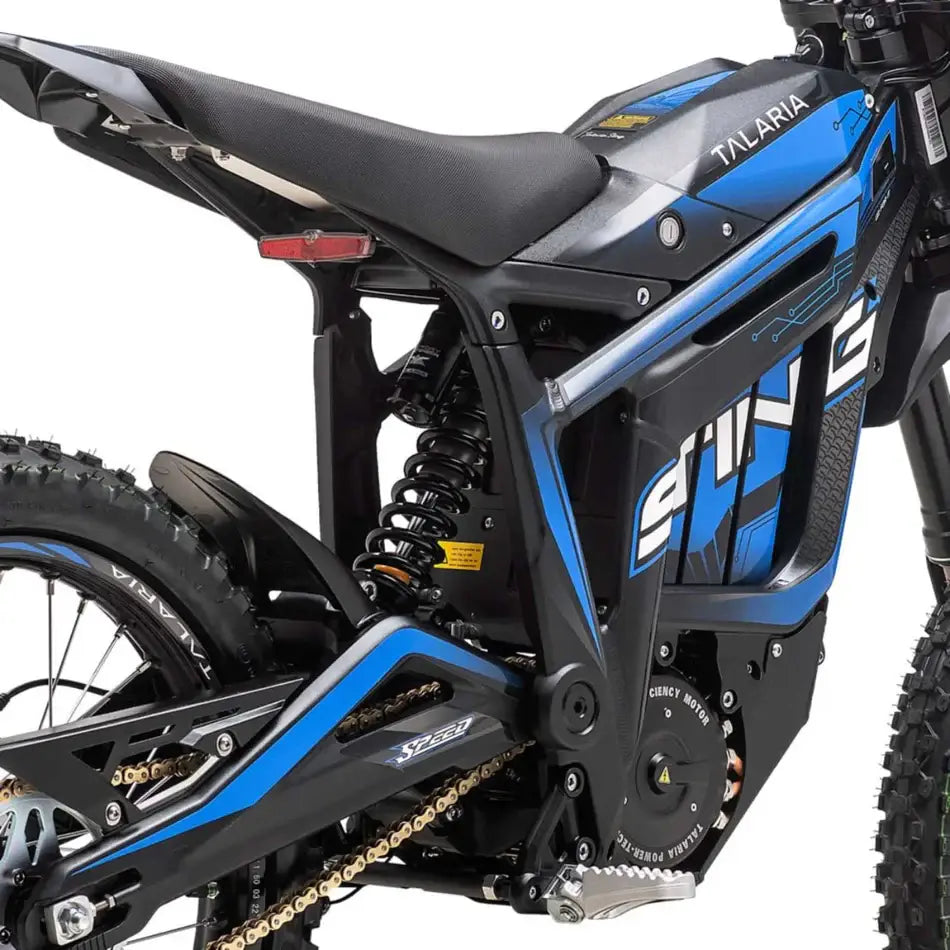

Durable Drivetrain: The custom drivetrain features a high-efficiency brushless permanent magnet synchronous mid-mounted motor, utilizing premium magnet materials and advanced manufacturing techniques. The motor produces 45N.m of peak torque and works with precision gears to create a quiet, long-lasting power delivery system.
