ACiQ 3.5 Ton Central Ducted Air Handler Multi-Position 21" Cabinet R454B

Product Details

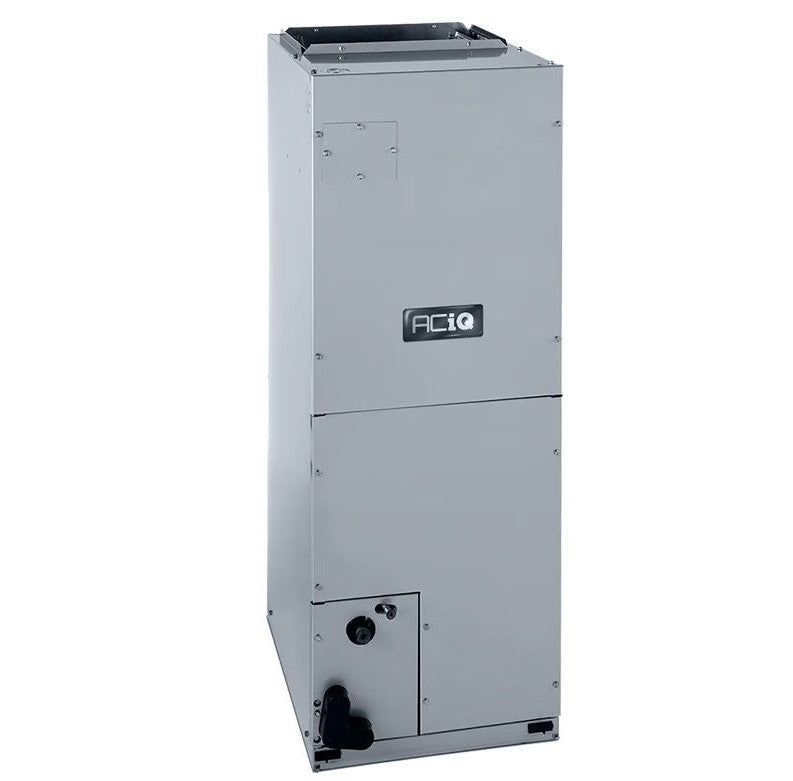

ACiQ 3.5 Ton Central Ducted Air Handler Multi-Position 21" Cabinet R454B ACIQ-42-AHD

ACiQ 3.5 Ton Central Ducted Air Handler – Multi-Position (Model ACiQ-42-AHD) Engineered for high-capacity performance and year-round comfort, the ACiQ-42-AHD 3.5-ton air handler features a variable speed DC blower and smart communicating technology. It works seamlessly with your inverter condenser and thermostat to adjust BTU output automatically, enhancing efficiency and maintaining precise indoor temperatures. This multi-position unit (upflow, downflow, or horizontal) installs easily into your existing ductwork and is fully compatible with R454B refrigerant. Ideal for larger spaces, it provides reliable, quiet air distribution throughout your home.

ACiQ-42-AHD 3.5 Ton Air Handler – Key Features

• Variable Speed DC Blower
  The ACiQ-42-AHD Air Handler features a variable speed DC blower for precise airflow control, resulting in enhanced comfort and energy efficiency. This advanced blower automatically adjusts its speed to meet your home’s heating and cooling needs in real time.

• Communicating Technology for Intelligent Performance
  Designed with smart communicating technology, this air handler works in tandem with your inverter condenser and thermostat to self-adjust BTU output. This ensures optimal comfort, lower energy use, and a smoother system operation year-round.

• 42,000 BTU Capacity (3.5 Ton)
  With a 42,000 BTU (3.5 ton) capacity, the ACiQ-42-AHD is ideal for larger residential spaces that require powerful, reliable climate control across multiple zones or rooms.

• Efficient Air Distribution Through Existing Ductwork
  This air handler is made for central ducted systems and integrates seamlessly with your home’s existing ductwork. It delivers even heating and cooling throughout your space while maintaining quiet operation.

• Flexible Multi-Positional Installation
  The multi-positional design allows for upflow, downflow, or horizontal left/right installation, making it a great fit for a wide range of system layouts and mechanical room configurations.

• 24V Thermostat Compatible
  Compatible with any 24V thermostat, the ACiQ-42-AHD gives homeowners the flexibility to pair it with their preferred smart or programmable thermostat.

• Eco-Friendly R454B Refrigerant Compatibility
  Built to work with R454B refrigerant, this air handler supports a more environmentally responsible HVAC system by reducing your carbon footprint and meeting future compliance standards.

Installation and Maintenance

Installing the ACiQ central ducted air handler is similar to installing any standard replacement air handler. Your technician will handle the electrical, refrigerant, thermostat, and communication connections, as well as linking the air handler to your return and supply ductwork. This unit is highly versatile, as it is multi-positional—capable of being installed in upflow, downflow, or horizontal orientations.

The system can be controlled by any 24V thermostat with two stages of heating, and supplemental electric heat kits are available for backup heating during the coldest days. Should maintenance be necessary, the intelligent control board in the air handler will display fault codes to help identify any issues with the system.

Please Note: For proper operation, the air handler must be paired with a condenser and other installation equipment, which are sold separately if not included in the product bundle. Additionally, if you wish to use straight electric heating, an electric heat kit is required, which is also available at an additional cost.

Specifications

ACiQ 3.5 Ton Central Ducted Air Handler Multi-Position 21" Cabinet R454B ACIQ-42-AHD

Warranty

ACiQ 3.5 Ton Central Ducted Air Handler Multi-Position 21" Cabinet R454B ACIQ-42-AHD

Documents

ACiQ 3.5 Ton Central Ducted Air Handler Multi-Position 21" Cabinet R454B ACIQ-42-AHD

AHD Installation Manual

AHD Owner's Manual
